0-60 — ENGINE ELECTRICAL CONTROL PARTS (#47620) — 182 parça
çizim 12284
219 418 553 555 211 553 612 606 613
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0102-0112 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0201-0501 ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ●
211 02.343 NUT; CABLE FIX
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0102-0309 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0310-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0102-0112 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0201-0501 ● ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0502- ● ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0102-0501 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0502- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0102-0112 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0201-0501 ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0502- ● ●
418 02.559 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
418 02.559 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
418 02.559 BOLT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0102-0309 ●
418 02.559 BOLT; CLIP
CHARGE AIR COOLER<6PL> M8X25 FLANGE 		0-28680-825-0 01 1 0310-0501 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-1 01 1 0502- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97255-071-0 01 1 0102-0501 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-071-1 01 1 0502- ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0201-0501 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0502- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0102-0112 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0201-0501 ● ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0502- ● ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97188-280-0 01 1 0102-0309 ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> (B) 		8-97188-280-0 01 1 0310-0501 ●
606 03.680 BRACKET; CONT UNIT
CHARGE AIR COOLER<6PL> 		8-97302-970-2 01 1 0102-0501 ●
606 03.680 BRACKET; CONT UNIT 8-97302-970-2 01 1 0502- ●
612 02.510 BOLT; BRKT
16.585 (B) M8X20 		1-09981-468-0 01 1 0102-0112 ●
612 02.510 BOLT; BRKT
16.585 (B) M8X20 		1-09981-468-0 01 1 0201-0501 ● ●
612 02.510 BOLT; BRKT
16.585 (B) M8X20 		1-09981-468-0 01 1 0502- ● ●
612 02.510 BOLT; BRKT
CHARGE AIR COOLER<6PL> 04.930 (A) M6X20 FLANGE 		0-28680-620-0 02 1 0102-0501 ●
612 02.510 BOLT; BRKT
04.930 (A) M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
612 02.510 BOLT; BRKT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> 		8-97223-184-1 01 1 0102-0501 ●
613 03.670 CONTROL UNIT; ENG 8-97223-184-2 01 1 0502- ●

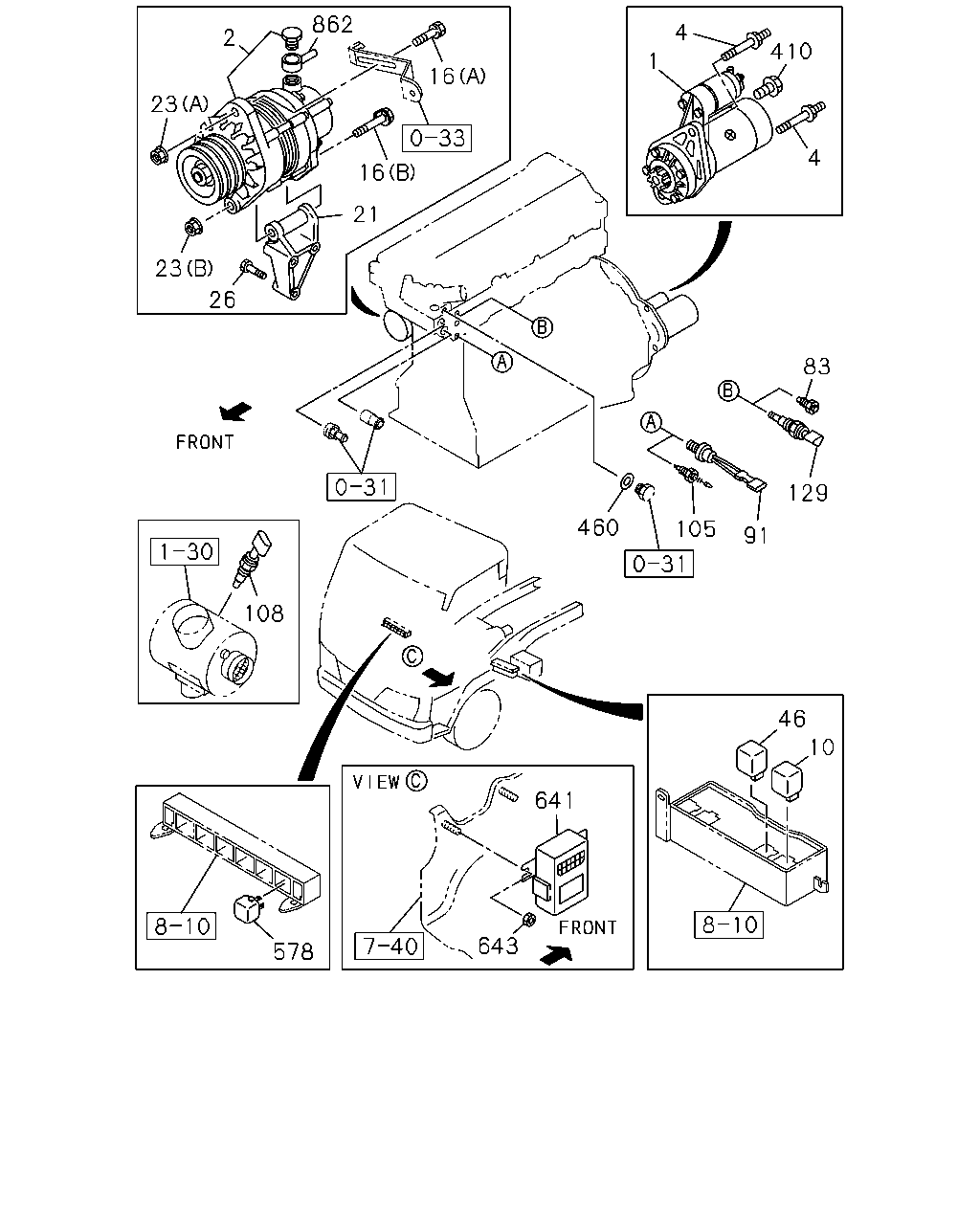

çizim 50496
862 4 2 410 1 16 23 4 16 21 23 26 83 129 460 105 91 108 46 10 641 643 578
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0102-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110-0112 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97323-935-2 01 1 0201-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0201-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0201-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) CHARGE AIR COOLER<6PL> 24V 60A 		8-97250-258-1 01 1 0102-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-1 01 1 0106-0112 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A 		8-97250-258-2 01 1 0201-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A 		8-97250-258-2 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0102-0112 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A 		8-97175-390-1 01 1 0201-0201 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A 		8-97300-353-0 01 1 0202-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A HITACHI 		8-97351-573-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 60A HITACHI 		8-97351-573-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A HITACHI 		8-97351-573-0 01 1 0309- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 24V 60A 		8-97300-353-0 01 1 0306-0308 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0102-0112 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0201-0501 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502- ● ●
10 02.100 RELAY; STARTER
02.510 24V 50A 		8-97173-947-0 01 1 0102-0112 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0201-0501 ● ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0502- ● ●
16 02.277 BOLT; GEN
02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0102-0112 ●
16 02.277 BOLT; GEN
02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0201-0501 ● ●
16 02.277 BOLT; GEN
02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502- ● ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0102-0112 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0201-0501 ● ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0502- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0102-0112 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0201-0501 ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0502- ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0102-0112 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0201-0501 ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0102-0112 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0201-0501 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0102-0112 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0201-0501 ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0502-0512 ● ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0102-0112 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0201-0501 ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0502-0512 ● ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0102-0112 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 0201-0301 ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0302-0303 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 0304-0501 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 0502- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0201- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0201- ●
91 01.150 SWITCH; THERMO HTR
03.883 		8-97038-625-0 01 1 0102-0402 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0201- ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> 		8-97189-295-0 01 1 0102-0501 ●
108 01.150 SWITCH; THERMO 8-97189-295-0 01 1 0502- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0102-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0502- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0102-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0502-1007 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0102-0112 ●
410 02.343 BOLT; BRKT,GRAND
M/T MXA5R(RMT),M/T MBP6P(RNC) 12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0201-0301 ● ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0102-0501 ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0502- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-1 01 1 0102-0112 ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0201-0501 ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 0201-0301 ●
641 02.510 TIMER; QOS
EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 0302-0302 ●
641 02.510 TIMER; QOS 8-97215-648-0 01 1 0302-0302 ●
641 02.510 TIMER; QOS
EXC. CHARGE AIR COOLER<6PL> 		8-97361-318-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS 8-97361-318-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 0502- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0201-0301 ●
643 02.510 NUT; TIMER,QOS
EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0501 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0501 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0305-0305 ●
862 02.313 CONNECTOR; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0309- ●

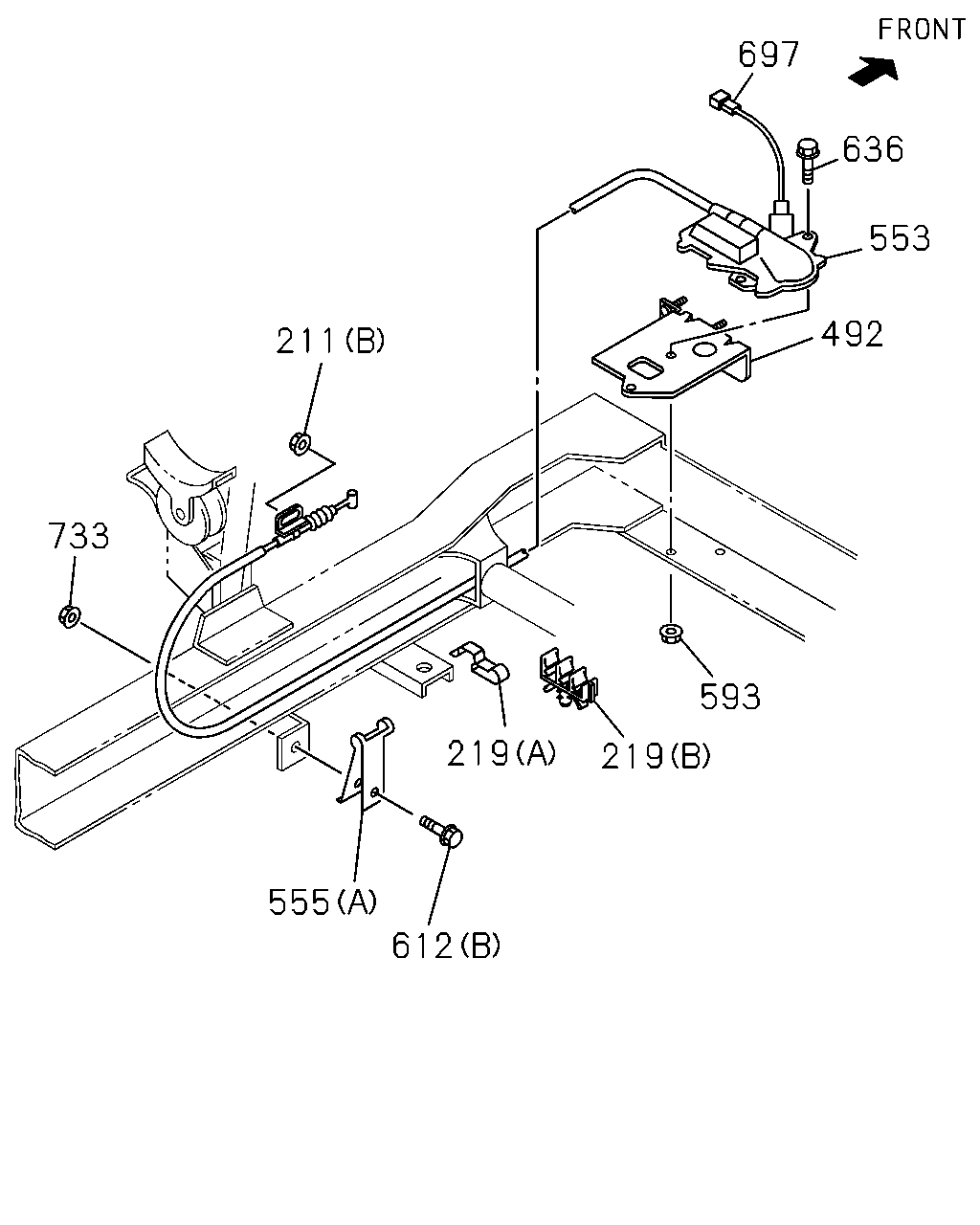

çizim 50964
697 636 553 492 211 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0102-0112 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0201-0501 ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ●
211 02.343 NUT; CABLE FIX
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0102-0309 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0310-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0102-0112 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0201-0501 ● ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0502- ● ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0102-0501 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0502- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0102-0112 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0201-0501 ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0502- ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0102-0112 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0201-0501 ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0502- ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-1 01 1 0502- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97255-071-0 01 1 0102-0501 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-071-1 01 1 0502- ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0201-0501 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0502- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0102-0112 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0201-0501 ● ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0502- ● ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97188-280-0 01 1 0102-0309 ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> (B) 		8-97188-280-0 01 1 0310-0501 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0112 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0201-0501 ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ● ●
593 02.483 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
612 02.510 BOLT; BRKT
16.585 (B) M8X20 		1-09981-468-0 01 1 0102-0112 ●
612 02.510 BOLT; BRKT
16.585 (B) M8X20 		1-09981-468-0 01 1 0201-0501 ● ●
612 02.510 BOLT; BRKT
16.585 (B) M8X20 		1-09981-468-0 01 1 0502- ● ●
612 02.510 BOLT; BRKT
CHARGE AIR COOLER<6PL> 04.930 (A) M6X20 FLANGE 		0-28680-620-0 02 1 0102-0501 ●
612 02.510 BOLT; BRKT
04.930 (A) M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
612 02.510 BOLT; BRKT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0102-0112 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201-0501 ● ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ●
636 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0102-0112 ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0201-0501 ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0502- ● ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0102-0112 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0201-0501 ● ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
733 02.343 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
