Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#47619) — 172 parça

92 47 73 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0507-	●
47	03.675 HOSE; VAC,VSV EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0201-0301	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0302-0501	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=310	8-97037-962-2	01	1	0502-	●
52	03.680 CLIP; VSV HOSE EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0201-0301	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0302-0501	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5	8-97019-084-0	01	1	0502-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	03	1	0102-0501		●
73	03.680 CLIP; VAC HOSE 03.162 L=140	5-09707-031-1	03	1	0502-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	02	1	0302-0501		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	0201-0301	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	0302-	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0201-0301	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0302-0501	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8>	8-97106-645-3	01	1	0502-	●

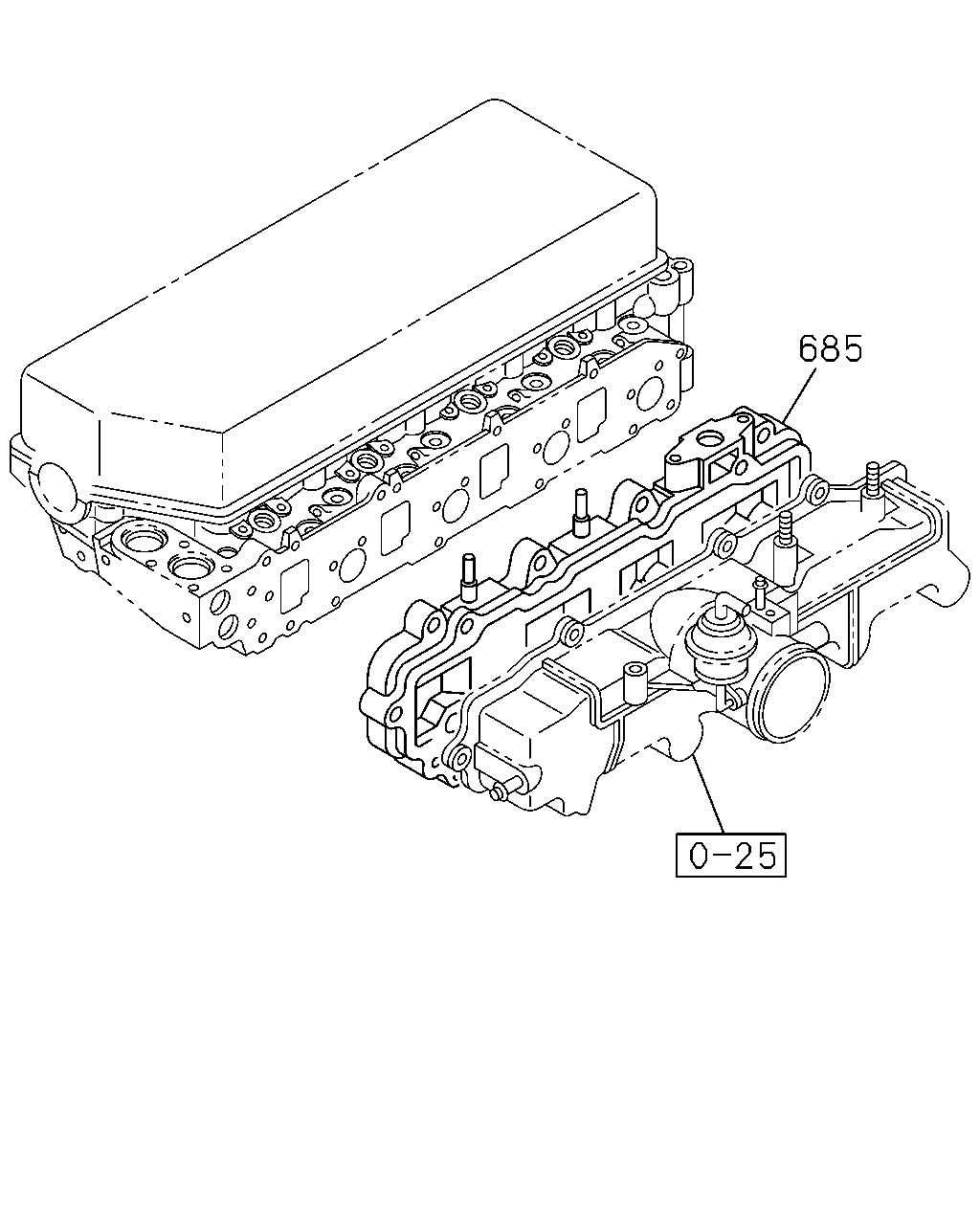

685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FASTGLOW SYSTEM<KM6>,POWER STEERING<N40>,TA IWAN EQUIPMENT(RWV)	8-97146-873-1	01	1	0201-0301	●
685	03.680 CASE; INLET,EGR HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. TAIWAN EQUIPMENT(RWV)	8-97146-873-1	01	1	0201-0301	●
685	03.680 CASE; INLET,EGR FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ>	8-97146-873-1	01	1	0201-0301	●
685	03.680 CASE; INLET,EGR FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV)	8-97146-873-1	01	1	0201-0301	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TAIWAN EQUIPMENT(RWV)	8-97146-873-1	01	1	0201-0301	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8>	8-97146-873-1	01	1	0302-0303	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FASTGLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK>	8-97146-873-1	01	1	0304-0501	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FASTGLOW SYSTEM<KM6>,POWER STEERING<N40>,GL OW SYSTEM DELETE<7RK>	8-97146-873-1	01	1	0304-0501	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VEHICLE CATEGORY NQR<7NQ> GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), POWER STEERING<N40>	8-97146-873-1	01	1	0304-0501	●
685	03.680 CASE; INLET,EGR FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8>	8-97146-873-1	01	1	0304-0501	●
685	03.680 CASE; INLET,EGR HIGH ALTITUDE COMPENSATOR(EE2) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. POWER STEERING<N40>	8-97146-873-1	01	1	0502-0506	●
685	03.680 CASE; INLET,EGR FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. POWER STEERING<N40>	8-97146-873-1	01	1	0502-0506	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), GLOWSYSTEM DELETE<7RK>	8-97146-873-1	01	1	0502-0506	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FASTGLOW SYSTEM<KM6>,POWER STEERING<N40>	8-97146-873-1	01	1	0502-0506	●
685	03.680 CASE; INLET,EGR HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ>	8-97146-873-1	01	1	0502-0506	●
685	03.680 CASE; INLET,EGR FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VEHICLE CATEGORY NQR<7NQ> GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97146-873-1	01	1	0502-0506	●
685	03.680 CASE; INLET,EGR FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ>	8-97146-873-1	01	1	0502-0506	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0507-	●

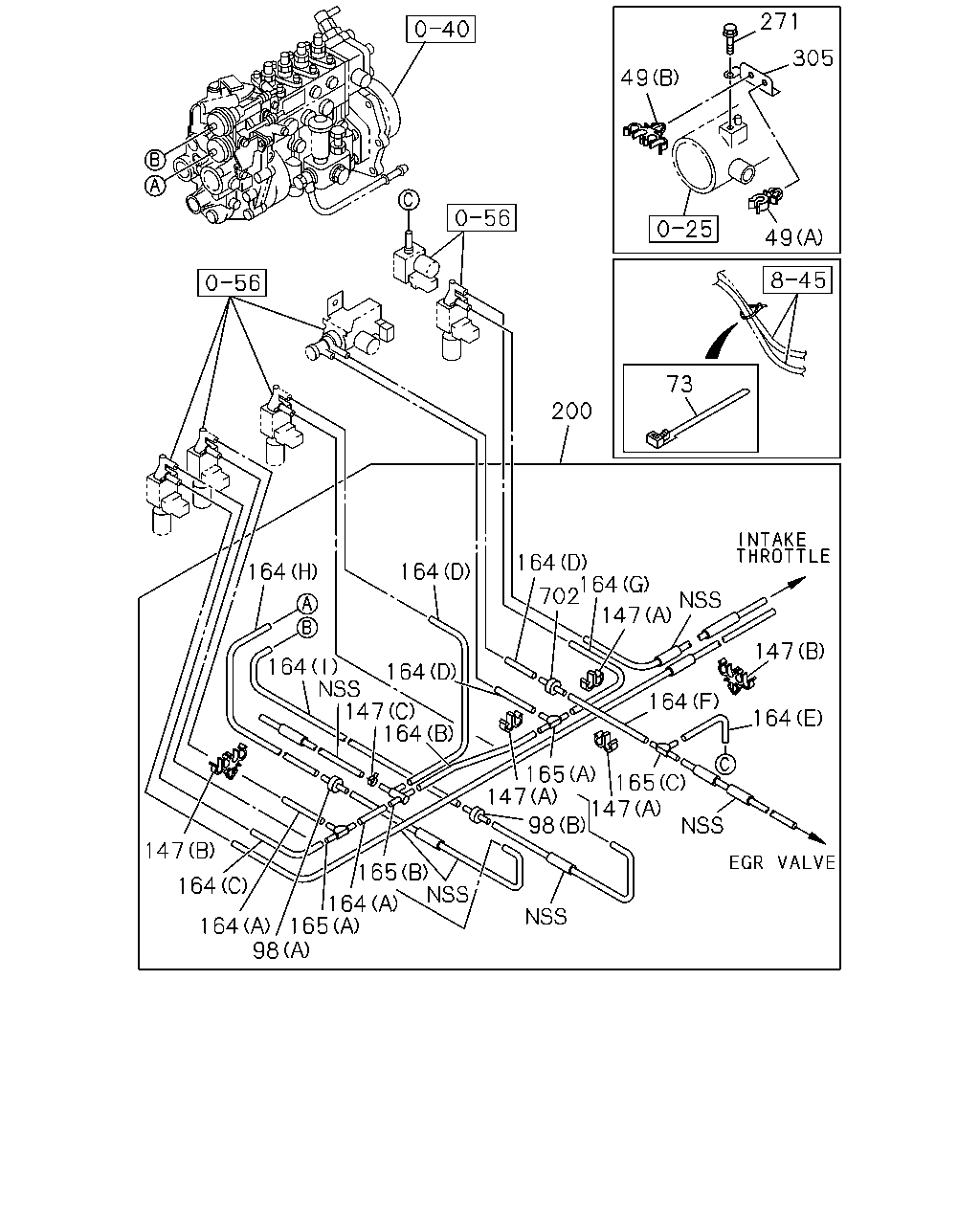

271 305 49 49 73 200 164 164 702 164 164 147 147 164 147 164 164 164 164 165 147 165 147 98 147 165 164 164 164 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.162 (A)	8-94253-984-0	01	1	0102-0501		●
49	03.680 CLIP; HOSE 03.162 (A)	8-94253-984-0	01	1	0502-			●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	01	1	0102-0501		●
49	03.680 CLIP; HOSE (B) 4XID=6.7	8-94315-422-0	01	1	0502-			●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	03	1	0102-0501		●
73	03.680 CLIP; VAC HOSE 03.162 L=140	5-09707-031-1	03	1	0502-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	02	1	0302-0501		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	0201-0301	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	0302-	●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	0102-0501		●
98	03.670 VALVE; DELAY (A)	8-94110-978-0	01	1	0502-			●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	0102-0501		●
98	03.670 VALVE; DELAY 03.415 (B) PINK	8-94145-108-0	01	1	0502-			●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0102-0501		●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0502-			●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (C) ID=7	8-94208-596-0	01	1	0102-0501		●
147	03.680 CLIP; RUBBER HOSE (C) ID=7	8-94208-596-0	01	1	0502-			●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	02	1	0102-0501		●
147	03.680 CLIP; RUBBER HOSE (B) 4XID=6.7	8-94315-422-0	02	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0102-0501		●
164	03.675 HOSE; RUBBER 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0502-			●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.670 (B) 4WAY	8-94100-256-0	01	1	0102-0501		●
165	03.680 JOINT; HOSE 03.670 (B) 4WAY	8-94100-256-0	01	1	0502-			●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	0102-0501		●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	02	1	0502-			●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.145 (C) 3WAY	8-94237-690-0	01	1	0102-0501		●
165	03.680 JOINT; HOSE 03.145 (C) 3WAY	8-94237-690-0	01	1	0502-			●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL>	8-97182-709-6	01	1	0102-0501		●
200	03.675 HOSE; VAC	8-97182-709-6	01	1	0502-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0102-0501		●
271	03.675 BOLT; BRKT 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0502-0512			●
271	03.675 BOLT; BRKT 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0601-			●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL>	8-97182-758-0	01	1	0102-0501		●
305	03.675 BRACKET; RUBBER HOSE	8-97182-758-0	01	1	0502-			●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL>	8-97145-713-0	01	1	0102-0501		●
702	03.670 VALVE; DERIVERY	8-97145-713-0	01	1	0502-			●

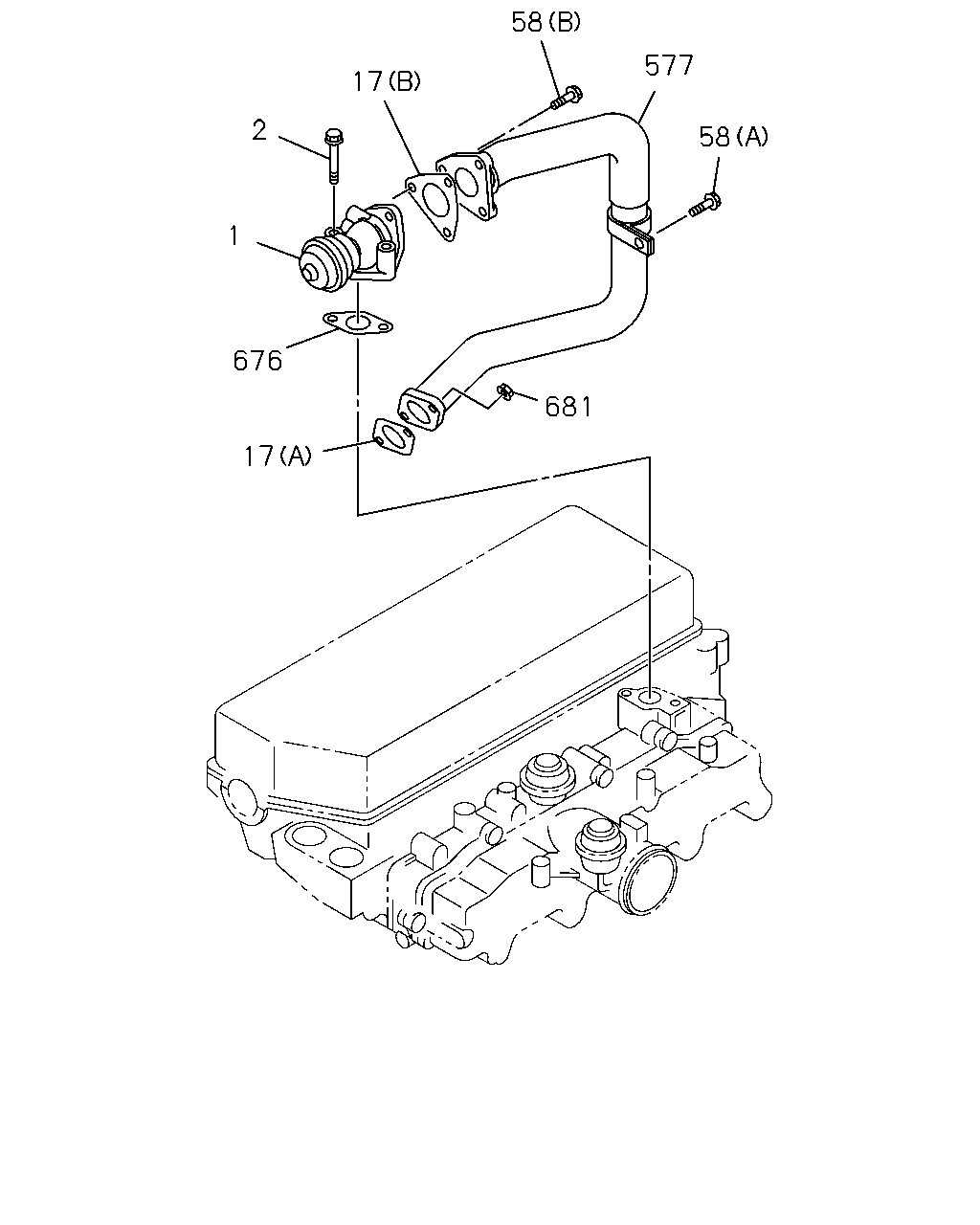

58 577 17 2 58 1 676 681 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL>	8-97135-088-3	01	1	0102-0112	●
1	03.670 VALVE; EGR FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97135-088-3	01	1	0201-0201	●
1	03.670 VALVE; EGR M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97135-088-4	01	1	0201-0207	●
1	03.670 VALVE; EGR M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97135-088-4	01	1	0208-0301	●
1	03.670 VALVE; EGR FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97135-088-4	01	1	0302-0501	●
1	03.670 VALVE; EGR FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97135-088-4	01	1	0502-0902		●
1	03.670 VALVE; EGR FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-98140-319-0	01	1	0903-1103		●
1	03.670 VALVE; EGR	8-98140-319-0	01	1	1104-		●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0102-0112	●
2	03.670 BOLT; EGR VLV FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0201-0201	●
2	03.670 BOLT; EGR VLV M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0201-0207	●
2	03.670 BOLT; EGR VLV M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0208-0301	●
2	03.670 BOLT; EGR VLV FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0302-0501	●
2	03.670 BOLT; EGR VLV FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0502-0512		●
2	03.670 BOLT; EGR VLV FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 01.252 M8X80 FLANGE	0-28050-880-0	02	1	0601-1103		●
2	03.670 BOLT; EGR VLV 01.252 M8X80 FLANGE	0-28050-880-0	02	1	1104-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	0102-0112	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-94340-670-0	01	1	0201-0201	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-94340-670-0	01	1	0201-0207	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-94340-670-0	01	1	0208-0301	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-94340-670-0	01	1	0302-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-94340-670-0	01	1	0502-1103		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	1104-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (B)	8-97166-993-0	01	1	0102-0112	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97166-993-0	01	1	0201-0201	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97166-993-0	01	1	0201-0207	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97166-993-0	01	1	0208-0301	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97166-993-0	01	1	0302-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97166-993-0	01	1	0502-1103		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	1104-		●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0102-0112	●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0201-0201	●
58	03.417 BOLT; PIPE M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0201-0207	●
58	03.417 BOLT; PIPE M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0208-0301	●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0501	●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0502-0512		●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-1103		●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1104-		●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0102-0112	●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0201-0201	●
58	03.417 BOLT; PIPE M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0201-0207	●
58	03.417 BOLT; PIPE M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0208-0301	●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0302-0501	●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0502-0512		●
58	03.417 BOLT; PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-1103		●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1104-		●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL>	8-97148-952-1	01	1	0102-0112	●
577	03.675 PIPE; AIR,EGR FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97148-952-1	01	1	0201-0201	●
577	03.675 PIPE; AIR,EGR M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97148-952-2	01	1	0201-0207	●
577	03.675 PIPE; AIR,EGR M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97148-952-2	01	1	0208-0301	●
577	03.675 PIPE; AIR,EGR FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97148-952-3	01	1	0302-0501	●
577	03.675 PIPE; AIR,EGR FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97148-952-3	01	1	0502-1103		●
577	03.675 PIPE; AIR,EGR	8-97148-952-3	01	1	1104-		●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL>	8-97190-508-0	01	1	0102-0112	●
676	03.417 GASKET; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97190-508-0	01	1	0201-0201	●
676	03.417 GASKET; PIPE M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97190-508-0	01	1	0201-0207	●
676	03.417 GASKET; PIPE M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97190-508-0	01	1	0208-0301	●
676	03.417 GASKET; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97190-508-0	01	1	0302-0501	●
676	03.417 GASKET; PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97190-508-0	01	1	0502-1103		●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-508-0	01	1	1104-		●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	0102-0112	●
681	03.671 NUT; EGR PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.613 M8 FLANGE	8-97061-401-1	02	1	0201-0201	●
681	03.671 NUT; EGR PIPE M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.613 M8 FLANGE	8-97061-401-1	02	1	0201-0207	●
681	03.671 NUT; EGR PIPE M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.613 M8 FLANGE	8-97061-401-1	02	1	0208-0301	●
681	03.671 NUT; EGR PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.613 M8 FLANGE	8-97061-401-1	02	1	0302-0501	●
681	03.671 NUT; EGR PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.613 M8 FLANGE	8-97061-401-1	02	1	0502-1103		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	1104-		●

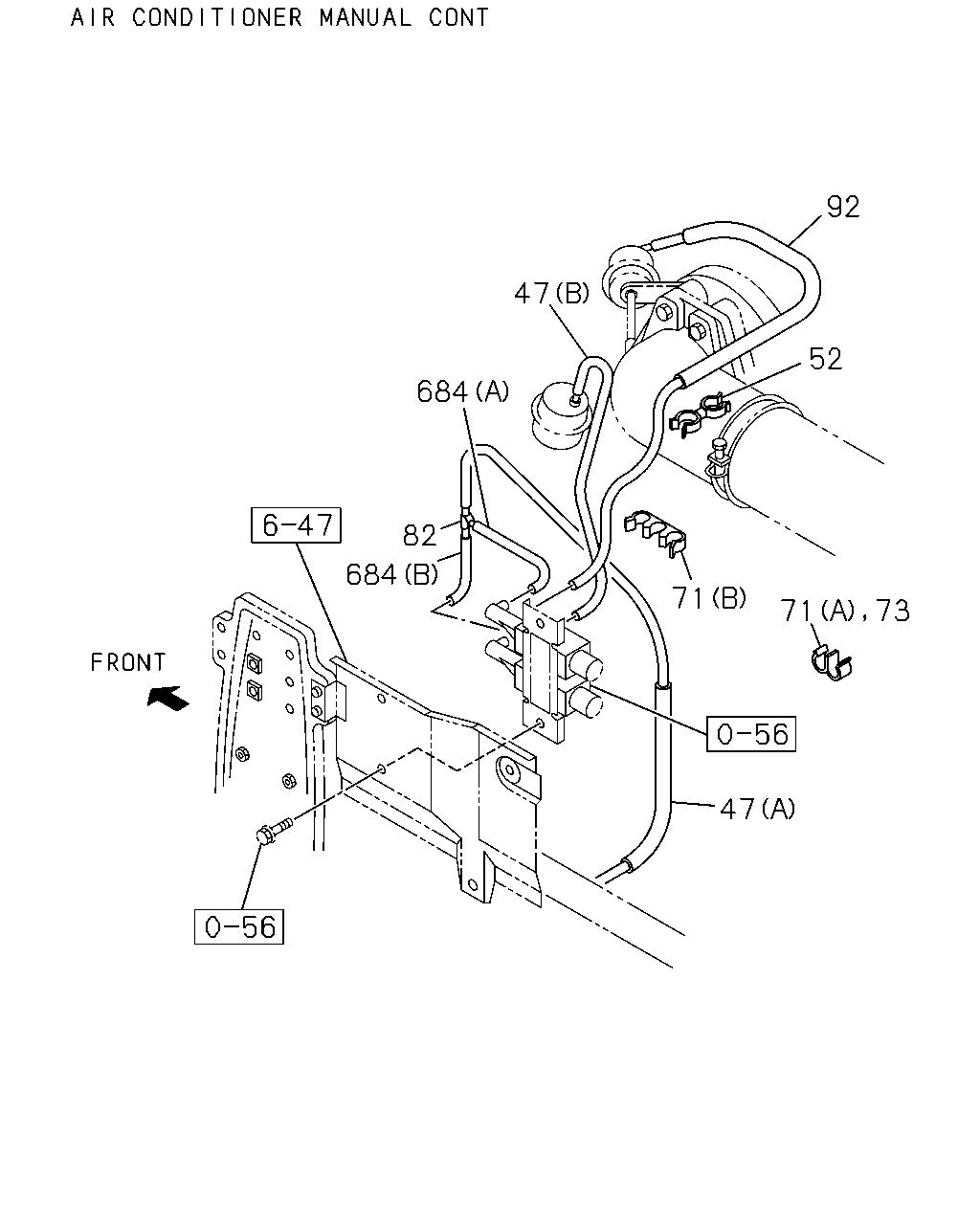

92 47 52 684 82 684 71 71 73 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0507-	●
47	03.675 HOSE; VAC,VSV EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0201-0301	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0302-0501	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=310	8-97037-962-2	01	1	0502-	●
52	03.680 CLIP; VSV HOSE EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0201-0301	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0302-0501	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5	8-97019-084-0	01	1	0502-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0507-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0507-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	03	1	0102-0501		●
73	03.680 CLIP; VAC HOSE 03.162 L=140	5-09707-031-1	03	1	0502-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	02	1	0302-0501		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	0201-0301	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	0302-	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	0507-	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0201-0301	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0302-0501	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8>	8-97106-645-3	01	1	0502-	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0507-	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0507-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
