0-56 — EMISSION SYSTEM (#47618) — 60 parça

3 32 2 14 131 14 1 15 15 182 132 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL>	8-97023-544-2	01	1	0102-0501	●
1	03.670 VALVE; VAC SW,EGR	8-97023-544-2	01	1	0502-		●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL>	8-97171-198-3	01	1	0102-0102	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL>	8-97305-209-1	01	1	0103-0501	●
2	03.671 BRACKET; VSV	8-97305-209-1	01	1	0502-		●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	0102-0501	●
3	03.670 BOLT; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	05	1	0502-0604		●
3	03.670 BOLT; VSV 03.671 M5X8 W/LK WASHER	0-36220-508-0	05	1	0605-		●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0102-0501	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-2	01	1	0102-0501	●
14	03.670 VALVE; VAC SW (A)	8-97023-543-2	01	1	0502-		●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (B)	8-97023-544-2	01	1	0102-0501	●
14	03.670 VALVE; VAC SW (B)	8-97023-544-2	01	1	0502-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-2	01	1	0102-0501	●
15	03.670 VALVE; VAC SW (A)	8-97023-543-2	01	1	0502-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	0102-0501	●
15	03.670 VALVE; VAC SW (B)	8-97184-183-0	01	1	0502-0803		●
15	03.670 VALVE; VAC SW (B)	8-98116-259-0	01	1	0804-		●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> 03.162	8-94253-984-0	01	1	0102-0501	●
32	03.680 CLIP; EGR HOSE 03.162	8-94253-984-0	01	1	0502-		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0507-			●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL>	8-97184-200-2	01	1	0102-0501	●
131	03.670 VALVE; VAC SWITCHING	8-97184-200-2	01	1	0502-		●
131	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0201-0301	●		●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0302-0501	●		●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97116-759-0	01	1	0502-0506			●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0507-			●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0507		●
132	03.680 BOLT; VSV BRKT EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0201-0301	●		●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0302-0305	●		●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0306-0501			●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507			●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512			●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-			●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0102-0501	●
182	03.670 BOLT; VLV 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0502-0512		●
182	03.670 BOLT; VLV 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0102-0501	●
349	03.671 BOLT; CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●
349	03.671 BOLT; CASE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●

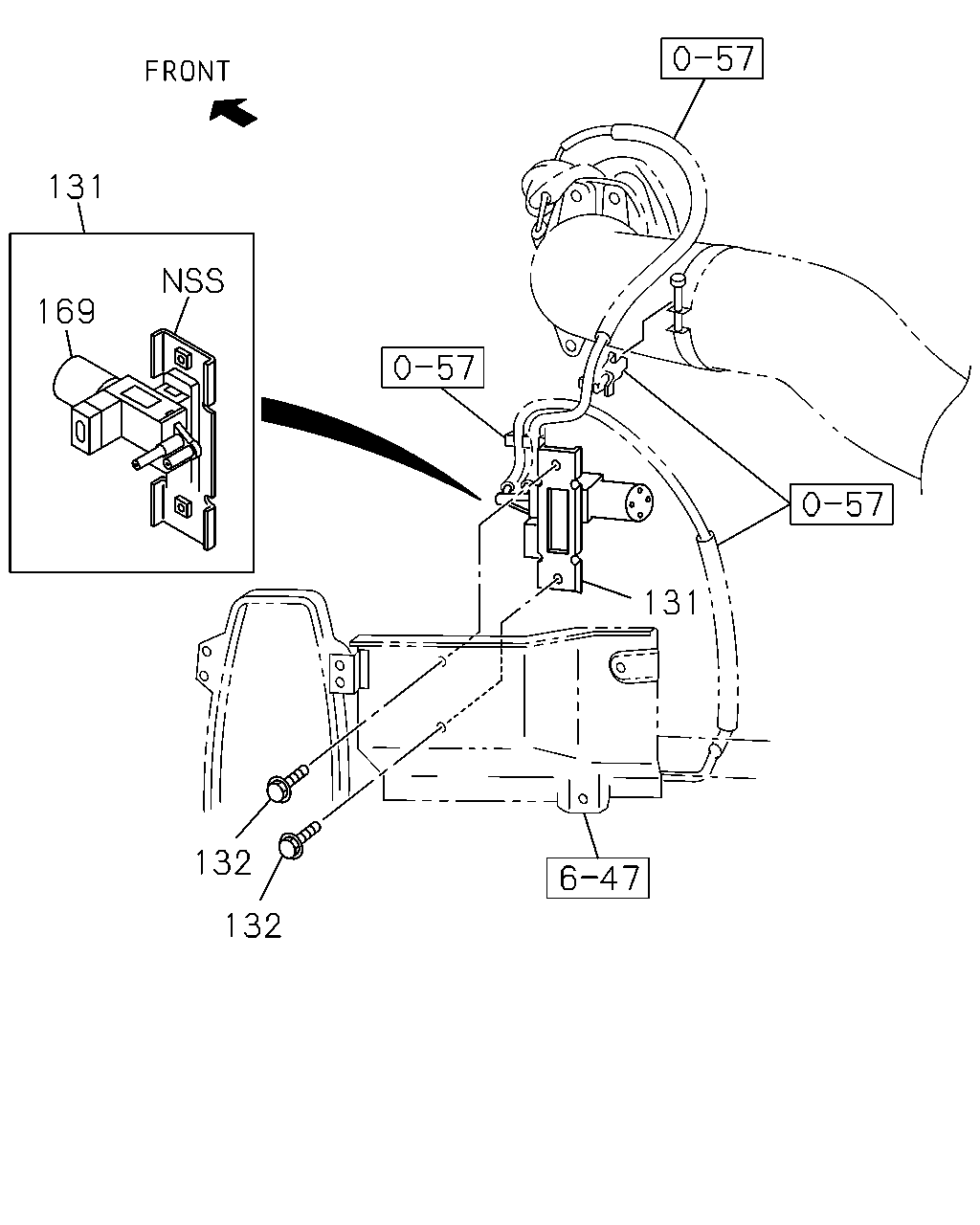

131 169 131 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0507-			●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL>	8-97184-200-2	01	1	0102-0501	●
131	03.670 VALVE; VAC SWITCHING	8-97184-200-2	01	1	0502-		●
131	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0201-0301	●		●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0302-0501	●		●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97116-759-0	01	1	0502-0506			●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0507-			●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0507		●
132	03.680 BOLT; VSV BRKT EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0201-0301	●		●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0302-0305	●		●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0306-0501			●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507			●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512			●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-			●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97012-878-0	01	1	0507-			●
169	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL>	8-97021-705-1	01	1	0201-0301	●		●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97021-705-1	01	1	0302-0501	●		●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97021-705-1	01	1	0502-			●
