0-52 — OIL AND VACUUM PIPING; ENGINE (#47617) — 134 parça
çizim 50044
89 86 89 340 202 202 202 65 202 202 65 202 83 83 202 65 27 202 65 27
BalonParca AdiParca NoAdetTipApplied Date A B C
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0102-0109 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110-0112 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110-0112 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0501 ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0501 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0102-0112 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0201-0501 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0502-0805 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		8-97372-239-0 01 1 0806- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0102-0112 ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0201-0501 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 0102-0109 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0110-0306 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0307-0501 ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0502- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-670-0 01 1 0201-0306 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0102-0112 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0201-0501 ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0502- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0102-0112 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0102-0112 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0201-0501 ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0201-0501 ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502- ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0102-0112 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0201-0501 ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0502- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0102-0112 ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0201-0501 ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502-1312 ● ●
202 01.531 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0102-0112 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0201-0501 ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0502- ● ●
çizim 50271
89 86 89 340 65 202 202 65 202 202 83 202 83 202 202 202 65 27 65
BalonParca AdiParca NoAdetTipApplied Date A B C
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0102-0109 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110-0112 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110-0112 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0501 ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0501 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0102-0112 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0201-0501 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0502-0805 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		8-97372-239-0 01 1 0806- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0102-0112 ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0201-0501 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 0102-0109 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0110-0306 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0307-0501 ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0502- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-670-0 01 1 0201-0306 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0102-0112 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0201-0501 ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0502- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0102-0112 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0102-0112 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0201-0501 ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0201-0501 ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502- ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0102-0112 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0201-0501 ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0502- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0102-0112 ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0201-0501 ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502-1312 ● ●
202 01.531 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0102-0112 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0201-0501 ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0502- ● ●

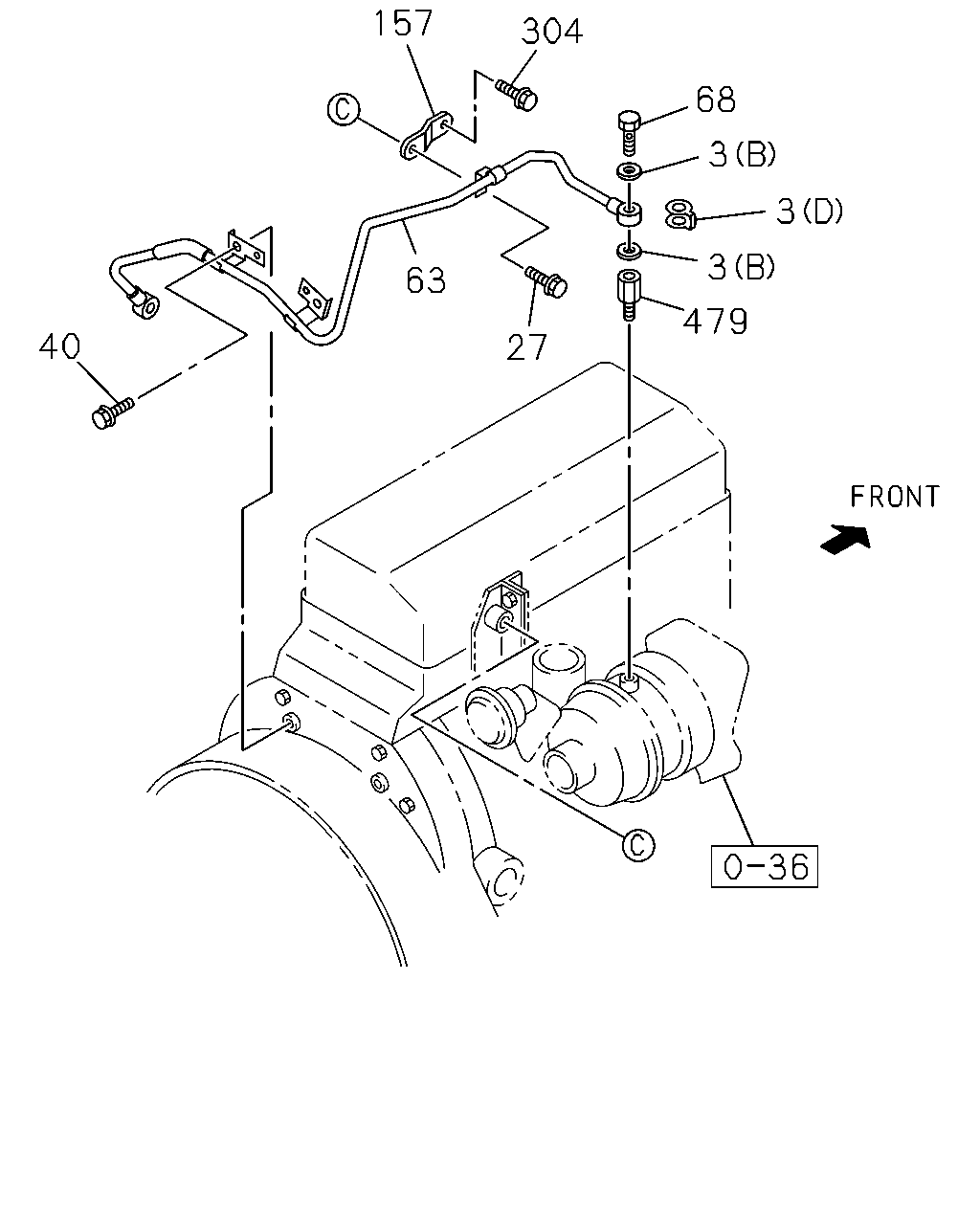

çizim 50426
157 304 68 3 3 3 63 479 40 27
BalonParca AdiParca NoAdetTipApplied Date A B C
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0102-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0502- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0102-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0502-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0201- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0102-0109 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110-0112 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110-0112 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0501 ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0501 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
40 01.531 BOLT; OIL PIPE
03.604 M10X16 FLANGE 		0-28181-016-0 02 1 0102-0501 ●
40 01.531 BOLT; OIL PIPE
03.604 M10X16 FLANGE 		0-28181-016-0 02 1 0502-0512 ●
40 01.531 BOLT; OIL PIPE
00.029 M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97214-394-0 01 1 0102-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97214-394-0 01 1 0502- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-0 01 1 0102-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-1 01 1 0502- ●
157 01.519 BRACKET; OIL PIPE 8-97181-586-0 01 1 0102-0501 ●
157 01.519 BRACKET; OIL PIPE 8-97181-586-0 01 1 0502- ●
304 01.540 BOLT; BRKT,OIL PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0102-0501 ●
304 01.540 BOLT; BRKT,OIL PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
304 01.540 BOLT; BRKT,OIL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 0102-0501 ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 0502- ●
çizim 51286
3 3 2 3 63 3 3 1 3 3 2 1 3 2 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97148-923-3 01 1 0102-0104 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97314-008-0 01 1 0105-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97314-008-0 01 1 0502-0607 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-98053-156-0 01 1 0608- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0201- ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X40 FLANGE 		8-97182-847-0 01 1 0102-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X40 FLANGE 		8-97182-847-0 01 1 0502- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 0102-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 0502- ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 02 1 0201-0805 ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (C) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0102-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0502- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0102-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0502-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97214-394-0 01 1 0102-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97214-394-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
