2 |

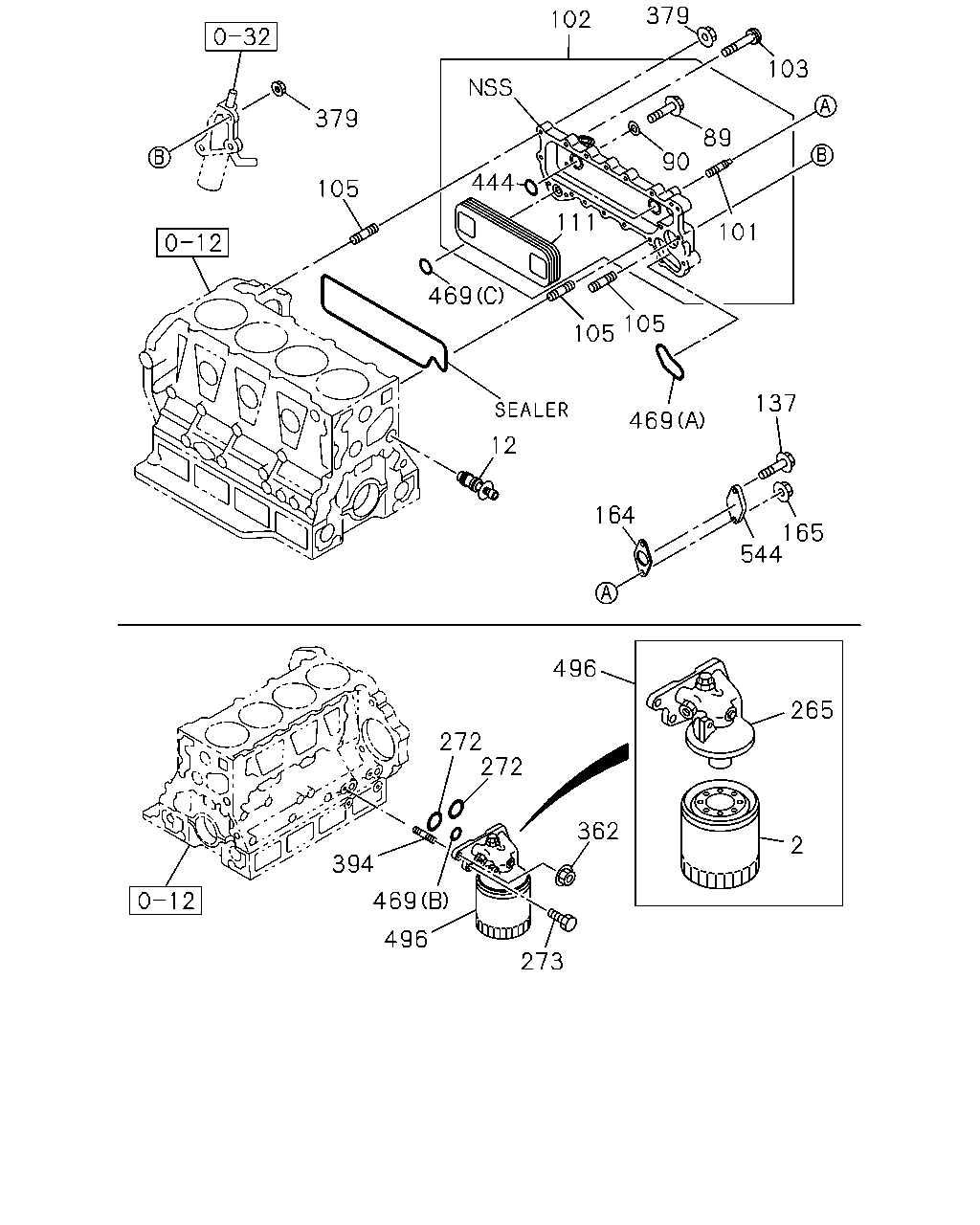

01.836 ELEMENT; OIL FILTER
|
8-97148-270-1 |
01 |
1 |
0502-1509 |
● |
● |
|
| |
2 |
01.836 ELEMENT; OIL FILTER
|
8-97148-270-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
2 |
01.836 ELEMENT; OIL FILTER
|
8-97148-270-1 |
01 |
1 |
0201-0501 |
|
● |
● |
| |
2 |
01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS
|
5-87610-117-0 |
01 |
1 |
0201-0501 |
|
● |
● |
| |
2 |
01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS
|
5-87610-117-0 |
01 |
1 |
0502-1509 |
● |
● |
|
| |
2 |
01.836 ELEMENT; OIL FILTER
|
8-98328-207-0 |
01 |
1 |
1510- |
● |
● |
|
| |
12 |
01.540 VALVE ASM; BYPASS
|
8-97075-754-0 |
01 |
1 |
0102-0501 |
|
|
● |
| |
12 |
01.540 VALVE ASM; BYPASS
|
8-97075-754-0 |
01 |
1 |
0502- |
● |
|
|
| |
12 |
01.540 VALVE ASM; BYPASS
|
8-97013-566-2 |
01 |
1 |
0201- |
|
● |
|
| |
89 |
01.540 BOLT; ELEMENT TO CASE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0708-1211 |
● |
|
|
| |
89 |
01.540 BOLT; ELEMENT TO CASE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1212- |
● |
● |
|
| |
89 |
01.540 BOLT; ELEMENT TO CASE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0102-0112 |
|
|
● |
| |
89 |
01.540 BOLT; ELEMENT TO CASE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0201-0501 |
|
● |
● |
| |
89 |
01.540 BOLT; ELEMENT TO CASE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0502-0707 |
● |
● |
|
| |
89 |
01.540 BOLT; ELEMENT TO CASE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0708-1211 |
|
● |
|
| |
90 |
01.540 GASKET; BOLT,OIL COOLER
01.550
|
1-21729-043-0 |
04 |
1 |
0102-0112 |
|
|
● |
| |
90 |
01.540 GASKET; BOLT,OIL COOLER
01.550
|
1-21729-043-0 |
04 |
1 |
0201-0501 |
|
● |
● |
| |
90 |
01.540 GASKET; BOLT,OIL COOLER
01.550
|
1-21729-043-0 |
04 |
1 |
0502- |
● |
● |
|
| |
101 |
01.540 STUD; OIL COOLER TO PIPE
03.407
M8X20 L=38
|
0-49740-820-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
101 |
01.540 STUD; OIL COOLER TO PIPE
03.407
M8X20 L=38
|
0-49740-820-0 |
01 |
1 |
0201-0206 |
|
● |
● |
| |
102 |
01.540 COOLER ASM; OIL
|
8-97212-763-0 |
01 |
1 |
0102-0206 |
|
|
● |
| |
102 |
01.540 COOLER ASM; OIL
|
8-97333-784-0 |
01 |
1 |
0207-0208 |
|
|
● |
| |
102 |
01.540 COOLER ASM; OIL
|
8-97333-877-0 |
01 |
1 |
0209-0406 |
|
|
● |
| |
102 |
01.540 COOLER ASM; OIL
|
8-97385-201-0 |
01 |
1 |
0407-0501 |
|
|
● |
| |
102 |
01.540 COOLER ASM; OIL
|
8-97385-201-1 |
01 |
1 |
0502-0707 |
● |
|
|
| |
102 |
01.540 COOLER ASM; OIL
|
8-98085-312-5 |
01 |
1 |
0708- |
● |
|
|
| |
102 |
01.540 COOLER ASM; OIL
|
8-97212-334-0 |
01 |
1 |
0201-0206 |
|
● |
|
| |
102 |
01.540 COOLER ASM; OIL
|
8-97333-783-0 |
01 |
1 |
0207-0406 |
|
● |
|
| |
102 |
01.540 COOLER ASM; OIL
|
8-97385-200-6 |
01 |
1 |
0407- |
|
● |
|
| |
103 |
01.540 BOLT; OIL COOLER
07.010
M8X20 FLANGE
|
0-28080-820-0 |
08 |
1 |
0102-0501 |
|
|
● |
| |
103 |
01.540 BOLT; OIL COOLER
07.010
M8X20 FLANGE
|
0-28080-820-0 |
08 |
1 |
0502-0512 |
● |
|
|
| |
103 |
01.540 BOLT; OIL COOLER
04.338
M8X20 FLANGE
|
0-28050-820-0 |
08 |
1 |
0601- |
● |
|
|
| |
103 |
01.540 BOLT; OIL COOLER
03.415
M8X35 FLANGE
|
0-28080-835-0 |
08 |
1 |
0102-0501 |
|
|
● |
| |
103 |
01.540 BOLT; OIL COOLER
03.415
M8X35 FLANGE
|
0-28080-835-0 |
08 |
1 |
0502-0512 |
● |
|
|
| |
103 |
01.540 BOLT; OIL COOLER
03.162
M8X35 FLANGE
|
0-28050-835-0 |
08 |
1 |
0601- |
● |
|
|
| |
103 |
01.540 BOLT; OIL COOLER
07.010
M8X20 FLANGE
|
0-28080-820-0 |
07 |
1 |
0201-0512 |
|
● |
|
| |
103 |
01.540 BOLT; OIL COOLER
04.338
M8X20 FLANGE
|
0-28050-820-0 |
07 |
1 |
0601- |
|
● |
|
| |
103 |
01.540 BOLT; OIL COOLER
03.415
M8X35 FLANGE
|
0-28080-835-0 |
07 |
1 |
0201-0512 |
|
● |
|
| |
103 |
01.540 BOLT; OIL COOLER
03.162
M8X35 FLANGE
|
0-28050-835-0 |
07 |
1 |
0601- |
|
● |
|
| |
105 |
01.540 STUD; OIL COOLER
M8X52 L=63
|
8-97016-314-0 |
03 |
1 |
0102-0112 |
|
|
● |
| |
105 |
01.540 STUD; OIL COOLER
M8X52 L=63
|
8-97016-314-0 |
03 |
1 |
0201-0501 |
|
● |
● |
| |
105 |
01.540 STUD; OIL COOLER
M8X52 L=63
|
8-97016-314-0 |
03 |
1 |
0502- |
● |
● |
|
| |
111 |
01.540 CORE; OIL COOLER
|
8-97033-802-0 |
01 |
1 |
0102-0206 |
|
|
● |
| |
111 |
01.540 CORE; OIL COOLER
|
8-97334-100-0 |
01 |
1 |
0207-0501 |
|
|
● |
| |
111 |
01.540 CORE; OIL COOLER
|
8-97334-100-2 |
01 |
1 |
0502- |
● |
|
|
| |
111 |
01.540 CORE; OIL COOLER
|
8-97222-512-0 |
01 |
1 |
0201-0206 |
|
● |
|
| |
111 |
01.540 CORE; OIL COOLER
|
8-97334-101-1 |
01 |
1 |
0207- |
|
● |
|
| |
137 |
01.840 BOLT
02.664
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
137 |
01.840 BOLT
02.664
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0201-0206 |
|
● |
● |
| |
137 |
01.840 BOLT
02.664
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0207-0501 |
|
● |
● |
| |
137 |
01.840 BOLT
02.664
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0502-0512 |
● |
● |
|
| |
137 |
01.840 BOLT
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
|
| |
164 |
01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=18.6
|
8-97146-684-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
164 |
01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=18.6
|
8-97146-684-0 |
01 |
1 |
0201-0501 |
|
● |
● |
| |
164 |
01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=18.6
|
8-97146-684-0 |
01 |
1 |
0502- |
● |
● |
|
| |
165 |
01.540 NUT; HTR PIPE
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
165 |
01.540 NUT; HTR PIPE
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0201-0206 |
|
● |
● |
| |
265 |
01.837 BODY; OIL FILTER
|
8-97096-677-2 |
01 |
1 |
0102-0112 |
|
|
● |
| |
265 |
01.837 BODY; OIL FILTER
|
8-97096-677-3 |
01 |
1 |
0201-0501 |
|
● |
● |
| |
265 |
01.837 BODY; OIL FILTER
|
8-97096-677-4 |
01 |
1 |
0502- |
● |
● |
|
| |
272 |
01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=22.1
|
8-94399-676-0 |
02 |
1 |
0102-0112 |
|
|
● |
| |
272 |
01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=22.1
|
8-94399-676-0 |
02 |
1 |
0201-0211 |
|
● |
● |
| |
272 |
01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=22.1
|
8-94399-399-0 |
02 |
1 |
0212-0501 |
|
● |
● |
| |
272 |
01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=22.1
|
8-94399-399-0 |
02 |
1 |
0502- |
● |
● |
|
| |
273 |
01.840 BOLT; OIL FILTER
08.900
M10X30 FLANGE
|
0-28781-030-0 |
02 |
1 |
0102-0112 |
|
|
● |
| |
273 |
01.840 BOLT; OIL FILTER
08.900
M10X30 FLANGE
|
0-28781-030-0 |
02 |
1 |
0201-0501 |
|
● |
● |
| |
273 |
01.840 BOLT; OIL FILTER
08.900
M10X30 FLANGE
|
0-28781-030-0 |
02 |
1 |
0502-0512 |
● |
● |
|
| |
273 |
01.840 BOLT; OIL FILTER
00.780
M10X30 FLANGE
|
0-28751-030-0 |
02 |
1 |
0601- |
● |
● |
|
| |
362 |
01.837 NUT; OIL FILTER
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0102-0112 |
|
|
● |
| |
362 |
01.837 NUT; OIL FILTER
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201-0501 |
|
● |
● |
| |
362 |
01.837 NUT; OIL FILTER
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
● |
● |
|
| |
362 |
01.837 NUT; OIL FILTER
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603- |
● |
● |
|
| |
379 |
01.540 NUT; OIL COOLER
07.633
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0102-0112 |
|
|
● |
| |
379 |
01.540 NUT; OIL COOLER
07.633
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0201-0501 |
|
● |
● |
| |
379 |
01.540 NUT; OIL COOLER
07.633
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0502-0602 |
● |
● |
|
| |
379 |
01.540 NUT; OIL COOLER
01.062
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
● |
|
| |
394 |
01.837 STUD; OIL FILTER
03.275
M10X25 L=40
|
0-49841-025-0 |
02 |
1 |
0102-0112 |
|
|
● |
| |
394 |
01.837 STUD; OIL FILTER
03.275
M10X25 L=40
|
0-49841-025-0 |
02 |
1 |
0201-0501 |
|
● |
● |
| |
394 |
01.837 STUD; OIL FILTER
03.275
M10X25 L=40
|
0-49841-025-0 |
02 |
1 |
0502-0512 |
● |
● |
|
| |
394 |
01.837 STUD; OIL FILTER
M10X25 L=48.5
|
0-49241-025-0 |
02 |
1 |
0601- |
● |
● |
|
| |
444 |
01.550 GASKET; ELEMENT TO BODY
|
8-97028-586-0 |
02 |
1 |
0102-0112 |
|
|
● |
| |
444 |
01.550 GASKET; ELEMENT TO BODY
|
8-97028-586-0 |
02 |
1 |
0201-0406 |
|
● |
● |
| |
444 |
01.550 GASKET; ELEMENT TO BODY
|
8-97384-130-0 |
02 |
1 |
0407-0501 |
|
● |
● |
| |
444 |
01.550 GASKET; ELEMENT TO BODY
|
8-97384-130-0 |
02 |
1 |
0502- |
● |
● |
|
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
8-94338-878-1 |
01 |
1 |
0102-0112 |
|
|
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
8-94338-878-1 |
01 |
1 |
0201-0501 |
|
● |
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
8-94338-878-1 |
01 |
1 |
0502- |
● |
● |
|
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
ID=9.8
|
8-94399-713-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
ID=9.8
|
8-94399-713-0 |
01 |
1 |
0201-0211 |
|
● |
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
01.844
(B)
ID=9.8
|
8-94399-339-0 |
01 |
1 |
0212-0501 |
|
● |
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
01.844
(B)
ID=9.8
|
8-94399-339-0 |
01 |
1 |
0502- |
● |
● |
|
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(C)
ID=26.35
|
8-97137-500-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(C)
ID=26.35
|
8-97137-500-0 |
01 |
1 |
0201-0211 |
|
● |
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(C)
ID=26.2
|
9-09566-226-0 |
01 |
1 |
0212-0501 |
|
● |
● |
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(C)
ID=26.2
|
9-09566-226-0 |
01 |
1 |
0502-0606 |
● |
● |
|
| |
469 |
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(C)
OD=30.2 W/PLATE
|
8-98045-447-0 |
01 |
1 |
0607- |
● |
● |
|
| |
496 |
01.835 FILTER ASM; OIL
|
8-97148-268-1 |
01 |
1 |
0102-0112 |
|
|
● |
| |
496 |
01.835 FILTER ASM; OIL
|
8-97148-268-2 |
01 |
1 |
0201-0501 |
|
● |
● |
| |
496 |
01.835 FILTER ASM; OIL
|
8-97148-268-4 |
01 |
1 |
0502-1509 |
● |
● |
|
| |
496 |
01.835 FILTER ASM; OIL
|
8-98328-202-0 |
01 |
1 |
1510- |
● |
● |
|
| |
544 |
08.845 COVER; HEATER
|
8-97147-028-0 |
01 |
1 |
0102-0112 |
|
|
● |
| |
544 |
08.845 COVER; HEATER
|
8-97147-028-0 |
01 |
1 |
0201-0501 |
|
● |
● |
| |
544 |
08.845 COVER; HEATER
|
8-97147-028-0 |
01 |
1 |
0502- |
● |
● |
|
