0-41 — FUEL FILTER AND BRACKET (#47613) — 68 parça

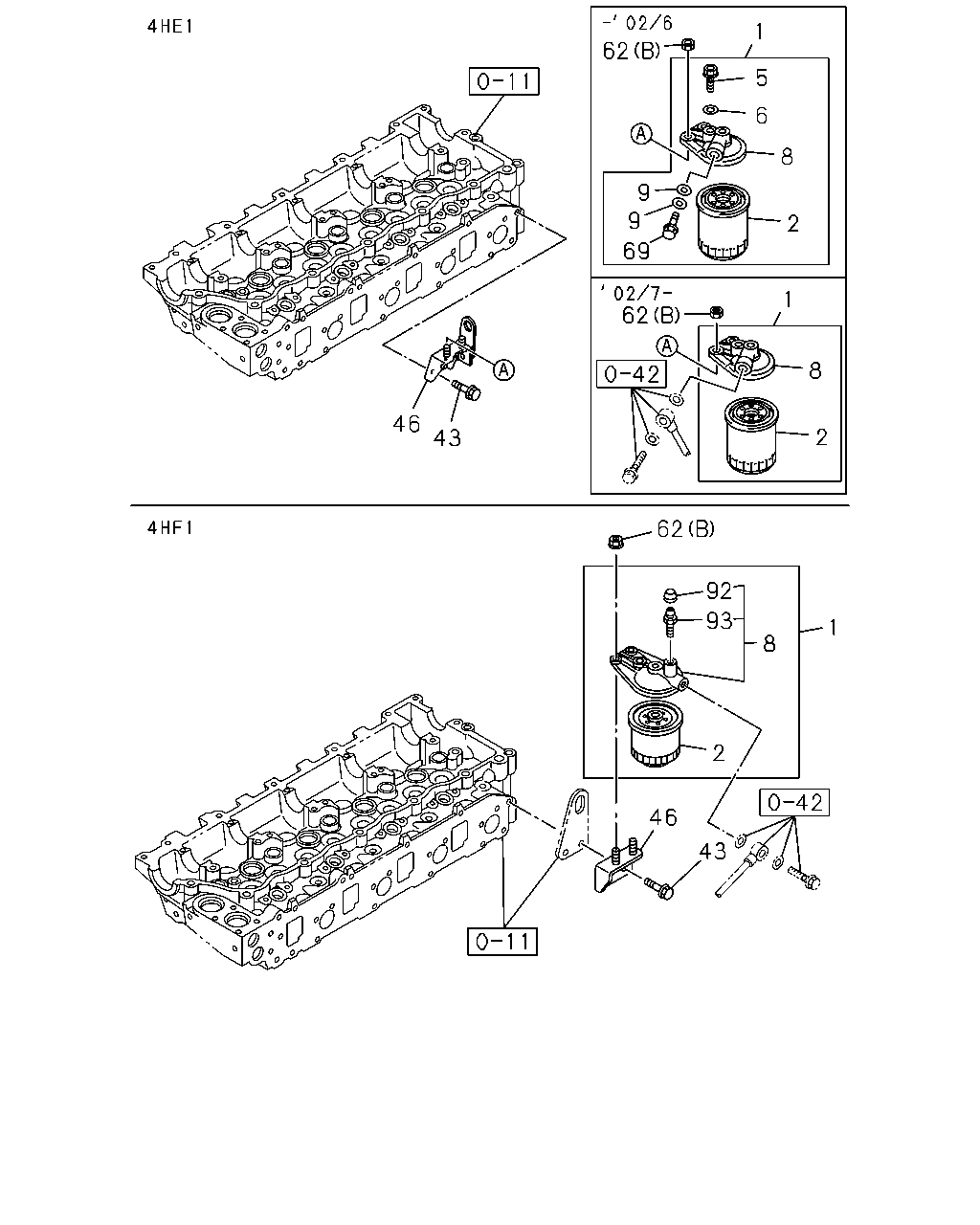

1 62 5 6 8 9 9 2 69 62 1 8 46 2 43 62 92 93 1 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL	1-13200-890-3	01	1	0102-0501	●
1	03.890 FILTER ASM; FUEL	1-13200-890-4	01	1	0502-		●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0201-			●
2	03.890 ELEMENT KIT; FUEL FILTER	1-13240-079-1	01	1	0102-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER	1-13240-079-1	01	1	0502-0803		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-98036-654-0	01	1	0804-		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0201-			●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0201-			●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	0804-		●
5	03.890 BOLT; FUEL FILTER 08.971 M14X9	9-99202-314-0	01	1	0102-0206	●
6	03.890 GASKET; FUEL FILTER 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	0102-0206	●
8	03.890 COVER; FUEL FILTER	1-13212-108-0	01	1	0102-0206	●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0207-0501	●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0502-		●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0201-			●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0102-0112	●
43	03.890 BOLT; BRKT M12X25	0-28781-225-0	02	1	0102-0501	●
43	03.890 BOLT; BRKT M12X25	0-28781-225-0	02	1	0502-0512		●
43	03.890 BOLT; BRKT 09.181 M12X25 FLANGE	0-28751-225-0	02	1	0601-		●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0201-			●
46	03.890 BRACKET	8-97148-962-2	01	1	0102-0501	●
46	03.890 BRACKET	8-97148-962-2	01	1	0502-		●
46	03.890 BRACKET	8-94313-323-2	01	1	0201-			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0102-0112	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0501	●		●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602		●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0102-0112	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0201-0501	●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0502-0602		●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
69	03.890 BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0102-0112	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0201-			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0201-			●

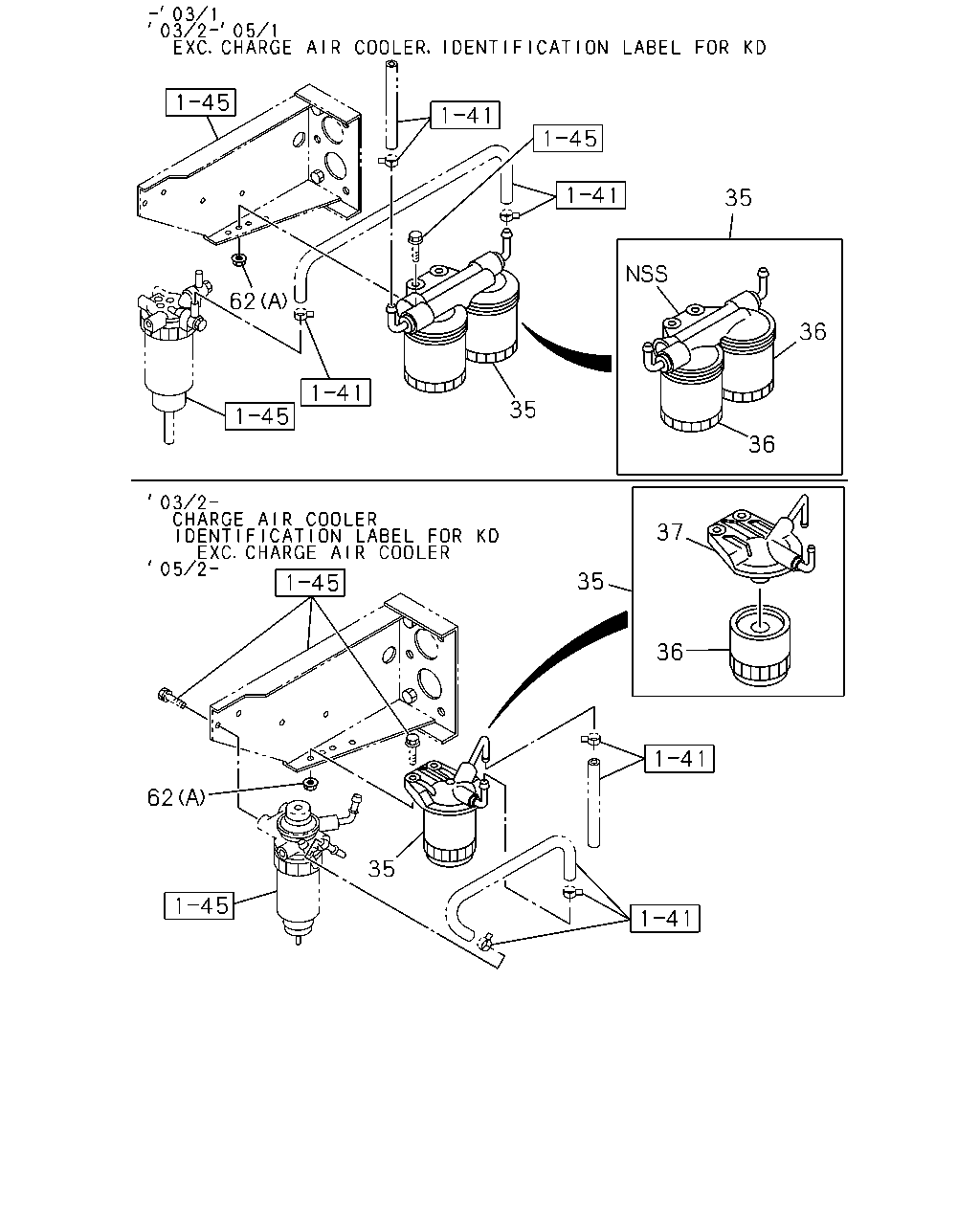

35 62 36 35 36 37 35 36 62 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>	8-97070-864-0	01	1	0611-		●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0102-0112	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0201-0301	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>, IDENTIFICATION LABEL FOR KD<6UT>	8-97070-864-0	01	1	0302-0501	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL>	8-97070-865-0	01	1	0302-0501	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> EXC. CHARGE AIR COOLER<6PL>	8-97070-865-0	01	1	0302-0501	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-865-0	01	1	0302-0501			●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-865-0	01	1	0502-0505		●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-98006-454-0	01	1	0506-0610		●	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B)	8-98006-454-0	01	1	0611-		●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 01.836	8-94144-613-0	02	1	0611-		●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	0102-0112	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	0201-0301	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>, IDENTIFICATION LABEL FOR KD<6UT> 01.836	8-94144-613-0	02	1	0302-0501	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL>	8-94246-908-0	01	1	0302-0501	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> EXC. CHARGE AIR COOLER<6PL>	8-94246-908-0	01	1	0302-0501	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B)	8-94246-908-0	01	1	0302-0501			●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B)	8-94246-908-0	01	1	0502-0505		●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	0506-0610		●	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	0611-		●	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL>	8-97363-518-0	01	1	0302-0501	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> EXC. CHARGE AIR COOLER<6PL>	8-97363-518-0	01	1	0302-0501	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0302-0501			●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0502-0505		●	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0506-0610		●	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0611-		●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0102-0112	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0501	●		●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602		●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0102-0112	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0201-0501	●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0502-0602		●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
