1 |

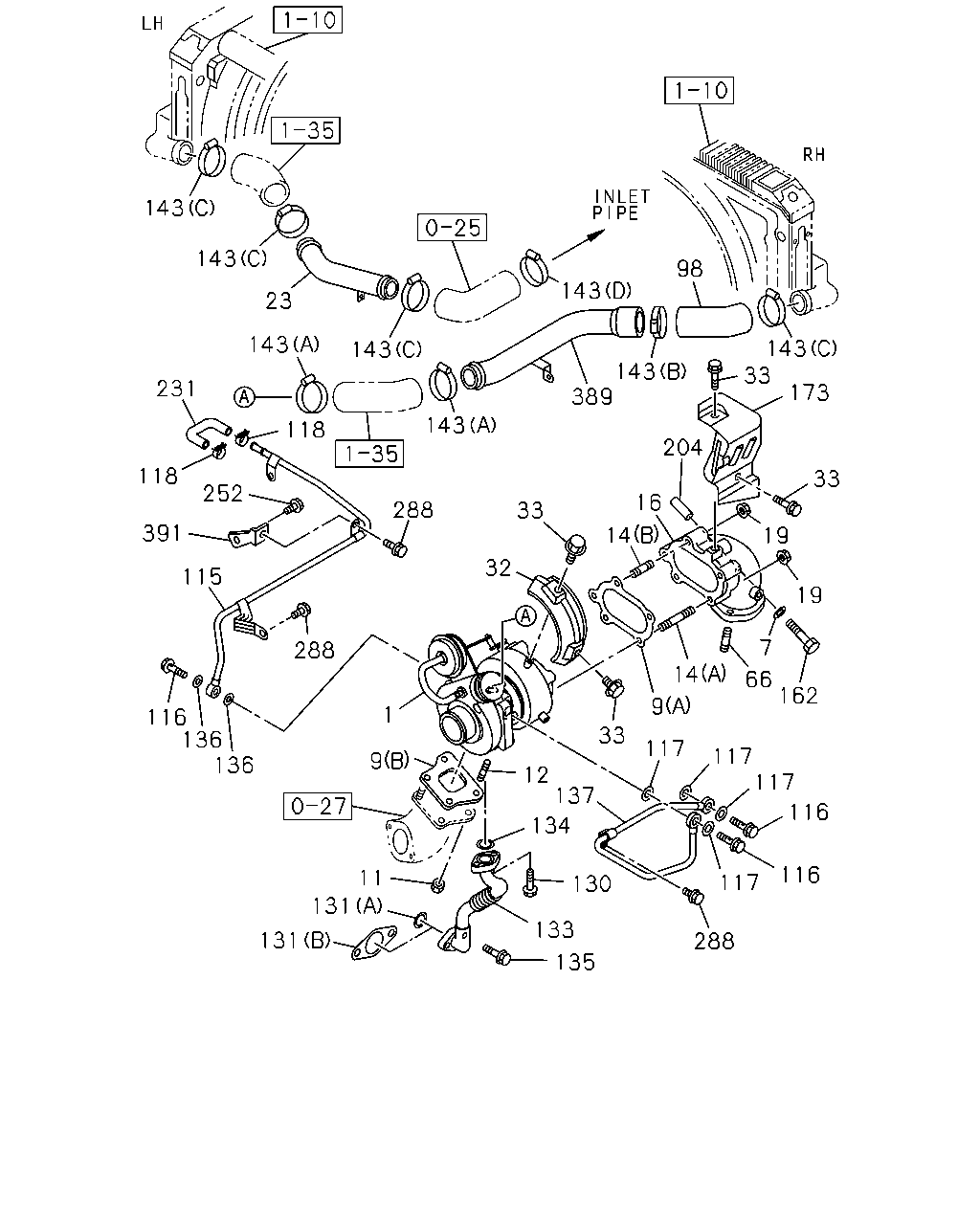

03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-97208-966-3 |
01 |
1 |
0102-0501 |
● |
|
| |
1 |
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-97208-966-4 |
01 |
1 |
0502- |
|
● |
| |
7 |
03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3
|
8-94174-537-0 |
01 |
1 |
0102-0501 |
● |
|
| |
7 |
03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3
|
8-94174-537-0 |
01 |
1 |
0502- |
|
● |
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
|
8-97039-777-1 |
01 |
1 |
0102-0501 |
● |
|
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
|
8-97039-777-1 |
01 |
1 |
0502- |
|
● |
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
|
8-97063-602-0 |
01 |
1 |
0102-0307 |
● |
|
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
|
8-97326-466-0 |
01 |
1 |
0308-0312 |
● |
|
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
|
8-97374-412-0 |
01 |
1 |
0401-0501 |
● |
|
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
|
8-97374-412-0 |
01 |
1 |
0502- |
|
● |
| |
11 |
03.342 NUT; TURBOCHARGER
M10 P=1.5 H=8
|
9-09842-007-0 |
04 |
1 |
0102-0501 |
● |
|
| |
11 |
03.342 NUT; TURBOCHARGER
M10 P=1.5 H=8
|
9-09842-007-0 |
04 |
1 |
0502- |
|
● |
| |
12 |
03.342 STUD; TURBOCHARGER
M10X28
|
9-04731-028-0 |
02 |
1 |
0102-0501 |
● |
|
| |
12 |
03.342 STUD; TURBOCHARGER
M10X28
|
9-04731-028-0 |
02 |
1 |
0502- |
|
● |
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(A)
M8X94 L=108
|
8-97019-477-0 |
02 |
1 |
0102-0501 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(A)
M8X94 L=108
|
8-97019-477-0 |
02 |
1 |
0502- |
|
● |
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X49 L=63
|
8-97019-478-0 |
03 |
1 |
0102-0501 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X49 L=63
|
8-97019-478-0 |
03 |
1 |
0502- |
|
● |
| |
16 |
03.609 ADAPTER; EXH PIPE
|
8-97039-749-2 |
01 |
1 |
0710- |
|
● |
| |
16 |
03.609 ADAPTER; EXH PIPE
|
8-97039-749-1 |
01 |
1 |
0502-0709 |
|
● |
| |
16 |
03.609 ADAPTER; EXH PIPE
|
8-97039-749-1 |
01 |
1 |
0102-0501 |
● |
|
| |
19 |
03.342 NUT; EXH PIPE,TURBOCHARGER
03.604
M8 FLANGE
|
8-94170-486-0 |
05 |
1 |
0102-0501 |
● |
|
| |
19 |
03.342 NUT; EXH PIPE,TURBOCHARGER
03.604
M8 FLANGE
|
8-94170-486-0 |
05 |
1 |
0502- |
|
● |
| |
23 |
03.417 PIPE; INTAKE,TURBOCHARGER
|
8-97189-601-1 |
01 |
1 |
0102-0501 |
● |
|
| |
23 |
03.417 PIPE; INTAKE,TURBOCHARGER
|
8-97189-601-1 |
01 |
1 |
0502- |
|
● |
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
|
8-97064-417-1 |
01 |
1 |
0102-0205 |
● |
|
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
|
8-97351-168-0 |
01 |
1 |
0206-0501 |
● |
|
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
|
8-97351-168-0 |
01 |
1 |
0502- |
|
● |
| |
33 |
03.342 BOLT; HEAT PROTECTOR
03.604
M6X12 FLANGE
|
8-97108-669-0 |
06 |
1 |
0102-0501 |
● |
|
| |
33 |
03.342 BOLT; HEAT PROTECTOR
03.604
M6X12 FLANGE
|
8-97108-669-0 |
06 |
1 |
0502- |
|
● |
| |
66 |
03.342 STUD; EXH PIPE
M10X25 L=40
|
0-44011-025-0 |
03 |
1 |
0710- |
|
● |
| |
66 |
03.342 STUD; EXH PIPE
03.275
M10X25 L=40
|
9-04411-025-0 |
03 |
1 |
0502-0604 |
|
● |
| |
66 |
03.342 STUD; EXH PIPE
M10X25 L=40
|
0-44011-025-0 |
03 |
1 |
0605-0709 |
|
● |
| |
66 |
03.342 STUD; EXH PIPE
03.275
M10X25 L=40
|
9-04411-025-0 |
03 |
1 |
0102-0501 |
● |
|
| |
98 |
03.407 HOSE; RUBBER,TURBOCHARGER OUTLET
|
8-97221-536-1 |
01 |
1 |
0102-0501 |
● |
|
| |
98 |
03.407 HOSE; RUBBER,TURBOCHARGER OUTLET
|
8-97221-536-2 |
01 |
1 |
0502- |
|
● |
| |
115 |
03.342 PIPE; WATER,TURBOCHARGER OUT
|
8-97229-039-0 |
01 |
1 |
0102-0501 |
● |
|
| |
115 |
03.342 PIPE; WATER,TURBOCHARGER OUT
|
8-97229-039-0 |
01 |
1 |
0502-0902 |
|
● |
| |
115 |
03.342 PIPE; WATER,TURBOCHARGER OUT
|
8-98137-572-0 |
01 |
1 |
0903- |
|
● |
| |
116 |
03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT
|
8-94455-144-0 |
03 |
1 |
0102-0501 |
● |
|
| |
116 |
03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT
|
8-94455-144-0 |
03 |
1 |
0502- |
|
● |
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
08.955
ID=14.2 OD=20.0
|
9-09571-414-0 |
02 |
1 |
0903- |
|
● |
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
03.163
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
0102-0501 |
● |
|
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
03.163
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
0502-0902 |
|
● |
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
03.163
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
0903-1312 |
|
● |
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
01.531
ID=14.2 OD=19.2
|
8-98251-345-0 |
02 |
1 |
1401- |
|
● |
| |
118 |
03.342 CLIP; WATER HOSE
03.162
ID=15.5
|
8-94221-519-0 |
02 |
1 |
0102-0501 |
● |
|
| |
118 |
03.342 CLIP; WATER HOSE
03.162
ID=15.5
|
8-94221-519-0 |
02 |
1 |
0502- |
|
● |
| |
130 |
01.531 BOLT; OIL PIPE TO TURBOCHARGER D
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
02 |
1 |
0102-0501 |
● |
|
| |
130 |
01.531 BOLT; OIL PIPE TO TURBOCHARGER D
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
02 |
1 |
0502-0512 |
|
● |
| |
130 |
01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER
|
0-50540-620-0 |
02 |
1 |
0601- |
|
● |
| |
131 |
01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
01.550
(A)
ID=27.7
|
9-09565-228-0 |
01 |
1 |
0102-0211 |
● |
|
| |
131 |
01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
ID=27.7
|
9-09566-228-0 |
01 |
1 |
0212-0501 |
● |
|
| |
131 |
01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
ID=27.7
|
9-09566-228-0 |
01 |
1 |
0502-1006 |
|
● |
| |
131 |
01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
ID=30
|
8-94394-671-0 |
01 |
1 |
1007- |
|
● |
| |
133 |
03.358 PIPE; OIL DRAIN,TURBOCHARGER
|
8-97148-925-1 |
01 |
1 |
0102-0501 |
● |
|
| |
133 |
03.358 PIPE; OIL DRAIN,TURBOCHARGER
|
8-97148-925-2 |
01 |
1 |
0502-1006 |
|
● |
| |
133 |
03.358 PIPE; OIL DRAIN,TURBOCHARGER
|
8-98172-658-0 |
01 |
1 |
1007- |
|
● |
| |
134 |
01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=22.8
|
1-09623-462-0 |
01 |
1 |
0102-0501 |
● |
|
| |
134 |
01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=22.8
|
1-09623-462-0 |
01 |
1 |
0502- |
|
● |
| |
135 |
01.531 BOLT; OIL PIPE TO C/BL
07.010
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
0102-0501 |
● |
|
| |
135 |
01.531 BOLT; OIL PIPE TO C/BL
07.010
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
0502-0512 |
|
● |
| |
135 |
01.531 BOLT; OIL PIPE TO C/BL
04.338
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
0601- |
|
● |
| |
136 |
01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
03.163
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
0102-0501 |
● |
|
| |
136 |
01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
03.163
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
0502-1312 |
|
● |
| |
136 |
01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
01.531
ID=14.2 OD=19.2
|
8-98251-345-0 |
02 |
1 |
1401- |
|
● |
| |
137 |
01.097 PIPE; WATER,TURBOCHARGER IN
|
8-97148-945-3 |
01 |
1 |
0102-0301 |
● |
|
| |
137 |
01.097 PIPE; WATER,TURBOCHARGER IN
|
8-97355-911-0 |
01 |
1 |
0208-0212 |
● |
|
| |
137 |
01.097 PIPE; WATER,TURBOCHARGER IN
|
8-97357-769-0 |
01 |
1 |
0301-0501 |
● |
|
| |
137 |
01.097 PIPE; WATER,TURBOCHARGER IN
|
8-97229-035-0 |
01 |
1 |
0502- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(B)
ID=58-79
|
1-09707-136-0 |
01 |
1 |
1002- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(D)
ID=77-99
|
1-09707-141-0 |
01 |
1 |
1002- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(A)
ID=60-65
|
8-98096-418-0 |
02 |
1 |
1002- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(C)
ID=70-90
|
8-98122-372-0 |
04 |
1 |
1002- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A)
ID=50-69
|
1-09707-135-0 |
02 |
1 |
0102-0303 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D)
ID=77-95
|
1-09707-114-0 |
01 |
1 |
0304-0307 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D)
ID=77-95
|
1-09707-198-0 |
01 |
1 |
0308-0501 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D)
ID=77-95
|
1-09707-198-0 |
01 |
1 |
0502-0810 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D)
ID=75-95
|
8-98133-357-0 |
01 |
1 |
0811-1001 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT>
(D)
ID=75-95
|
8-98133-357-0 |
01 |
1 |
1002- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B)
ID=58-79
|
1-09707-136-0 |
01 |
1 |
0102-0112 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C)
ID=68-89
|
1-09707-137-0 |
04 |
1 |
0102-0301 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A)
ID=50-69
|
8-94316-991-0 |
02 |
1 |
0304-0307 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A)
ID=50-65
|
1-09707-204-0 |
02 |
1 |
0308-0501 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A)
ID=50-65
|
1-09707-204-0 |
02 |
1 |
0502-0810 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A)
ID=45-65
|
8-98133-348-0 |
02 |
1 |
0811-1001 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT>
(A)
ID=45-65
|
8-98133-348-0 |
02 |
1 |
1002- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C)
ID=68-89
|
1-09707-137-0 |
04 |
1 |
0302-0303 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C)
ID=68-85
|
8-94320-428-0 |
04 |
1 |
0304-0307 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C)
ID=68-85
|
1-09707-202-0 |
04 |
1 |
0308-0501 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C)
ID=68-85
|
1-09707-202-0 |
04 |
1 |
0502-0810 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C)
ID=65-85
|
8-98133-350-0 |
04 |
1 |
0811-1001 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT>
(C)
ID=65-85
|
8-98133-350-0 |
04 |
1 |
1002- |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D)
ID=77-99
|
1-09707-141-0 |
01 |
1 |
0102-0303 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B)
ID=58-79
|
1-09707-136-0 |
01 |
1 |
0201-0303 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
03.417
(B)
ID=58-79
|
8-94126-771-0 |
01 |
1 |
0304-0307 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159
(B)
ID=58-76
|
1-09707-203-0 |
01 |
1 |
0308-0501 |
● |
|
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159
(B)
ID=58-76
|
1-09707-203-0 |
01 |
1 |
0502-0811 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B)
ID=55-75
|
8-98133-349-0 |
01 |
1 |
0812-1001 |
|
● |
| |
143 |
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT>
(B)
ID=55-75
|
8-98133-349-0 |
01 |
1 |
1002- |
|
● |
| |
162 |
03.613 BOLT; ADAPTER
M8X57
|
5-09000-275-0 |
01 |
1 |
0102-0501 |
● |
|
| |
162 |
03.613 BOLT; ADAPTER
M8X57
|
5-09000-275-0 |
01 |
1 |
0502- |
|
● |
| |
173 |
03.417 PROTECTOR; HEAT,FUEL PIPE
|
8-97250-282-0 |
01 |
1 |
0102-0205 |
● |
|
| |
173 |
03.417 PROTECTOR; HEAT,FUEL PIPE
|
8-97351-167-0 |
01 |
1 |
0206-0501 |
● |
|
| |
173 |
03.417 PROTECTOR; HEAT,FUEL PIPE
|
8-97351-167-0 |
01 |
1 |
0502-1204 |
|
● |
| |
173 |
03.417 PROTECTOR; HEAT,FUEL PIPE
03.602
|
8-98176-248-0 |
01 |
1 |
1205- |
|
● |
| |
204 |
03.342 COLLAR; PIPE ADAPTER
|
8-97214-384-1 |
01 |
1 |
0710- |
|
● |
| |
204 |
03.342 COLLAR; PIPE ADAPTER
|
8-97214-384-1 |
01 |
1 |
0502-0709 |
|
● |
| |
204 |
03.342 COLLAR; PIPE ADAPTER
|
8-97214-384-1 |
01 |
1 |
0102-0501 |
● |
|
| |
231 |
03.342 HOSE; RUBBER,TURBOCHARGER OUT
|
8-97209-950-0 |
01 |
1 |
0102-0501 |
● |
|
| |
231 |
03.342 HOSE; RUBBER,TURBOCHARGER OUT
|
8-97209-950-0 |
01 |
1 |
0502- |
|
● |
| |
252 |
03.417 BOLT; BRKT
M12X19
|
8-97079-809-0 |
01 |
1 |
0102-0501 |
● |
|
| |
252 |
03.417 BOLT; BRKT
M12X19
|
8-97079-809-0 |
01 |
1 |
0502- |
|
● |
| |
288 |
03.342 BOLT; WATER PIPE CLIP
08.900
M8X12 FLANGE
|
0-28080-812-0 |
03 |
1 |
0102-0501 |
● |
|
| |
288 |
03.342 BOLT; WATER PIPE CLIP
08.900
M8X12 FLANGE
|
0-28080-812-0 |
03 |
1 |
0502-0512 |
|
● |
| |
288 |
03.342 BOLT; WATER PIPE CLIP
02.343
M8X12 FLANGE
|
0-28050-812-0 |
03 |
1 |
0601- |
|
● |
| |
389 |
03.342 PIPE; INL,TURBOCHARGER TO CAC
|
8-97204-013-2 |
01 |
1 |
0102-0501 |
● |
|
| |
389 |
03.342 PIPE; INL,TURBOCHARGER TO CAC
|
8-97204-013-2 |
01 |
1 |
0502- |
|
● |
| |
391 |
03.342 BRACKET; WATER PIPE
|
8-97068-554-0 |
01 |
1 |
0102-0501 |
● |
|
| |
391 |
03.342 BRACKET; WATER PIPE
|
8-97068-554-0 |
01 |
1 |
0502- |
|
● |
