◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08C - CLUTCH MASTER CYLINDER ▶
2-08C — CLUTCH MASTER CYLINDER (#4761) — 15 parça

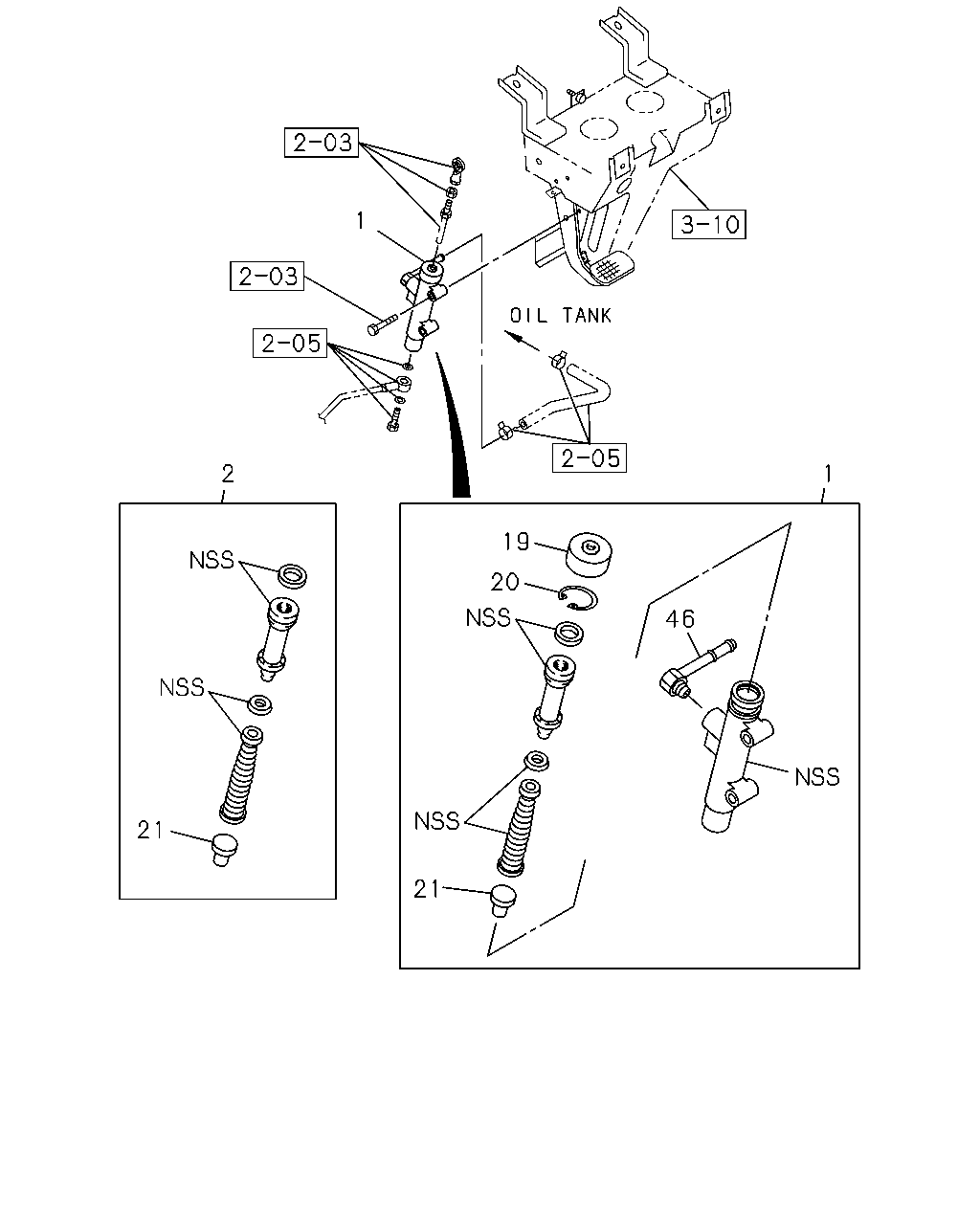

çizim 42822
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER ASM; CLUTCH MASTER
SHORT CHASSIS&RHD(EXZ5MC) 		1-47500-232-1 01 1 9603-9904 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 9905- ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
SHORT CHASSIS&LHD(EXZ6MC) 		1-47500-239-1 01 1 9603-9904 ● ●
2 REPAIR KIT; CLU M/CYL
SHORT CHASSIS&RHD(EXZ5MC) 		1-85576-114-0 01 1 9603-9904 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 9905- ● ● ● ●
2 REPAIR KIT; CLU M/CYL
SHORT CHASSIS&LHD(EXZ6MC) 		1-85572-010-0 01 1 9603-9904 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9603-9904 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9905- ● ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9603-9904 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9905- ● ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9603-9904 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ● ● ●
46 CONNECTOR; PIPE
SHORT CHASSIS&RHD(EXZ5MC) 		1-47517-004-0 01 1 9603-9904 ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9905- ● ● ● ●
46 CONNECTOR; PIPE
SHORT CHASSIS&LHD(EXZ6MC) 		1-47559-016-0 01 1 9603-9904 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
