Isuzu WW
▶
TRUCKS
▶
NP
▶
50915 - NP/NQ BUS LHDEXC.EU4
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#47609) — 53 parça
Tümü
A - 4HE1-TCS ENG
B - 4HE1 ENG
C - 4HF1 ENG
◀

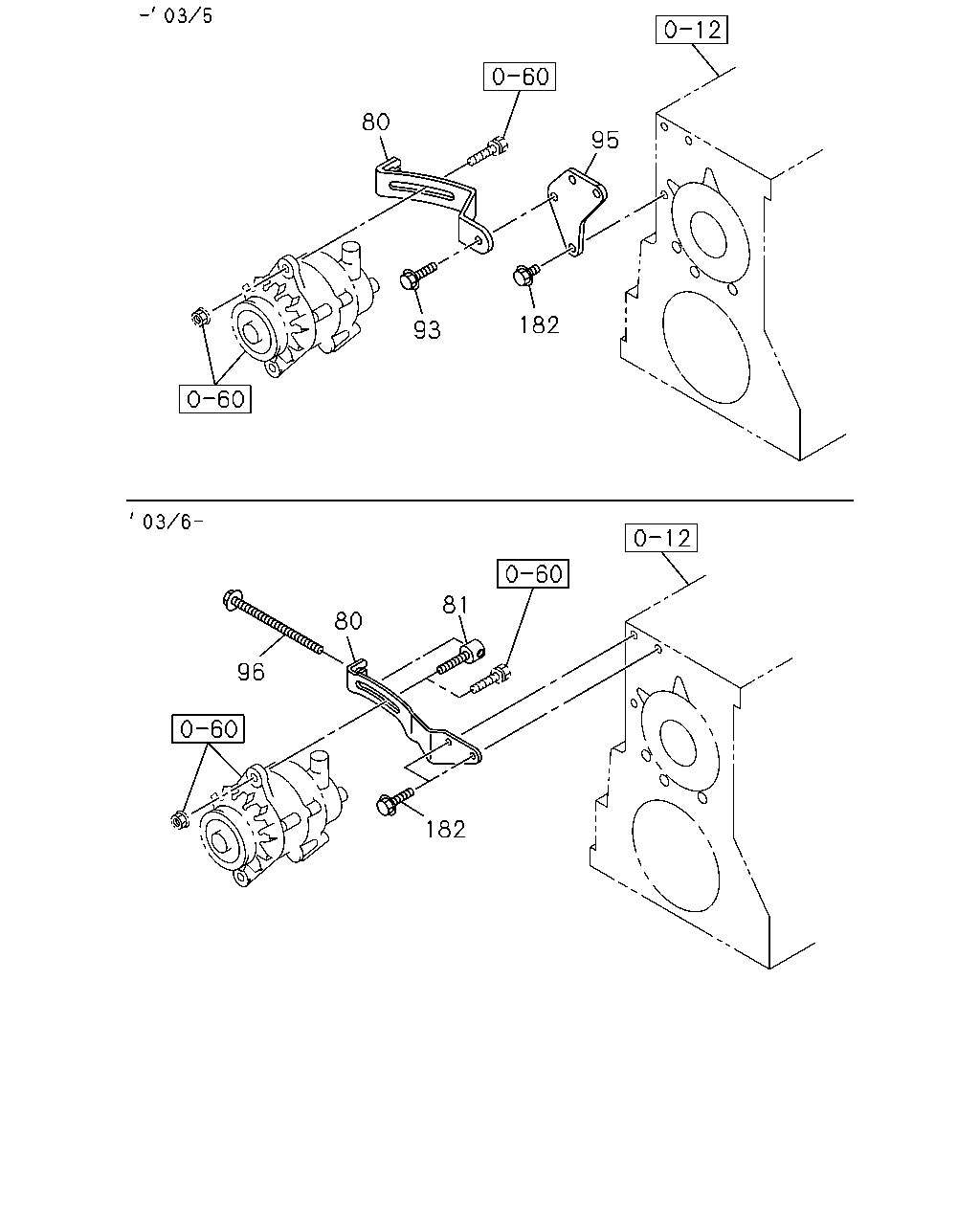

[033A] ADJ PLATE AND OTHER PARTS (23 parça)

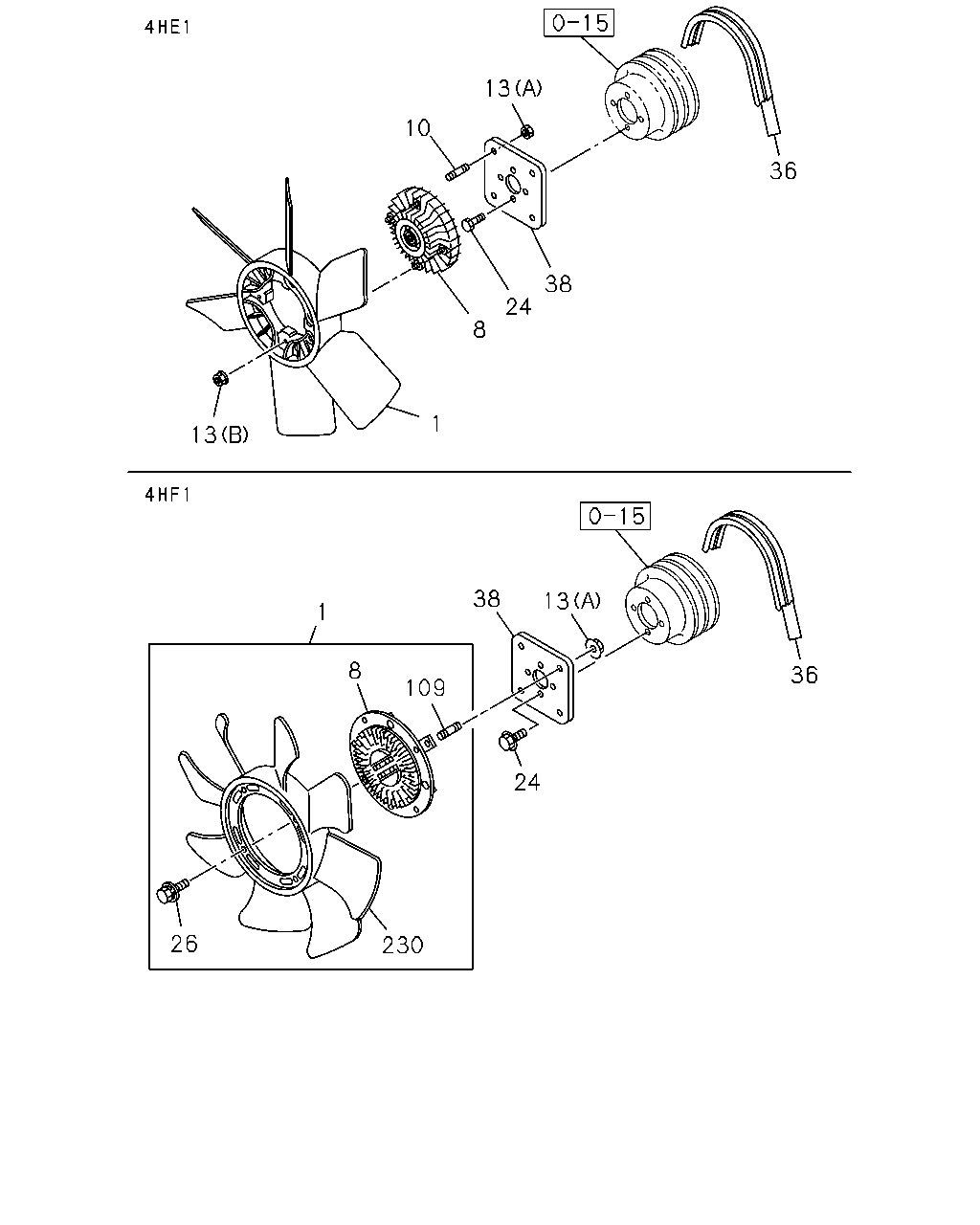

[033A] FAN AND OTHER PARTS (30 parça)
▶
80
95
182
93
81
80
96
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
80
02.317 PLATE; ADJ
8-97172-415-0
01
1
0508-
●
80
02.317 PLATE; ADJ
8-97172-415-0
01
1
0102-0112
●
80
02.317 PLATE; ADJ
8-97172-415-0
01
1
0201-0305
●
●
80
02.317 PLATE; ADJ
8-97164-089-2
01
1
0306-0501
●
●
80
02.317 PLATE; ADJ
8-97164-089-2
01
1
0502-0507
●
●
80
02.317 PLATE; ADJ
8-97164-089-2
01
1
0508-
●
81
02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60)
8-97257-223-0
01
1
0507-
●
●
93
02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE
0-28681-025-0
01
1
0508-0512
●
93
02.317 BOLT; ADJ PLATE BRKT
00.029 M10X25 FLANGE
0-28651-025-0
01
1
0601-
●
93
02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE
0-28681-025-0
01
1
0102-0112
●
93
02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE
0-28681-025-0
01
1
0201-0305
●
●
95
02.317 BRACKET; ADJ PLATE
8-97037-510-0
01
1
0508-
●
95
02.317 BRACKET; ADJ PLATE
8-97037-510-0
01
1
0102-0112
●
95
02.317 BRACKET; ADJ PLATE
8-97037-510-0
01
1
0201-0305
●
●
96
02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE
8-97172-720-1
01
1
0507-
●
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
02
1
0508-0512
●
182
01.062 BOLT; BRKT
01.060 M8X35 FLANGE
0-28650-835-0
02
1
0601-
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
03
1
0102-0112
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
03
1
0201-0305
●
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
02
1
0306-0501
●
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
02
1
0502-0507
●
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
03
1
0508-0512
●
182
01.062 BOLT; BRKT
01.060 M8X35 FLANGE
0-28650-835-0
03
1
0601-
●
13
10
36
38
24
8
1
13
38
13
1
8
36
109
24
26
230
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
01.064 FAN; COOLING
5-13662-012-1
01
1
0102-0501
●
1
01.064 FAN; COOLING
5-13662-012-1
01
1
0502-
●
1
01.064 FAN; COOLING
8-97129-772-1
01
1
0201-
●
8
01.064 CLUTCH; COOLING FAN
8-97148-797-0
01
1
0102-0501
●
8
01.064 CLUTCH; COOLING FAN
8-97148-797-0
01
1
0502-
●
8
01.064 CLUTCH; COOLING FAN
8-97129-738-0
01
1
0201-
●
10
01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32
9-04110-820-0
04
1
0102-0501
●
10
01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32
9-04110-820-0
04
1
0502-0604
●
10
01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32
0-41010-820-0
04
1
0605-
●
13
01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE
0-91150-108-0
04
1
0102-0112
●
13
01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE
0-91150-108-0
04
1
0201-0501
●
●
13
01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE
0-91150-108-0
04
1
0502-0602
●
●
13
01.062 NUT; COOLING FAN
(A) M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
13
01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE
5-09440-004-0
04
1
0102-0501
●
13
01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE
5-09440-004-0
04
1
0502-
●
24
01.062 BOLT; FAN
08.900 M8X18 FLANGE
0-28080-818-0
04
1
0102-0112
●
24
01.062 BOLT; FAN
08.900 M8X18 FLANGE
0-28080-818-0
04
1
0201-0501
●
●
24
01.062 BOLT; FAN
08.900 M8X18 FLANGE
0-28080-818-0
04
1
0502-
●
●
26
01.062 BOLT; FAN TO CLU
8-94389-764-0
04
1
0201-
●
36
01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810)
8-97180-199-1
01
1
0102-0112
●
36
01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810)
8-97180-199-1
01
1
0201-0501
●
●
36
01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810)
8-97180-199-1
01
1
0502-
●
●
36
01.066 BELT; COOLING FAN
BEST VALUE PARTS
5-87610-098-0
01
1
0102-0112
●
36
01.066 BELT; COOLING FAN
BEST VALUE PARTS
5-87610-098-0
01
1
0201-0501
●
●
36
01.066 BELT; COOLING FAN
BEST VALUE PARTS
5-87610-098-0
01
1
0502-
●
●
38
01.062 SPACER; FAN
8-97108-643-0
01
1
0102-0112
●
38
01.062 SPACER; FAN
8-97108-643-0
01
1
0201-0501
●
●
38
01.062 SPACER; FAN
8-97108-643-0
01
1
0502-
●
●
109
01.062 STUD; FAN CLU
M8X13.5 L=22
8-97049-577-1
04
1
0201-
●
230
01.055 FAN; COOLING
8-97078-662-1
01
1
0201-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
