Isuzu WW
▶
TRUCKS
▶
NP
▶
50915 - NP/NQ BUS LHDEXC.EU4
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

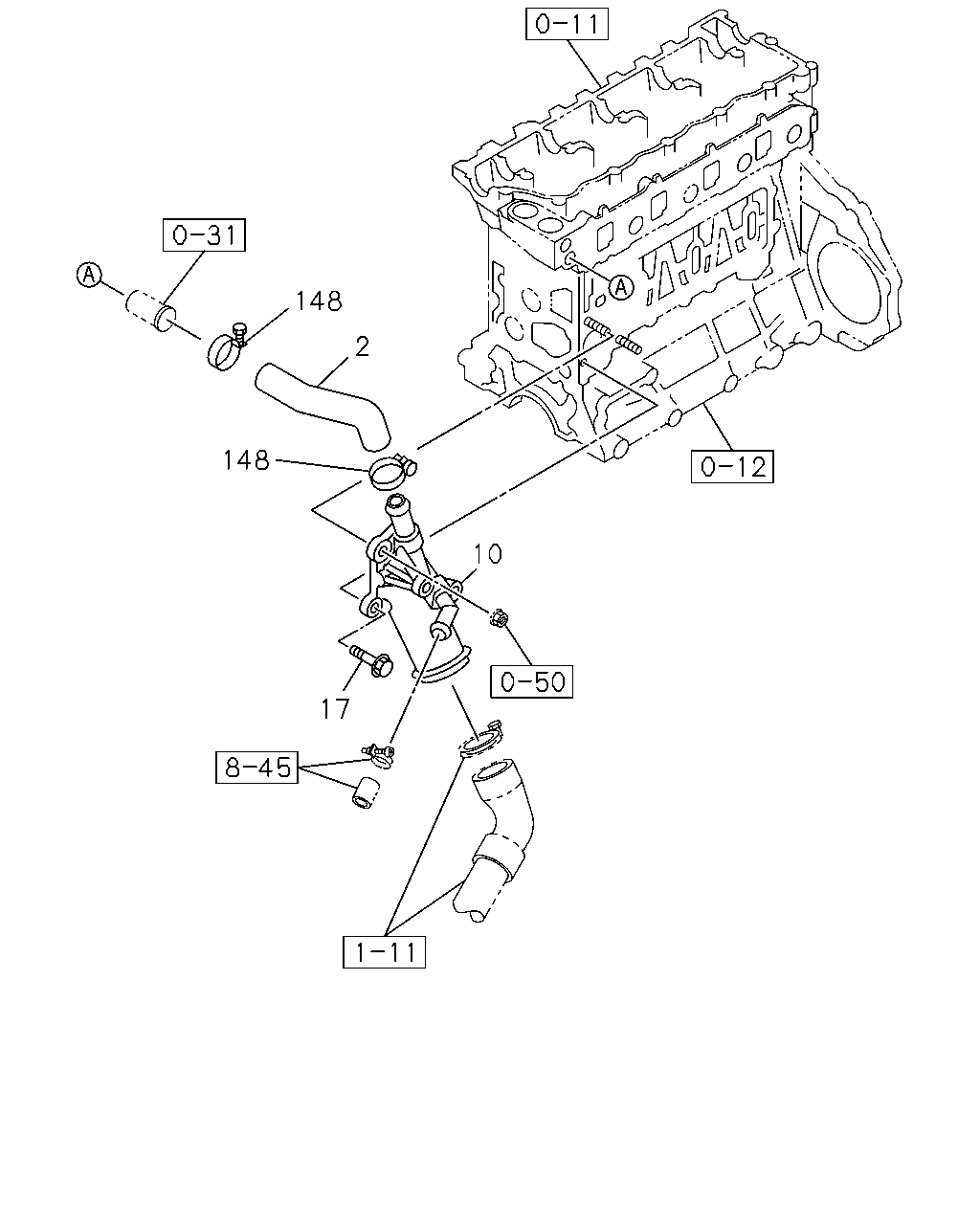

0-32 — WATER PIPING; ENGINE
(#47608) — 16 parça
Tümü
A - 4HE1 ENG
B - 4HE1-TCS ENG
C - 4HF1 ENG
148
2
148
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
01.097 HOSE; WATER,BY-PASS
8-97209-949-0
01
1
0102-0501
●
2
01.097 HOSE; WATER,BY-PASS
8-97209-949-1
01
1
0502-
●
2
01.097 HOSE; WATER,BY-PASS
8-97209-948-0
01
1
0201-
●
10
01.153 PIPE; SUCTION
8-98166-992-0
01
1
1303-
●
10
01.153 PIPE; SUCTION
8-97216-157-0
01
1
0102-0112
●
10
01.153 PIPE; SUCTION
8-97216-157-1
01
1
0201-0501
●
●
10
01.153 PIPE; SUCTION
8-97216-157-1
01
1
0502-1010
●
●
10
01.153 PIPE; SUCTION
8-98166-992-0
01
1
1011-1202
●
●
10
01.153 PIPE; SUCTION
8-98212-009-0
01
1
1203-1302
●
●
10
01.153 PIPE; SUCTION
8-98212-009-0
01
1
1303-
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0102-0112
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0201-0501
●
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0502-
●
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0102-0112
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0201-0501
●
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0502-
●
●
