0-25 — INLET MANIFOLD (#47603) — 160 parça

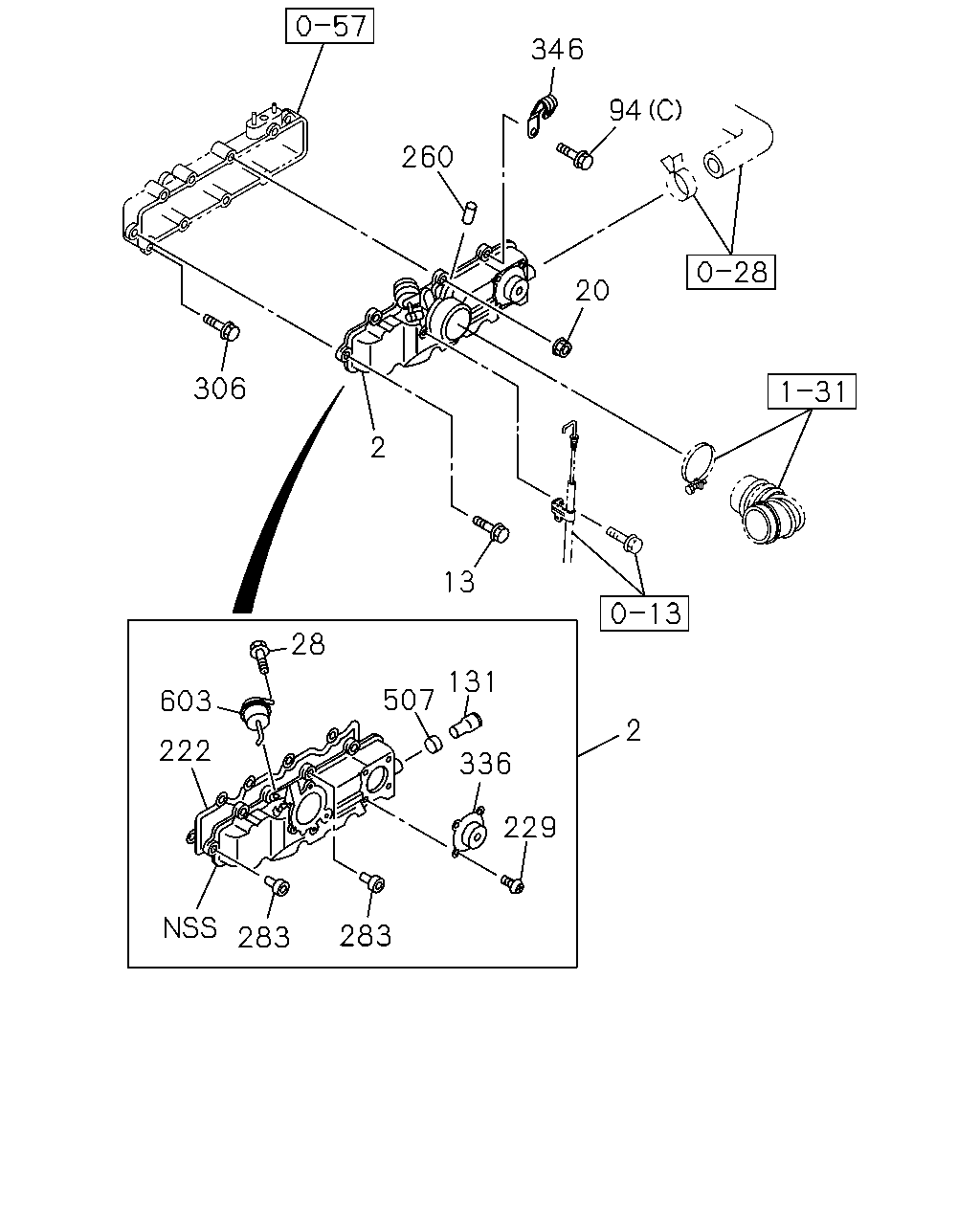

346 94 260 346 20 2 306 13 28 131 507 603 222 336 2 229 283 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL	8-97219-653-1	01	1	0102-0501	●
2	03.407 COVER; INL	8-97219-653-2	01	1	0502-		●
2	03.407 COVER; INL	8-97146-864-2	01	1	0201-1310			●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0102-0501	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0502-0512		●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	06	1	0601-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0201-0512			●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	08	1	0601-			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0602			●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0201-0512			●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0102-0501	●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0502-0512		●
94	02.559 BOLT 09.173 (B) M8X45 FLANGE	0-28050-845-0	04	1	0601-		●
94	02.559 BOLT 01.780 (A) M8X50 FLANGE	0-28080-850-0	02	1	0102-0501	●
94	02.559 BOLT 01.780 (A) M8X50 FLANGE	0-28080-850-0	02	1	0502-0512		●
94	02.559 BOLT 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
94	02.559 BOLT 03.275 (C) M8X30 FLANGE	0-28080-830-0	02	1	0201-0512			●
94	02.559 BOLT 00.206 (C) M8X30 FLANGE	0-28050-830-0	02	1	0601-			●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0201-			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97219-649-0	01	1	0102-0501	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97219-649-0	01	1	0502-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0201-			●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0201-0604			●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0102-0112	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0201-0501	●		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-		●	●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0102-0501	●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0502-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0201-			●
306	03.265 BOLT; VLV 01.540 M8X45 FLANGE	0-28080-845-0	05	1	0201-0512			●
306	03.265 BOLT; VLV 09.173 M8X45 FLANGE	0-28050-845-0	05	1	0601-			●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0201-1310			●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0102-0501	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0502-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0201-0801			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●
507	03.415 ORIFICE	8-97088-649-0	01	1	0201-			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0201-			●

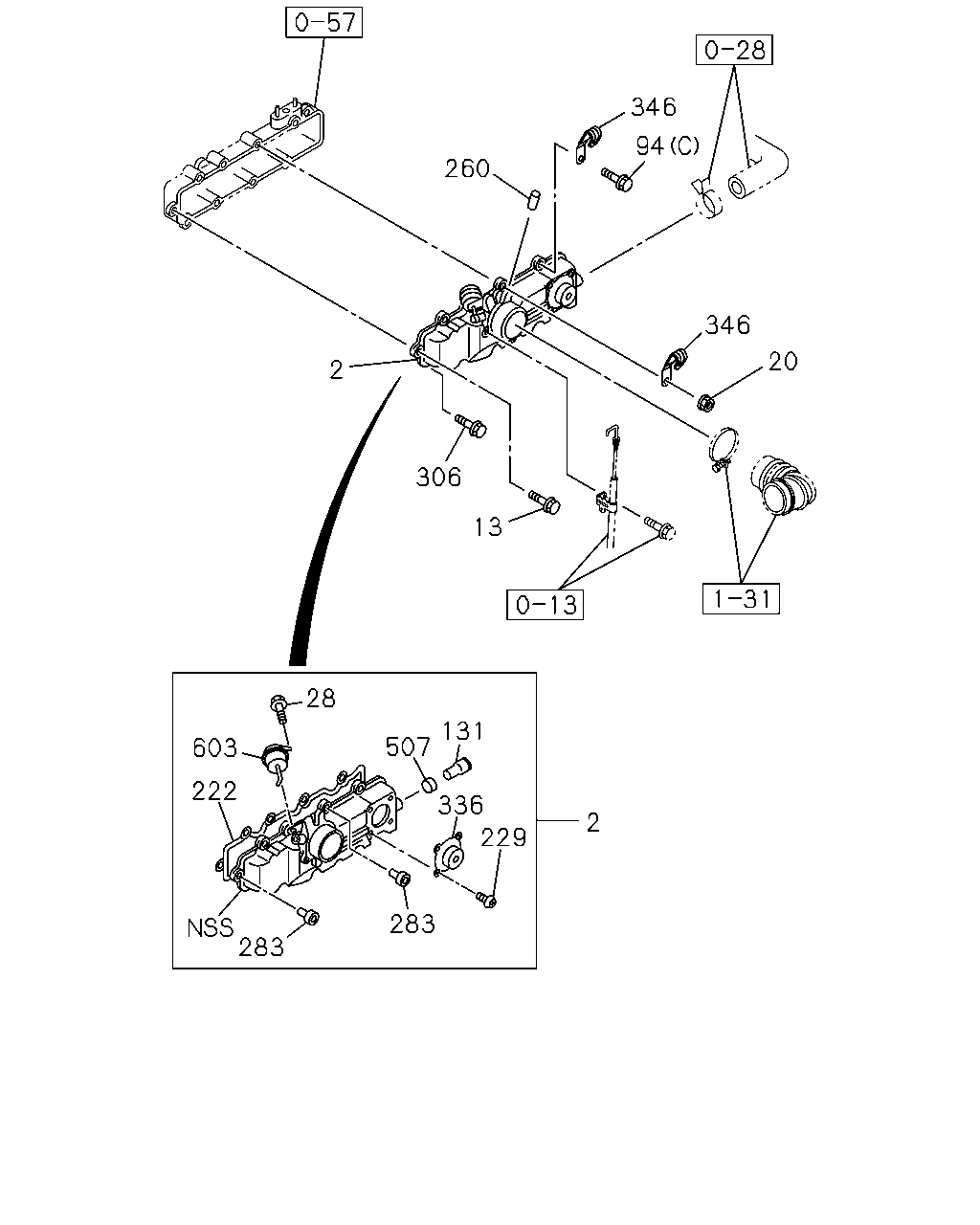

346 94 260 20 306 2 13 28 131 507 603 2 222 336 229 283 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL	8-97219-653-1	01	1	0102-0501	●
2	03.407 COVER; INL	8-97219-653-2	01	1	0502-		●
2	03.407 COVER; INL	8-97146-864-2	01	1	0201-1310			●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0102-0501	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0502-0512		●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	06	1	0601-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0201-0512			●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	08	1	0601-			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0602			●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0201-0512			●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0102-0501	●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0502-0512		●
94	02.559 BOLT 09.173 (B) M8X45 FLANGE	0-28050-845-0	04	1	0601-		●
94	02.559 BOLT 01.780 (A) M8X50 FLANGE	0-28080-850-0	02	1	0102-0501	●
94	02.559 BOLT 01.780 (A) M8X50 FLANGE	0-28080-850-0	02	1	0502-0512		●
94	02.559 BOLT 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
94	02.559 BOLT 03.275 (C) M8X30 FLANGE	0-28080-830-0	02	1	0201-0512			●
94	02.559 BOLT 00.206 (C) M8X30 FLANGE	0-28050-830-0	02	1	0601-			●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0201-			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97219-649-0	01	1	0102-0501	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97219-649-0	01	1	0502-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0201-			●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0201-0604			●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0102-0112	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0201-0501	●		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-		●	●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0102-0501	●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0502-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0201-			●
306	03.265 BOLT; VLV 01.540 M8X45 FLANGE	0-28080-845-0	05	1	0201-0512			●
306	03.265 BOLT; VLV 09.173 M8X45 FLANGE	0-28050-845-0	05	1	0601-			●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0201-1310			●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0102-0501	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0502-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0201-0801			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●
507	03.415 ORIFICE	8-97088-649-0	01	1	0201-			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0201-			●

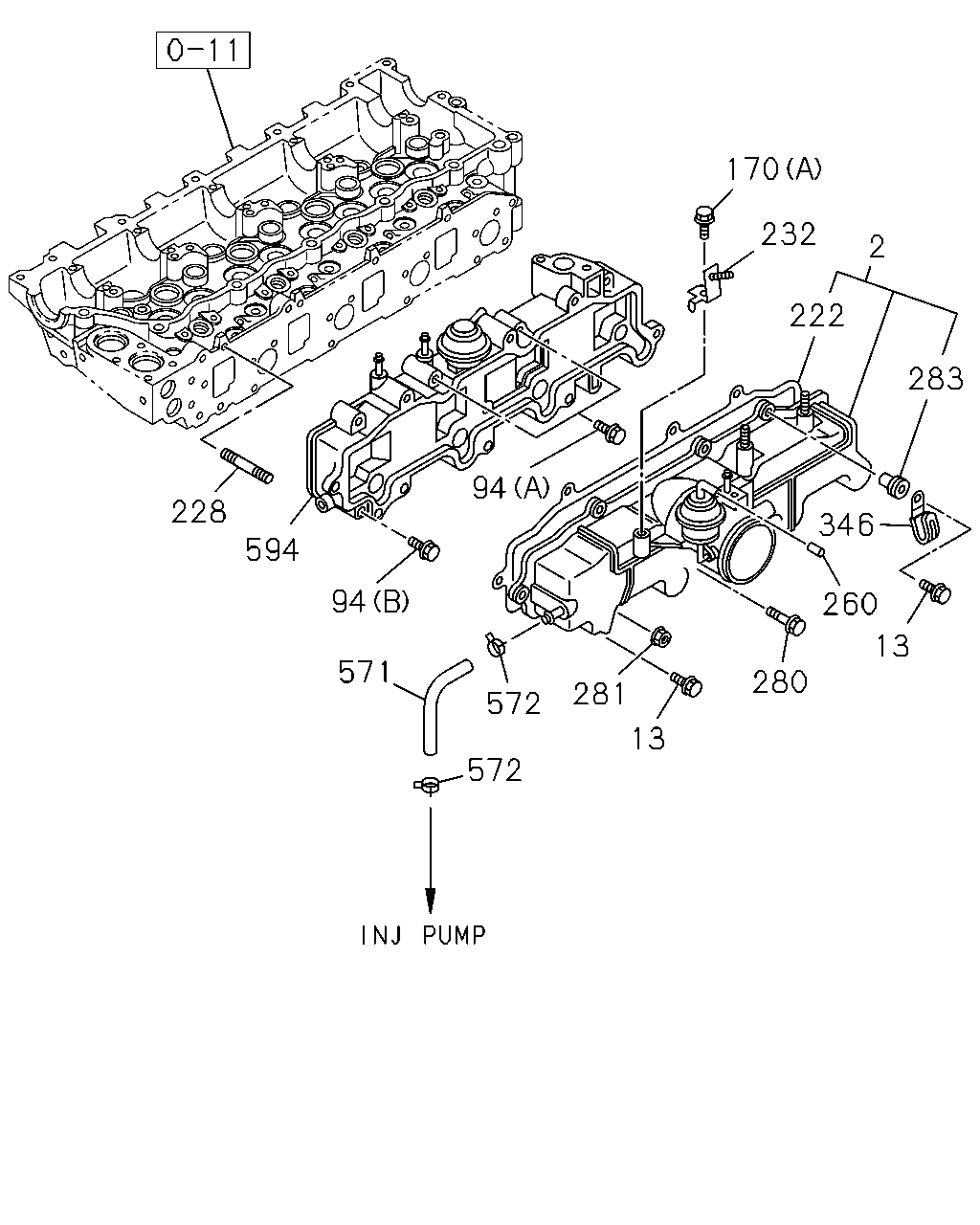

170 232 2 222 283 94 228 346 594 94 260 13 571 280 281 572 13 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL	8-97219-653-1	01	1	0102-0501	●
2	03.407 COVER; INL	8-97219-653-2	01	1	0502-		●
2	03.407 COVER; INL	8-97146-864-2	01	1	0201-1310			●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0102-0501	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0502-0512		●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	06	1	0601-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0201-0512			●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	08	1	0601-			●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0102-0501	●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0502-0512		●
94	02.559 BOLT 09.173 (B) M8X45 FLANGE	0-28050-845-0	04	1	0601-		●
94	02.559 BOLT 01.780 (A) M8X50 FLANGE	0-28080-850-0	02	1	0102-0501	●
94	02.559 BOLT 01.780 (A) M8X50 FLANGE	0-28080-850-0	02	1	0502-0512		●
94	02.559 BOLT 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
94	02.559 BOLT 03.275 (C) M8X30 FLANGE	0-28080-830-0	02	1	0201-0512			●
94	02.559 BOLT 00.206 (C) M8X30 FLANGE	0-28050-830-0	02	1	0601-			●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0102-0501	●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●
170	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0102-0501	●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0502-0512		●
170	03.162 BOLT; BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	0601-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97219-649-0	01	1	0102-0501	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97219-649-0	01	1	0502-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0201-			●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0102-0501	●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0502-		●
232	03.407 BRACKET; INJ PIPE	8-97190-249-0	01	1	0102-0501	●
232	03.407 BRACKET; INJ PIPE	8-97190-249-0	01	1	0502-		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0102-0112	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0201-0501	●		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-		●	●
280	03.403 BOLT; INL COVER 09.171 M8X80 FLANGE	0-28080-880-0	01	1	0102-0501	●
280	03.403 BOLT; INL COVER 09.171 M8X80 FLANGE	0-28080-880-0	01	1	0502-0512		●
280	03.403 BOLT; INL COVER 01.252 M8X80 FLANGE	0-28050-880-0	01	1	0601-		●
281	03.407 NUT; INL COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0501	●
281	03.407 NUT; INL COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
281	03.407 NUT; INL COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0102-0501	●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0502-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0201-			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0102-0501	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0502-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0201-0801			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●
571	03.265 HOSE; AIR BOOST 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0102-0501	●
571	03.265 HOSE; AIR BOOST 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0502-		●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0102-0501	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0502-		●
594	03.278 CASE	8-97230-991-0	01	1	0102-0501	●
594	03.278 CASE	8-97230-991-0	01	1	0502-0503		●
594	03.278 CASE	8-98011-006-0	01	1	0504-0801		●
594	03.278 CASE	8-98096-147-0	01	1	0802-		●

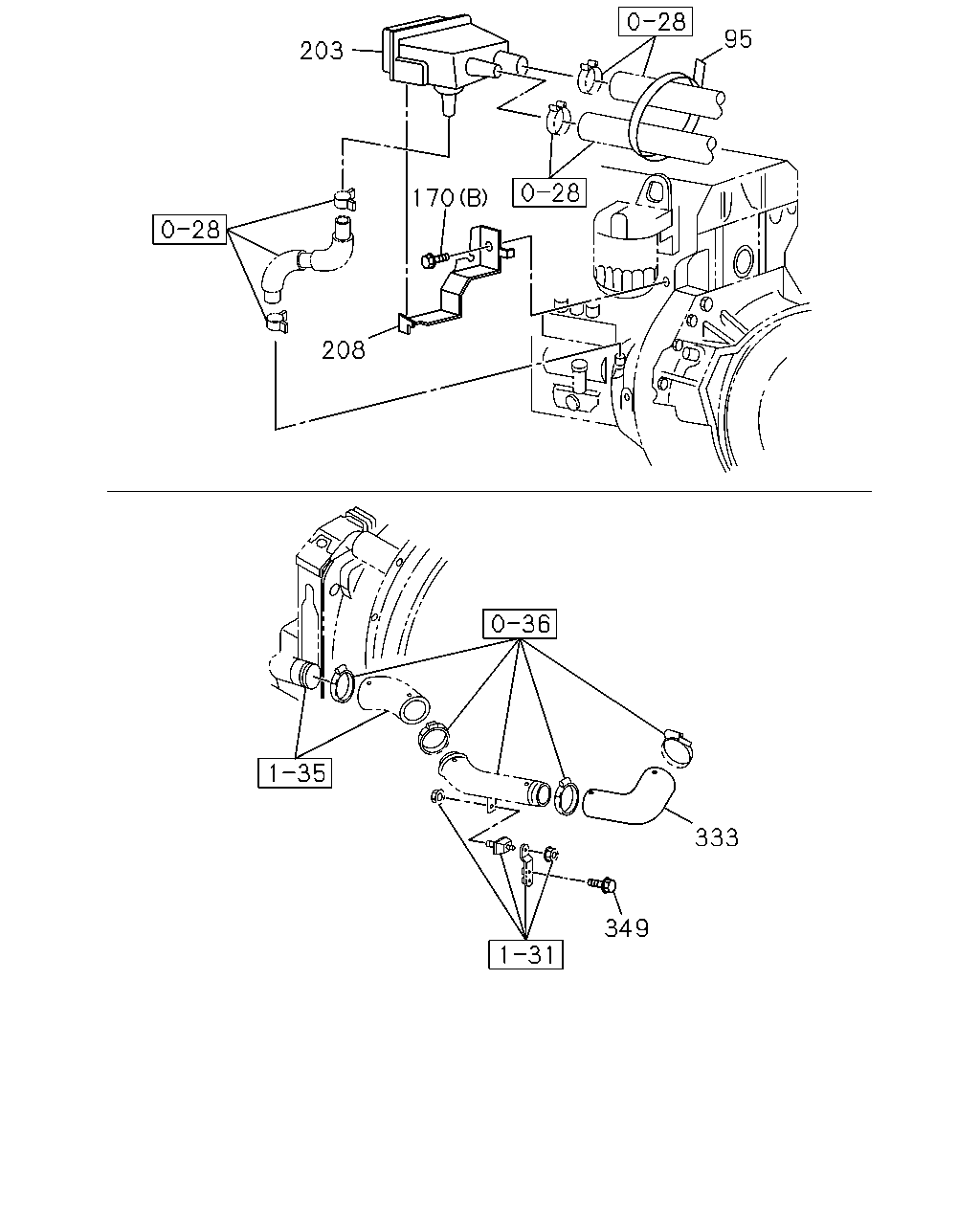

95 203 170 208 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	03.278 CLIP; RUBBER HOSE 03.162 L=140	5-09707-031-1	01	1	0102-0501	●
95	03.278 CLIP; RUBBER HOSE 03.162 L=140	5-09707-031-1	01	1	0502-		●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0102-0501	●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●
170	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0102-0501	●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0502-0512		●
170	03.162 BOLT; BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	0601-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0102-0501	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0502-		●
208	01.750 BRACKET; CATCH TANK,OIL	8-97166-887-0	01	1	0102-0501	●
208	01.750 BRACKET; CATCH TANK,OIL	8-97166-887-0	01	1	0502-		●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-0	01	1	0102-0501	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-1	01	1	0502-0608		●
333	03.278 HOSE; RUBBER,INL PIPE	8-98053-755-0	01	1	0609-		●
349	03.417 BOLT; BRKT,INL PIPE 04.595 M8X20 FLANGE	0-28480-820-0	04	1	0102-0501	●
349	03.417 BOLT; BRKT,INL PIPE 04.595 M8X20 FLANGE	0-28480-820-0	04	1	0502-0502		●
