0-22 — ENGINE MOUNTING (#47602) — 211 parça

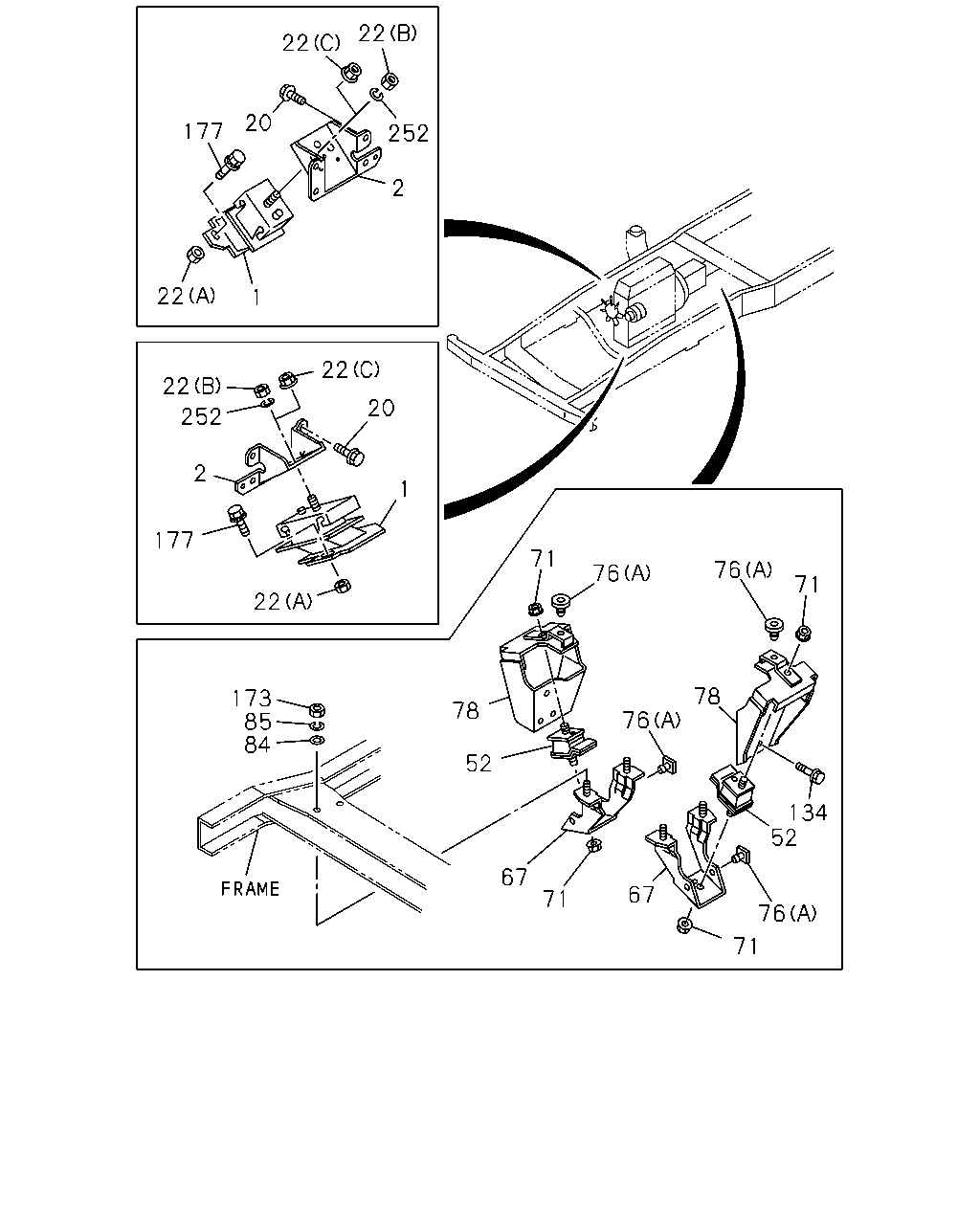

çizim 9307
22 22 20 177 252 2 22 1 22 22 20 252 2 1 177 71 76 76 71 22 78 173 85 84 78 76 52 134 52 67 67 71 76 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97187-417-0 01 1 0102-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97187-416-0 01 1 0102-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97187-418-0 01 1 0203-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-671-0 01 1 0201-0202 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97201-671-0 01 1 0203-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97201-671-0 01 1 0203-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-671-0 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-669-0 01 1 0201- ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0102-0112 ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0201-0501 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0502- ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0102-0112 ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0201-0501 ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0502-0512 ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0102-0112 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0201-0501 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0502-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0612 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0102-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0502-0602 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0201-0602 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-0 03 1 0510-0510 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 0102-0112 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 01 1 0201-0301 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 01 1 0201-0301 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0302-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0502- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0201-0301 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-0 02 1 0302-0509 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-0 02 1 0510-0510 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-1 02 1 0510- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97039-282-2 02 1 0102-0112 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97039-282-2 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97039-282-2 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0302-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FLOOR REMOTE SHIFT<M11> 		8-94384-214-0 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-566-0 01 1 0302-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97371-918-1 01 1 0307- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FLOOR REMOTE SHIFT<M11> 		8-94384-213-0 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-567-1 01 1 0302- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0102-0112 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0201-0301 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0302-0501 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY5T(RSM) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY5T(RSM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0201-0301 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 0102-0112 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 04 1 0201-0203 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 0204-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 06 1 0302-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (B) 		8-97039-947-1 04 1 1404- ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 02 1 0102-0112 ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0302-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 0201-0201 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0302-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0502-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF),M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 02 1 1404- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97172-398-1 01 1 0102-0301 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-564-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-564-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR 8-97172-399-1 01 1 0102-0207 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97172-399-1 01 1 0208-0301 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97172-399-1 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97172-399-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-565-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-565-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97307-777-0 01 1 0208-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97307-777-0 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97234-719-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97211-475-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 0201-0301 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-562-1 01 1 0302- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-563-1 01 1 0302- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0102-0112 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0201-0605 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0102-0112 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0201-0603 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0610 ● ●
134 00.029 BOLT; SUPPORT BRKT
00.002 M12X30 		0-28781-230-0 07 1 0102-0112 ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 07 1 0201-0301 ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0302-0512 ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601- ● ●
134 00.029 BOLT; SUPPORT BRKT
M/T MZZ6U(RSF) 03.890 M12X25 		0-28781-225-0 06 1 0208-0301 ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0102-0112 ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0201-0512 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 M10 		0-91110-510-0 04 1 0601-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0611- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0102-0112 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0201- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0102-0112 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0201-0501 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0502-0603 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0612 ● ●

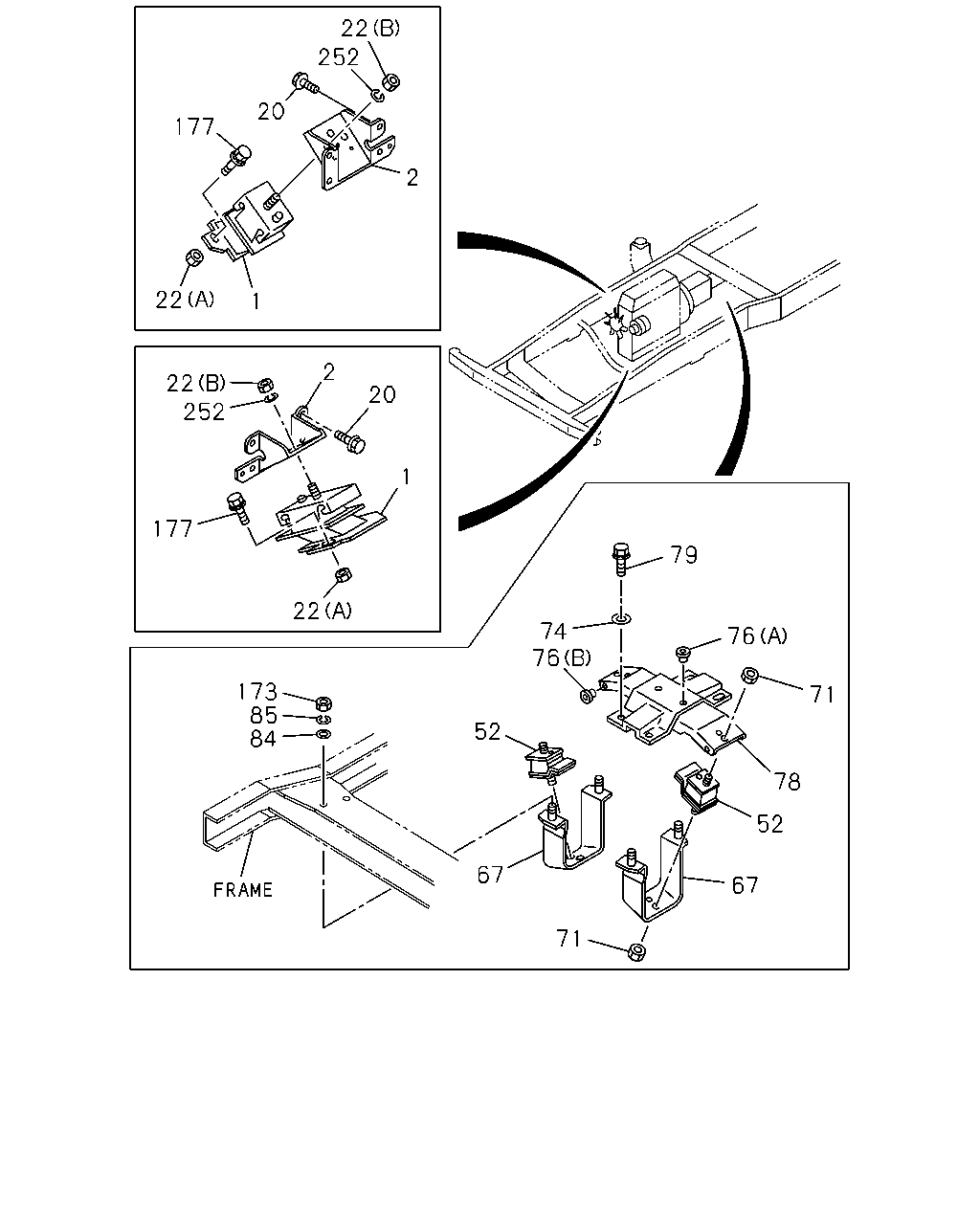

çizim 49678
22 252 20 177 2 22 1 2 22 252 20 1 177 79 22 74 76 76 173 85 84 71 52 78 52 67 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97187-417-0 01 1 0102-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97187-416-0 01 1 0102-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97187-418-0 01 1 0203-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-671-0 01 1 0201-0202 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97201-671-0 01 1 0203-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97201-671-0 01 1 0203-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-671-0 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-669-0 01 1 0201- ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0102-0112 ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0201-0501 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0502- ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0102-0112 ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0201-0501 ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0502-0512 ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0102-0112 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0201-0501 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0502-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0612 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0102-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0502-0602 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0201-0602 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-0 03 1 0510-0510 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 0102-0112 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 01 1 0201-0301 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 01 1 0201-0301 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0302-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0502- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0201-0301 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-0 02 1 0302-0509 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-0 02 1 0510-0510 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-1 02 1 0510- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97039-282-2 02 1 0102-0112 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97039-282-2 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97039-282-2 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0302-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FLOOR REMOTE SHIFT<M11> 		8-94384-214-0 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-566-0 01 1 0302-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97371-918-1 01 1 0307- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FLOOR REMOTE SHIFT<M11> 		8-94384-213-0 01 1 0201-0301 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-567-1 01 1 0302- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0102-0112 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0201-0301 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0302-0501 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY5T(RSM) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY5T(RSM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0201-0301 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0201-0301 ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 0102-0112 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 04 1 0201-0203 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 0204-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 06 1 0302-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (B) 		8-97039-947-1 04 1 1404- ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 02 1 0102-0112 ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0302-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 0201-0201 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 01 1 0201-0301 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0302-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0502-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF),M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 02 1 1404- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97172-398-1 01 1 0102-0301 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-564-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-564-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR 8-97172-399-1 01 1 0102-0207 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97172-399-1 01 1 0208-0301 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97172-399-1 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97172-399-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-565-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-565-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97307-777-0 01 1 0208-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97307-777-0 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97234-719-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97211-475-0 01 1 0302-0501 ●
78 00.029 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 0201-0301 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-562-1 01 1 0302- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-563-1 01 1 0302- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
03.417 M10X25 FLANGE 		0-28081-025-0 04 1 0201-0301 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0102-0112 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0201-0605 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0102-0112 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0201-0603 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0102-0112 ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0201-0512 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 M10 		0-91110-510-0 04 1 0601-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0611- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0102-0112 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0201- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0102-0112 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0201-0501 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0502-0603 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0612 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
