8-20 — METER CABLE (#47601) — 35 parça

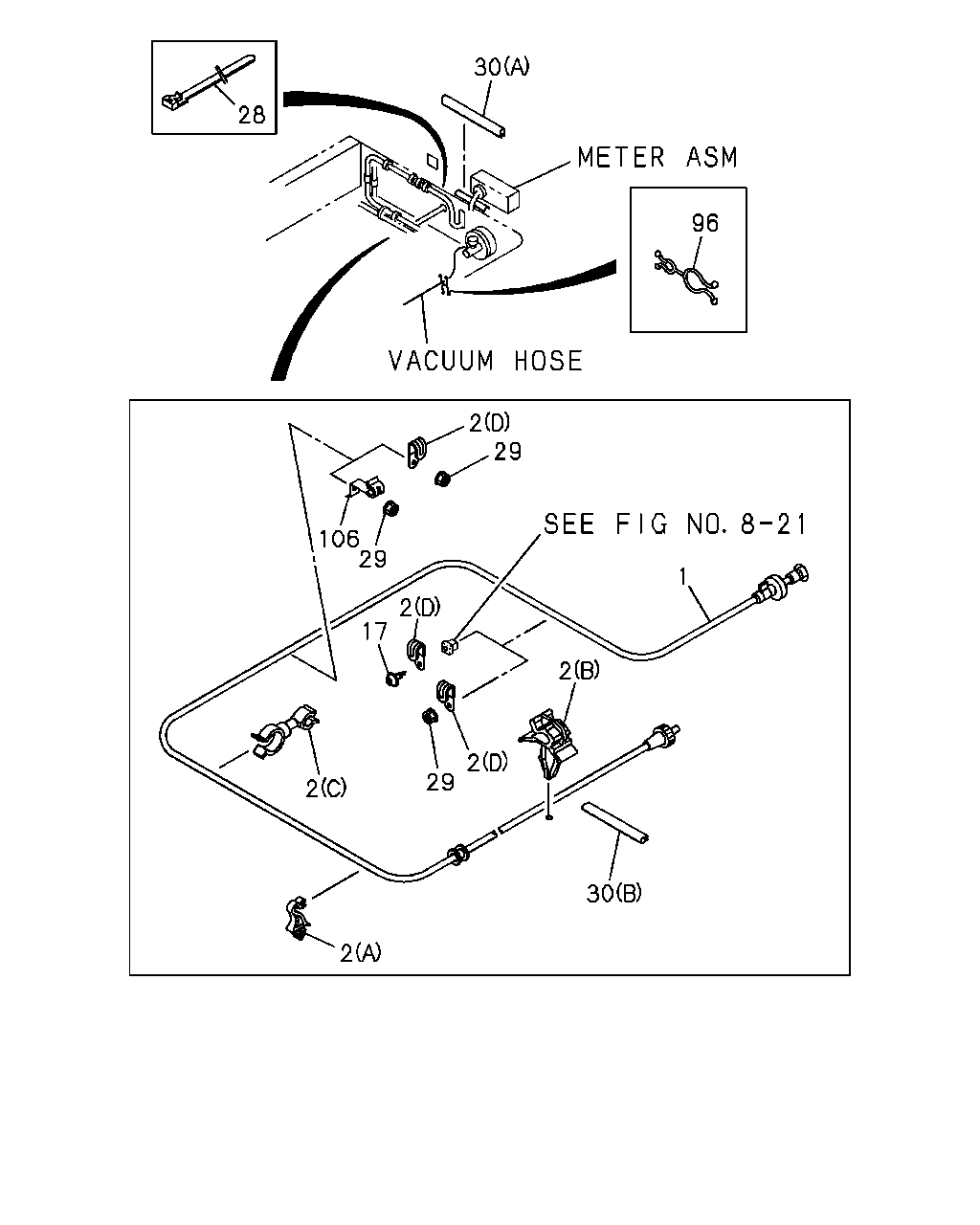

çizim 68399
28 30 96 2 106 29 1 29 17 2 2 2 29 30 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.342 SHAFT; FLEX,SPD TO CONN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) L=2400 		8-94434-484-2 01 1 9210-9308 ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) L=2400 		8-94434-484-2 01 1 9309- ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4JA1 ENG(RLE) L=2430 		8-97084-021-0 01 1 9210-9310 ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4JA1 ENG(RLE) L=2430 		8-97104-422-0 01 1 9311- ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4JB1 ENG(RLF) L=2430 		8-97104-423-0 01 1 9602- ●
1 04.342 SHAFT; FLEX,SPD TO CONN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) L=2600 		8-94434-485-2 01 1 9210-9308 ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) L=2600 		8-94434-485-2 01 1 9309- ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4JA1 ENG(RLE) L=2790 		8-94320-438-3 01 1 9210-9310 ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4JA1 ENG(RLE) L=2790 		8-97104-421-1 01 1 9311- ● ● ● ●
1 04.342 SHAFT; FLEX,SPD TO CONN
4JB1 ENG(RLF) L=2790 		8-97107-225-0 01 1 9510- ● ● ●
2 04.342 CLIP; FLEX SHAFT
(A) ID=14.5 		8-94222-337-1 01 1 9210- ● ● ● ● ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
04.686 (C) ID=8 & 4.8 		8-94430-297-0 01 1 9210- ● ● ● ● ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.559 (D) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.559 (D) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 9309- ● ● ● ● ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
4JA1 ENG(RLE) 03.430 (D) ID=10.5 H=60 		8-94323-658-1 01 1 9210-9311 ● ● ● ● ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
4JA1 ENG(RLE) 02.559 (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9312-9509 ● ● ● ● ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.559 (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9510- ● ● ● ● ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
4JA1 ENG(RLE) (B) ID=7 		5-09707-053-0 02 1 9210-9509 ● ● ● ●
2 04.342 CLIP; FLEX SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) ID=7 		5-09707-053-0 02 1 9510- ● ● ● ●
17 02.559 SCREW
4JA1 ENG(RLE) 16.165 M6X16 TAPPING W/PL WASHER 		0-74300-616-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
17 02.559 SCREW
4JA1 ENG(RLE),4JB1 ENG(RLF) 16.165 M6X16 TAPPING W/PL WASHER 		0-74300-616-0 01 1 9510- ● ● ● ● ● ● ● ●
28 04.342 CLIP; BAND,FLEX SHAFT
C223 ENG(LQ7) 03.162 L=140 		5-09707-031-0 01 1 9210-9308 ● ● ● ● ● ●
29 04.342 NUT; CLIP,METER FLEX SHAFT
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9210-9303 ● ● ● ● ● ● ● ●
29 04.342 NUT; CLIP,METER FLEX SHAFT
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9304-9308 ● ● ● ● ● ● ● ●
29 04.342 NUT; CLIP,METER FLEX SHAFT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9309- ● ● ● ● ● ● ● ●
29 04.342 NUT; CLIP,METER FLEX SHAFT
4JA1 ENG(RLE) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9210-9302 ● ● ● ● ● ● ● ●
29 04.342 NUT; CLIP,METER FLEX SHAFT
4JA1 ENG(RLE) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9303-9509 ● ● ● ● ● ● ● ●
29 04.342 NUT; CLIP,METER FLEX SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9510- ● ● ● ● ● ● ● ●
30 04.342 PROTECTOR; FLEX SHAFT
03.008 (A) L=80 		5-22439-006-0 01 1 9210- ● ● ● ● ● ● ● ●
30 04.342 PROTECTOR; FLEX SHAFT
4JA1 ENG(RLE) 02.183 (B) L=40 		8-94212-660-0 02 1 9210-9509 ● ● ● ●
30 04.342 PROTECTOR; FLEX SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.183 (B) L=40 		8-94212-660-0 02 1 9510- ● ● ● ●
96 09.762 CLIP; CABLE
4JA1 ENG(RLE) 02.559 ID=8 & 18.5 		8-94132-792-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
96 09.762 CLIP; CABLE
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.559 ID=8 & 18.5 		8-94132-792-0 01 1 9510- ● ● ● ● ● ● ● ●
106 02.559 CLIP; SPEEDOMETER CABLE
4JA1 ENG(RLE) 04.342 		8-94323-659-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
106 02.559 CLIP; SPEEDOMETER CABLE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.342 		8-94323-659-0 01 1 9510- ● ● ● ● ● ● ● ●
