◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#47600) — 680 parça

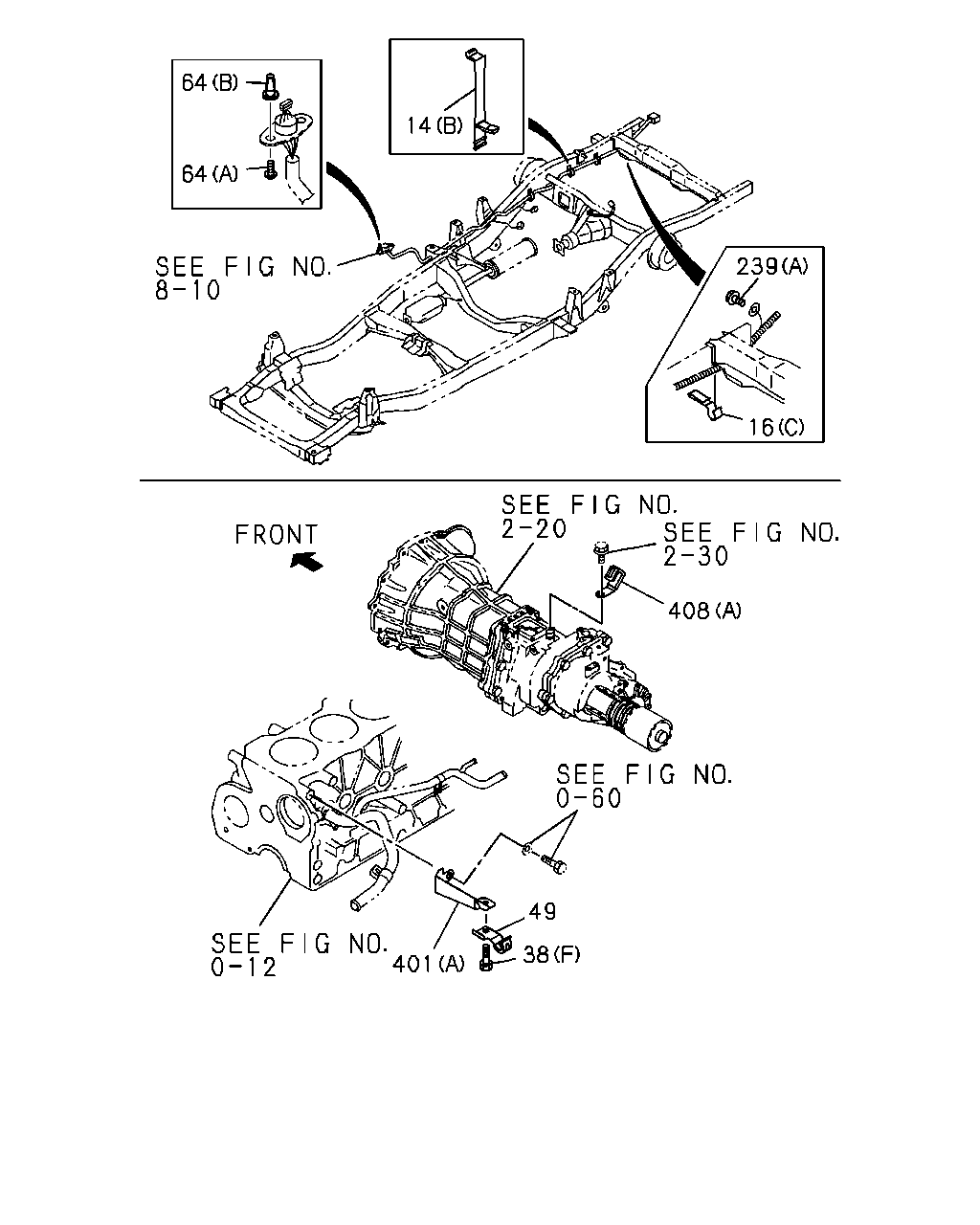

çizim 19380
64 64 14 239 16 401 49 38 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9210- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=77 		8-94473-398-0 11 1 9210- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=77 		8-94473-398-0 08 1 9210- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=77 		8-94473-398-0 10 1 9210- ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 01 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (A) L=60 		8-94449-752-0 01 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9309- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (F) SP/W ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 06 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (H) L=150 		8-97811-150-0 02 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9510- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 04 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 04 1 9510- ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 08.900 (G) M8X12 FLANGE 		0-28080-812-0 03 1 9510- ● ● ●
49 02.559 CLIP; GEN HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94319-607-0 01 1 9210- ● ● ● ● ● ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9210- ● ● ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) M5X20 D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9210- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9210- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9210- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE) (B) 		8-94330-360-1 01 1 9210-9509 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-94330-360-1 01 1 9510- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB) (A) 		8-94329-766-0 01 1 9210-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9210-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9210-9411 ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94329-766-0 01 1 9412-9509 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9412-9509 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9412-9509 ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) (A) 		8-94329-766-0 01 1 9510- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9510- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9510- ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510-9601 ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9602- ● ● ● ●

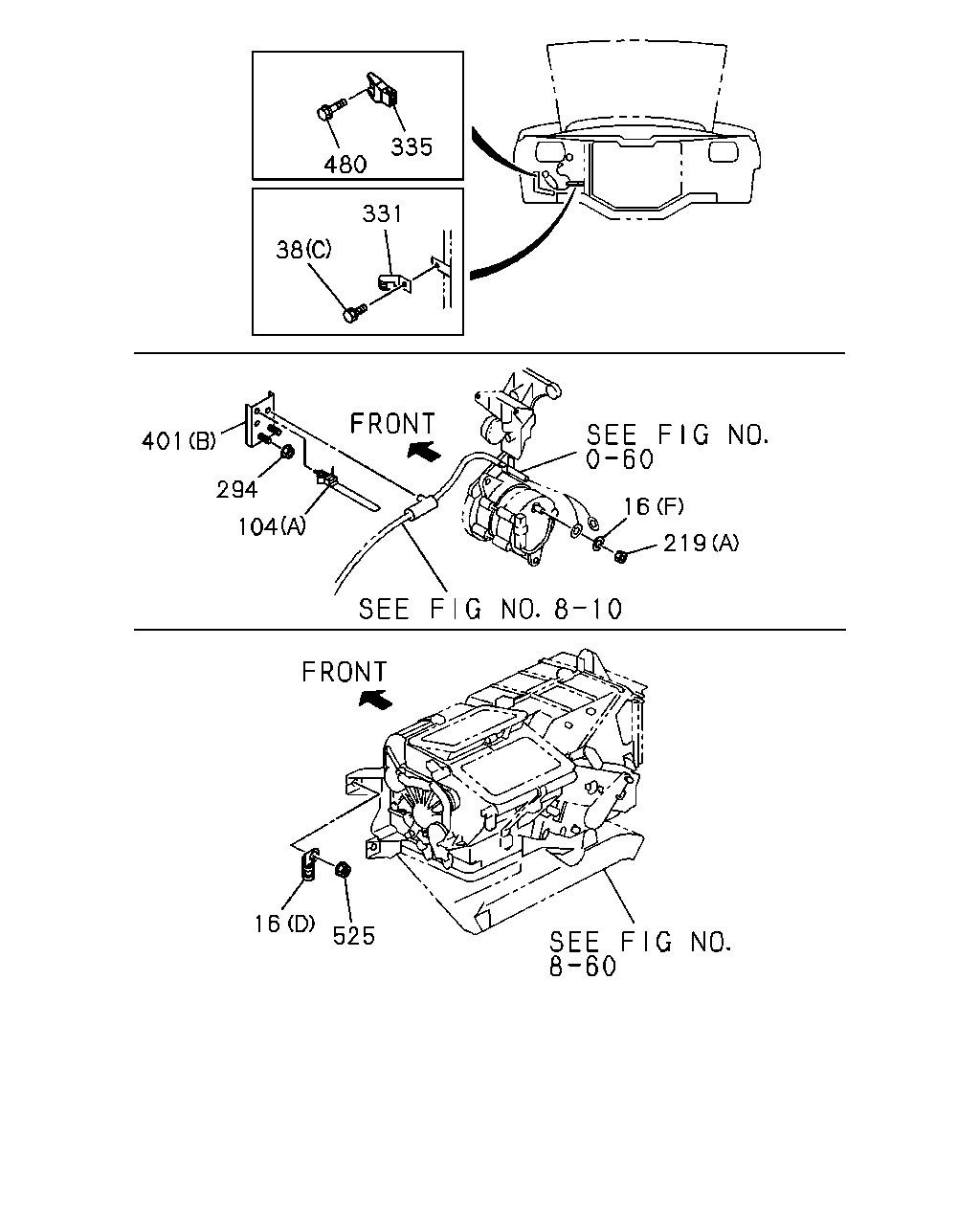

çizim 66380
335 480 38 331 401 16 219 104 294 16 525
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 01 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (A) L=60 		8-94449-752-0 01 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9309- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (F) SP/W ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 06 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (H) L=150 		8-97811-150-0 02 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9510- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 04 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 04 1 9510- ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 08.900 (G) M8X12 FLANGE 		0-28080-812-0 03 1 9510- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (A) L=112 		8-94232-618-0 01 1 9510- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) L=142 		8-94232-619-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> (B) L=142 		8-94232-619-0 02 1 9403-9409 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) (B) L=142 		8-94232-619-0 02 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9501- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9210-9409 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (B) L=142 		8-94232-619-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9412-9502 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 01 1 9412-9502 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZA1 ENG(L17) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
219 02.559 NUT
C223 ENG(LQ7),4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQ UIPMENT(6KB),CATALYSIS CONTROL<6MZ> ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9501- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9501- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.413 (A) M6 M6 		9-09110-506-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 16.176 (A) M6 		9-09110-406-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.343 (A) M6 W/LK WASHER 		8-94424-179-0 01 1 9510- ● ● ● ● ● ● ● ●
294 02.559 NUT
4JA1 ENG(RLE) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9210-9509 ● ● ● ● ● ● ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9510- ● ● ● ● ● ● ● ●
331 02.559 CLIP; HARNESS BRKT
01.152 ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
335 02.510 BRACKET; CONNECTOR
EXC. DUAL TONE HORN<U05> 		8-94326-558-0 01 1 9210- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE) (B) 		8-94330-360-1 01 1 9210-9509 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-94330-360-1 01 1 9510- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB) (A) 		8-94329-766-0 01 1 9210-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9210-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9210-9411 ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94329-766-0 01 1 9412-9509 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9412-9509 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9412-9509 ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) (A) 		8-94329-766-0 01 1 9510- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9510- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9510- ● ● ● ●
480 02.483 BOLT; BRKT
EXC. DUAL TONE HORN<U05> 02.343 M8X12 		8-94148-422-1 01 1 9210- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9406- ● ● ● ● ● ● ● ●

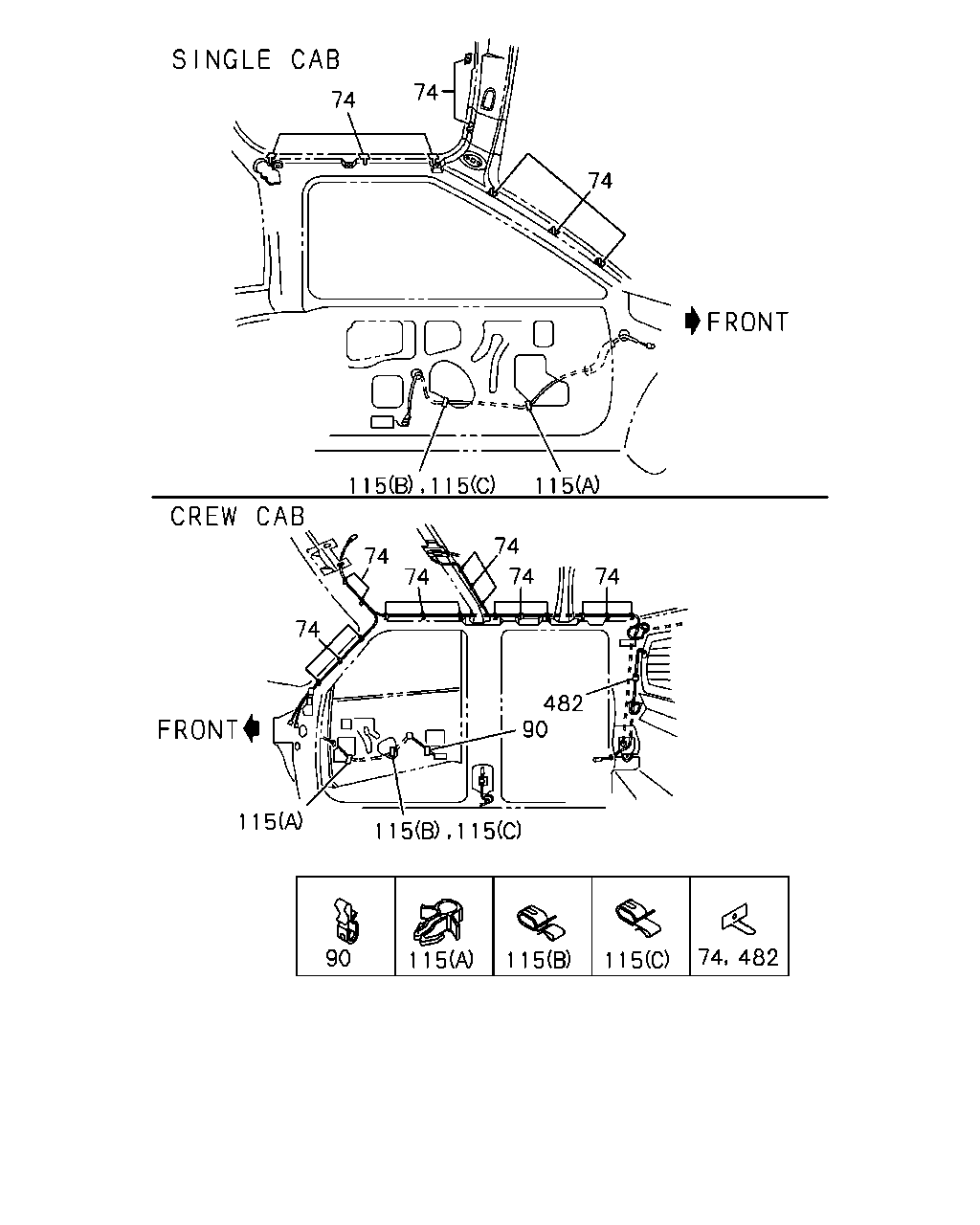

çizim 66411
74 74 74 115 115 115 74 74 74 74 74 74 482 90 115 115 115 90 115 115 115 74 482
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 11 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 13 1 9510- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) EXC. SUN ROOF<CF7> 		8-94138-987-0 13 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) 		8-94138-987-0 13 1 9510-9510 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 08 1 9210- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 19 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 9510- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 ID=9 		8-94177-914-0 04 1 9501- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 ID=9 		8-94177-914-0 02 1 9503- ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB),GRADE LS(RBD) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (B) 		5-09709-107-0 02 1 9210-9308 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) (B) 		5-09709-107-0 02 1 9210-9308 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9409- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9210-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9409- ● ● ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9502- ● ●
çizim 67348
14 16 142 206 305 408 483 14 128 305 304 304 304 25 74 74 74 74 27 115 16 115 16 74 115 115 16 16 127
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9210- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=77 		8-94473-398-0 11 1 9210- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=77 		8-94473-398-0 08 1 9210- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=77 		8-94473-398-0 10 1 9210- ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 01 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (A) L=60 		8-94449-752-0 01 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9309- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (F) SP/W ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 06 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (H) L=150 		8-97811-150-0 02 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9510- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 04 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 04 1 9510- ● ●
25 02.559 WASHER; PL,ENG HARNESS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 00.206 ID=6.4 		9-09160-506-0 02 1 9210-9210 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9408-9408 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9408-9408 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9603- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9603- ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> (A) L=60 		8-94115-120-0 01 1 9603- ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 01 1 9408- ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.483 (C) 		8-94142-264-0 02 1 9210- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 11 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 13 1 9510- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) EXC. SUN ROOF<CF7> 		8-94138-987-0 13 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) 		8-94138-987-0 13 1 9510-9510 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 08 1 9210- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 19 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 9510- ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB),GRADE LS(RBD) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (B) 		5-09709-107-0 02 1 9210-9308 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) (B) 		5-09709-107-0 02 1 9210-9308 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9409- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9210-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9409- ● ● ● ● ● ● ● ●
127 02.726 SCREW; FACIA HARNESS CLIP
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 9210- ● ● ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=250 		5-09707-030-0 01 1 9210- ● ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.162 L=140 		5-09707-031-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 L=140 		5-09707-031-0 01 1 9403- ● ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
C223 ENG(LQ7) 03.162 L=140 		5-09707-031-0 02 1 9210-9308 ● ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-0 01 1 9210- ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9210-9403 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9404-9411 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9404-9411 ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9412-9509 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9412-9509 ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9210-9410 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9410-9509 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9404- ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
C223 ENG(LQ7) 01.531 (C) M8X100 W/LK&PL WASHER 		0-50140-800-0 02 1 9210-9308 ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.162 (A) L=140 		5-09707-031-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-0 01 1 9412- ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-0 01 1 9412- ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.162 (A) L=140 		5-09707-031-0 01 1 9412- ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 04.594 (B) L=100 		5-09707-036-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.594 (B) L=100 		5-09707-036-0 01 1 9403- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510-9601 ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9602- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 03.162 L=140 		5-09707-031-0 01 1 9404- ● ● ● ●

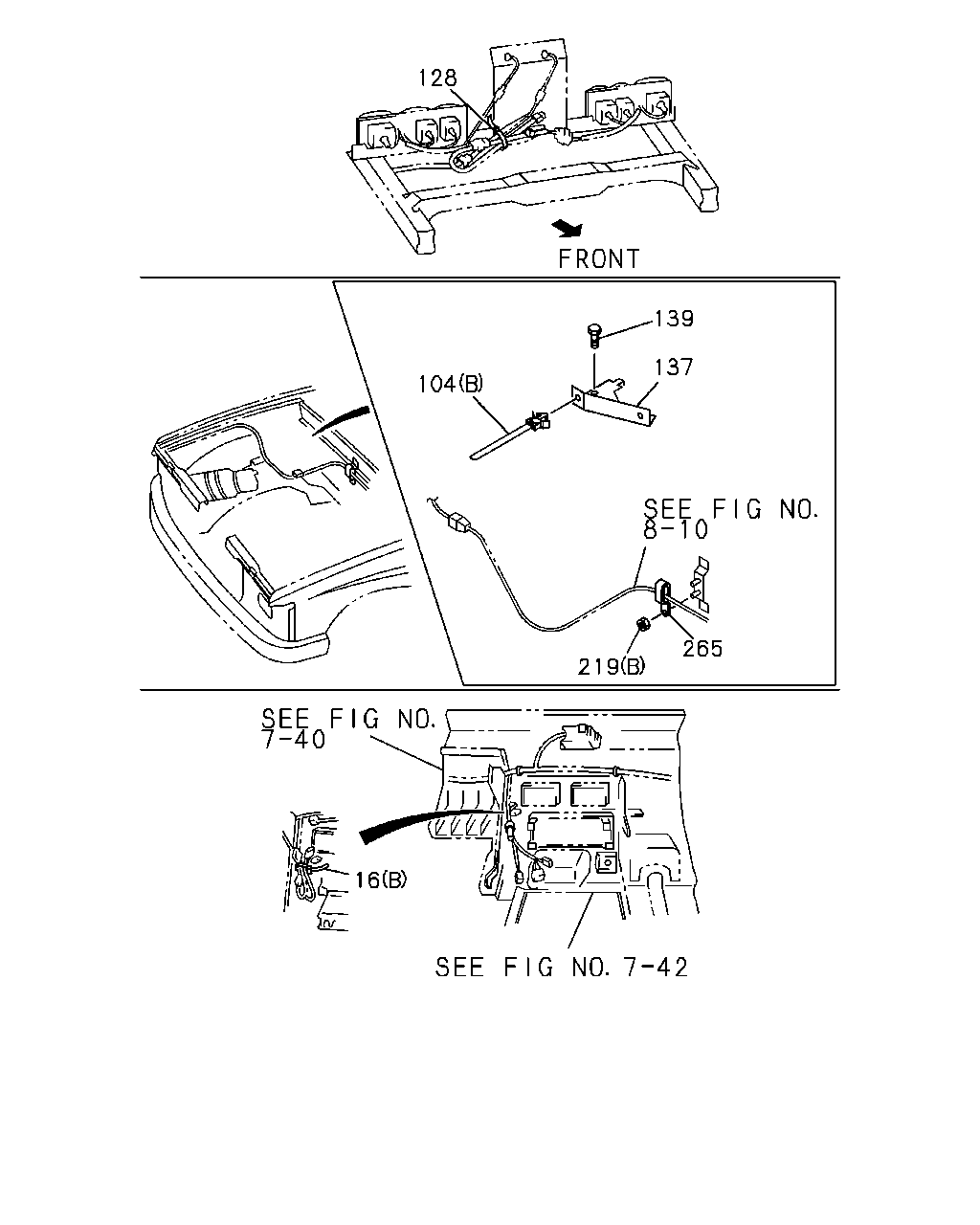

çizim 68504
128 104 139 137 265 219 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 01 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (A) L=60 		8-94449-752-0 01 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9309- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (F) SP/W ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 06 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (H) L=150 		8-97811-150-0 02 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9510- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 04 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 04 1 9510- ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (A) L=112 		8-94232-618-0 01 1 9510- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) L=142 		8-94232-619-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> (B) L=142 		8-94232-619-0 02 1 9403-9409 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) (B) L=142 		8-94232-619-0 02 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9501- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9210-9409 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (B) L=142 		8-94232-619-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9412-9502 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 01 1 9412-9502 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZA1 ENG(L17) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=250 		5-09707-030-0 01 1 9210- ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94328-853-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-94328-853-0 01 1 9403-9409 ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) 		8-94328-853-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94328-853-0 01 1 9501- ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 03.440 M6X18 		8-94409-712-1 01 1 9210-9402 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 03.440 M6X18 		8-94409-712-1 01 1 9403-9409 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) 03.440 M6X18 		8-94409-712-1 01 1 9410-9411 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.440 M6X18 		8-94409-712-1 01 1 9501- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
219 02.559 NUT
C223 ENG(LQ7),4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQ UIPMENT(6KB),CATALYSIS CONTROL<6MZ> ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9501- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9501- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.413 (A) M6 M6 		9-09110-506-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 16.176 (A) M6 		9-09110-406-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.343 (A) M6 W/LK WASHER 		8-94424-179-0 01 1 9510- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=21 L=47.5 		8-94178-108-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
C223 ENG(LQ7),4JA1 ENG(RLE) ID=21 L=47.5 		8-94178-108-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=21 L=47.5 		8-94178-108-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE) ID=21 L=47.5 		8-94178-108-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQ UIPMENT(6KB),CATALYSIS CONTROL<6MZ> ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 9501- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE) ID=21 L=47.5 		8-94178-108-0 01 1 9501- ● ● ● ● ● ● ● ●

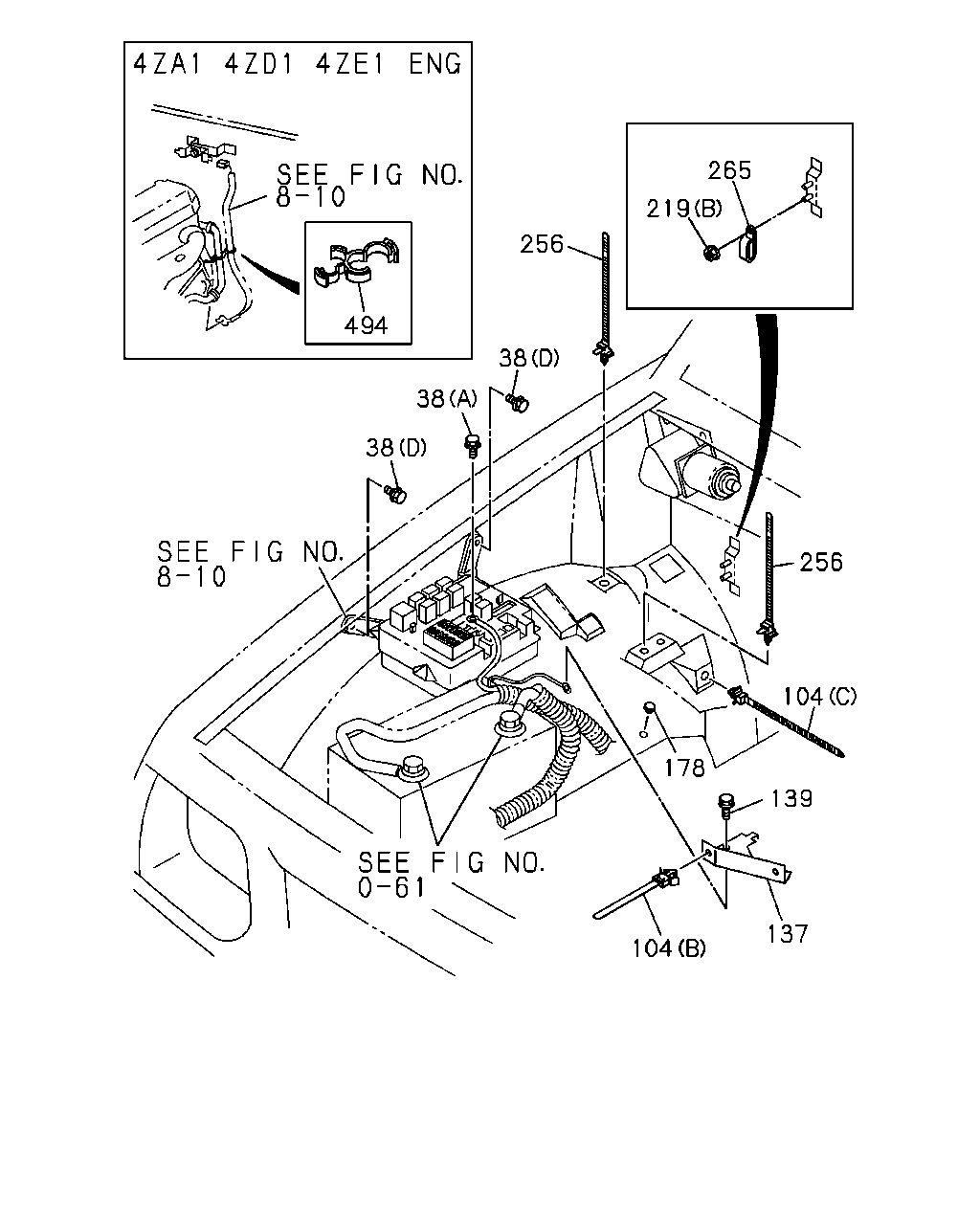

çizim 68505
256 219 265 38 38 38 494 178 139 104 256 137 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 08.900 (G) M8X12 FLANGE 		0-28080-812-0 03 1 9510- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (A) L=112 		8-94232-618-0 01 1 9510- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) L=142 		8-94232-619-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> (B) L=142 		8-94232-619-0 02 1 9403-9409 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) (B) L=142 		8-94232-619-0 02 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9501- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9210-9409 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (B) L=142 		8-94232-619-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9412-9502 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 01 1 9412-9502 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZA1 ENG(L17) (B) L=142 		8-94232-619-0 01 1 9503- ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94328-853-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-94328-853-0 01 1 9403-9409 ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) 		8-94328-853-0 01 1 9410-9411 ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94328-853-0 01 1 9501- ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 03.440 M6X18 		8-94409-712-1 01 1 9210-9402 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 03.440 M6X18 		8-94409-712-1 01 1 9403-9409 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) 03.440 M6X18 		8-94409-712-1 01 1 9410-9411 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.440 M6X18 		8-94409-712-1 01 1 9501- ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 16.550 OD=12 		9-09956-122-0 01 1 9210-9210 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE) EXC. AIR CONDITIONER(C60) 16.550 OD=12 		9-09956-122-0 01 1 9211-9509 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12 		9-09956-122-0 01 1 9211-9509 ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 16.550 OD=12 		9-09956-122-0 01 1 9211-9509 ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12 		9-09956-122-0 01 1 9510- ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER(C60) 16.550 OD=12 		9-09956-122-0 01 1 9510- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
219 02.559 NUT
C223 ENG(LQ7),4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQ UIPMENT(6KB),CATALYSIS CONTROL<6MZ> ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9501- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) 07.833 (B) M6 W/DISHED WASHER 		8-94170-192-0 01 1 9501- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.413 (A) M6 M6 		9-09110-506-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 16.176 (A) M6 		9-09110-406-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.343 (A) M6 W/LK WASHER 		8-94424-179-0 01 1 9510- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 9210-9409 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 9410- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4JA1 ENG(RLE) L=135 		8-94473-399-0 01 1 9410- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) L=135 		8-94473-399-0 01 1 9410- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=21 L=47.5 		8-94178-108-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
C223 ENG(LQ7),4JA1 ENG(RLE) ID=21 L=47.5 		8-94178-108-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=21 L=47.5 		8-94178-108-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE) ID=21 L=47.5 		8-94178-108-0 01 1 9309-9412 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQ UIPMENT(6KB),CATALYSIS CONTROL<6MZ> ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 9501- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE) ID=21 L=47.5 		8-94178-108-0 01 1 9501- ● ● ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 ID=8 & 23 		5-09707-002-0 01 1 9210-9210 ● ● ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.242 ID=12.5 & 24 		5-09709-034-0 01 1 9211- ● ● ● ● ● ● ● ●

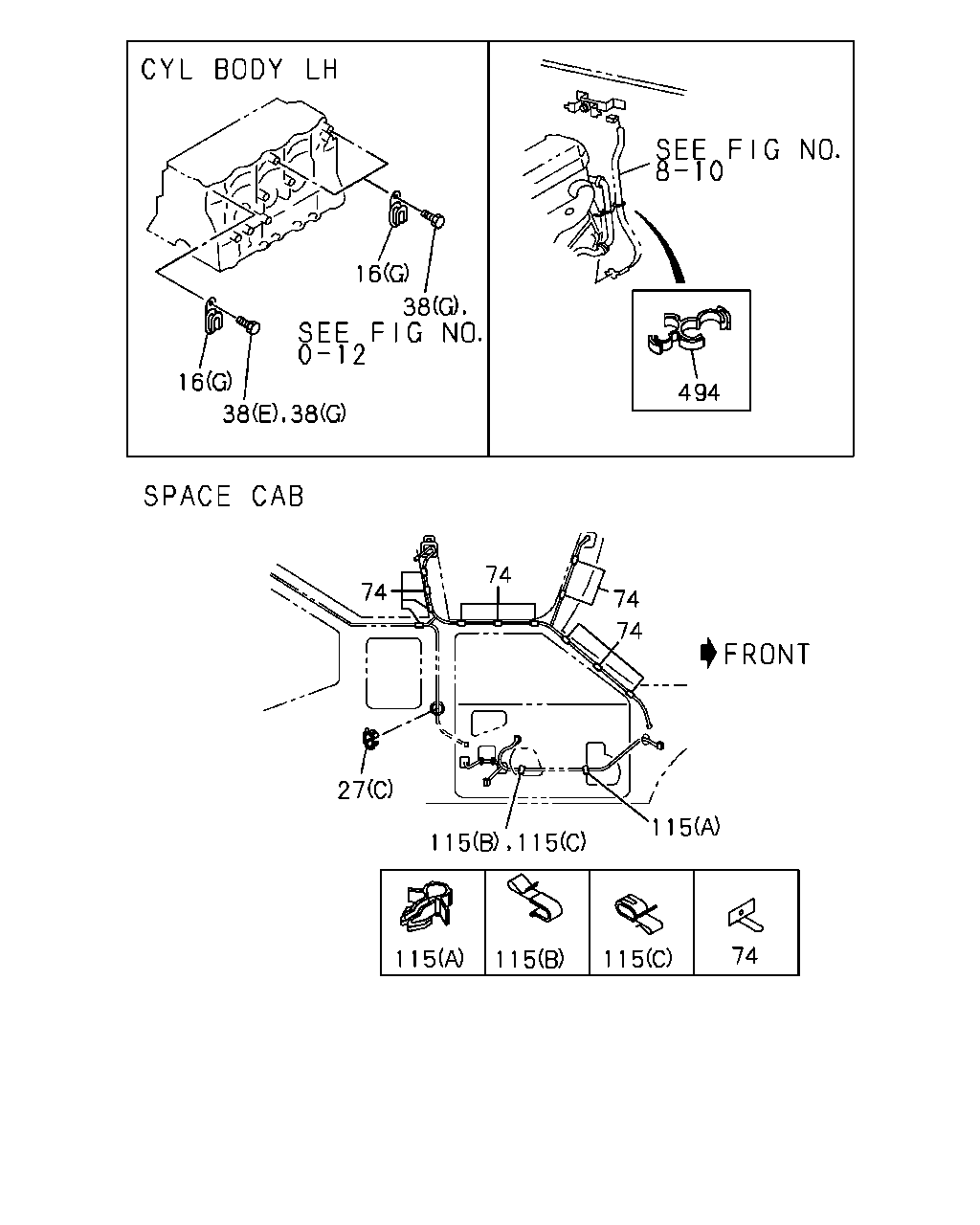

çizim 68537
16 16 38 38 38 494 115 115 115 27 74 74 74 74 74 115 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 01 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (A) L=60 		8-94449-752-0 01 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9309- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (F) SP/W ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 06 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (H) L=150 		8-97811-150-0 02 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9510- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 04 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 04 1 9510- ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9408-9408 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9408-9408 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9603- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9603- ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> (A) L=60 		8-94115-120-0 01 1 9603- ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 01 1 9408- ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.483 (C) 		8-94142-264-0 02 1 9210- ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 08.900 (G) M8X12 FLANGE 		0-28080-812-0 03 1 9510- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 11 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 13 1 9510- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) EXC. SUN ROOF<CF7> 		8-94138-987-0 13 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) 		8-94138-987-0 13 1 9510-9510 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 08 1 9210- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 19 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 9510- ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB),GRADE LS(RBD) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (B) 		5-09709-107-0 02 1 9210-9308 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) (B) 		5-09709-107-0 02 1 9210-9308 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9409- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9210-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9409- ● ● ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 ID=8 & 23 		5-09707-002-0 01 1 9210-9210 ● ● ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.242 ID=12.5 & 24 		5-09709-034-0 01 1 9211- ● ● ● ● ● ● ● ●
çizim 68546
74 74 74 16 16 115 115 74 74 74 74 74 482 115 74 90 16 16 74 482 90 115 115 16 16 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 01 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (A) L=60 		8-94449-752-0 01 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9309- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (F) SP/W ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 06 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (H) L=150 		8-97811-150-0 02 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9510- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 04 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 04 1 9510- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 11 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 13 1 9510- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) EXC. SUN ROOF<CF7> 		8-94138-987-0 13 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) 		8-94138-987-0 13 1 9510-9510 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 08 1 9210- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 19 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 9510- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 ID=9 		8-94177-914-0 04 1 9501- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 ID=9 		8-94177-914-0 02 1 9503- ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB),GRADE LS(RBD) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (B) 		5-09709-107-0 02 1 9210-9308 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) (B) 		5-09709-107-0 02 1 9210-9308 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (B) ID=9 		8-94177-914-0 02 1 9309-9408 ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9409- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9210-9408 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9409- ● ● ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9502- ● ●
çizim 68609
187 27 27 38 27 239 38 16 239 363 16 38 38 38 38 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9502 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 01 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (A) L=60 		8-94449-752-0 01 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 03 1 9503-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) (A) L=60 		8-94449-752-0 03 1 9510- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9509 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9510- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9309- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (F) SP/W ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9408 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9409-9409 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 06 1 9409-9502 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) (H) L=150 		8-97811-150-0 02 1 9510- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (A) L=60 		8-94449-752-0 02 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=60 		8-94449-752-0 02 1 9510- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) (H) L=150 		8-97811-150-0 04 1 9503-9509 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (H) L=150 		8-97811-150-0 04 1 9510- ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9408-9408 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9408-9408 ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9409-9502 ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> (A) L=60 		8-94115-120-0 01 1 9503-9602 ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) L=60 		8-94115-120-0 01 1 9603- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9603- ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> (A) L=60 		8-94115-120-0 01 1 9603- ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) L=60 		8-94115-120-0 01 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 02 1 9403-9407 ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 01 1 9408- ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.483 (C) 		8-94142-264-0 02 1 9210- ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9510- ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9402 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9403-9411 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9604- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 08.900 (G) M8X12 FLANGE 		0-28080-812-0 03 1 9510- ● ● ●
187 02.559 CLIP; CHAS HARN TO DASH 8-94474-013-2 01 1 9210- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9210- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9210- ● ● ● ● ● ● ● ●
363 16.085 FINISHER; PROTECTOR
GRADE LS(RBD) 16.570 L=190 SERVICED BY L=2040 		1-71998-300-0 02 1 9210- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
