◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08B - CLUTCH MASTER CYLINDER ▶
2-08B — CLUTCH MASTER CYLINDER (#4760) — 16 parça

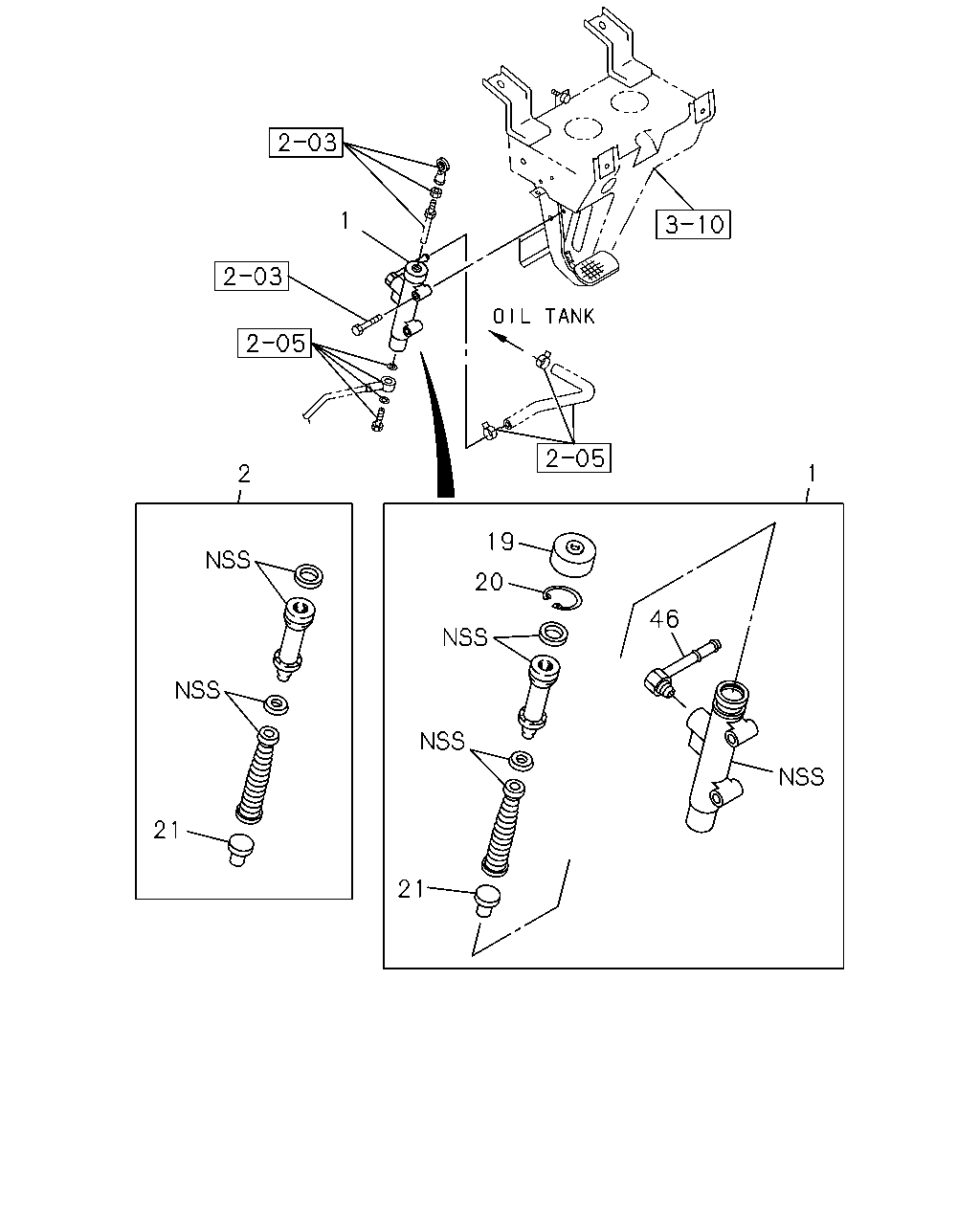

çizim 9450
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
SHORT CHASSIS&RHD(EXZ5MC) 		1-47500-242-1 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
SHORT CHASSIS&RHD(EXZ5MC) 		1-47500-242-2 01 1 9905- ● ●
1 CYLINDER ASM; CLUTCH MASTER
SHORT CHASSIS&LHD(EXZ6MC) 		1-47500-241-2 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
SHORT CHASSIS&LHD(EXZ6MC) 		1-47500-241-3 01 1 9905- ● ●
2 REPAIR KIT; CLU M/CYL 1-47550-046-0 01 1 9603-9904 ●
2 REPAIR KIT; CLU M/CYL 1-47550-046-0 01 1 9905- ● ●
19 BOOT; CLU M/CYL 1-47545-011-0 01 1 9603-9904 ●
19 BOOT; CLU M/CYL 1-47545-011-0 01 1 9905- ● ●
20 RING; SNAP,BODY 1-47515-009-0 01 1 9603-9904 ●
20 RING; SNAP,BODY 1-47515-009-0 01 1 9905- ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9603-9904 ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ●
46 CONNECTOR; PIPE
SHORT CHASSIS&RHD(EXZ5MC) 		1-47517-004-0 01 1 9603-9904 ●
46 CONNECTOR; PIPE
SHORT CHASSIS&RHD(EXZ5MC) 		1-47517-004-0 01 1 9905- ● ●
46 CONNECTOR; PIPE
SHORT CHASSIS&LHD(EXZ6MC) 		1-47517-003-0 01 1 9603-9904 ●
46 CONNECTOR; PIPE
SHORT CHASSIS&LHD(EXZ6MC) 		1-47517-003-0 01 1 9905- ● ●
