Sayfa 1-40B - Isuzu EPC

1-40B — FUEL TANK (#476) — 158 parça

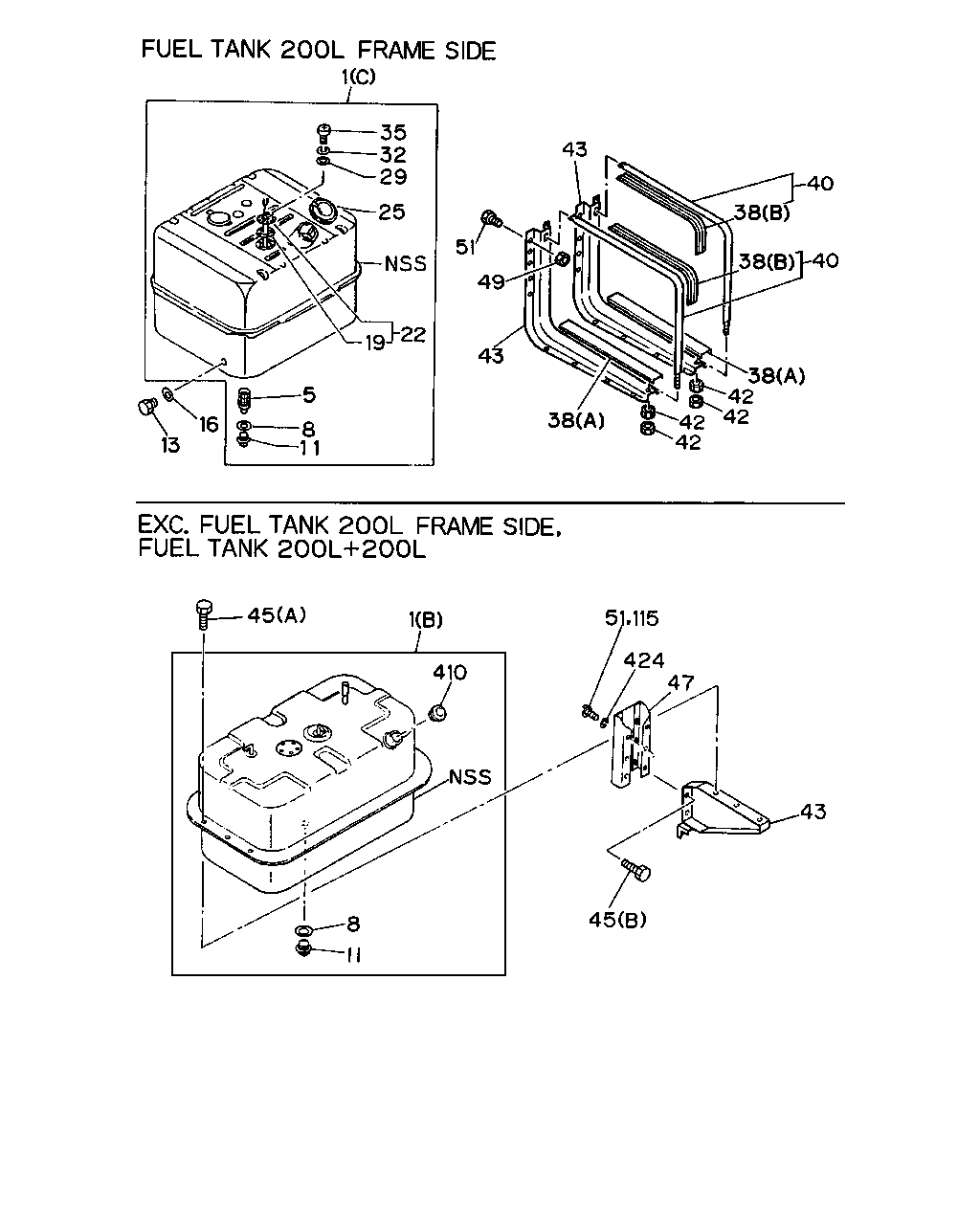

1 35 32 29 25 22 19 5 8 11 16 13 43 51 49 43 38 40 40 38 38 38 42 42 42 42 45 1 410 51 115 424 47 43 45 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-597-1	02	1	8712-9001	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-571-4	02	1	8712-9001	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> (B) 640X325X270 50L	1-22400-649-1	01	1	8712-9001	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9002-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9002-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-597-1	01	1	8712-9001	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-571-4	01	1	8712-9001	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-855-0	01	1	9002-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-854-1	01	1	9002-		●
5	STRAINER; FUEL TANK FUEL TANK 200L+200L<NF7>	1-22460-001-1	02	1	8712-9402	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	8712-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22416-001-0	02	1	8712-9001	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20>	9-09920-624-0	01	1	8712-9001	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22416-001-0	01	1	8712-9001	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9002-9306		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9002-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9307-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M18X12	9-99202-318-0	02	1	8712-9001	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> M14X14	9-09862-156-0	01	1	8712-9001	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	1-09604-052-0	02	1	9002-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9002-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M18X12	9-99202-318-0	01	1	8712-9001	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	9-99202-318-0	01	1	9002-9106		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	1-09604-081-0	01	1	9107-		●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> T=1.60	1-22416-001-0	01	1	9002-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	8712-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	8712-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-056-0	02	1	8712-9001	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-056-0	01	1	8712-9001	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-080-1	02	1	9002-9508		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-080-1	01	1	9002-9508		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	01	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9509-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	8712-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	8712-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	8712-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	8712-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	8712-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	8712-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	8712-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	8712-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	8712-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	8712-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	8712-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-015-1	04	1	8712-9202	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9203-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	8712-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=650	1-22553-015-1	02	1	8712-9202	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=650	1-22553-022-1	02	1	9203-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1040	1-22550-194-2	04	1	8712-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1040	1-22550-194-2	02	1	8712-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	8712-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	8712-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> L=705	1-53461-155-5	04	1	8712-9001	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20>	1-53461-223-1	02	1	8712-9001	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-374-0	04	1	9002-9012		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	04	1	9101-		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=705	1-53461-155-5	02	1	8712-9001	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-374-0	02	1	9002-9012		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9101-		●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> (A) M8X20 W/LK WASHER	9-01910-820-0	06	1	8712-9001	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> (B) M10X30 W/LK WASHER	9-01911-030-0	04	1	8712-9001	●
47	SPACER; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20>	1-53461-196-3	03	1	8712-9001	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	8712-	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-412-0	12	1	8712-9304	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9305-	●	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> M12X35	9-01911-235-0	18	1	8712-9001	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35	9-01911-235-0	12	1	8712-9001	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40	9-01911-240-0	24	1	8712-9005	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 W/LK WASHER	0-50041-240-0	24	1	9006-9307		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28081-240-0	24	1	9308-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40	9-01911-240-0	12	1	9002-9005		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 W/LK WASHER	0-50041-240-0	12	1	9006-9307		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28081-240-0	12	1	9308-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9006-9307		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	9308-		●
115	BOLT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> M12X35	9-01911-235-0	18	1	8712-9001	●
410	CAP; VAC,SAFETY VLV,SUB FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20>	5-22440-025-0	01	1	8712-9001	●
424	WASHER; LK,CUSHION RUBBER EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> ID=5.1	9-09150-505-0	05	1	8712-9001	●

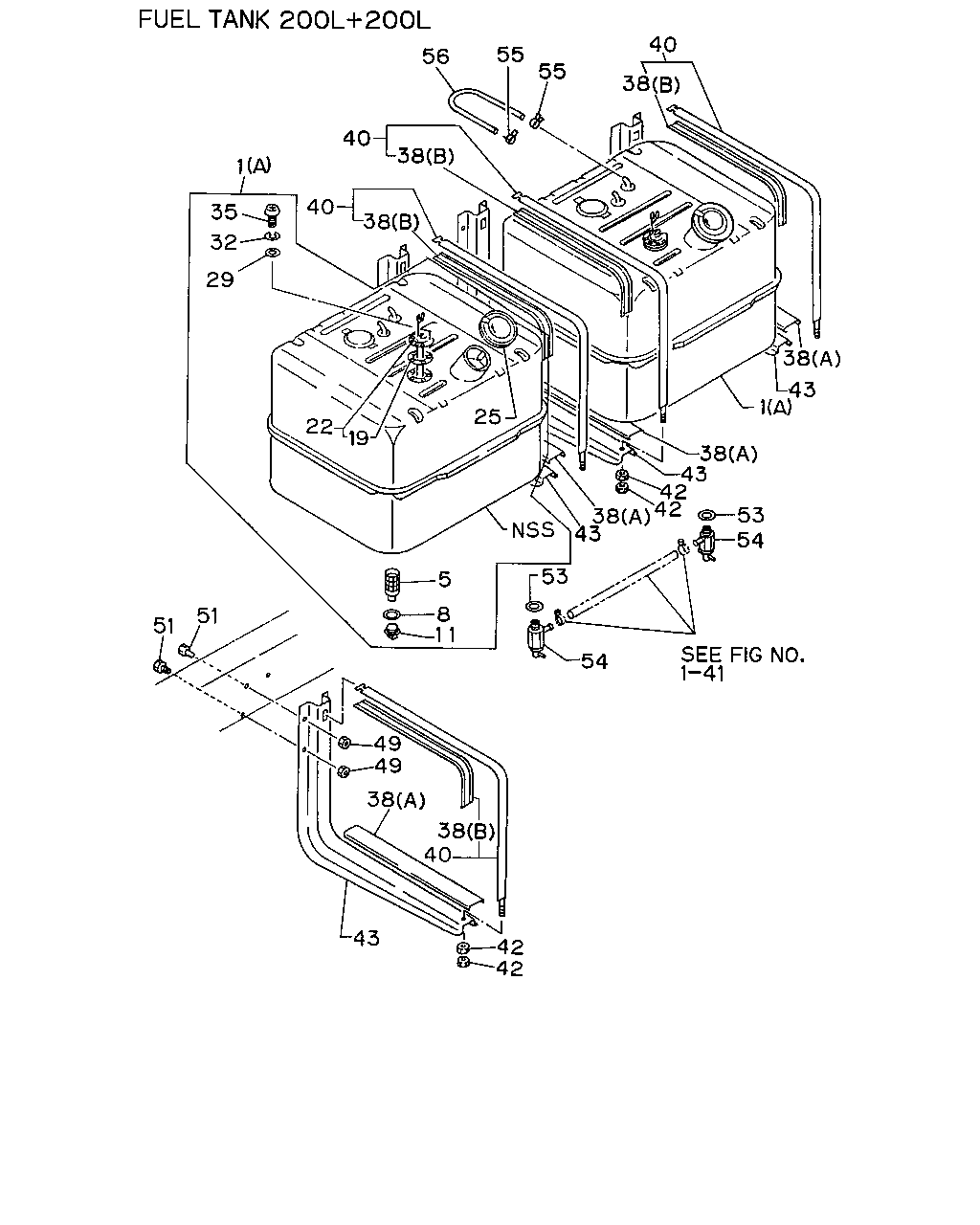

56 55 55 40 38 38 43 1 38 43 42 42 53 54 38 43 53 54 5 8 11 51 51 49 49 38 38 40 43 42 42 29 32 35 1 40 38 38 40 25 19 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-597-1	02	1	8712-9001	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-571-4	02	1	8712-9001	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> (B) 640X325X270 50L	1-22400-649-1	01	1	8712-9001	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9002-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9002-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-597-1	01	1	8712-9001	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-571-4	01	1	8712-9001	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-855-0	01	1	9002-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22400-854-1	01	1	9002-		●
5	STRAINER; FUEL TANK FUEL TANK 200L+200L<NF7>	1-22460-001-1	02	1	8712-9402	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	8712-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22416-001-0	02	1	8712-9001	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20>	9-09920-624-0	01	1	8712-9001	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22416-001-0	01	1	8712-9001	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9002-9306		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9002-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9307-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M18X12	9-99202-318-0	02	1	8712-9001	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> M14X14	9-09862-156-0	01	1	8712-9001	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	1-09604-052-0	02	1	9002-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9002-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M18X12	9-99202-318-0	01	1	8712-9001	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	8712-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	8712-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-056-0	02	1	8712-9001	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-056-0	01	1	8712-9001	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-080-1	02	1	9002-9508		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-080-1	01	1	9002-9508		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	01	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9509-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	8712-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	8712-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	8712-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	8712-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	8712-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	8712-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	8712-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	8712-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	8712-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	8712-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	8712-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-015-1	04	1	8712-9202	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9203-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	8712-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=650	1-22553-015-1	02	1	8712-9202	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=650	1-22553-022-1	02	1	9203-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1040	1-22550-194-2	04	1	8712-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1040	1-22550-194-2	02	1	8712-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	8712-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	8712-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> L=705	1-53461-155-5	04	1	8712-9001	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20>	1-53461-223-1	02	1	8712-9001	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-374-0	04	1	9002-9012		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	04	1	9101-		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=705	1-53461-155-5	02	1	8712-9001	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-374-0	02	1	9002-9012		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9101-		●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	8712-	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-412-0	12	1	8712-9304	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9305-	●	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAMESIDE<N20> M12X35	9-01911-235-0	18	1	8712-9001	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35	9-01911-235-0	12	1	8712-9001	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40	9-01911-240-0	24	1	8712-9005	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 W/LK WASHER	0-50041-240-0	24	1	9006-9307		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28081-240-0	24	1	9308-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40	9-01911-240-0	12	1	9002-9005		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 W/LK WASHER	0-50041-240-0	12	1	9006-9307		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28081-240-0	12	1	9308-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9006-9307		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	9308-		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	02	1	8712-9001	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> T=0.80	1-22416-004-0	02	1	8712-9001	●	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	8712-	●	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=15	9-09715-098-0	02	1	8712-	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	8712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
