◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#47599) — 319 parça

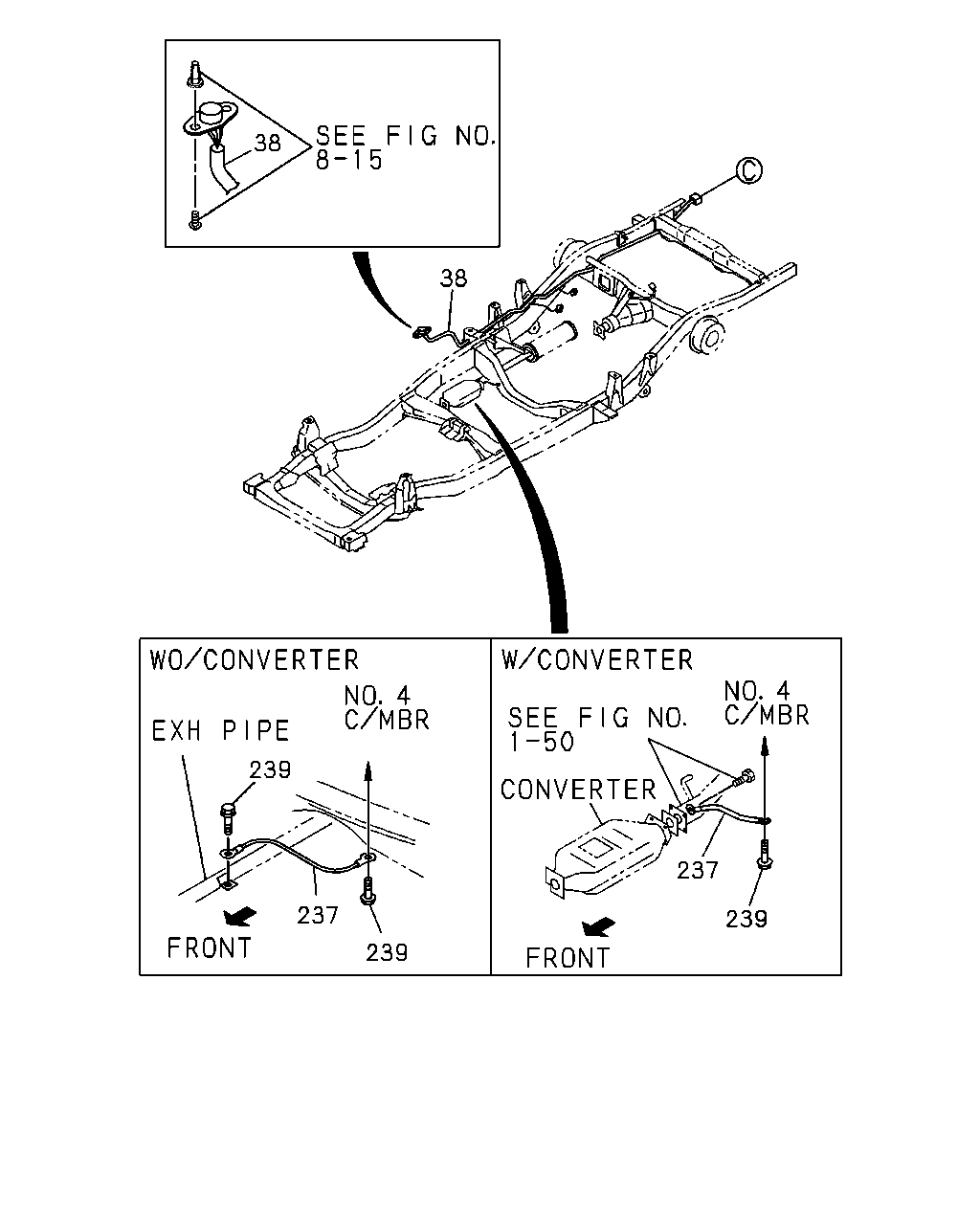

çizim 16300
38 38 239 237 239 237 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.480 HARNESS; CHAS 8-97071-120-2 01 1 9210-9402 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97071-120-2 01 1 9403- ● ● ● ●
38 02.480 HARNESS; CHAS 8-97071-120-2 01 1 9403- ● ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> 		8-97088-654-0 01 1 9404-9406 ● ● ● ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97088-654-0 01 1 9407-9411 ● ● ● ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97088-654-0 01 1 9412- ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97088-654-0 01 1 9412- ● ● ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> EXC. CHILE EQUIPMENT(6KB) 		8-97094-127-0 01 1 9407-9411 ● ● ● ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> EXC. CHILE EQUIPMENT(6KB) 		8-97094-127-0 01 1 9412- ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97094-127-0 01 1 9412- ● ● ●
38 02.480 HARNESS; CHAS 8-97071-119-2 01 1 9210- ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94318-797-0 01 1 9210- ● ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 02.343 M8X22 		8-94122-771-0 01 1 9210-9308 ● ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9309- ● ● ● ●

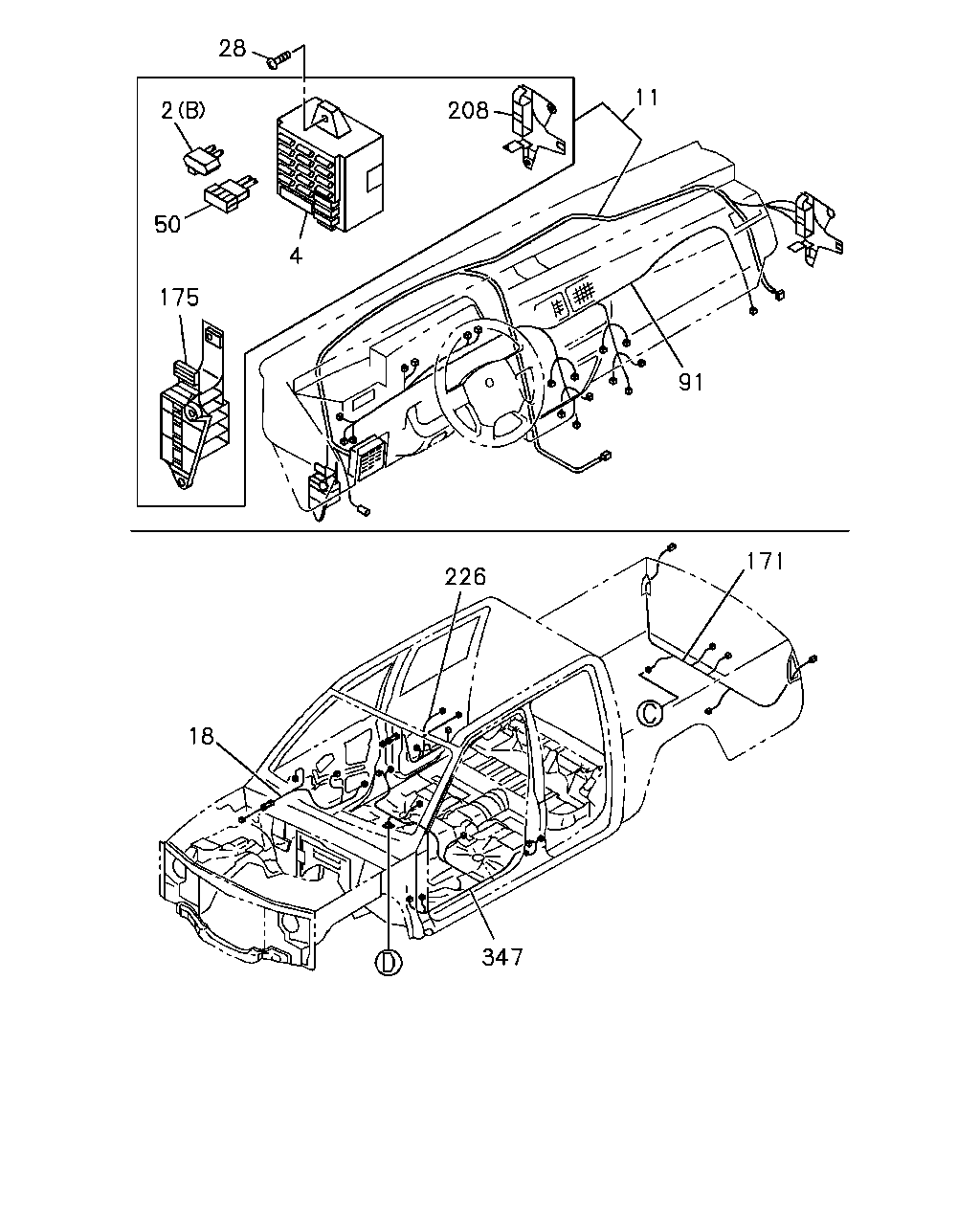

çizim 67058
28 2 208 11 91 4 50 175 18 226 171 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9210- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9210- ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-94323-889-0 01 1 9210- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) 		8-97071-050-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) 		8-97071-050-3 01 1 9309-9408 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97071-050-3 01 1 9309-9408 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) 		8-97114-096-0 01 1 9409-9501 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97114-096-0 01 1 9409-9501 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) 		8-97114-096-1 01 1 9502-9509 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),GUATE MALA/COSTA RICA EQUIPMENT(7LD) 		8-97128-289-0 01 1 9510- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) 		8-97128-290-1 01 1 9510-9511 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) 		8-97142-589-0 01 1 9512- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-97071-043-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. EGYPT EQUIPMENT(YJ4) 		8-97071-043-5 01 1 9309-9509 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. POWER WINDOW<A30>,EGYPT EQUIPMENT(YJ4) 		8-97128-283-0 01 1 9510- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17),4ZE1 ENG(RLJ) POWER WINDOW<A30> 		8-97128-284-1 01 1 9510-9511 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17),4ZE1 ENG(RLJ) POWER WINDOW<A30> 		8-97142-587-0 01 1 9512- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPME NT(YT2),CHILE EQUIPMENT(6KB), REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEM ALA/COSTA RICA EQUIPMENT(7LD) 		8-97128-286-1 01 1 9510- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97071-047-3 01 1 9210-9409 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97114-094-1 01 1 9410-9509 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-288-1 01 1 9510-9511 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97142-588-0 01 1 9512- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97128-287-0 01 1 9510- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPME NT(6KB) 		8-97071-044-2 01 1 9210-9309 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPME NT(YT2),CHILE EQUIPMENT(6KB) 		8-97071-044-2 01 1 9310-9406 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPME NT(YT2),CHILE EQUIPMENT(6KB), REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEM ALA/COSTA RICA EQUIPMENT(7LD) 		8-97114-092-1 01 1 9501-9509 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQU IPMENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97128-285-0 01 1 9510- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) 		8-97071-048-3 01 1 9210-9403 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97071-048-3 01 1 9404-9406 ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) 		8-97071-048-3 01 1 9404-9406 ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97071-048-3 01 1 9407-9407 ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) 		8-97071-048-3 01 1 9407-9407 ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97114-095-0 01 1 9407-9411 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97114-095-0 01 1 9412-9501 ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97126-305-2 01 1 9502-9509 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. POWER WINDOW<A30> 		8-97128-291-0 01 1 9510-9511 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. POWER WINDOW<A30> 		8-97143-613-0 01 1 9512- ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97113-104-0 01 1 9404-9405 ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97114-103-1 01 1 9406-9411 ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97122-961-0 01 1 9412- ● ● ● ●
11 02.480 HARNESS; BODY
C223 ENG(LQ7) 		8-97071-049-3 01 1 9210-9308 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-97085-296-1 01 1 9210-9308 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-97085-296-1 01 1 9309-9312 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97085-296-1 01 1 9401-9405 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97114-099-0 01 1 9406-9406 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-97114-099-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMA LA/COSTA RICA EQUIPMENT(7LD) 		8-97114-099-0 01 1 9412-9412 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97114-099-1 01 1 9501- ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97114-099-1 01 1 9501- ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97108-844-0 01 1 9401-9407 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97114-102-0 01 1 9408-9410 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97114-102-2 01 1 9411- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97114-102-2 01 1 9411- ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4) 		8-97094-893-1 01 1 9309-9406 ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97126-306-1 01 1 9502-9509 ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. POWER WINDOW<A30> 		8-97128-293-0 01 1 9510- ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97128-294-1 01 1 9510- ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) POWER WINDOW<A30> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97128-292-1 01 1 9510-9511 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) POWER WINDOW<A30> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97143-614-0 01 1 9512- ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) EXC. POWER WINDOW<A30> 		8-97127-635-0 01 1 9503-9601 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) EXC. POWER WINDOW<A30> 		8-97127-635-0 01 1 9602- ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97094-894-1 01 1 9309-9407 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97114-100-0 01 1 9408-9502 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97127-636-1 01 1 9503-9601 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97127-636-1 01 1 9602- ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-97103-313-0 01 1 9309-9406 ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97103-313-0 01 1 9407-9407 ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-97103-313-0 01 1 9407-9407 ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97114-101-0 01 1 9408-9408 ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-97114-101-0 01 1 9408-9408 ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) EXC. AUTO DOOR LOCK<AU4> 		8-97114-101-0 01 1 9409-9502 ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) EXC. POWER WINDOW<A30> 		8-97127-633-0 01 1 9503- ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17) AUTO DOOR LOCK<AU4> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-300-0 01 1 9409-9502 ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17) POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97127-634-1 01 1 9503- ● ● ● ●
18 02.480 HARNESS; DOOR
GRADE LS(RBD) EXC. POWER WINDOW<A30> 		8-94337-003-1 02 1 9210-9408 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
GRADE LS(RBD) 		8-94337-003-1 02 1 9210-9408 ● ●
18 02.480 HARNESS; DOOR
GRADE LS(RBD) EXC. POWER WINDOW<A30> 		8-94337-003-1 02 1 9409- ● ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> 		8-94388-797-0 01 1 9210-9408 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> 		8-94388-797-0 01 1 9409-9409 ● ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> '940926- 		8-94388-797-0 01 1 9409-9502 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> '940926- 		8-94388-797-0 01 1 9409-9502 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> 		8-94388-797-0 01 1 9503-9509 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-94388-797-0 01 1 9503-9509 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS) 		8-94388-797-0 01 1 9510- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> 		8-94388-798-1 01 1 9210-9408 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> 		8-94388-798-1 01 1 9409- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-94388-798-1 01 1 9409- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-305-1 01 1 9503-9509 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97120-305-1 01 1 9510- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97120-304-0 01 1 9409-9502 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-304-1 01 1 9503-9509 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97120-304-1 01 1 9510- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97120-306-0 01 1 9409-9502 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-306-1 01 1 9503-9509 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97120-306-1 01 1 9510- ● ●
18 02.480 HARNESS; DOOR
SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-183-0 01 1 9210-9210 ● ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-183-0 01 1 9211-9308 ● ●
18 02.480 HARNESS; DOOR
C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-97047-183-0 01 1 9211-9308 ●
18 02.480 HARNESS; DOOR
C223 ENG(LQ7),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-97047-183-0 01 1 9211-9308 ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-183-0 01 1 9309-9402 ● ●
18 02.480 HARNESS; DOOR
4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. EGYPT EQUIPMENT(YJ4) 		8-97047-183-0 01 1 9309-9402 ●
18 02.480 HARNESS; DOOR
4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-97047-183-0 01 1 9309-9402 ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-183-0 01 1 9403-9502 ● ●
18 02.480 HARNESS; DOOR
4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97047-183-0 01 1 9403-9502 ●
18 02.480 HARNESS; DOOR
4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. CHINA EQUIPMENT(YT2) 		8-97047-183-0 01 1 9403-9502 ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97127-637-0 01 1 9503-9509 ● ●
18 02.480 HARNESS; DOOR
4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97127-637-0 01 1 9503-9509 ● ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. AUTO DOOR LOCK<AU4> 		8-97127-637-0 01 1 9510- ● ●
18 02.480 HARNESS; DOOR
4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. AUTO DOOR LOCK<AU4>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97127-637-0 01 1 9510- ● ●
18 02.480 HARNESS; DOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94318-501-1 01 1 9210-9210 ● ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94318-501-1 01 1 9211-9308 ● ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94318-501-1 01 1 9309-9402 ● ●
18 02.480 HARNESS; DOOR
EGYPT EQUIPMENT(YJ4) 		8-94318-501-1 01 1 9309-9402 ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-94318-501-1 01 1 9403-9408 ●
18 02.480 HARNESS; DOOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-94318-501-1 01 1 9403-9408 ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2) 		8-94318-501-1 01 1 9403-9408 ●
18 02.480 HARNESS; DOOR
CHINA EQUIPMENT(YT2) 		8-94318-501-1 01 1 9403-9408 ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-94318-501-1 01 1 9409-9502 ● ●
18 02.480 HARNESS; DOOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) EXC. AUTO DOOR LOCK<AU4> 		8-94318-501-1 01 1 9409-9502 ● ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97127-638-0 01 1 9503-9509 ● ●
18 02.480 HARNESS; DOOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) EXC. AUTO DOOR LOCK<AU4> 		8-97127-638-0 01 1 9503-9509 ● ●
18 02.480 HARNESS; DOOR
4ZD1 ENG(LW3) EXC. AUTO DOOR LOCK<AU4>,SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97127-638-0 01 1 9510- ● ●
18 02.480 HARNESS; DOOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) EXC. AUTO DOOR LOCK<AU4> 		8-97127-638-0 01 1 9510- ● ●
28 02.483 SCREW; FUSE BOX
16.165 M5X16 		8-94242-120-0 02 1 9210-9210 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
08.977 M5X16 W/PL WASHER 		9-03900-516-0 02 1 9211-9305 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
02.820 M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9306- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 9210- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 9210- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9210- ● ● ● ● ● ● ● ●
91 02.480 HARNESS; INST
SAUDI ARABIA EQUIPMENT(EU2) 		8-97071-107-1 01 1 9210- ● ● ● ● ● ● ● ●
91 02.480 HARNESS; INST
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97071-103-1 01 1 9210-9403 ● ● ● ● ● ● ● ●
91 02.480 HARNESS; INST
EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-97071-103-1 01 1 9404-9501 ● ● ● ●
91 02.480 HARNESS; INST
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97071-103-1 01 1 9404-9501 ● ● ● ●
91 02.480 HARNESS; INST
EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),ELECTRIC FUEL INJECTION<6GG> 		8-97071-103-1 01 1 9502- ● ● ● ●
91 02.480 HARNESS; INST
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97071-103-1 01 1 9502- ● ● ● ●
91 02.480 HARNESS; INST
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97113-106-0 01 1 9404-9411 ● ● ● ●
91 02.480 HARNESS; INST
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97113-106-0 01 1 9412-9509 ●
91 02.480 HARNESS; INST
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97113-106-0 01 1 9412-9509 ● ● ●
91 02.480 HARNESS; INST
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97113-106-0 01 1 9510- ● ● ● ●
91 02.480 HARNESS; INST
REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-97126-542-0 01 1 9502- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> 		8-94313-623-5 01 1 9210- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		8-94313-625-3 01 1 9210- ● ● ● ● ● ● ● ●
175 02.483 BOX; CONNECTOR 8-94452-698-1 01 1 9210- ● ● ● ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97012-684-2 01 1 9210- ● ● ● ● ● ● ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97120-303-0 02 1 9409-9502 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-303-1 02 1 9503-9509 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97120-303-3 02 1 9510- ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-97094-128-0 01 1 9404- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-302-1 01 1 9503-9509 ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97120-302-1 01 1 9510- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17) AUTO DOOR LOCK<AU4> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-301-0 01 1 9409-9502 ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97120-301-1 01 1 9503-9509 ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-97120-301-1 01 1 9510- ● ●

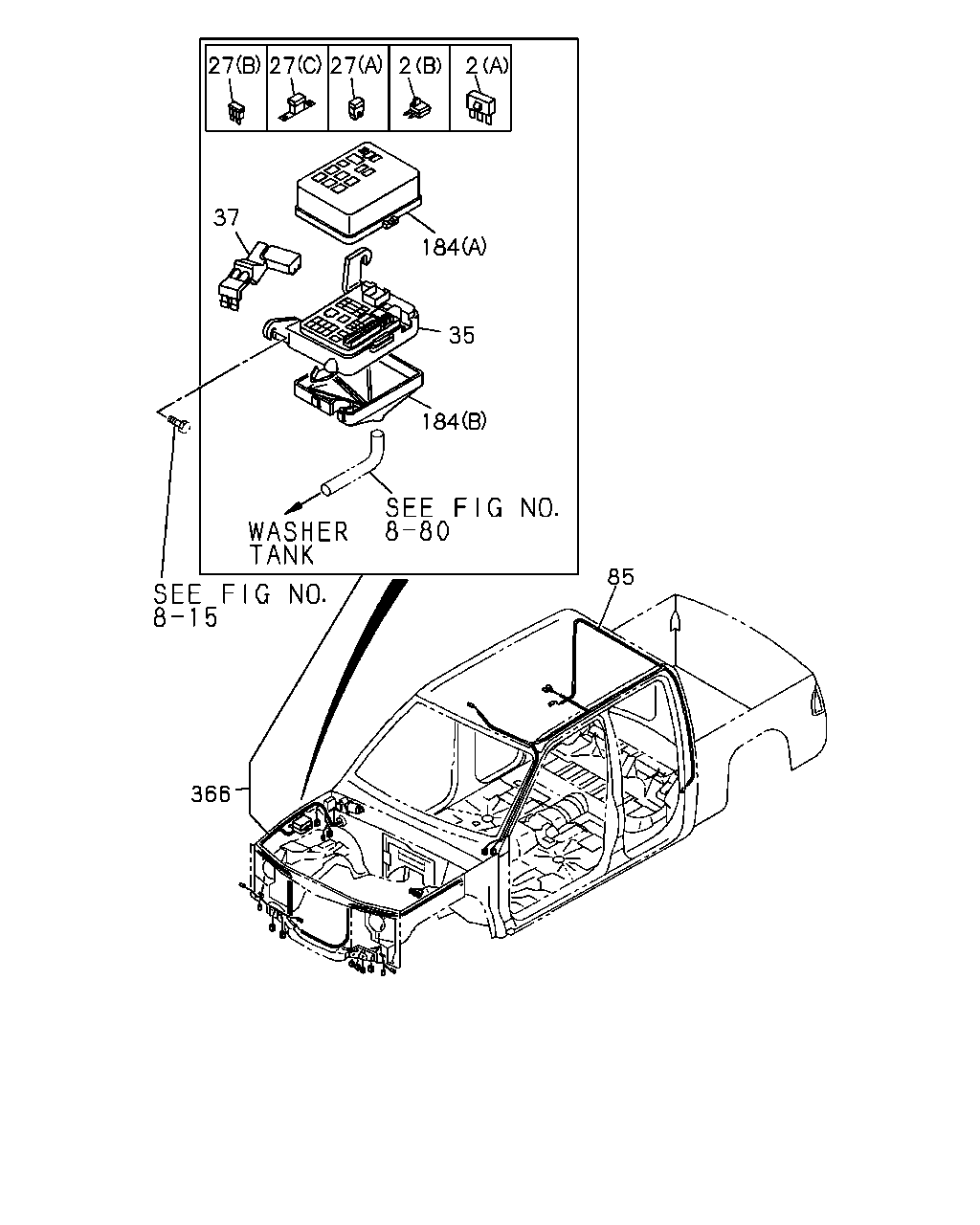

çizim 67944
27 27 27 2 2 184 37 35 184 85 366
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9210- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9210- ● ● ● ●
27 08.965 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 20A YELLOW 		5-82516-004-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 30A PINK 		8-94468-661-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.483 (C) 60A YELLOW 		8-94480-382-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 AR 1 9404- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
C223 ENG(LQ7),4JA1 ENG(RLE) 		8-94315-204-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE) 		8-94315-204-1 01 1 9309-9506 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-94315-204-1 01 1 9507-9509 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) EXC. CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-94315-204-1 01 1 9507-9509 ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94315-204-1 01 1 9507-9509 ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) EXC. CHINA EQUIPMENT(YT2) 		8-94315-204-1 01 1 9507-9509 ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94315-204-1 01 1 9510-9601 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) EXC. CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-94315-204-1 01 1 9510-9601 ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94315-204-1 01 1 9510-9601 ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) EXC. CHINA EQUIPMENT(YT2) 		8-94315-204-1 01 1 9510-9601 ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94315-204-1 01 1 9602- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94315-204-1 01 1 9602- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) EXC. CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-94315-204-1 01 1 9602- ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) EXC. CHINA EQUIPMENT(YT2) 		8-94315-204-1 01 1 9602- ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94362-096-1 01 1 9210-9506 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-94362-096-1 01 1 9507-9509 ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-94362-096-1 01 1 9507-9509 ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94362-096-1 01 1 9510- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-94362-096-1 01 1 9510- ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-94362-096-1 01 1 9510- ● ● ● ●
37 02.559 COVER; FUSE,RELAY & FUSE BOX
02.483 		8-94315-216-0 01 1 9210-9506 ● ● ● ● ● ● ● ●
37 02.559 COVER; FUSE,RELAY & FUSE BOX
4ZD1 ENG(LW3),4JA1 ENG(RLE) 02.483 		8-94315-216-0 01 1 9507-9509 ● ● ● ● ● ● ● ●
37 02.559 COVER; FUSE,RELAY & FUSE BOX
4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4) 02.483 		8-94315-216-0 01 1 9507-9509 ● ●
37 02.559 COVER; FUSE,RELAY & FUSE BOX
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) 02.483 		8-94315-216-0 01 1 9510- ● ● ● ● ● ● ● ●
37 02.559 COVER; FUSE,RELAY & FUSE BOX
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-97315-207-1 01 1 9510- ● ● ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
SAUDI ARABIA EQUIPMENT(EU2) EXC. SUN ROOF<CF7> 		8-97077-489-0 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
SAUDI ARABIA EQUIPMENT(EU2) 		8-97077-489-0 01 1 9510- ● ●
85 06.495 HARNESS; ROOM LAMP
SUN ROOF<CF7> SAUDI ARABIA EQUIPMENT(EU2) 		8-97077-488-0 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
SUN ROOF<CF7> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94336-996-0 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SUN ROOF<CF7>,SAUDI ARABIA EQUIPMENT(EU2) 		8-94336-998-1 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94336-998-1 01 1 9510- ● ●
85 06.495 HARNESS; ROOM LAMP
SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-184-0 01 1 9210- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94336-995-0 01 1 9210- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-94336-999-1 01 1 9210-9501 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49> 		8-94336-999-1 01 1 9502- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97126-308-1 01 1 9502- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD) 		8-97031-326-3 01 1 9502- ● ●
184 02.559 COVER; RELAY & FUSE BOX
C223 ENG(LQ7),4JA1 ENG(RLE) (A) 		8-97082-028-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) (A) 		8-97082-028-0 01 1 9309-9509 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97082-028-0 01 1 9510- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) (B) 		8-94315-208-1 01 1 9309-9403 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) (B) 		8-94315-208-1 01 1 9404-9406 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) (B) 		8-94315-208-1 01 1 9404-9406 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) (B) 		8-94315-207-1 01 1 9407-9407 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) (B) 		8-94315-207-1 01 1 9407-9407 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4JA1 ENG(RLE) (B) '940718- 		8-94315-207-1 01 1 9407-9410 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4JA1 ENG(RLE) (B) 		8-94315-207-1 01 1 9411-9506 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4JA1 ENG(RLE) (B) 		8-94315-207-1 01 1 9507-9509 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4) (B) 		8-94315-207-1 01 1 9507-9509 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-94315-207-1 01 1 9510- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. CHILE EQUIPMENT(6KB) (A) 		8-97082-027-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. CHILE EQUIPMENT(6KB), CATALYSISCONTROL<6MZ> (A) 		8-97082-027-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. CHILE EQUIPMENT(6KB), CATALYSISCONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97082-027-0 01 1 9412- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) (B) 		8-94315-208-1 01 1 9507-9509 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZA1 ENG(L17) EXC. EGYPT EQUIPMENT(YJ4) (B) 		8-94315-208-1 01 1 9507-9509 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) (A) 		8-97082-022-0 01 1 9210-9312 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) (A) 		8-97082-022-0 01 1 9401-9403 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> (A) 		8-97082-022-0 01 1 9401-9403 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-97082-022-0 01 1 9404-9406 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> (A) 		8-97082-022-0 01 1 9404-9406 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) (A) 		8-97082-022-0 01 1 9404-9406 ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-97082-022-0 01 1 9407- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> (A) 		8-97082-022-0 01 1 9407- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) (A) 		8-97082-017-2 01 1 9404-9411 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) (A) 		8-97082-017-2 01 1 9412- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) 		8-97071-079-1 01 1 9210-9308 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) 		8-97071-079-2 01 1 9309-9509 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) EXC. EGYPT EQUIPMENT(YJ4) 		8-97071-079-2 01 1 9309-9509 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) 		8-97130-199-0 01 1 9510- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) EXC. EGYPT EQUIPMENT(YJ4) 		8-97130-199-0 01 1 9510- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97071-088-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97071-088-2 01 1 9309-9407 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97071-088-2 01 1 9309-9407 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97114-120-1 01 1 9408- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97114-120-1 01 1 9408- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97071-084-1 01 1 9210-9407 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97114-110-1 01 1 9408- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPME NT(6KB) 		8-97071-080-1 01 1 9210-9309 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPME NT(YT2),CHILE EQUIPMENT(6KB) 		8-97071-080-1 01 1 9309-9406 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPME NT(YT2),CHILE EQUIPMENT(6KB) 		8-97114-108-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPME NT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97114-108-0 01 1 9412-9412 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPME NT(YT2),CHILE EQUIPMENT(6KB), REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEM ALA/COSTA RICA EQUIPMENT(7LD) 		8-97114-108-1 01 1 9501- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) 		8-97071-086-2 01 1 9210-9509 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) 		8-97130-200-0 01 1 9510- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) 		8-97071-085-3 01 1 9210-9403 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97071-085-3 01 1 9404-9407 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97114-111-0 01 1 9408-9411 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97114-111-0 01 1 9412-9501 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97114-111-0 01 1 9502-9506 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97113-105-0 01 1 9404-9405 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97115-761-0 01 1 9406-9411 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 		8-97122-962-0 01 1 9412- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C223 ENG(LQ7) 		8-97071-087-1 01 1 9210-9308 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4) 		8-97094-890-1 01 1 9309-9509 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) EGYPT EQUIPMENT(YJ4) 		8-97130-201-0 01 1 9510- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-97085-297-0 01 1 9210-9308 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-97085-297-0 01 1 9309-9312 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97085-297-0 01 1 9401-9406 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-97085-297-0 01 1 9407-9407 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97114-109-0 01 1 9408-9412 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97114-109-1 01 1 9501- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97114-109-1 01 1 9501- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97108-845-0 01 1 9401-9407 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97114-112-0 01 1 9408-9410 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97114-112-0 01 1 9411-9411 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97114-112-0 01 1 9411-9411 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97114-112-0 01 1 9412-9506 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97114-112-0 01 1 9412-9506 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97126-307-1 01 1 9507- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-97126-307-1 01 1 9507- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) CHINA EQUIPMENT(YT2) 		8-97129-958-0 01 1 9510- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97094-891-0 01 1 9309-9407 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97114-118-1 01 1 9408-9509 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EGYPT EQUIPMENT(YJ4) 		8-97114-118-1 01 1 9510- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-97103-311-0 01 1 9309-9407 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-97114-119-1 01 1 9407-9509 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-97129-957-0 01 1 9510- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> CHINA EQUIPMENT(YT2) 		8-97147-708-0 01 1 9602- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) 		8-97129-959-0 01 1 9510-9601 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) TURBOCHARGER(K51) 		8-97129-959-0 01 1 9602- ● ● ●

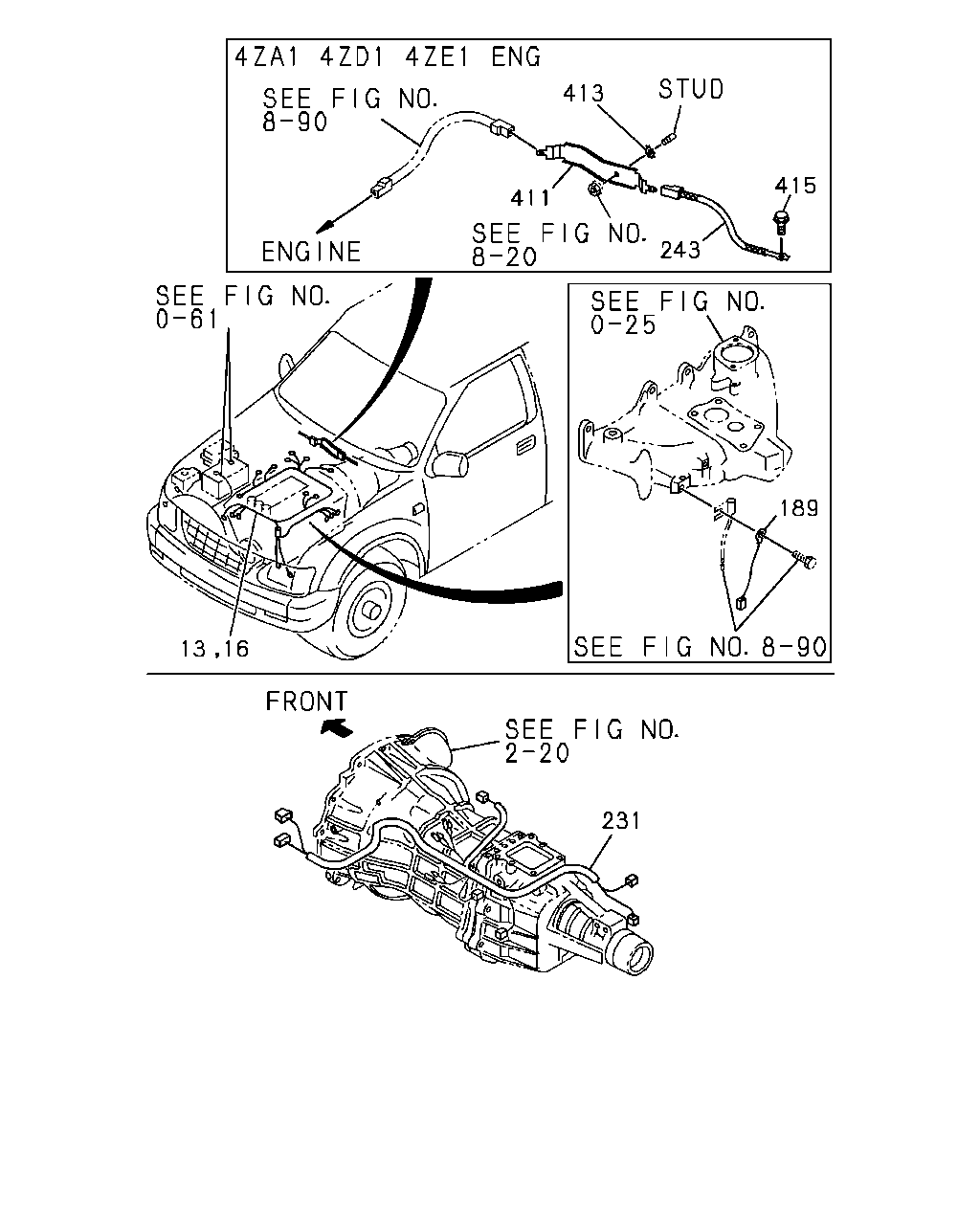

çizim 68544
413 411 243 415 189 231 16 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 02.480 		8-94384-686-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97113-395-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97113-395-0 01 1 9510- ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-97113-395-0 01 1 9510- ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 02.480 		8-97039-819-2 01 1 9210- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97071-116-0 01 1 9210- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
C223 ENG(LQ7) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 02.480 		8-94313-620-2 01 1 9210-9308 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 02.480 		8-97021-903-1 01 1 9510- ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-97111-272-0 01 1 9404- ● ● ● ●
189 02.480 HARNESS; EXT
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) L=50 		8-94318-696-0 01 1 9210-9210 ● ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZA1 ENG(L17) 		8-94360-877-0 01 1 9210- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94321-825-2 01 1 9210- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97022-780-2 01 1 9210-9406 ● ● ● ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97113-391-0 01 1 9407- ● ● ● ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-94473-749-2 01 1 9210-9406 ● ● ● ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97113-392-0 01 1 9407- ● ● ● ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) 		8-97039-818-1 01 1 9210- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94320-756-3 01 1 9210- ● ● ● ●
243 02.480 CABLE; BONDING,TRANS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94389-187-0 01 1 9210- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.530 		8-94371-711-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-97105-243-0 01 1 9309-9407 ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-97116-129-0 01 1 9408- ● ● ● ● ● ● ● ●
413 02.559 WASHER; LK,TERMINAL
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9210- ● ● ● ● ● ● ● ●
415 02.559 BOLT; CABLE,BONDING
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
415 02.559 BOLT; CABLE,BONDING
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9510- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
