◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#47597) — 98 parça

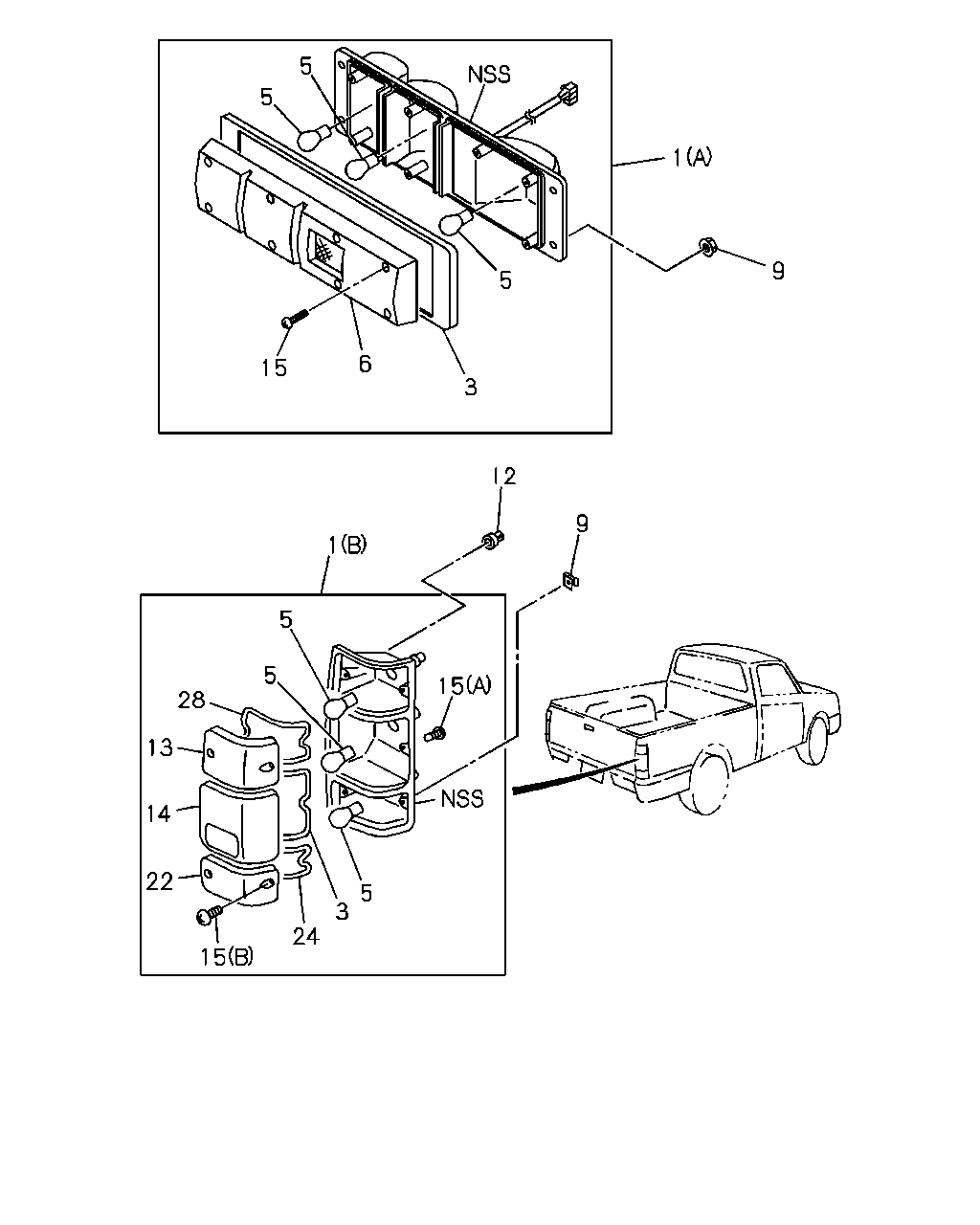

çizim 65633
5 5 5 3 6 15 9 1 12 1 5 5 9 15 5 3 24 15 22 14 13 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-741-1 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-080-0 01 1 9503-9509 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. CHINA EQUIPMENT(YT2) (B) 		8-97121-080-0 01 1 9510- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-740-1 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-078-0 01 1 9503-9509 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. CHINA EQUIPMENT(YT2) (B) 		8-97121-078-0 01 1 9510- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. RR BODY FLAT BED<RS6>, EXTERIORCHROME PACKAGE<6CX> (B) 		8-97068-733-0 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-077-0 01 1 9503-9509 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. CHINA EQUIPMENT(YT2),EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-077-0 01 1 9510- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. RR BODY FLAT BED<RS6>, EXTERIORCHROME PACKAGE<6CX> (B) 		8-97068-732-0 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-076-0 01 1 9503-9509 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. CHINA EQUIPMENT(YT2),EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-076-0 01 1 9510- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-94321-753-1 01 1 9210-9508 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-732-0 01 1 9509- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-94321-752-1 01 1 9210-9508 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-731-0 01 1 9509- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-570-0 01 1 9510- ● ●
1 02.679 LAMP ASM; RR COMB
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-569-0 01 1 9510- ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-572-0 01 1 9510- ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-571-0 01 1 9510- ● ●
1 02.679 LAMP ASM; RR COMB
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-566-0 01 1 9510- ● ●
1 02.679 LAMP ASM; RR COMB
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-565-0 01 1 9510- ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-568-0 01 1 9510- ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-567-0 01 1 9510- ● ●
3 02.684 GASKET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-378-0 02 1 9210- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.689 		5-82236-002-0 01 1 9210- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.689 		5-82236-001-0 01 1 9210- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
12V 21W 		8-94124-074-0 04 1 9210- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
12V 21/5W 		8-94125-959-0 02 1 9210- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-002-0 01 1 9210- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-001-0 01 1 9210- ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
RR COMB LAMP VERTICAL<T98> M5 SPIRENUT 		8-94447-452-0 04 1 9210- ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR COMB LAMP VERTICAL<T98> 09.744 M5 FLANGE NUT 		5-09440-003-0 08 1 9210- ● ● ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94430-318-1 04 1 9210- ● ● ● ● ● ● ● ●
13 02.682 LENS; TURN SIGNAL
RR COMB LAMP VERTICAL<T98> 		8-94372-365-0 01 1 9210- ● ● ● ● ● ● ● ●
13 02.682 LENS; TURN SIGNAL
RR COMB LAMP VERTICAL<T98> 		8-94372-366-0 01 1 9210- ● ● ● ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-367-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-367-0 01 1 9510- ● ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> EXC. CHINA EQUIPMENT(YT2) 		8-94372-367-0 01 1 9510- ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-368-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-368-0 01 1 9510- ● ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> EXC. CHINA EQUIPMENT(YT2) 		8-94372-368-0 01 1 9510- ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> CHINA EQUIPMENT(YT2) 		8-94372-371-0 01 1 9510- ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> CHINA EQUIPMENT(YT2) 		8-94372-372-0 01 1 9510- ● ●
15 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) M3X12 TAPPING 		0-71090-312-0 04 1 9210- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) M5X25 TAPPING 		0-71190-525-0 08 1 9210- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 9210- ● ● ● ● ● ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-373-0 01 1 9210- ● ● ● ● ● ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-374-0 01 1 9210- ● ● ● ● ● ● ● ●
24 02.697 GASKET; BACK,LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-379-0 02 1 9210- ● ● ● ● ● ● ● ●
28 02.684 GASKET; TURN,LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-377-0 02 1 9210- ● ● ● ● ● ● ● ●

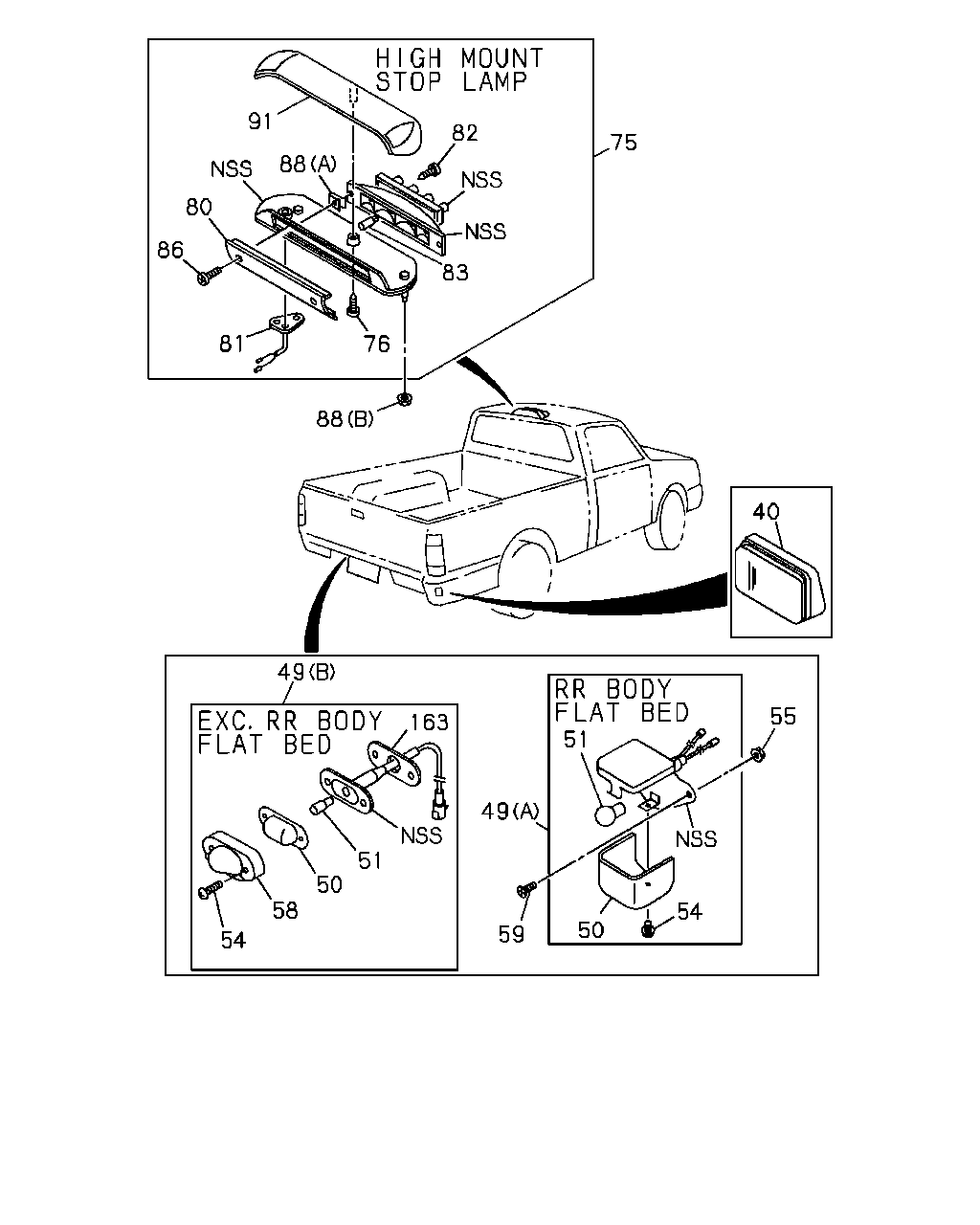

çizim 66315
91 80 86 81 76 83 82 75 88 49 163 51 50 58 54 59 49 50 54 51 55 40 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
40 02.689 REFLECTOR; REFLEX
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> 		8-94311-348-1 01 1 9510- ● ●
40 02.689 REFLECTOR; REFLEX
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> 		8-94311-347-1 01 1 9510- ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) (B) 		8-94443-186-2 01 1 9210-9608 ● ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
(B) 		8-94443-186-2 01 1 9609- ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6> (B) 		8-94443-186-2 01 1 9609- ●
49 02.700 LAMP; LICENSE PLATE
RR BODY FLAT BED<RS6> (A) 		8-94479-603-1 01 1 9210-9509 ● ●
49 02.700 LAMP; LICENSE PLATE
RR BODY FLAT BED<RS6> (A) 		8-94479-603-1 01 1 9510- ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-94135-878-2 01 1 9210-9608 ● ● ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP 8-94135-878-2 01 1 9609- ● ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6> 		8-94135-878-2 01 1 9609- ●
50 02.709 LENS; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 		5-82125-004-0 01 1 9210-9509 ● ●
50 02.709 LENS; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 		5-82125-004-0 01 1 9510- ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 12V 5W 		8-94124-595-0 01 1 9210-9608 ● ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 01 1 9609- ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6> 12V 5W 		8-94124-595-0 01 1 9609- ●
51 08.991 BULB; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 12V 7.5W 		9-82692-128-0 01 1 9210-9509 ● ●
51 08.991 BULB; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 12V 7.5W 		9-82692-128-0 01 1 9510- ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9210-9608 ● ● ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9609- ● ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6> 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9609- ●
54 02.708 SCREW; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 02.709 M4X8 		8-94419-312-0 01 1 9210-9509 ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 02.709 M4X8 		8-94419-312-0 01 1 9510- ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 09.744 M5 FLANGE NUT 		5-09440-003-0 02 1 9210-9509 ● ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 09.744 M5 FLANGE 		5-09440-003-0 02 1 9510- ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) BLACK 		8-94323-724-0 01 1 9210-9608 ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
BLACK 		8-94323-724-0 01 1 9609- ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 01 1 9609- ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED<RS6> 02.726 M5X12 		9-93490-512-0 02 1 9210-9509 ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED<RS6> 02.726 M5X12 		9-93490-512-0 02 1 9510- ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
BODY COLOR CREAM WHITE/LT.SILVER ME T(748),BODY COLOR CREAM WHITE(752) HIGH MOUNT STOP LAMP<TS6> WHITE 		8-97097-243-7 01 1 9502- ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
BODY COLOR LT.SILVER MET(753),BODY COLOR RADIANT RED(756),BODY COLOR DARK REGATTA(759),BODY COLOR HUNTING GREEN MICA(763),BODY COLOR DARK RE GATTA/LT. SILVER MET(764),BODY COLOR RADIANT RED/LT.SILVER MET(779),BO DY COLOR IRON GRAY MET(849) HIGH MOUNT STOP LAMP<TS6> BLACK 		8-97097-244-7 01 1 9502-9606 ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
BODY COLOR LT.SILVER MET(753),BODY COLOR RADIANT RED(756),BODY COLOR DARK REGATTA(759),BODY COLOR HUNTING GREEN MICA(763),BODY COLOR DARK RE GATTA/LT. SILVER MET(764),BODY COLOR RADIANT RED/LT.SILVER MET(779),BO DY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) HIGH MOUNT STOP LAMP<TS6> BLACK 		8-97097-244-7 01 1 9607- ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-97087-147-0 03 1 9502- ● ●
80 02.679 UNIT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-94383-513-0 01 1 9502- ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-146-0 01 1 9502- ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-145-0 01 1 9502- ● ●
82 02.662 SCREW; LAMP UNIT TO SOCKET
HIGH MOUNT STOP LAMP<TS6> 		0-71090-412-0 03 1 9502- ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 12V 5W 		8-94124-595-0 04 1 9502- ● ●
86 02.688 SCREW; LENS TO HSG
HIGH MOUNT STOP LAMP<TS6> 		8-97087-144-0 02 1 9502- ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 9502- ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (A) 		8-97087-149-0 02 1 9502- ● ●
91 02.680 COVER; STOP LAMP
BODY COLOR CREAM WHITE/LT.SILVER ME T(748),BODY COLOR CREAM WHITE(752) HIGH MOUNT STOP LAMP<TS6> 		8-97094-922-0 01 1 9502- ● ●
91 02.680 COVER; STOP LAMP
BODY COLOR LT.SILVER MET(753),BODY COLOR RADIANT RED(756),BODY COLOR DARK REGATTA(759),BODY COLOR HUNTING GREEN MICA(763),BODY COLOR DARK RE GATTA/LT. SILVER MET(764),BODY COLOR RADIANT RED/LT.SILVER MET(779),BO DY COLOR IRON GRAY MET(849) HIGH MOUNT STOP LAMP<TS6> 		8-97087-148-0 01 1 9502-9606 ● ●
91 02.680 COVER; STOP LAMP
BODY COLOR LT.SILVER MET(753),BODY COLOR RADIANT RED(756),BODY COLOR DARK REGATTA(759),BODY COLOR HUNTING GREEN MICA(763),BODY COLOR DARK RE GATTA/LT. SILVER MET(764),BODY COLOR RADIANT RED/LT.SILVER MET(779),BO DY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) HIGH MOUNT STOP LAMP<TS6> 		8-97087-148-0 01 1 9607- ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-94232-866-0 01 1 9210-9608 ● ● ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP 8-94232-866-0 01 1 9609- ● ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6> 		8-94232-866-0 01 1 9609- ●
