◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#47596) — 101 parça

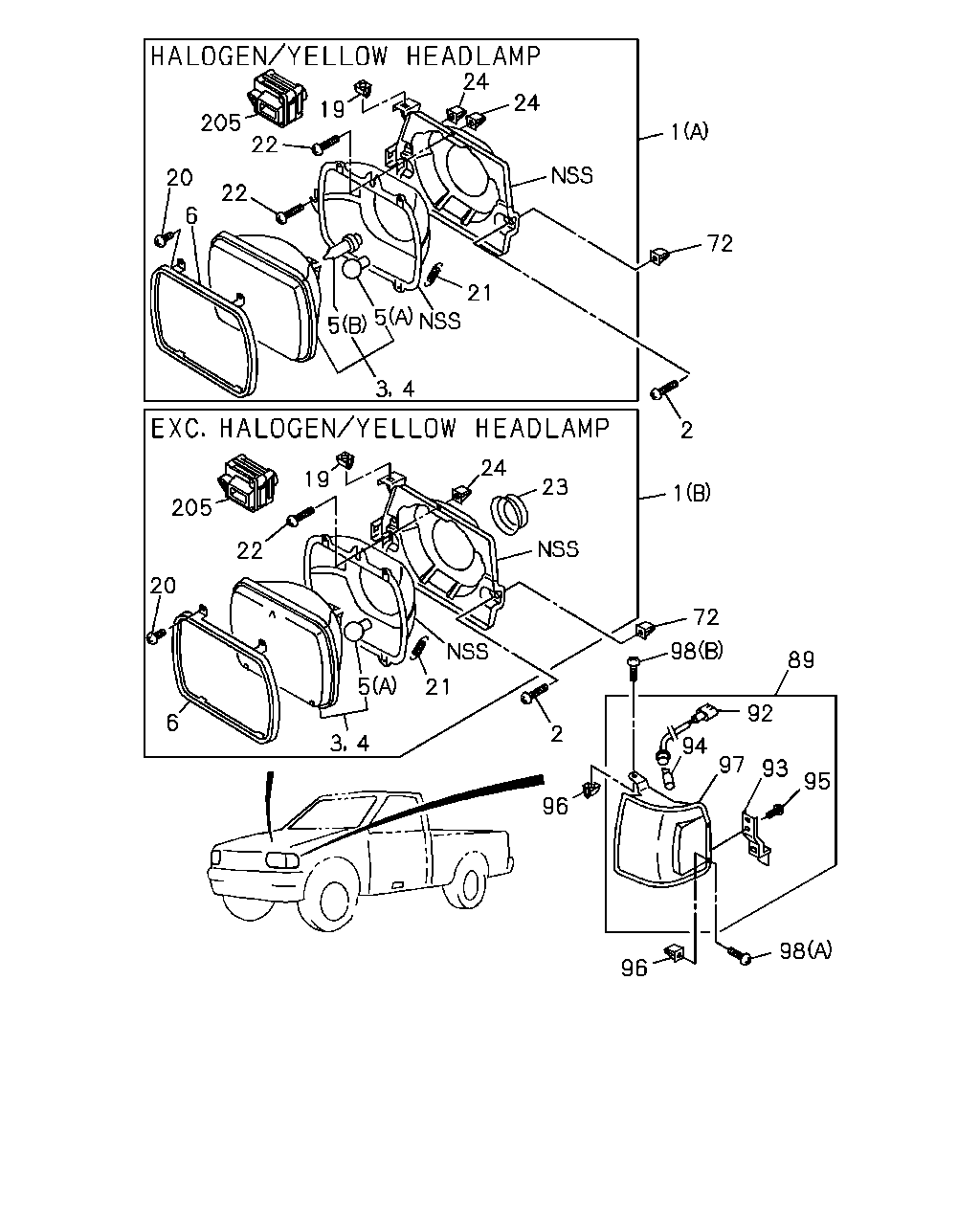

çizim 16299
24 19 24 22 205 20 22 6 21 5 5 1 72 2 1 72 89 98 23 24 19 22 205 20 6 3 4 5 21 2 94 92 97 93 95 96 96 98 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 65/35W 		8-94434-558-2 01 1 9210-9509 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2) (A) 12V 65/35W 		8-94434-558-2 01 1 9510- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 65/35W 		8-94434-557-2 01 1 9210-9509 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2) (A) 12V 65/35W 		8-94434-557-2 01 1 9510- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (B) 		8-94434-556-2 01 1 9210-9509 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) (B) 		8-94434-556-2 01 1 9510- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (B) 		8-94434-555-2 01 1 9210-9509 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) (B) 		8-94434-555-2 01 1 9510- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 		8-94450-424-3 01 1 9210- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 		8-94450-423-3 01 1 9210- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (B) 		8-94450-422-3 01 1 9510- ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (B) 		8-94450-421-3 01 1 9510- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) (A) 		8-94434-566-3 01 1 9510- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) (A) 		8-94434-565-3 01 1 9510- ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
03.890 M5X16 TAPPING 		9-07076-516-0 06 1 9210- ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> 12V 65/35W 		8-94463-397-1 02 1 9210-9509 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2) 12V 65/35W 		8-94463-397-1 02 1 9510- ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 12V 65/55W 		8-94217-652-0 02 1 9210-9509 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) 12V 65/55W 		8-94217-652-0 02 1 9510- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> 		8-94334-630-1 02 1 9210- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 		8-94334-628-1 02 1 9510- ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) 		8-94334-632-1 02 1 9510- ● ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/40W YELLOW 		5-82193-002-0 02 1 9210- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9510- ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) (B) 12V 60/55W 		8-94217-817-0 02 1 9510- ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9210- ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9210- ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 08 1 9210- ● ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-94153-168-0 02 1 9210- ● ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 		8-97023-135-0 04 1 9210- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. YELLOW HEAD LAMP<T75> 02.722 		5-82119-004-1 02 1 9210-9409 ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
02.726 		5-09470-004-0 04 1 9210- ● ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
D=7X7 L=7.5 		8-94291-927-0 06 1 9210- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> 		8-94473-430-3 01 1 9210-9509 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. CHINA EQUIPMENT(YT2) 		8-94473-430-3 01 1 9510- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> 		8-94473-429-3 01 1 9210-9509 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. CHINA EQUIPMENT(YT2) 		8-94473-429-3 01 1 9510- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-570-3 01 1 9210-9509 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. CHINA EQUIPMENT(YT2),EXTERIOR CHROME PACKAGE<6CX> 		8-94434-570-3 01 1 9510- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-569-3 01 1 9210-9509 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. CHINA EQUIPMENT(YT2),EXTERIOR CHROME PACKAGE<6CX> 		8-94434-569-3 01 1 9510- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> 		8-94473-432-3 01 1 9510- ● ● ● ●
89 02.585 LAMP; SIDE COMB
CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> 		8-94473-431-3 01 1 9510- ● ● ● ●
89 02.585 LAMP; SIDE COMB
CHINA EQUIPMENT(YT2) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-572-3 01 1 9510- ● ● ● ●
89 02.585 LAMP; SIDE COMB
CHINA EQUIPMENT(YT2) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-571-3 01 1 9510- ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP 8-94324-100-0 02 1 9210-9509 ● ● ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP 8-94324-100-0 02 1 9510- ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
EXC. CHINA EQUIPMENT(YT2) 		8-94324-100-0 02 1 9510- ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CHINA EQUIPMENT(YT2) 		8-94324-101-0 02 1 9510- ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-94324-090-0 01 1 9210- ● ● ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-94324-091-0 01 1 9210- ● ● ● ● ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
12V 5W 		8-94124-595-0 02 1 9210- ● ● ● ● ● ● ● ●
95 02.895 SCREW; SIDE COMB LAMP 8-94324-093-0 04 1 9210- ● ● ● ● ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9210- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> 		8-94324-109-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. CHINA EQUIPMENT(YT2) 		8-94324-109-0 01 1 9510- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> 		8-94324-108-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. CHINA EQUIPMENT(YT2) 		8-94324-108-0 01 1 9510- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-105-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. CHINA EQUIPMENT(YT2),EXTERIOR CHROME PACKAGE<6CX> 		8-94324-105-0 01 1 9510- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-104-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. CHINA EQUIPMENT(YT2),EXTERIOR CHROME PACKAGE<6CX> 		8-94324-104-0 01 1 9510- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> 		8-94324-111-0 01 1 9510- ● ● ● ●
97 02.895 LAMP UNIT; COMB
CHINA EQUIPMENT(YT2) EXTERIOR CHROME PACKAGE<6CX> 		8-94324-110-0 01 1 9510- ● ● ● ●
97 02.895 LAMP UNIT; COMB
CHINA EQUIPMENT(YT2) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-107-0 01 1 9510- ● ● ● ●
97 02.895 LAMP UNIT; COMB
CHINA EQUIPMENT(YT2) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-106-0 01 1 9510- ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) W/WASHER M4X16 TAPPING W/PL WASHER 		0-74335-416-0 02 1 9210-9303 ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9304- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
EXTERIOR CHROME PACKAGE<6CX> 02.587 (A) M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 9210- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
EXC. EXTERIOR CHROME PACKAGE<6CX> (A) M4X20 		8-94446-971-0 04 1 9210- ● ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
YELLOW HEAD LAMP<T75> 		8-97113-326-0 01 1 9309-9509 ● ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) 		8-97113-326-0 02 1 9510- ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
YELLOW HEAD LAMP<T75> 		8-97113-326-0 01 1 9510- ● ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 		8-97113-326-0 01 1 9510- ● ● ● ●

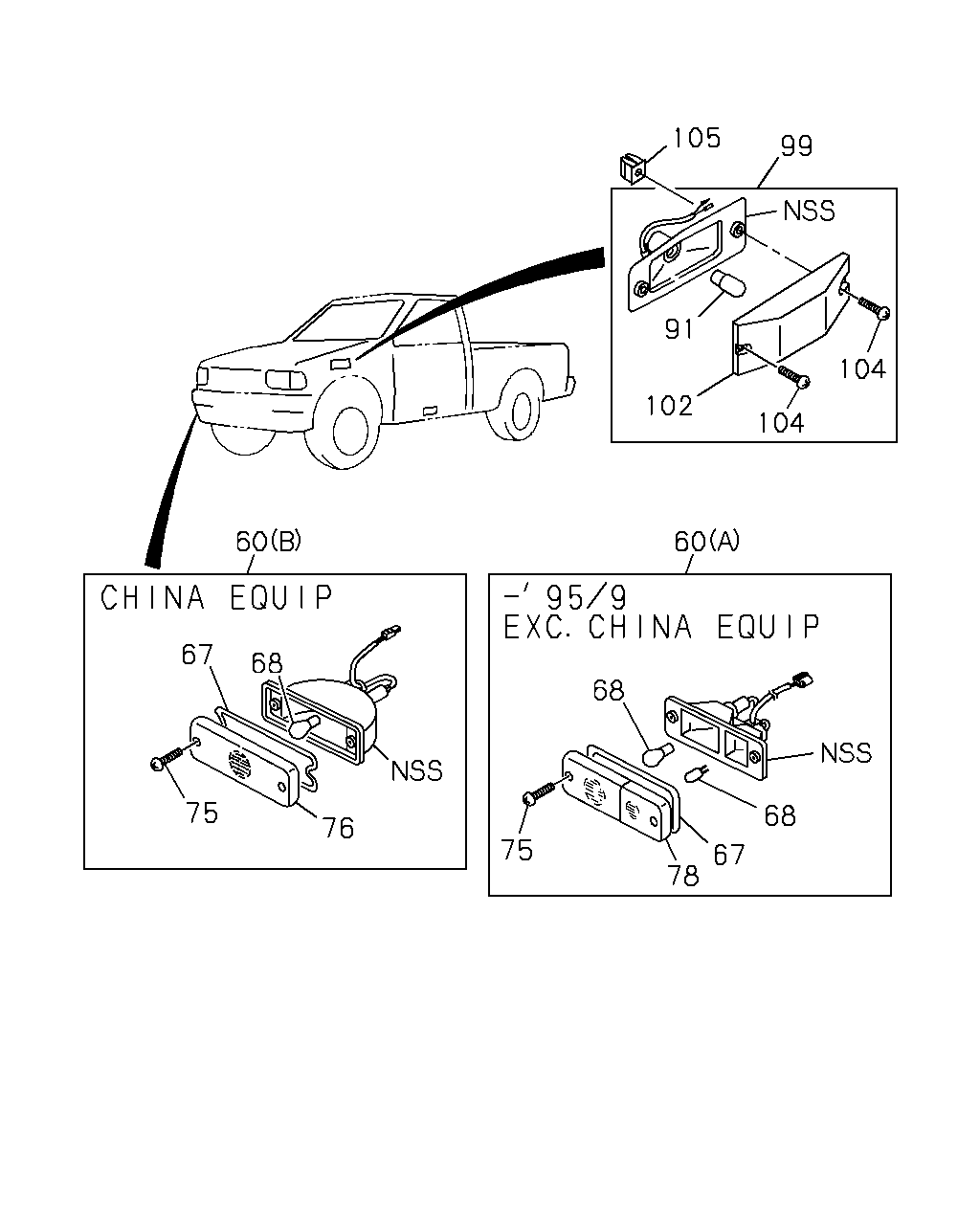

çizim 66015
105 99 104 104 102 91 60 68 67 78 75 68 76 75 67 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
60 02.585 LAMP ASM; FRT COMB
(A) 		8-94434-576-3 01 1 9210-9509 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) (A) 		8-94434-576-3 01 1 9510- ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-94434-575-3 01 1 9210-9509 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) (A) 		8-94434-575-3 01 1 9510- ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) (B) 		8-97137-734-0 01 1 9510- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) (B) 		8-97137-733-0 01 1 9510- ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
02.599 		8-94149-259-0 02 1 9210-9509 ● ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. CHINA EQUIPMENT(YT2) 02.599 		8-94149-259-0 02 1 9510- ● ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
CHINA EQUIPMENT(YT2) 		8-94334-881-0 02 1 9510- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 5W 		5-82194-006-0 02 1 9210-9509 ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. CHINA EQUIPMENT(YT2) 12V 5W 		5-82194-006-0 02 1 9510- ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 23W 		9-82692-131-0 02 1 9210-9509 ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. CHINA EQUIPMENT(YT2) 12V 23W 		9-82692-131-0 02 1 9510- ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) 12V 21W 		8-94124-074-0 02 1 9510- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 9210- ● ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
CHINA EQUIPMENT(YT2) 		8-94117-030-0 01 1 9510- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
CHINA EQUIPMENT(YT2) 		8-94112-723-0 01 1 9510- ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-94151-265-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-94151-265-0 01 1 9510- ● ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-94151-264-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-94151-264-0 01 1 9510- ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
CHINA EQUIPMENT(YT2) 12V 5W 		8-94124-595-0 02 1 9510- ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
CHINA EQUIPMENT(YT2) 		8-97137-895-0 01 1 9510- ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
CHINA EQUIPMENT(YT2) 		8-97137-894-0 01 1 9510- ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
CHINA EQUIPMENT(YT2) 02.575 		8-94230-837-0 02 1 9510- ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
CHINA EQUIPMENT(YT2) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9510- ● ● ● ●
105 02.587 SCREW; GROMMET,LAMP FIX
CHINA EQUIPMENT(YT2) 02.708 M4 		5-09470-002-0 04 1 9510- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
