◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#47595) — 285 parça

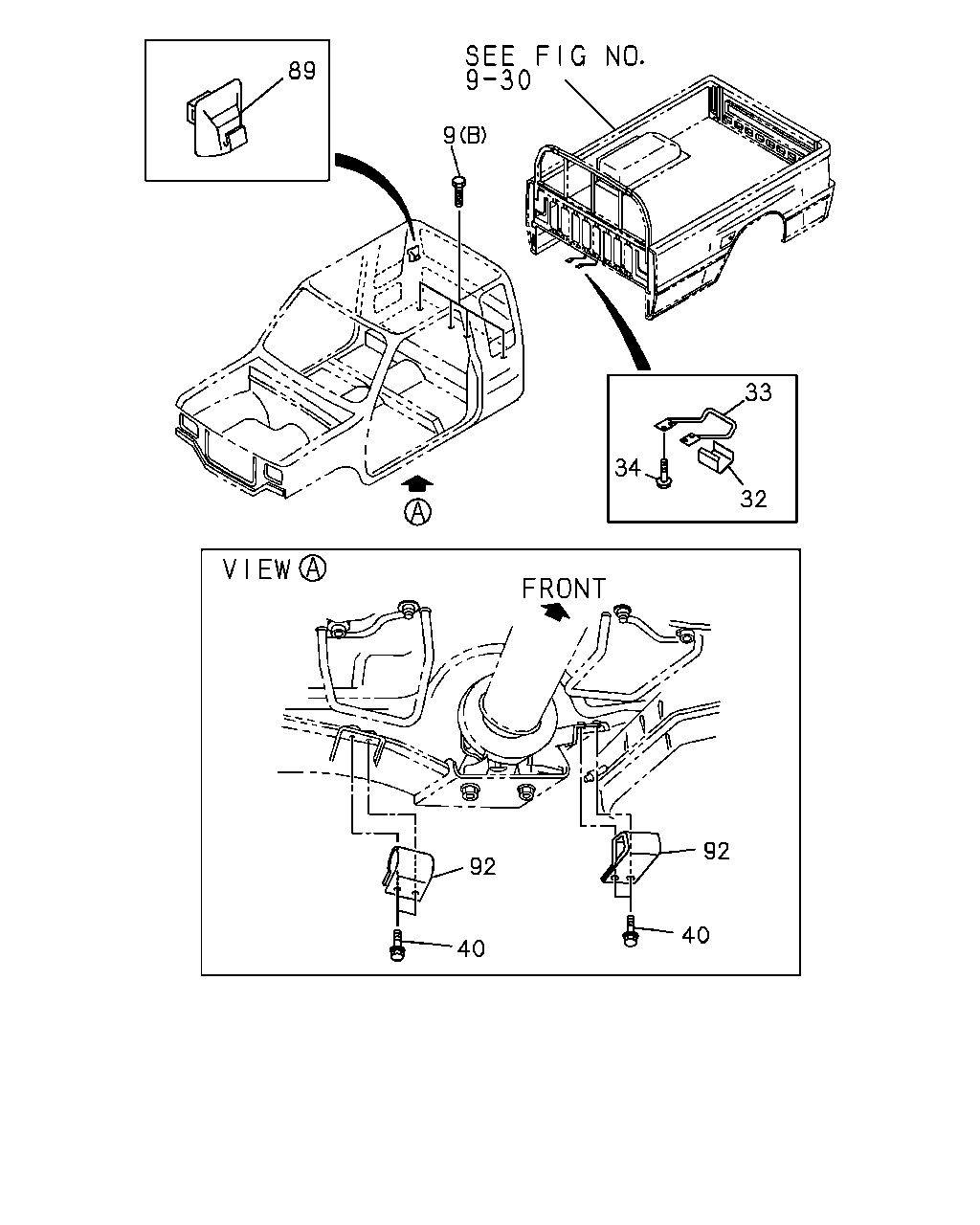

çizim 66300
89 9 34 32 33 92 40 92 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9406 ● ●
32 16.714 BRACKET; ANCHOR ROD,SEAT BELT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94457-459-1 01 1 9210- ● ●
32 16.714 BRACKET; ANCHOR ROD,SEAT BELT
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94457-459-1 01 1 9210- ● ●
33 16.714 ROD; ANCHOR,SEAT BELT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94411-347-0 01 1 9210- ● ●
33 16.714 ROD; ANCHOR,SEAT BELT
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94411-347-0 01 1 9210- ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 07.039 		8-94130-273-0 04 1 9210- ● ●
40 16.545 BOLT; BRKT,ANCHOR
M8X30 W/LK&PL WASHER 		8-94320-540-1 04 1 9210- ● ● ● ● ● ● ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
INTERIOR COLOR BEIGE(120) BROWN 		8-94478-393-2 02 1 9210-9308 ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94478-394-2 02 1 9210-9308 ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
GRAY 		8-94478-394-2 02 1 9309- ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-94473-965-3 02 1 9210- ● ● ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR
16.545 		8-94471-108-2 02 1 9210- ●

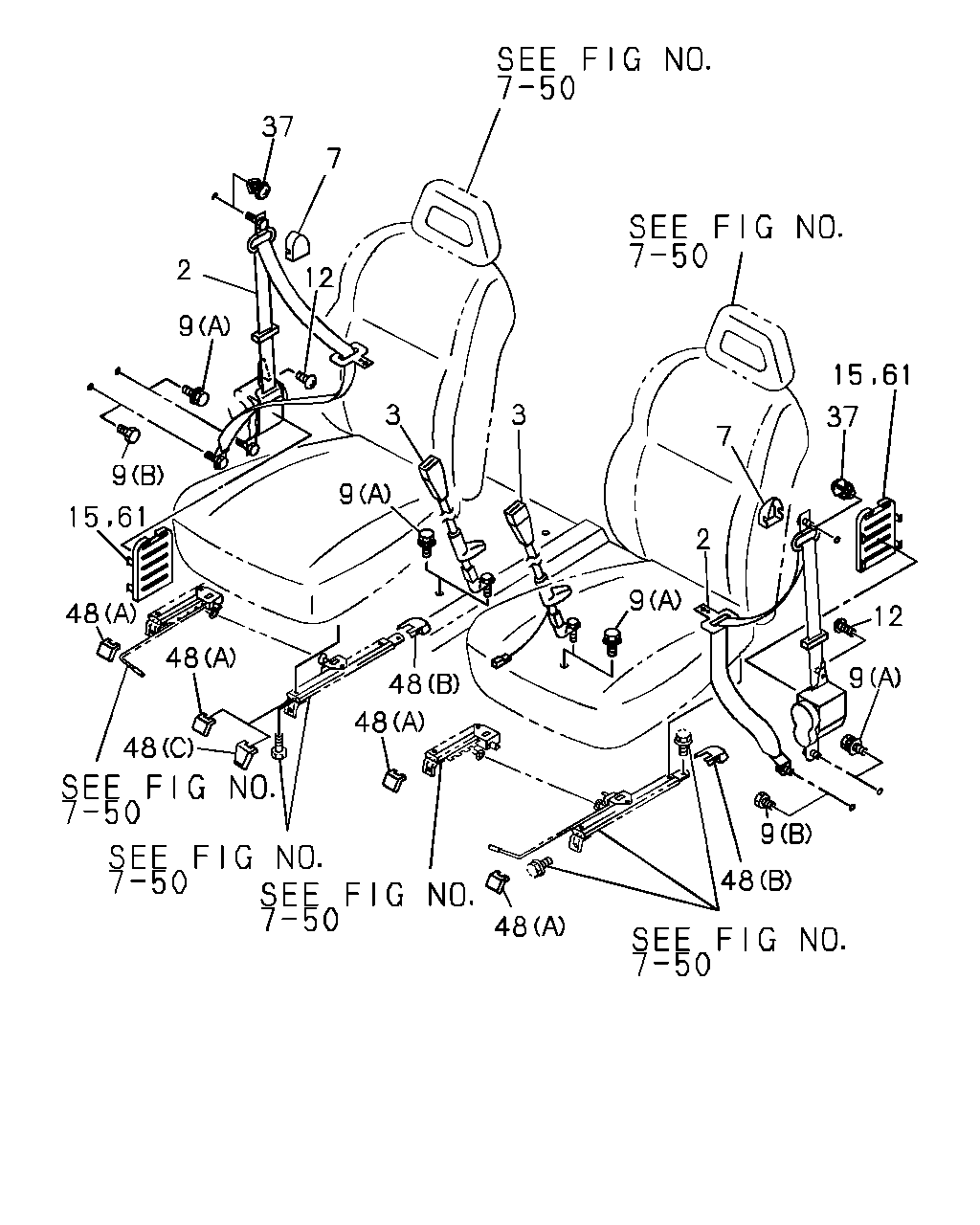

çizim 66507
37 12 2 7 9 3 3 7 37 15 61 2 9 12 9 9 48 48 48 9 48 48 48 48 15 61 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-544-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-545-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97004-545-4 02 1 9309- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-534-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) BROWN 		8-97004-537-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-535-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT WO/RECLINING(AV5) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-535-4 02 1 9309- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-538-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-538-3 02 1 9309- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-541-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-548-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-542-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-542-4 02 1 9309- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-549-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-549-3 02 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-564-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-564-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-567-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-567-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) EXC. SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-579-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-579-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-565-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-565-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97004-565-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-565-1 01 1 9309- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-568-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-568-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-568-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-568-1 01 1 9309- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9309- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) BROWN 		8-97004-558-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-576-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5) BROWN 		8-97004-561-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-559-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-559-1 01 1 9309- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-577-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-577-1 01 1 9309- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-562-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-562-1 01 1 9309- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-570-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2),BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-573-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-582-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-571-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-571-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2),BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-574-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2),BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-574-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-583-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-583-1 01 1 9309- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) BROWN 		8-94383-775-1 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94383-775-1 02 1 9210-9308 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94383-773-1 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94383-773-1 02 1 9210-9308 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-94383-773-1 02 1 9309- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94383-773-1 02 1 9309- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9406 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9210- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9210- ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-502-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-585-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-503-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-503-3 02 1 9309- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-586-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-586-3 02 1 9309- ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA),GRADE DLX(RBB) EXC. FRT SEAT BELT W/RETRACTOR<A49> 		8-94433-190-0 02 1 9210- ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-244-1 04 1 9210-9306 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 04 1 9210-9306 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-244-1 03 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 03 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-245-1 04 1 9210-9306 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 04 1 9210-9306 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-245-1 03 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 03 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(A) GRAY 		8-94477-245-1 03 1 9309-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 03 1 9309-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-251-2 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(B) GRAY 		8-94477-251-2 04 1 9309-9403 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9309-9403 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(B) GRAY 		8-94477-251-2 04 1 9404- ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9404- ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94383-795-0 01 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(C) GRAY 		8-94383-795-0 01 1 9309-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9309-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 02 1 9309-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9309-9403 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9404- ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94476-997-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94476-994-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-998-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-998-5 02 1 9309-9408 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
FRT SEAT BELT W/RETRACTOR<A49> EXC. POWER WINDOW<A30> GRAY 		8-94476-998-5 02 1 9409- ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9309-9408 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
EXC. POWER WINDOW<A30>,FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9409- ● ●

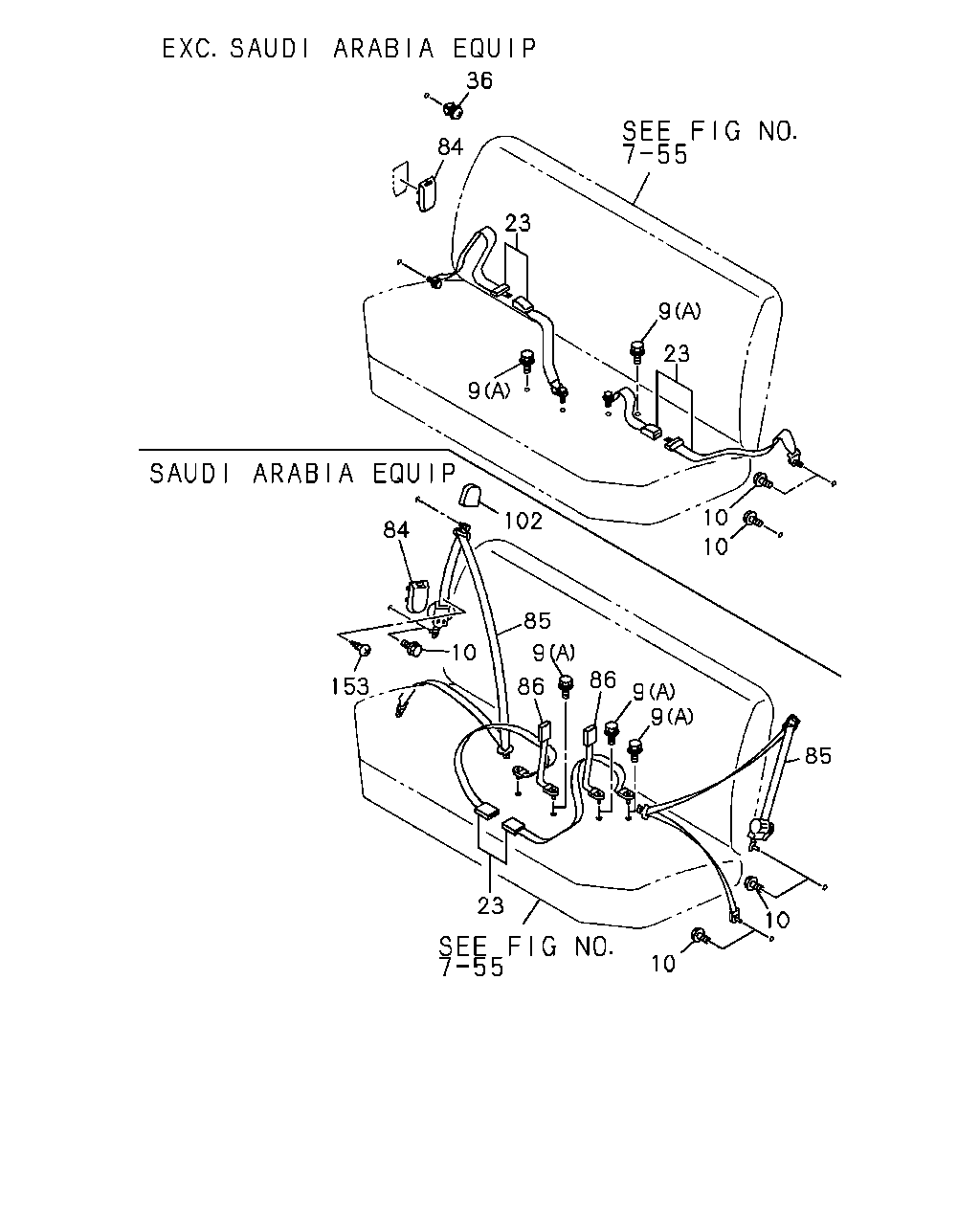

çizim 68443
36 84 23 23 9 9 10 10 102 84 10 9 86 86 9 9 85 85 153 23 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9406 ● ●
10 16.714 BOLT; RETRACTOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9407- ● ●
10 16.714 BOLT; RETRACTOR
FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9407- ● ●
10 16.714 BOLT; RETRACTOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9407- ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-605-2 01 1 9210-9308 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-605-2 02 1 9210-9308 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-606-2 01 1 9210-9308 ● ●
23 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-606-2 01 1 9309- ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-606-2 02 1 9210-9308 ● ●
23 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-606-2 02 1 9309- ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.714 		8-94433-190-0 02 1 9210- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-94476-997-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-94476-994-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94476-994-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-94476-998-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-94476-998-5 02 1 9309- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-94476-995-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9309- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-94476-995-5 02 1 9309- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-591-3 02 1 9210-9308 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-592-3 02 1 9210-9308 ● ●
85 16.714 BELT; SEAT,RR OUTER
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-592-3 02 1 9309- ● ●
86 16.714 BELT; SEAT,RR INNER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-598-1 02 1 9210-9308 ● ●
86 16.714 BELT; SEAT,RR INNER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-599-1 02 1 9210-9308 ● ●
86 16.714 BELT; SEAT,RR INNER
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-599-1 02 1 9309- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BEIGE(120) SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-94383-775-1 02 1 9210-9308 ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR MUSHROOM(150) SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-94383-773-1 02 1 9210-9308 ● ●
102 16.714 COVER; SHOULDER ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-94383-773-1 02 1 9309- ● ●
153 16.714 SCREW; RETRACTOR
SAUDI ARABIA EQUIPMENT(EU2) M8X10 		9-03800-810-0 02 1 9210- ● ●

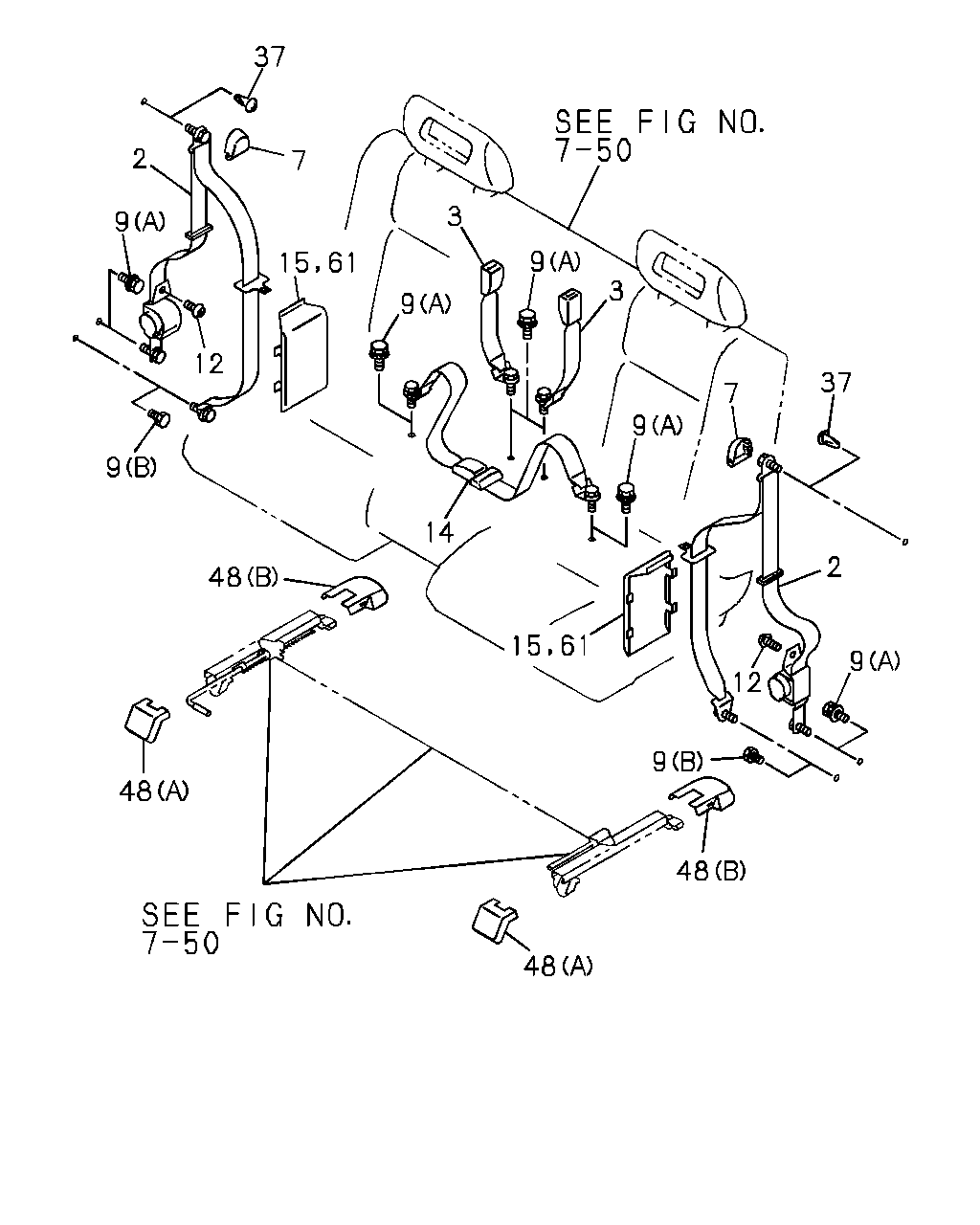

çizim 68444
37 7 2 9 15 61 12 9 48 14 9 3 3 9 9 7 37 2 9 12 9 15 61 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-544-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-545-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97004-545-4 02 1 9309- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-534-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) BROWN 		8-97004-537-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-535-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT WO/RECLINING(AV5) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-535-4 02 1 9309- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-538-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-538-3 02 1 9309- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-541-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-548-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-542-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-542-4 02 1 9309- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-549-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-549-3 02 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-564-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-564-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-567-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-567-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) EXC. SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-579-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-579-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-565-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-565-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97004-565-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-565-1 01 1 9309- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-568-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-568-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-568-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-568-1 01 1 9309- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-580-1 01 1 9309- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) BROWN 		8-97004-558-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-576-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5) BROWN 		8-97004-561-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-559-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-559-1 01 1 9309- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-577-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-577-1 01 1 9309- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-562-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-562-1 01 1 9309- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-570-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2),BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-573-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-582-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-571-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-571-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2),BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-574-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), SAUDI ARABIA EQUIPMENT(EU2),BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-574-1 01 1 9309- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-583-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-583-1 01 1 9309- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) BROWN 		8-94383-775-1 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94383-775-1 02 1 9210-9308 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94383-773-1 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94383-773-1 02 1 9210-9308 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-94383-773-1 02 1 9309- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94383-773-1 02 1 9309- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9210- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9406 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9210- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9210- ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-513-2 01 1 9210-9308 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> EXC. SAUDI ARABIA EQUIPMENT(EU2) BROWN 		8-97004-511-2 01 1 9210-9308 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-514-2 01 1 9210-9308 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5) GRAY 		8-97004-514-2 01 1 9309- ● ● ● ●
14 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-514-2 01 1 9309- ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-512-2 01 1 9210-9308 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97004-512-2 01 1 9309- ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-502-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-585-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-503-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-503-3 02 1 9309- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-586-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-586-3 02 1 9309- ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA),GRADE DLX(RBB) EXC. FRT SEAT BELT W/RETRACTOR<A49> 		8-94433-190-0 02 1 9210- ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-244-1 04 1 9210-9306 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 04 1 9210-9306 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-244-1 03 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 03 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-245-1 04 1 9210-9306 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 04 1 9210-9306 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-245-1 03 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 03 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(A) GRAY 		8-94477-245-1 03 1 9309-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 03 1 9309-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-251-2 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(B) GRAY 		8-94477-251-2 04 1 9309-9403 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9309-9403 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(B) GRAY 		8-94477-251-2 04 1 9404- ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9404- ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94383-795-0 01 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(C) GRAY 		8-94383-795-0 01 1 9309-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9309-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 02 1 9309-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9309-9403 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9404- ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94476-997-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94476-994-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-998-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-998-5 02 1 9309-9408 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
FRT SEAT BELT W/RETRACTOR<A49> EXC. POWER WINDOW<A30> GRAY 		8-94476-998-5 02 1 9409- ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9309-9408 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
EXC. POWER WINDOW<A30>,FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
