7-45 — CONSOLE BOX (#47592) — 46 parça

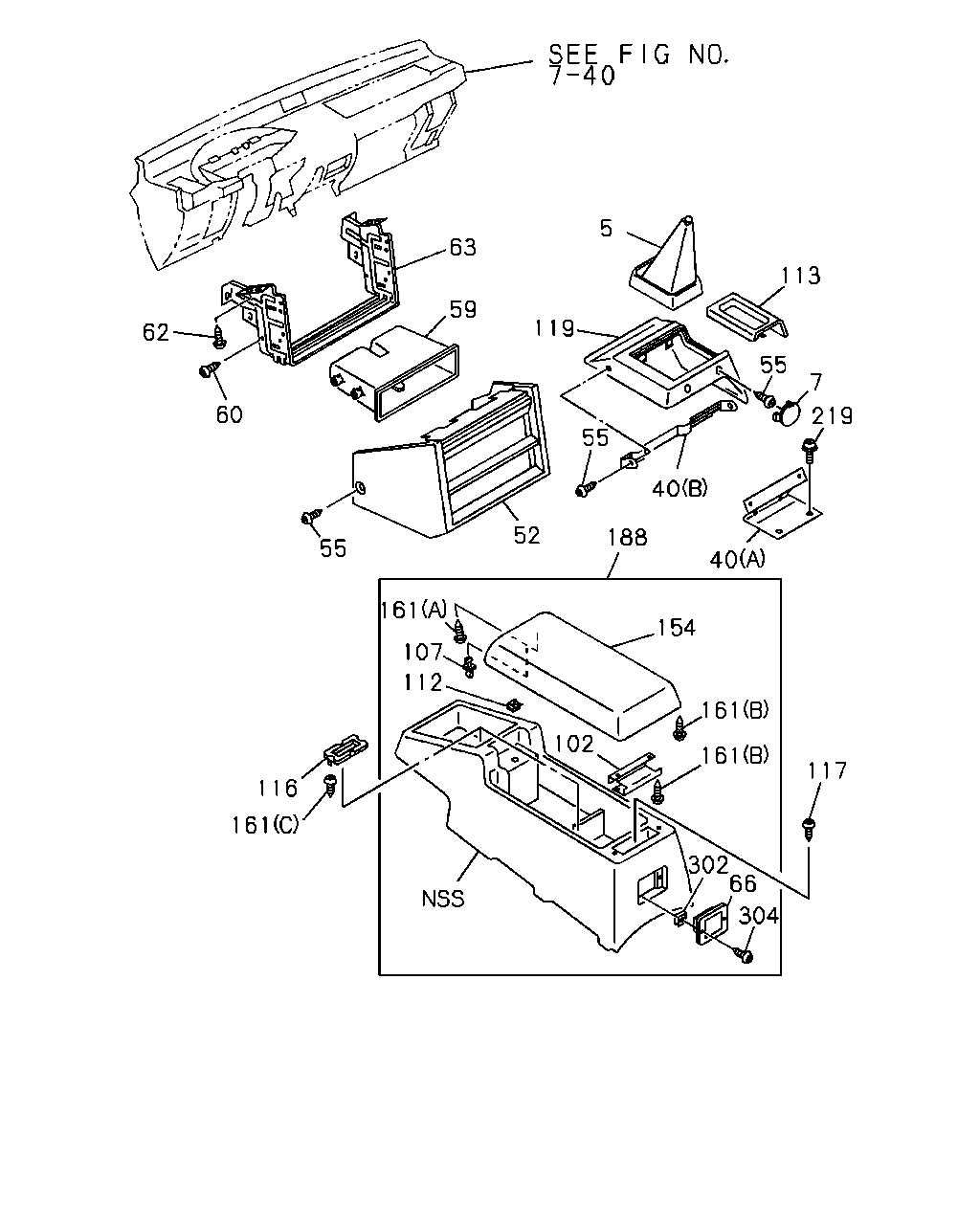

çizim 65083
63 59 5 119 113 55 7 219 40 40 55 52 188 154 161 161 117 302 66 304 112 102 107 161 116 161 55 60 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
5 16.650 COVER; SHIFT LEVER
FRONT CONSOLE<D55> 		8-94462-742-3 01 1 9210- ● ● ● ●
5 16.650 COVER; SHIFT LEVER
FRONT CONSOLE<D55> 		8-94462-741-3 01 1 9210- ● ● ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
INTERIOR COLOR BEIGE(120) FRONT CONSOLE<D55> BROWN 		8-94474-731-1 02 1 9210-9308 ● ● ● ● ● ● ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
INTERIOR COLOR MUSHROOM(150) FRONT CONSOLE<D55> GRAY 		8-94474-732-1 02 1 9210-9308 ● ● ● ● ● ● ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE<D55> GRAY 		8-94474-732-1 02 1 9309- ● ● ● ● ● ● ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9210- ● ● ● ● ● ● ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9210- ● ● ● ● ● ● ● ●
52 16.650 CONSOLE; FRT
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) BROWN 		8-94475-858-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
52 16.650 CONSOLE; FRT
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94475-859-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
52 16.650 CONSOLE; FRT
GRADE LS(RBD) GRAY 		8-94475-859-2 01 1 9309- ● ● ● ● ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
FRONT CONSOLE<D55> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ● ● ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
GRADE LS(RBD) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
59 16.650 BOX; FRT CONSOLE
GRADE LS(RBD) 10.260 44X184 		8-94435-504-2 01 1 9210- ● ● ● ● ● ● ● ●
60 16.650 SCREW; BOX
GRADE LS(RBD) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9210-9212 ● ● ● ● ● ● ● ●
60 16.650 SCREW; BOX
GRADE LS(RBD) 09.744 M5X14 TAPPING 		9-09829-322-1 04 1 9301- ● ● ● ● ● ● ● ●
62 16.650 SCREW; BRKT
10.701 M6X16 		8-94206-784-0 04 1 9210- ● ● ● ● ● ● ● ●
63 16.650 BRACKET; FRT CONSOLE
GRADE LS(RBD) 		8-94435-485-3 01 1 9210- ● ● ● ● ● ● ● ●
66 16.120 TRAY ASM; ASH
POWER WINDOW<A30> CENTER CONSOLE<D63> GRAY 		8-94476-917-1 01 1 9410- ● ●
102 16.650 LOCK ASM; RR CONSOLE
CENTER CONSOLE<D63> 		8-94253-330-0 01 1 9210- ● ● ● ● ● ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9210- ● ● ● ● ● ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9210- ● ● ● ● ● ● ● ●
113 04.015 BOX; CONSOLE
FRONT CONSOLE<D55> BLACK 		8-94373-417-2 01 1 9210- ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BEIGE(120) CENTER CONSOLE<D63> BROWN 		8-94474-721-2 02 1 9210-9308 ● ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR MUSHROOM(150) CENTER CONSOLE<D63> GRAY 		8-94474-722-2 02 1 9210-9308 ● ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
CENTER CONSOLE<D63> GRAY 		8-94474-722-2 02 1 9309- ● ● ● ● ● ● ● ●
117 16.650 SCREW; CONSOLE TO BODY PNL
CENTER CONSOLE<D63> 16.870 M5X19 		1-09981-152-0 02 1 9210- ● ● ● ● ● ● ● ●
119 04.015 CONSOLE; SHIFT LEVER
INTERIOR COLOR BEIGE(120) FRONT CONSOLE<D55> BROWN 		8-94478-245-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
119 04.015 CONSOLE; SHIFT LEVER
INTERIOR COLOR MUSHROOM(150) FRONT CONSOLE<D55> GRAY 		8-94478-246-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
119 04.015 CONSOLE; SHIFT LEVER
FRONT CONSOLE<D55> GRAY 		8-94478-246-2 01 1 9309- ● ● ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
INTERIOR COLOR BEIGE(120) CENTER CONSOLE<D63> BROWN 		8-94478-251-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
INTERIOR COLOR MUSHROOM(150) CENTER CONSOLE<D63> GRAY 		8-94478-252-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
CENTER CONSOLE<D63> GRAY 		8-94478-252-2 01 1 9309- ● ● ● ● ● ● ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9210-9409 ● ● ● ● ● ● ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9410- ● ● ● ● ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> EXC. POWER WINDOW<A30> (A) 		0-70080-031-0 04 1 9410- ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ● ● ● ● ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR BEIGE(120) CENTER CONSOLE<D63> BROWN 		8-94474-719-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR MUSHROOM(150) CENTER CONSOLE<D63> GRAY 		8-94474-720-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
CENTER CONSOLE<D63> GRAY 		8-94474-720-3 01 1 9309-9409 ● ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
CENTER CONSOLE<D63> GRAY 		8-94474-720-3 01 1 9410- ● ● ● ● ● ●
188 16.650 CONSOLE; RR
CENTER CONSOLE<D63> EXC. POWER WINDOW<A30> GRAY 		8-94474-720-3 01 1 9410- ● ●
188 16.650 CONSOLE; RR
POWER WINDOW<A30> CENTER CONSOLE<D63> GRAY 		8-97152-634-0 01 1 9410- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55> M8X20 		9-03900-820-0 04 1 9210- ● ● ● ● ● ● ● ●
302 16.650 RETAINER; ASH TRAY
POWER WINDOW<A30> CENTER CONSOLE<D63> 		8-94123-300-5 02 1 9410-9509 ● ●
304 16.650 PAD; CONSOLE BOX
POWER WINDOW<A30> CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9410- ● ●
