◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#47590) — 16 parça

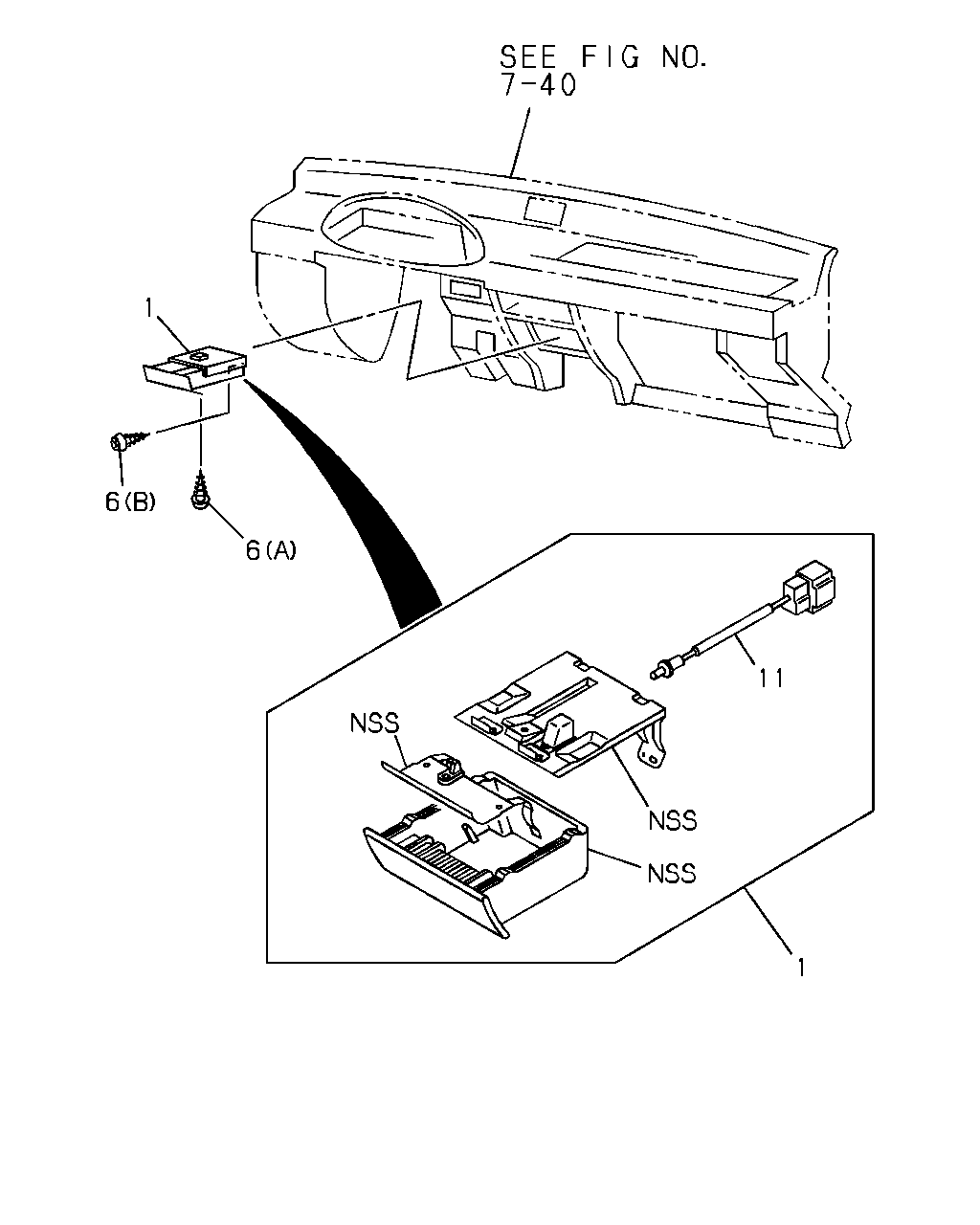

çizim 66740
6 1 6 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.120 TRAY; ASH,INST PNL
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) BROWN 		8-94474-782-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94474-783-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE LS(RBD) GRAY 		8-94474-783-2 01 1 9309-9502 ● ● ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE LS(RBD) GRAY 		8-97153-563-0 01 1 9503-9509 ● ● ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE LS(RBD) BLACK 		8-97155-379-0 01 1 9510- ● ● ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) BROWN 		8-94474-780-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94474-781-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE DLX(RBB) GRAY 		8-94474-781-2 01 1 9309-9502 ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE STD(RBA),GRADE DLX(RBB) GRAY 		8-94474-781-2 01 1 9309-9502 ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE DLX(RBB) GRAY 		8-97153-562-0 01 1 9503-9509 ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE STD(RBA),GRADE DLX(RBB) GRAY 		8-97153-562-0 01 1 9503-9509 ● ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE DLX(RBB) BLACK 		8-97154-479-0 01 1 9510- ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE STD(RBA),GRADE DLX(RBB) BLACK 		8-97154-479-0 01 1 9510- ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
12.009 (A) M5X10 TAPPING 		9-07076-510-0 01 1 9210- ● ● ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
11 08.991 BULB; ASH TRAY
GRADE LS(RBD) 14V-1.4W 		8-94449-914-1 01 1 9210- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
