◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#47583) — 81 parça

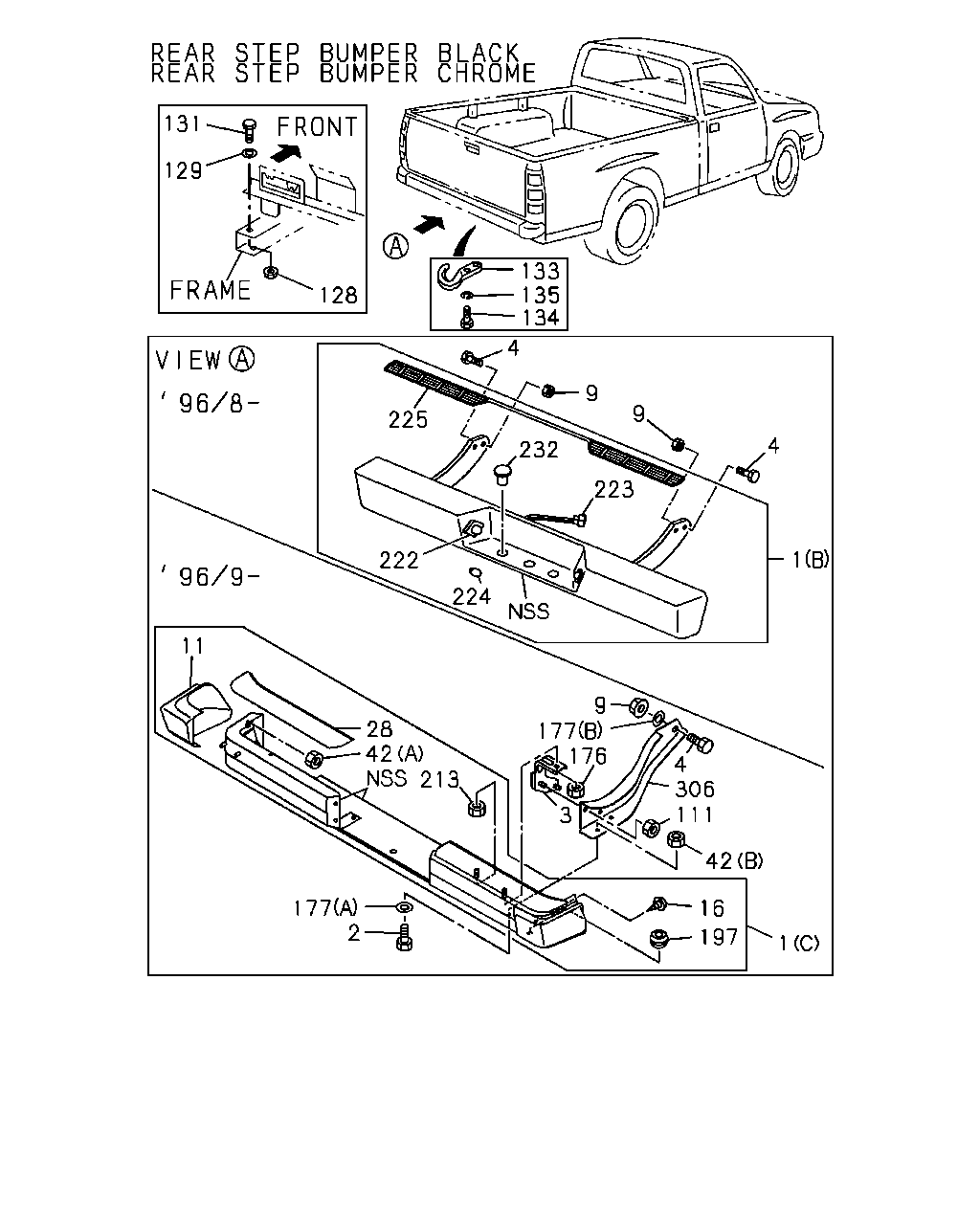

çizim 66346
131 129 128 133 135 134 9 9 4 4 225 232 1 223 222 224 9 177 176 4 306 111 42 1 197 3 213 42 28 11 177 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-94462-368-2 01 1 9210- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-94462-369-2 01 1 9210- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER BLACK(S2Z) (B) 		8-94320-258-1 01 1 9210-9608 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER BLACK(S2Z) (C) 		8-97136-796-3 01 1 9609- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(VB3) (B) 		8-97061-768-0 01 1 9210-9608 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(VB3) (C) 		8-97136-798-4 01 1 9609- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 M12X30 FLANGE 		8-94475-424-0 04 1 9210-9509 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9609- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-371-2 01 1 9210- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-370-2 01 1 9210- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-763-0 01 1 9609- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-762-0 01 1 9609- ● ● ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) M12X30 FLANGE 		8-94475-424-0 04 1 9210-9509 ● ● ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) M4 FLANGE 		1-09440-004-0 04 1 9210-9608 ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 04 1 9609- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-373-1 01 1 9210- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-372-1 01 1 9210- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-765-1 01 1 9609- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-764-1 01 1 9609- ● ● ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M6X20 		8-94324-557-0 06 1 9210- ● ● ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9609- ● ● ● ● ● ● ● ●
28 07.875 STEP ASM; RR
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-760-0 01 1 9609- ● ● ● ● ● ● ● ●
28 07.875 STEP ASM; RR
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-759-0 01 1 9609- ● ● ● ● ● ● ● ●
42 07.874 NUT; RR SIDE BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 16.547 (B) M6 W/DISHED WASHER 		8-97018-399-1 04 1 9609- ● ● ● ● ● ● ● ●
42 07.874 NUT; RR SIDE BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) (A) M5 FLANGE 		8-97183-011-0 04 1 9609- ● ● ● ● ● ● ● ●
111 02.662 NUT; FLANGE
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 07.874 M10 FLANGE 		5-09440-006-0 04 1 9609- ● ● ● ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9210- ● ● ● ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9210- ● ● ● ● ● ● ● ●
131 02.664 BOLT; PLATE,COMB LAMP
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 05.812 M8X20 		0-20800-820-0 02 1 9210- ● ● ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.330 		8-94183-262-0 01 1 9210- ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		9-02061-045-0 02 1 9210-9412 ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) M10X40 FLANGE 		0-28691-040-0 02 1 9501-9504 ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9505- ● ● ● ●
135 07.068 WASHER; LK,HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 08.929 ID=10.2 		9-09150-810-0 02 1 9210-9412 ● ● ● ●
176 07.068 NUT
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9609- ● ● ● ● ● ● ● ●
177 07.070 WASHER; PL
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 10.685 (A) 		8-94474-927-0 04 1 9609- ● ● ● ● ● ● ● ●
177 07.070 WASHER; PL
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 07.633 (B) ID=12.5 OD=32 		9-09164-712-0 02 1 9609- ● ● ● ● ● ● ● ●
197 07.832 GROMMET; SCREW,RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97183-012-0 02 1 9609- ● ● ● ● ● ● ● ●
213 07.832 NUT; STEP
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97183-033-0 20 1 9609- ● ● ● ● ● ● ● ●
222 02.700 LAMP ASM; LICENSE WO/BULB
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 07.070 		8-94335-624-0 02 1 9210-9608 ● ● ● ● ● ● ● ●
223 07.831 WIRING ASM; RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 07.840 		8-97012-151-0 01 1 9210-9608 ● ● ● ● ● ● ● ●
224 08.991 BULB; LICENSE LAMP,RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 12V 5W 		8-94124-595-0 02 1 9210-9608 ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97095-598-0 01 1 9210-9608 ● ● ● ● ● ● ● ●
232 07.068 PLUG; HOLE
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97080-553-0 03 1 9210-9608 ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97168-976-0 01 1 9609- ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97168-975-0 01 1 9609- ● ● ● ● ● ● ● ●

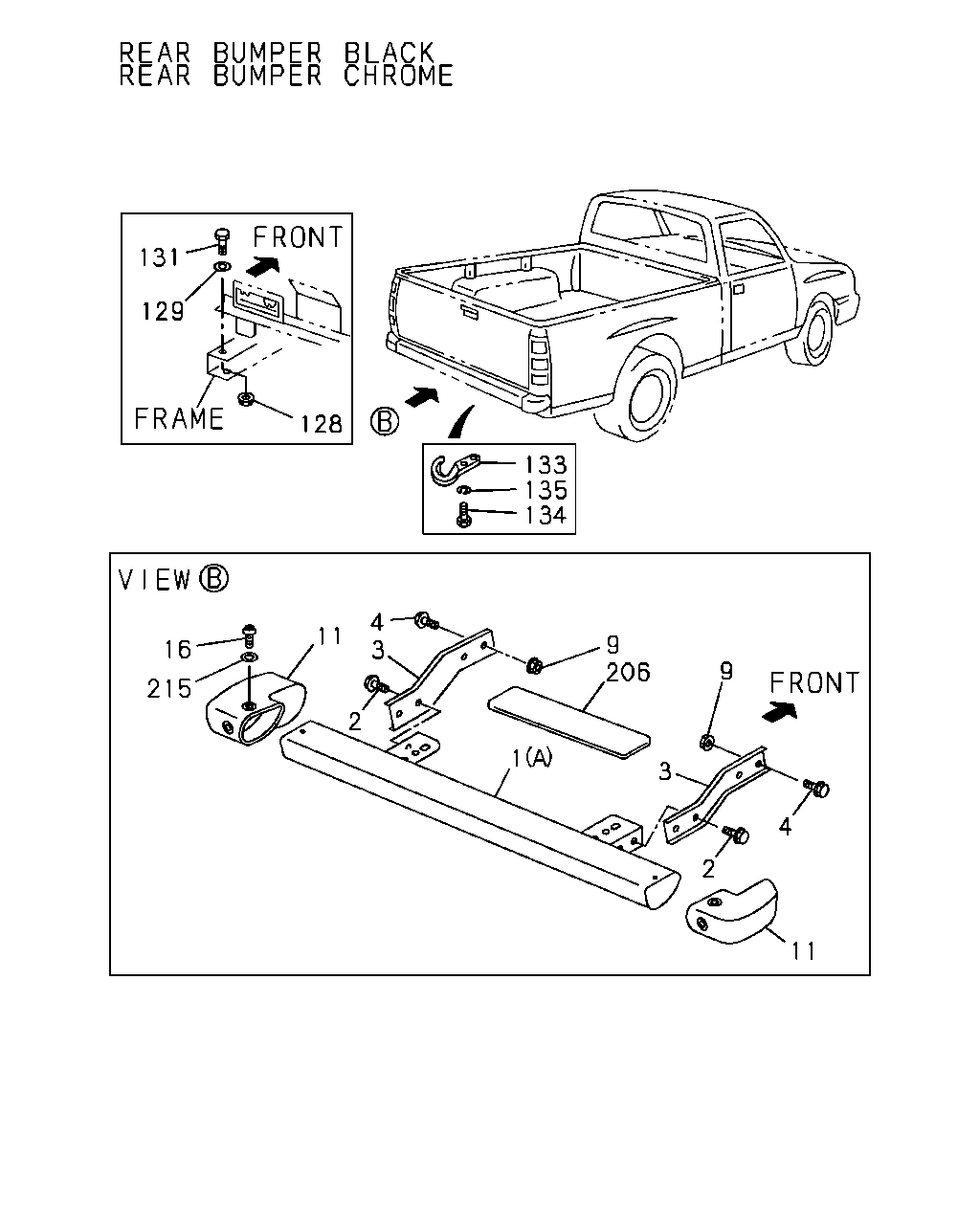

çizim 68488
131 129 128 133 135 134 9 206 9 3 4 2 11 1 4 2 3 11 16 215
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-94462-368-2 01 1 9210- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-94462-369-2 01 1 9210- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER BLACK(S2Z) (B) 		8-94320-258-1 01 1 9210-9608 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER BLACK(S2Z) (C) 		8-97136-796-3 01 1 9609- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(VB3) (B) 		8-97061-768-0 01 1 9210-9608 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(VB3) (C) 		8-97136-798-4 01 1 9609- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 M12X30 FLANGE 		8-94475-424-0 04 1 9210-9509 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9609- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-371-2 01 1 9210- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-370-2 01 1 9210- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-763-0 01 1 9609- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-762-0 01 1 9609- ● ● ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) M12X30 FLANGE 		8-94475-424-0 04 1 9210-9509 ● ● ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) M4 FLANGE 		1-09440-004-0 04 1 9210-9608 ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 04 1 9609- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-373-1 01 1 9210- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-372-1 01 1 9210- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-765-1 01 1 9609- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-97136-764-1 01 1 9609- ● ● ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M6X20 		8-94324-557-0 06 1 9210- ● ● ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9609- ● ● ● ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9210- ● ● ● ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9210- ● ● ● ● ● ● ● ●
131 02.664 BOLT; PLATE,COMB LAMP
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 05.812 M8X20 		0-20800-820-0 02 1 9210- ● ● ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.330 		8-94183-262-0 01 1 9210- ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		9-02061-045-0 02 1 9210-9412 ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) M10X40 FLANGE 		0-28691-040-0 02 1 9501-9504 ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9505- ● ● ● ●
135 07.068 WASHER; LK,HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 08.929 ID=10.2 		9-09150-810-0 02 1 9210-9412 ● ● ● ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) BLACK 		8-94298-100-1 01 1 9210- ● ● ● ● ● ● ● ●
215 07.070 WASHER; PL,BUMPER RR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) ID=6 OD=18 		8-94324-671-0 06 1 9210- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
