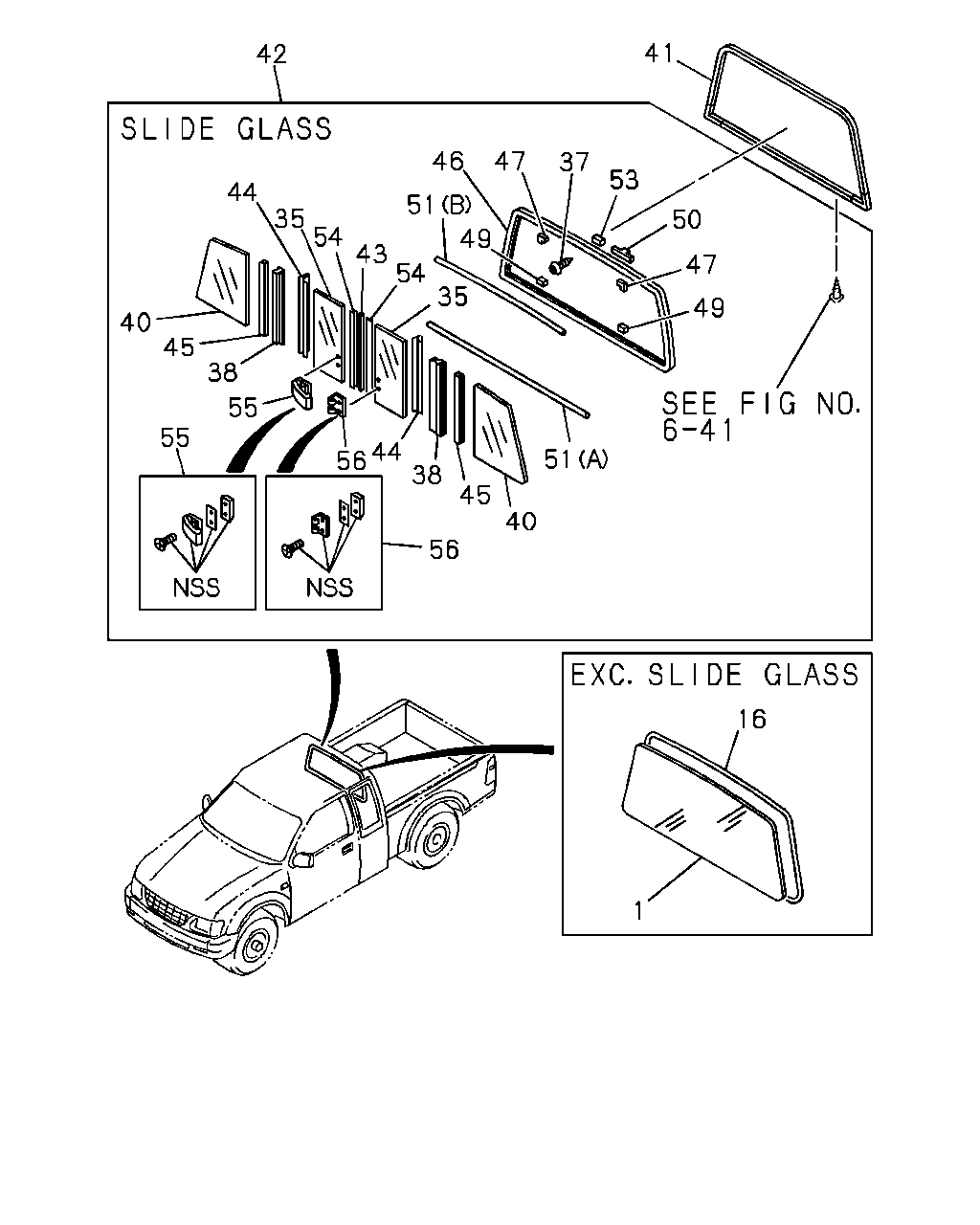

6-82 — BACK GLASS AND WEATHERSTRIP (#47581) — 47 parça

46 47 37 41 42 53 50 47 49 35 49 51 54 43 54 35 44 40 55 38 45 55 56 44 40 51 45 38 56 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.464 GLASS; BACKLIGHT	8-94360-556-0	01	1	9210-9310	●	●
1	16.464 GLASS; BACKLIGHT EXC. SLIDE GLASS<R80>	8-94360-556-0	01	1	9210-9310			●	●	●	●	●	●
1	16.464 GLASS; BACKLIGHT	8-97150-132-0	01	1	9311-9501	●	●
1	16.464 GLASS; BACKLIGHT EXC. SLIDE GLASS<R80>	8-97150-132-0	01	1	9311-9501			●	●	●	●	●	●
1	16.464 GLASS; BACKLIGHT	8-97150-132-0	01	1	9502-9509	●	●
1	16.464 GLASS; BACKLIGHT EXC. SLIDE GLASS<R80>	8-97150-132-0	01	1	9502-9509			●	●		●	●
1	16.464 GLASS; BACKLIGHT EXC. REAR DEFOGGER<C49>,SLIDE GLASS<R80>	8-97150-132-0	01	1	9502-9509					●			●
1	16.464 GLASS; BACKLIGHT	8-97123-195-1	01	1	9510-	●	●
1	16.464 GLASS; BACKLIGHT EXC. SLIDE GLASS<R80>	8-97123-195-1	01	1	9510-			●	●		●	●
1	16.464 GLASS; BACKLIGHT EXC. REAR DEFOGGER<C49>,SLIDE GLASS<R80>	8-97123-195-1	01	1	9510-					●			●
1	16.464 GLASS; BACKLIGHT REAR DEFOGGER<C49> EXC. SLIDE GLASS<R80>	8-97150-133-0	01	1	9502-9509					●			●
1	16.464 GLASS; BACKLIGHT REAR DEFOGGER<C49> EXC. SLIDE GLASS<R80>	8-97123-196-1	01	1	9510-					●			●
16	16.470 WEATHERSTRIP; BACKLIGHT	8-94435-033-3	01	1	9210-	●	●
16	16.470 WEATHERSTRIP; BACKLIGHT EXC. SLIDE GLASS<R80>	8-94435-033-3	01	1	9210-			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-94434-803-0	01	1	9210-9402			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-97150-120-0	01	1	9403-9509			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-97123-198-1	01	1	9510-			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-94434-802-0	01	1	9210-9402			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-97150-119-0	01	1	9403-9509			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-97123-197-1	01	1	9510-			●	●	●	●	●	●
37	16.475 SCREW; STOPPER SLIDE GLASS<R80>	8-94136-480-1	01	1	9210-			●	●	●	●	●	●
38	16.464 FRAME; SLIDE WINDOW SLIDE GLASS<R80>	8-94446-647-0	02	1	9210-			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-94434-805-0	01	1	9210-9402			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-97150-124-0	01	1	9403-9509			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-97123-327-1	01	1	9510-			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-94434-804-0	01	1	9210-9402			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-97150-123-0	01	1	9403-9509			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-97123-326-1	01	1	9510-			●	●	●	●	●	●
41	16.470 WEATHERSTRIP; SLIDE WINDOW SLIDE GLASS<R80>	8-94435-033-3	01	1	9210-			●	●	●	●	●	●
42	16.464 WINDOW; SLIDING,RR SLIDE GLASS<R80>	8-94441-914-1	01	1	9210-9402			●	●	●	●	●	●
42	16.464 WINDOW; SLIDING,RR SLIDE GLASS<R80>	8-97101-516-0	01	1	9403-9509			●	●	●	●	●	●
42	16.464 WINDOW; SLIDING,RR SLIDE GLASS<R80>	8-97125-594-1	01	1	9510-			●	●	●	●	●	●
43	16.470 WEATHERSTRIP; SLIDE WINDOW CHANN SLIDE GLASS<R80>	8-94446-646-0	01	1	9210-			●	●	●	●	●	●
44	16.470 WEATHERSTRIP; SLIDE RR WINDOW,FR SLIDE GLASS<R80>	8-94446-648-0	02	1	9210-			●	●	●	●	●	●
45	16.470 WEATHERSTRIP; SLIDE RR WINDOW,CO SLIDE GLASS<R80>	8-94446-649-0	02	1	9210-			●	●	●	●	●	●
46	16.470 CHANNEL; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94446-639-1	01	1	9210-			●	●	●	●	●	●
47	16.470 GASKET; UPR,RR SLIDE WINDOW SLIDE GLASS<R80>	8-94446-653-0	01	1	9210-			●	●	●	●	●	●
47	16.470 GASKET; UPR,RR SLIDE WINDOW SLIDE GLASS<R80>	8-94446-652-0	01	1	9210-			●	●	●	●	●	●
49	16.475 GASKET; LWR,RR SLIDE WINDOW SLIDE GLASS<R80>	8-94127-950-0	02	1	9210-			●	●	●	●	●	●
50	16.460 STOP; SLIDE WINDOW SLIDE GLASS<R80>	8-94446-654-0	01	1	9210-			●	●	●	●	●	●
51	16.470 RUN; GLASS,UPR,RR WINDOW SLIDE GLASS<R80> (A)	8-94446-650-0	01	1	9210-			●	●	●	●	●	●
51	16.470 RUN; GLASS,UPR,RR WINDOW SLIDE GLASS<R80> (B)	8-94446-651-0	01	1	9210-			●	●	●	●	●	●
53	16.475 STOPPER; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94127-949-1	01	1	9210-			●	●	●	●	●	●
54	16.475 CHANNEL; SLIDE WINDOW SLIDE GLASS<R80>	8-94315-937-0	01	1	9210-			●	●	●	●	●	●
54	16.475 CHANNEL; SLIDE WINDOW SLIDE GLASS<R80>	8-94315-936-0	01	1	9210-			●	●	●	●	●	●
55	16.475 LOCK SET; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94143-704-1	01	1	9210-			●	●	●	●	●	●
56	16.475 CATCH SET; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94143-705-1	01	1	9210-			●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
