6-70 — FLOOR PANEL (#47577) — 78 parça

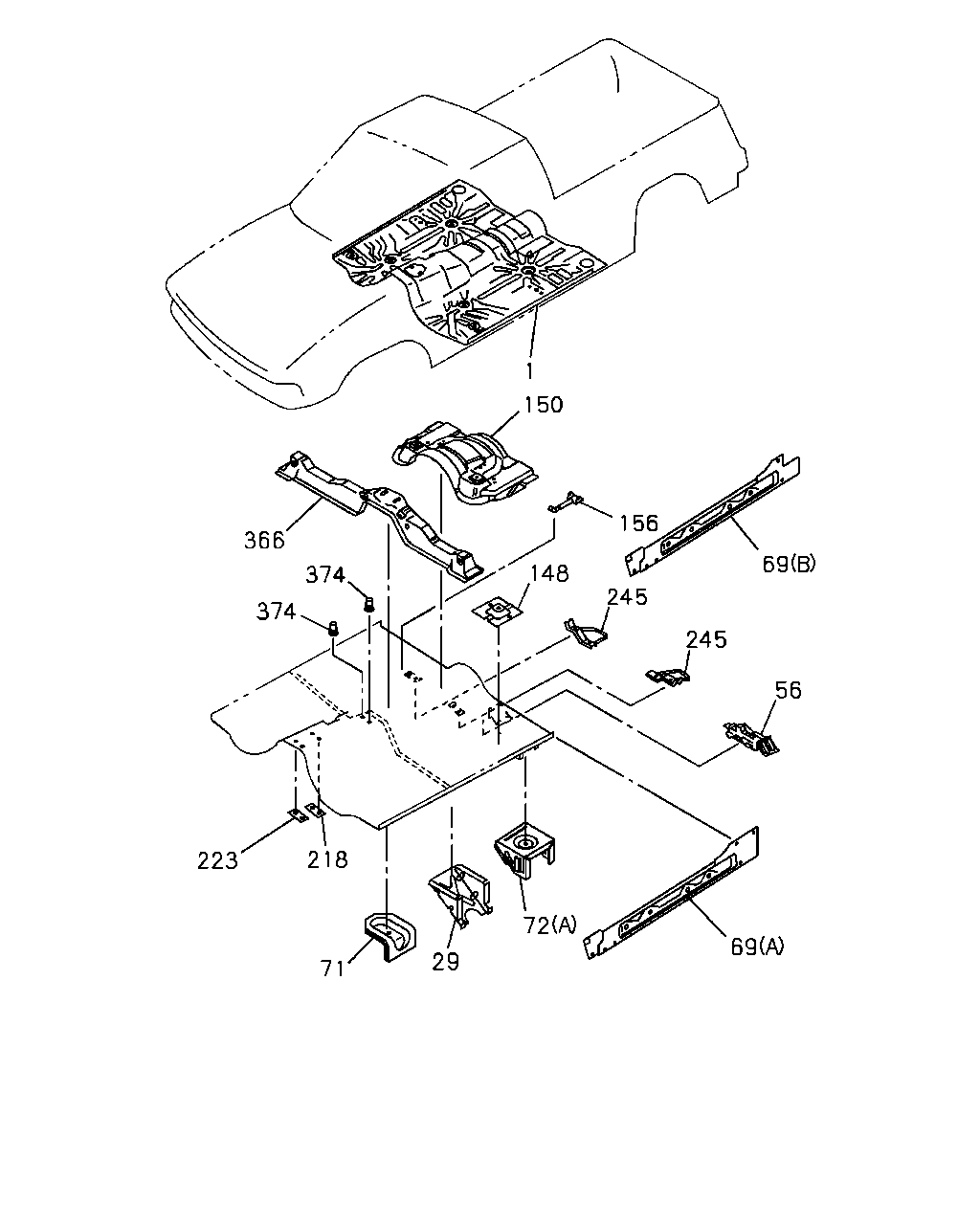

çizim 65527
150 1 156 69 148 245 56 245 69 72 29 71 218 223 374 374 366
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97012-955-0 01 1 9210-9308 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97012-955-0 01 1 9309- ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97012-956-0 01 1 9309- ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9309- ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97012-957-0 01 1 9210-9308 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97012-957-0 01 1 9309- ● ● ●
29 16.545 GUSSET 8-94359-305-0 02 1 9210- ● ● ● ● ● ● ● ●
56 08.820 BRACKET; JACK 8-94473-876-1 01 1 9210- ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9210-9509 ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9510- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9210-9509 ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9510- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-385-0 01 1 9303- ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-384-0 01 1 9303- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-1 01 1 9210- ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-1 01 1 9210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A)FRONT 		8-97803-497-0 01 1 9210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A)FRONT 		8-97803-496-0 01 1 9210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B)REAR 		8-94454-047-0 01 1 9210- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B)REAR 		8-94454-046-0 01 1 9210- ● ●
148 16.674 BRACKET; SEAT 8-97802-746-0 02 1 9210-9311 ● ● ● ● ● ● ● ●
148 16.674 BRACKET; SEAT 8-94435-642-0 02 1 9312- ● ● ● ● ● ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97013-535-1 01 1 9210- ● ● ● ● ● ● ● ●
156 16.545 BRACKET; TOOL BAG 8-94217-935-0 01 1 9210- ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9210- ● ●
218 04.008 PATCH; A/T CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97800-803-0 01 1 9210- ● ● ● ● ● ●
223 16.650 PATCH; CONSOLE BOX 8-94447-561-0 01 1 9210- ● ● ● ● ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-128-3 01 1 9210- ● ● ● ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-127-1 01 1 9210- ● ● ● ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-132-1 01 1 9210- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-131-1 01 1 9210- ●
366 16.674 BAR ASM; FRT SEAT MTG 8-94384-307-1 01 1 9210-9302 ● ● ● ● ● ● ● ●
366 16.674 BAR ASM; FRT SEAT MTG 8-97079-422-0 01 1 9303- ● ● ● ● ● ● ● ●
374 16.545 NUT; FLOOR
16.570 M8 POP NUT 		8-94279-538-0 02 1 9510- ● ●
374 16.545 NUT; FLOOR
FLOOR REMOTE SHIFT<M11> 16.570 M8 POP NUT 		8-94279-538-0 02 1 9510- ● ● ● ● ● ●

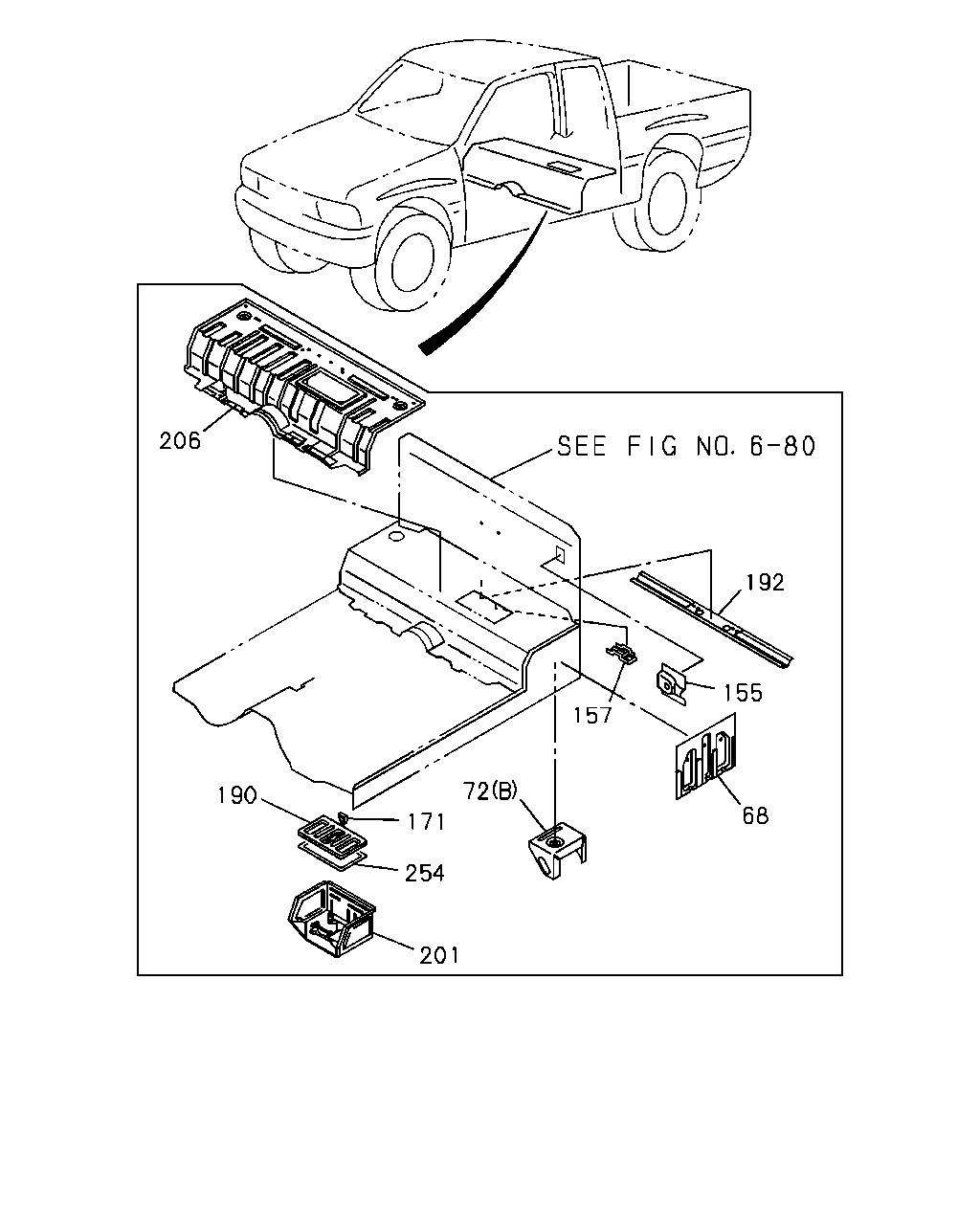

çizim 66429
206 190 171 254 72 201 157 155 192 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 9210- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9210- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9210- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A)FRONT 		8-97803-497-0 01 1 9210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A)FRONT 		8-97803-496-0 01 1 9210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B)REAR 		8-94454-047-0 01 1 9210- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B)REAR 		8-94454-046-0 01 1 9210- ● ●
155 16.565 BRACKET; TONNEAU COVER 8-94483-212-1 02 1 9210-9509 ● ●
157 16.520 BRACKET; TOOL BOX LID 8-94455-757-0 01 1 9210- ● ●
171 16.520 FASTENER; TOOL BOX LID 8-94328-345-0 03 1 9210- ● ●
190 16.520 LID; TOOL BOX 8-94455-755-1 01 1 9210- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 9210- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9210- ● ●
201 16.520 PANEL ASM; TOOL BOX 8-94454-049-2 01 1 9210- ● ●
206 16.545 PANEL; FLOOR BOARD RR 8-94454-040-3 01 1 9210- ● ●
254 16.520 SEAL; TOOL BOX LID 8-94456-785-1 01 1 9210- ● ●

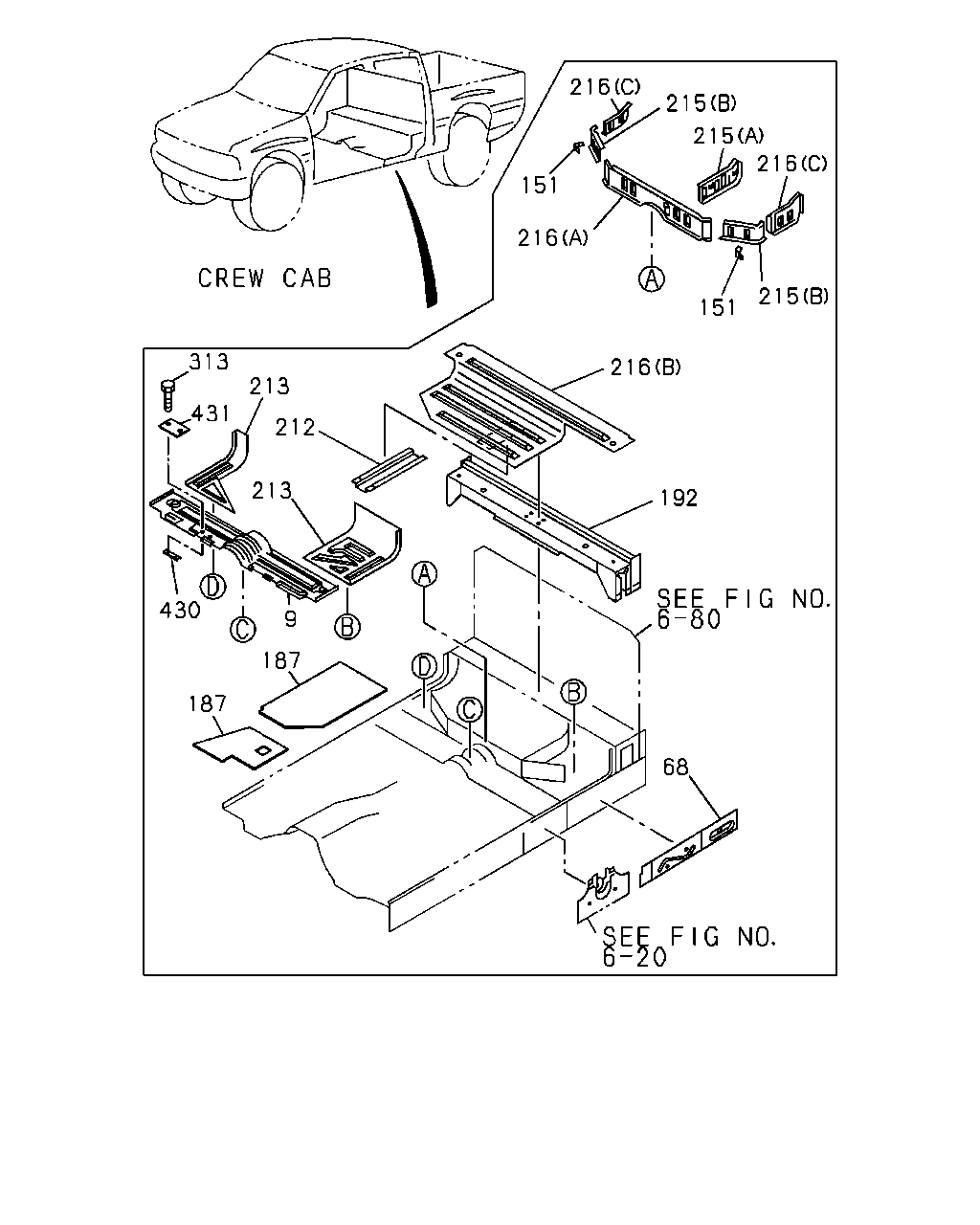

çizim 69111
151 215 215 216 216 216 151 215 216 192 68 187 430 9 187 213 212 213 313 431
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.545 PANEL; RR FLOOR,FRT 8-97070-580-0 01 1 9210-9606 ● ●
9 16.545 PANEL; RR FLOOR,FRT 8-97139-102-0 01 1 9607- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 9210- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9210- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9210- ● ●
151 16.670 BRACKET; SEAT CUSHION STOPPER 8-94454-355-0 02 1 9210- ● ●
187 16.545 INSULATOR; FLOOR PANEL
CHINA CHONGQING EQUIPMENT<R5B> CHINA EQUIPMENT(YT2) REAR 		8-97141-928-0 02 1 9604- ●
187 16.545 INSULATOR; FLOOR PANEL
CHINA CHONGQING EQUIPMENT<R5B> CHINA EQUIPMENT(YT2) 16.585 FRONT 		8-97141-929-0 02 1 9604- ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 9210- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9210- ● ●
212 16.670 PANEL; REINF,SEAT RISER UPR 8-94473-966-0 01 1 9210- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97070-586-2 01 1 9210- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94454-325-0 01 1 9210- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(A) 		8-97070-581-1 01 1 9210- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-585-0 01 1 9210- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-584-0 01 1 9210- ● ●
216 16.670 PANEL; SEAT RISER
(A) 		8-94454-332-0 01 1 9210- ● ●
216 16.670 PANEL; SEAT RISER
(B) 		8-94454-338-1 01 1 9210- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-94454-340-1 01 1 9210-9606 ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-317-1 01 1 9607- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-94454-339-1 01 1 9210-9606 ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-316-0 01 1 9607- ● ●
313 16.549 BOLT; STAY
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9607- ● ●
430 16.545 PATCH; DUMPER 8-97139-101-0 01 1 9607- ● ●
431 16.545 DAMPER
4JB1 ENG(RLF) 		8-97139-100-1 01 1 9607- ●
431 16.545 DAMPER
4JB1 ENG(RLF) EXC. TURBOCHARGER(K51) 		8-97139-100-1 01 1 9607- ●
