6-66 — HEAD LINING AND TRIM (#47576) — 313 parça

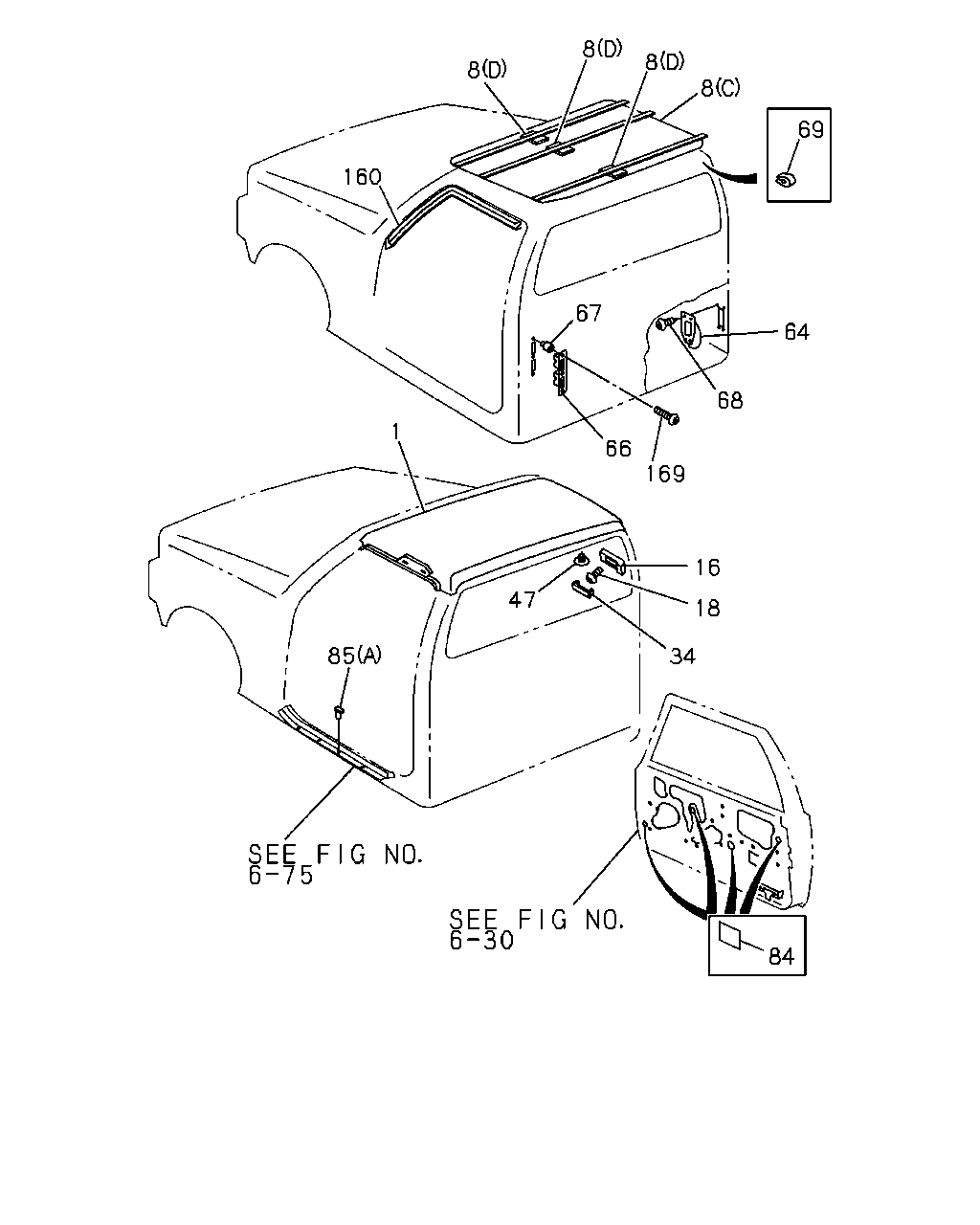

çizim 67377
160 8 8 8 8 69 64 68 169 66 7 1 16 18 47 34 85 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-963-1 01 1 9309- ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) MAP LAMP<UF3> EXC. SUN ROOF<CF7> BROWN 		8-97000-168-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-97000-158-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> BROWN 		8-97000-163-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97000-167-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-167-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-167-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-97000-157-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) SUN ROOF<CF7> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-157-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97000-162-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. SUN ROOF<CF7>,MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-162-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-162-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-960-1 01 1 9309- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) MAP LAMP<UF3> EXC. SUN ROOF<CF7> BROWN 		8-97000-153-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-97000-143-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> BROWN 		8-97000-148-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97000-152-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-152-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-152-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-97000-142-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) SUN ROOF<CF7> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-142-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97000-147-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. SUN ROOF<CF7>,MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-147-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-147-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-97001-661-2 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-97001-658-2 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) GRAY 		8-97001-658-2 01 1 9309- ● ● ●
7 16.742 RETAINER; HEADLINING RAIL
CREW CAB(TF**W*) 		8-94435-472-1 01 1 9210- ● ● ●
8 16.742 PAD; HEADLINING
SINGLE CAB(TF**S*) EXC. SUN ROOF<CF7> (C) 		8-94328-215-3 01 1 9210-9509 ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SINGLE CAB(TFS*S*) (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. HEAD LINING FOR KD<6PJ> (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SPACE CAB(TFS*C*) HEAD LINING FOR KD<6PJ> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 CREW CAB(TFS*W*) (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) NOISE INSULATION PACK<BS1> (B) 		8-94463-643-2 02 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) NOISE INSULATION PACK<BS1> (B) 		8-94463-643-2 02 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 CREW CAB(TFS*W*) (B) 		8-94463-643-2 02 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 05 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 05 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (B) 		8-94463-642-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SPACE CAB(TFS*C*) HEAD LINING FOR KD<6PJ> (B) 		8-94463-642-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 04 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) HEAD LINING FOR KD<6PJ> EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 03 1 9309- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) 16.742 BROWN 		8-94382-976-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) 16.742 BROWN 		8-94382-973-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) 16.742 GRAY 		8-94382-975-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> 16.742 GRAY 		8-94382-975-0 01 1 9309- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) 16.742 GRAY 		8-94382-975-0 01 1 9309- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) 16.742 GRAY 		8-94382-972-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> 16.742 GRAY 		8-94382-972-0 01 1 9309- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) 16.742 GRAY 		8-94382-972-0 01 1 9309- ● ● ●
18 16.742 SCREW; FINISHER TO BODY
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) HEAD LINING FOR KD<6PJ> M5X12 TAPPING 		9-09829-186-0 04 1 9210- ● ● ●
18 16.742 SCREW; FINISHER TO BODY
CREW CAB(TF**W*) M5X12 TAPPING 		9-09829-186-0 04 1 9210- ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94382-970-0 02 1 9210-9308 ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94382-969-0 02 1 9210-9308 ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-969-0 02 1 9309- ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
CREW CAB(TF**W*) GRAY 		8-94382-969-0 02 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR BEIGE(120) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 06 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR MUSHROOM(150) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 06 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 06 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SPACE CAB(TFS*C*) INTERIOR COLOR BEIGE(120) 16.578 BROWN 		8-94312-147-0 08 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR BEIGE(120) ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 08 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X4 SPACE CAB(TFS*C*) INTERIOR COLOR MUSHROOM(150) 16.578 GRAY 		8-94312-149-0 08 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR MUSHROOM(150) ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 08 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 08 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SPACE CAB(TFS*C*) EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 08 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) INTERIOR COLOR BEIGE(120) 16.578 BROWN 		8-94312-147-0 04 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR BEIGE(120) ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 04 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) INTERIOR COLOR MUSHROOM(150) 16.578 GRAY 		8-94312-149-0 04 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR MUSHROOM(150) ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 04 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 04 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 04 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR BEIGE(120) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 10 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR MUSHROOM(150) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 10 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 10 1 9309- ● ● ●
64 12.940 DUCT; AIR OUTLET
SINGLE CAB(TF**S*) 09.264 		8-94310-952-0 02 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (A) 		8-94460-142-1 02 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-425-3 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-424-3 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94387-009-1 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94387-008-1 01 1 9210- ● ● ●
68 16.576 SCREW; DUCT
SINGLE CAB(TF**S*) M5X8 		9-09829-319-1 08 1 9210-9501 ● ● ●
68 16.576 SCREW; DUCT
SINGLE CAB(TF**S*) M5X8 		9-09829-319-1 06 1 9502- ● ● ●
69 16.576 SEAL; AIR OUTLET DUCT
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94312-626-1 02 1 9210- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
OD=20 T=0.05 		5-76777-036-0 04 1 9309- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
EXC. POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 04 1 9210- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 06 1 9210-9408 ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 06 1 9409- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9309-9406 ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) 45X45 T=0.08 		8-94238-288-1 02 1 9407-9408 ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9407-9408 ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) 45X45 T=0.08 		8-94238-288-1 02 1 9409- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9409- ● ●
85 16.603 PIN; SILL TREAD PLATE
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94474-717-0 08 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94451-705-0 08 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
(A) GRAY 		8-94451-705-0 08 1 9309- ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94474-717-0 04 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94451-705-0 04 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) (B) GRAY 		8-94451-705-0 04 1 9309- ● ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-265-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-264-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 		8-97081-278-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 		8-97081-277-3 01 1 9210- ● ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
SPACE CAB(TF**C*) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9210- ● ● ●

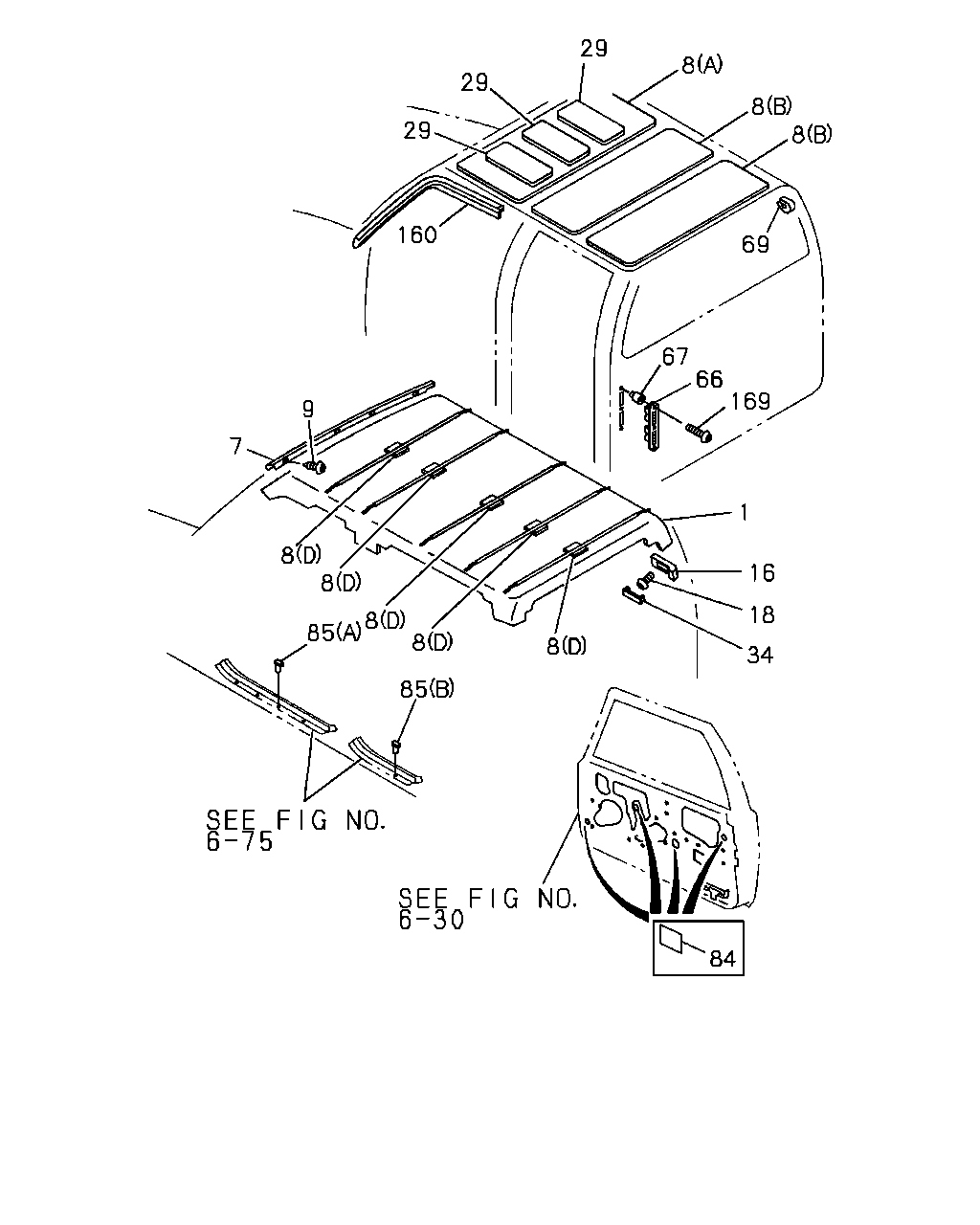

çizim 67596
29 29 29 8 8 8 69 160 67 66 169 1 16 18 34 8 8 8 8 8 7 85 85 84 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-963-1 01 1 9309- ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) MAP LAMP<UF3> EXC. SUN ROOF<CF7> BROWN 		8-97000-168-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-97000-158-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> BROWN 		8-97000-163-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97000-167-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-167-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-167-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-97000-157-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) SUN ROOF<CF7> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-157-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97000-162-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. SUN ROOF<CF7>,MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-162-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-162-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-960-1 01 1 9309- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) MAP LAMP<UF3> EXC. SUN ROOF<CF7> BROWN 		8-97000-153-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-97000-143-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> BROWN 		8-97000-148-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97000-152-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-152-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-152-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-97000-142-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) SUN ROOF<CF7> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-142-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97000-147-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. SUN ROOF<CF7>,MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-147-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-147-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-97001-661-2 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-97001-658-2 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) GRAY 		8-97001-658-2 01 1 9309- ● ● ●
7 16.742 RETAINER; HEADLINING RAIL
CREW CAB(TF**W*) 		8-94435-472-1 01 1 9210- ● ● ●
8 16.742 PAD; HEADLINING
SINGLE CAB(TF**S*) EXC. SUN ROOF<CF7> (C) 		8-94328-215-3 01 1 9210-9509 ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SINGLE CAB(TFS*S*) (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. HEAD LINING FOR KD<6PJ> (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SPACE CAB(TFS*C*) HEAD LINING FOR KD<6PJ> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 CREW CAB(TFS*W*) (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) NOISE INSULATION PACK<BS1> (B) 		8-94463-643-2 02 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) NOISE INSULATION PACK<BS1> (B) 		8-94463-643-2 02 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 CREW CAB(TFS*W*) (B) 		8-94463-643-2 02 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 05 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 05 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (B) 		8-94463-642-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SPACE CAB(TFS*C*) HEAD LINING FOR KD<6PJ> (B) 		8-94463-642-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 04 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) HEAD LINING FOR KD<6PJ> EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 03 1 9309- ● ● ●
9 16.742 SCREW; HOLE COVER,HD LINING
CREW CAB(TF**W*) M4X10 TAPPING W/PL WASHER 		0-74300-410-0 04 1 9210- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) 16.742 BROWN 		8-94382-976-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) 16.742 BROWN 		8-94382-973-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) 16.742 GRAY 		8-94382-975-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> 16.742 GRAY 		8-94382-975-0 01 1 9309- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) 16.742 GRAY 		8-94382-975-0 01 1 9309- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) 16.742 GRAY 		8-94382-972-0 01 1 9210-9308 ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> 16.742 GRAY 		8-94382-972-0 01 1 9309- ● ● ●
16 15.530 FINISHER; HEADLINING,FRT
CREW CAB(TF**W*) 16.742 GRAY 		8-94382-972-0 01 1 9309- ● ● ●
18 16.742 SCREW; FINISHER TO BODY
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) HEAD LINING FOR KD<6PJ> M5X12 TAPPING 		9-09829-186-0 04 1 9210- ● ● ●
18 16.742 SCREW; FINISHER TO BODY
CREW CAB(TF**W*) M5X12 TAPPING 		9-09829-186-0 04 1 9210- ● ● ●
29 16.742 DEADENER; ROOF PANEL
CREW CAB(TF**W*) 		8-94209-416-0 03 1 9210-9504 ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94382-970-0 02 1 9210-9308 ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94382-969-0 02 1 9210-9308 ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-969-0 02 1 9309- ● ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
CREW CAB(TF**W*) GRAY 		8-94382-969-0 02 1 9309- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (A) 		8-94460-142-1 02 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-425-3 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-424-3 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94387-009-1 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94387-008-1 01 1 9210- ● ● ●
67 16.576 GROMMET; SCREW
SPACE CAB(TF**C*) 02.726 D=7X7 L=7.5 		8-94291-927-0 04 1 9210- ● ● ●
67 16.576 GROMMET; SCREW
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 02.726 D=7X7 L=7.5 		8-94291-927-0 06 1 9210- ● ● ●
69 16.576 SEAL; AIR OUTLET DUCT
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94312-626-1 02 1 9210- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
OD=20 T=0.05 		5-76777-036-0 04 1 9309- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
EXC. POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 04 1 9210- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 06 1 9210-9408 ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 06 1 9409- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9309-9406 ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) 45X45 T=0.08 		8-94238-288-1 02 1 9407-9408 ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9407-9408 ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) 45X45 T=0.08 		8-94238-288-1 02 1 9409- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9409- ● ●
85 16.603 PIN; SILL TREAD PLATE
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94474-717-0 08 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94451-705-0 08 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
(A) GRAY 		8-94451-705-0 08 1 9309- ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94474-717-0 04 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94451-705-0 04 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) (B) GRAY 		8-94451-705-0 04 1 9309- ● ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-265-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-264-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 		8-97081-278-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 		8-97081-277-3 01 1 9210- ● ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
SPACE CAB(TF**C*) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9210- ● ● ●

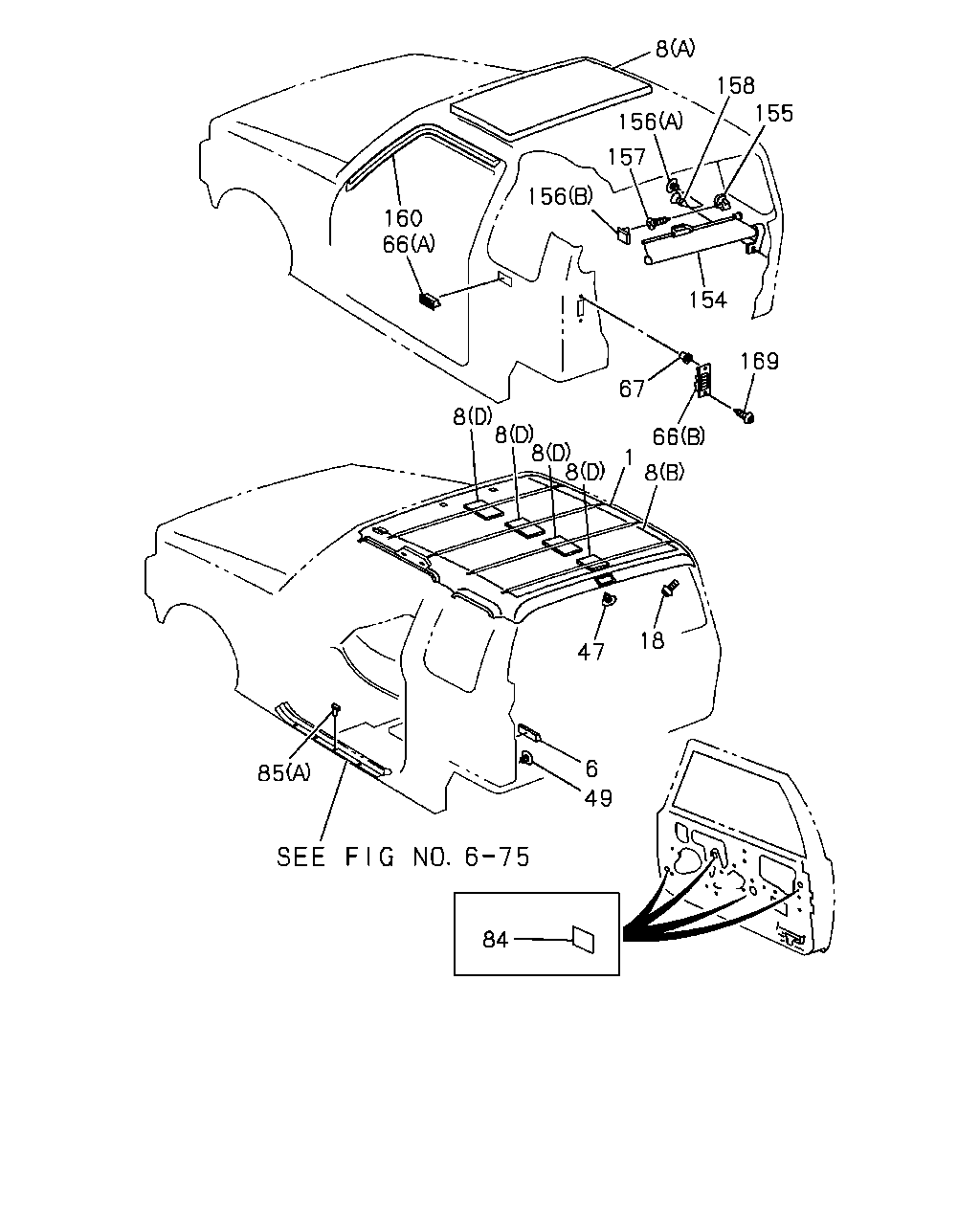

çizim 68366
160 156 157 156 158 155 8 66 154 169 66 67 8 1 8 8 8 8 18 47 6 49 85 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-963-1 01 1 9309- ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) MAP LAMP<UF3> EXC. SUN ROOF<CF7> BROWN 		8-97000-168-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-97000-158-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> BROWN 		8-97000-163-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97000-167-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-167-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-167-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-97000-157-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) SUN ROOF<CF7> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-157-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97000-162-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. SUN ROOF<CF7>,MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-162-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-162-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> GRAY 		8-94382-960-1 01 1 9309- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) MAP LAMP<UF3> EXC. SUN ROOF<CF7> BROWN 		8-97000-153-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-97000-143-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR BEIGE(120) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> BROWN 		8-97000-148-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97000-152-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-152-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-152-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-97000-142-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) SUN ROOF<CF7> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97000-142-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) INTERIOR COLOR MUSHROOM(150) EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97000-147-0 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. SUN ROOF<CF7>,MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-147-0 01 1 9309-9509 ● ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> GRAY 		8-97000-147-1 01 1 9510- ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-97001-661-2 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-97001-658-2 01 1 9210-9308 ● ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) GRAY 		8-97001-658-2 01 1 9309- ● ● ●
6 16.742 SPACER; HD LINING
SPACE CAB(TF**C*) 16.570 		8-94323-995-0 02 1 9210- ● ● ●
8 16.742 PAD; HEADLINING
SINGLE CAB(TF**S*) EXC. SUN ROOF<CF7> (C) 		8-94328-215-3 01 1 9210-9509 ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SINGLE CAB(TFS*S*) (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. HEAD LINING FOR KD<6PJ> (C) 		8-94328-215-3 01 1 9510- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) NOISE INSULATION PACK<BS1> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SPACE CAB(TFS*C*) HEAD LINING FOR KD<6PJ> (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 CREW CAB(TFS*W*) (A) 		8-94463-641-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) NOISE INSULATION PACK<BS1> (B) 		8-94463-643-2 02 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) NOISE INSULATION PACK<BS1> (B) 		8-94463-643-2 02 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 CREW CAB(TFS*W*) (B) 		8-94463-643-2 02 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 05 1 9210-9308 ● ● ●
8 16.742 PAD; HEADLINING
4X2 CREW CAB(TFB*W*) EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 05 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> NOISE INSULATION PACK<BS1> (B) 		8-94463-642-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X4 SPACE CAB(TFS*C*) HEAD LINING FOR KD<6PJ> (B) 		8-94463-642-2 01 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SPACE CAB(TFB*C*) HEAD LINING FOR KD<6PJ> EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 04 1 9309- ● ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB(TFB*S*) HEAD LINING FOR KD<6PJ> EXC. NOISE INSULATION PACK<BS1> 14.640 (D) 		8-08976-285-0 03 1 9309- ● ● ●
18 16.742 SCREW; FINISHER TO BODY
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) HEAD LINING FOR KD<6PJ> M5X12 TAPPING 		9-09829-186-0 04 1 9210- ● ● ●
18 16.742 SCREW; FINISHER TO BODY
CREW CAB(TF**W*) M5X12 TAPPING 		9-09829-186-0 04 1 9210- ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR BEIGE(120) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 06 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR MUSHROOM(150) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 06 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 06 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SPACE CAB(TFS*C*) INTERIOR COLOR BEIGE(120) 16.578 BROWN 		8-94312-147-0 08 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR BEIGE(120) ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 08 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X4 SPACE CAB(TFS*C*) INTERIOR COLOR MUSHROOM(150) 16.578 GRAY 		8-94312-149-0 08 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR MUSHROOM(150) ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 08 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 08 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SPACE CAB(TFS*C*) EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 08 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) INTERIOR COLOR BEIGE(120) 16.578 BROWN 		8-94312-147-0 04 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR BEIGE(120) ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 04 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) INTERIOR COLOR MUSHROOM(150) 16.578 GRAY 		8-94312-149-0 04 1 9210-9308 ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) INTERIOR COLOR MUSHROOM(150) ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 04 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 04 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) EXC. HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 04 1 9309- ● ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR BEIGE(120) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 BROWN 		8-94312-147-0 10 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) INTERIOR COLOR MUSHROOM(150) EXC. ASSIST GRIP PASSENGER<EG5> 16.578 GRAY 		8-94312-149-0 10 1 9210-9308 ● ●
47 16.742 CLIP; HEADLINING
4X2 SPACE CAB(TFB*C*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> 16.578 GRAY 		8-94312-149-0 10 1 9309- ● ● ●
49 16.742 CLIP; TRIM COVER
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) 16.550 BROWN 		8-94476-811-0 02 1 9210-9308 ● ● ●
49 16.742 CLIP; TRIM COVER
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) 16.587 GRAY 		8-94476-812-0 02 1 9210-9308 ● ● ●
49 16.742 CLIP; TRIM COVER
SPACE CAB(TF**C*) 16.587 GRAY 		8-94476-812-0 02 1 9309- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (A) 		8-94460-142-1 02 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-425-3 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-424-3 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94387-009-1 01 1 9210- ● ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-94387-008-1 01 1 9210- ● ● ●
67 16.576 GROMMET; SCREW
SPACE CAB(TF**C*) 02.726 D=7X7 L=7.5 		8-94291-927-0 04 1 9210- ● ● ●
67 16.576 GROMMET; SCREW
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 02.726 D=7X7 L=7.5 		8-94291-927-0 06 1 9210- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
OD=20 T=0.05 		5-76777-036-0 04 1 9309- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
EXC. POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 04 1 9210- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 06 1 9210-9408 ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 06 1 9409- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9309-9406 ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) 45X45 T=0.08 		8-94238-288-1 02 1 9407-9408 ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9407-9408 ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) 45X45 T=0.08 		8-94238-288-1 02 1 9409- ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 02 1 9409- ● ●
85 16.603 PIN; SILL TREAD PLATE
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94474-717-0 08 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94451-705-0 08 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
(A) GRAY 		8-94451-705-0 08 1 9309- ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94474-717-0 04 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94451-705-0 04 1 9210-9308 ● ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) (B) GRAY 		8-94451-705-0 04 1 9309- ● ● ●
154 16.578 COVER; TONNEAU
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) COVER TONNEAU SNAP ON<E86> BROWN 		8-94476-821-2 01 1 9210-9308 ● ● ●
154 16.578 COVER; TONNEAU
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) COVER TONNEAU SNAP ON<E86> GRAY 		8-94476-822-2 01 1 9210-9308 ● ● ●
154 16.578 COVER; TONNEAU
SPACE CAB(TF**C*) COVER TONNEAU SNAP ON<E86> GRAY 		8-94476-822-2 01 1 9309- ● ● ●
155 16.565 SUPPORT; TONNEAU COVER
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) COVER TONNEAU SNAP ON<E86> BROWN 		8-94476-825-2 01 1 9210-9308 ● ● ●
155 16.565 SUPPORT; TONNEAU COVER
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) COVER TONNEAU SNAP ON<E86> BROWN 		8-94476-823-2 01 1 9210-9308 ● ● ●
155 16.565 SUPPORT; TONNEAU COVER
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) COVER TONNEAU SNAP ON<E86> GRAY 		8-94476-826-2 01 1 9210-9308 ● ● ●
155 16.565 SUPPORT; TONNEAU COVER
SPACE CAB(TF**C*) COVER TONNEAU SNAP ON<E86> GRAY 		8-94476-826-2 01 1 9309- ● ● ●
155 16.565 SUPPORT; TONNEAU COVER
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) COVER TONNEAU SNAP ON<E86> GRAY 		8-94476-824-2 01 1 9210-9308 ● ● ●
155 16.565 SUPPORT; TONNEAU COVER
SPACE CAB(TF**C*) COVER TONNEAU SNAP ON<E86> GRAY 		8-94476-824-2 01 1 9309- ● ● ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) EXC. COVER TONNEAU SNAP ON<E86> (A) BROWN 		8-94312-147-0 02 1 9210-9308 ● ● ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) INTERIOR COLOR BEIGE(120) EXC. COVER TONNEAU SNAP ON<E86> (B) BROWN 		8-94312-150-0 02 1 9210-9308 ● ● ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) EXC. COVER TONNEAU SNAP ON<E86> (A) GRAY 		8-94312-149-0 02 1 9210-9308 ● ● ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) EXC. COVER TONNEAU SNAP ON<E86> (A) GRAY 		8-94312-149-0 02 1 9309- ● ● ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) INTERIOR COLOR MUSHROOM(150) EXC. COVER TONNEAU SNAP ON<E86> (B) GRAY 		8-94312-152-0 02 1 9210-9308 ● ● ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) EXC. COVER TONNEAU SNAP ON<E86> (B) GRAY 		8-94312-152-0 02 1 9309- ● ● ●
157 16.575 SCREW; SUPPORT,TONNEAU COVER
SPACE CAB(TF**C*) COVER TONNEAU SNAP ON<E86> M6X16 TAPPING CK-HEAD 		0-70180-616-0 02 1 9210- ● ● ●
158 16.800 SCREW; TONNEAU COVER
SPACE CAB(TF**C*) COVER TONNEAU SNAP ON<E86> M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9210- ● ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-265-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-264-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 		8-97081-278-3 01 1 9210- ● ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 		8-97081-277-3 01 1 9210- ● ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
SPACE CAB(TF**C*) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9210- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
