6-65 — SUNROOF (#47575) — 34 parça

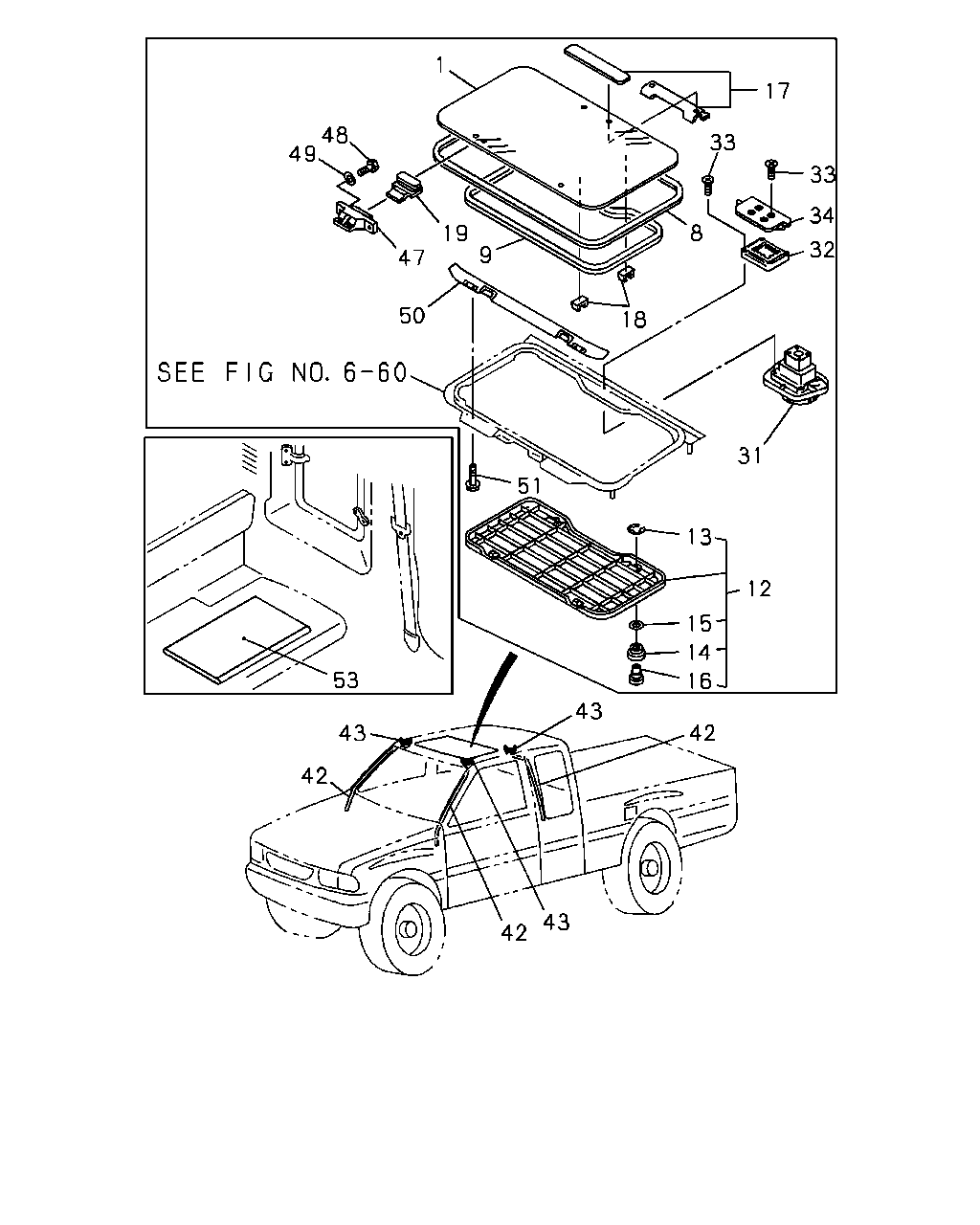

çizim 65551
48 49 1 19 47 50 9 18 8 33 17 33 34 32 31 13 12 51 15 14 16 42 43 53 43 42 42 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 14.090 GLASS; SUNROOF
SUN ROOF<CF7> 		8-94311-823-1 01 1 9210-9309 ● ● ● ● ● ●
1 14.090 GLASS; SUNROOF
SUN ROOF<CF7> 		8-97096-746-0 01 1 9310-9509 ● ● ● ● ● ●
8 16.585 WEATHERSTRIP; OUTER SUNROOF
SUN ROOF<CF7> 		8-94256-386-0 01 1 9210-9509 ● ● ● ● ● ●
9 16.585 WEATHERSTRIP; INNER SUNROOF
SUN ROOF<CF7> 		8-94418-290-0 01 1 9210-9509 ● ● ● ● ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> 14.575 BROWN 		8-94373-300-2 01 1 9210-9308 ● ● ● ● ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> 14.575 GRAY 		8-94373-299-2 01 1 9210-9308 ● ● ● ● ● ●
12 14.090 SUNSHADE; SUNROOF
SUN ROOF<CF7> 14.575 GRAY 		8-94373-299-2 01 1 9309-9509 ● ● ● ● ● ●
13 14.575 RING; CRESCENT,SUNSHADE,SUNROOF
SUN ROOF<CF7> 14.560 BLACK 		8-94133-271-0 02 1 9210-9509 ● ● ● ● ● ●
14 14.555 COVER; LK,SUNSHADE,SUNROOF
INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-94381-817-0 02 1 9210-9308 ● ● ● ● ● ●
14 14.555 COVER; LK,SUNSHADE,SUNROOF
INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-94329-879-1 02 1 9210-9308 ● ● ● ● ● ●
14 14.555 COVER; LK,SUNSHADE,SUNROOF
SUN ROOF<CF7> GRAY 		8-94329-879-1 02 1 9309-9509 ● ● ● ● ● ●
15 14.575 WASHER; SUNSHADE,SUNROOF
SUN ROOF<CF7> 14.560 BLACK 		8-94133-272-0 02 1 9210-9509 ● ● ● ● ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR BEIGE(120) SUN ROOF<CF7> BROWN 		8-94381-816-0 02 1 9210-9308 ● ● ● ● ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR MUSHROOM(150) SUN ROOF<CF7> GRAY 		8-94329-878-2 02 1 9210-9308 ● ● ● ● ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
SUN ROOF<CF7> GRAY 		8-94329-878-2 02 1 9309-9509 ● ● ● ● ● ●
17 16.585 LOCK ASM; SUNROOF
SUN ROOF<CF7> 14.575 		8-94256-383-2 01 1 9210-9509 ● ● ● ● ● ●
18 16.585 HOLDER; SUNSHADE
SUN ROOF<CF7> 		8-94379-484-2 04 1 9210-9509 ● ● ● ● ● ●
19 16.585 HINGE ASM; MALE,SUNROOF
SUN ROOF<CF7> 14.575 		8-94256-385-1 01 1 9210-9211 ● ● ● ● ● ●
19 16.585 HINGE ASM; MALE,SUNROOF
SUN ROOF<CF7> 		8-97088-491-0 01 1 9212-9509 ● ● ● ● ● ●
19 16.585 HINGE ASM; MALE,SUNROOF
SUN ROOF<CF7> 14.575 		8-94256-384-1 01 1 9210-9211 ● ● ● ● ● ●
19 16.585 HINGE ASM; MALE,SUNROOF
SUN ROOF<CF7> 		8-97088-490-0 01 1 9212-9509 ● ● ● ● ● ●
31 16.585 REGULATOR; SUNROOF
SUN ROOF<CF7> 		8-94256-387-3 01 1 9210-9509 ● ● ● ● ● ●
32 16.585 RETAINER; REG,SUNROOF
SUN ROOF<CF7> 		8-94256-388-1 01 1 9210-9509 ● ● ● ● ● ●
33 16.585 SCREW; RET
SUN ROOF<CF7> M5X16 		8-94407-331-0 08 1 9210-9509 ● ● ● ● ● ●
34 16.585 CATCH; GLASS,SUNROOF
SUN ROOF<CF7> 		8-97803-418-1 01 1 9210-9509 ● ● ● ● ● ●
42 16.585 HOSE; DRAIN,FRT,SUNROOF
SUN ROOF<CF7> 08.962 FRONT L=1710 SERVICED BY L=10000 		9-09914-909-0 02 1 9210-9509 ● ● ● ● ● ●
42 16.585 HOSE; DRAIN,FRT,SUNROOF
SUN ROOF<CF7> 08.962 REAR L=1440 SERVICED BY L=10000 		9-09914-909-0 02 1 9210-9509 ● ● ● ● ● ●
43 03.163 CLIP; DRAIN HOSE
SUN ROOF<CF7> ID=9.5 		8-94403-690-0 04 1 9210-9509 ● ● ● ● ● ●
47 16.585 HINGE; FEMALE,SUNROOF
SUN ROOF<CF7> 		8-94256-390-0 02 1 9210-9509 ● ● ● ● ● ●
48 16.585 SCREW; HINGE,SUNROOF
SUN ROOF<CF7> M5X16 		8-94407-332-0 04 1 9210-9509 ● ● ● ● ● ●
49 16.585 WASHER; HINGE,SUNROOF
SUN ROOF<CF7> ID=5 OD=11 		8-94157-746-0 04 1 9210-9509 ● ● ● ● ● ●
50 14.090 DEFLECTOR; SUNROOF
SUN ROOF<CF7> 16.585 		8-94100-264-3 01 1 9210-9509 ● ● ● ● ● ●
51 16.585 SCREW; DEFLECTOR TO FRAME
SUN ROOF<CF7> M4X10 W/PL&SPONGE WASHER 		8-94332-931-0 04 1 9210-9509 ● ● ● ● ● ●
53 14.575 BAG; GLASS STORAGE,SUNROOF
SUN ROOF<CF7> 		8-94325-992-0 01 1 9210-9509 ● ● ● ● ● ●
