◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#47573) — 108 parça

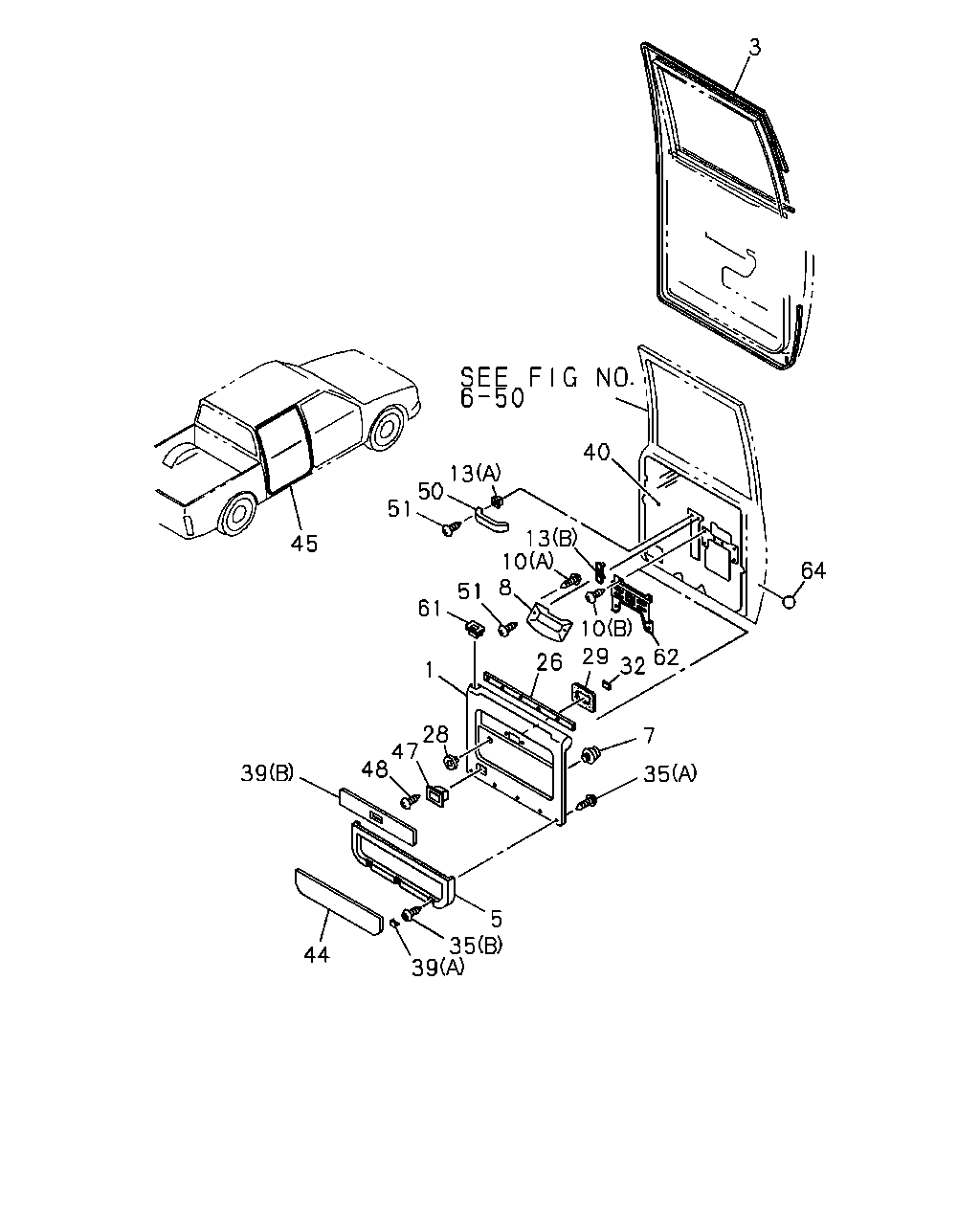

çizim 68337
40 64 13 10 8 51 61 51 50 13 45 1 26 29 32 62 7 35 10 28 47 48 39 5 35 39 44 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-648-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-645-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-649-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94477-649-3 01 1 9309- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-646-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94477-646-3 01 1 9309- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-652-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-650-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-653-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94477-653-3 01 1 9309-9408 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-94477-653-3 01 1 9409- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-651-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94477-651-3 01 1 9309-9408 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-94477-651-3 01 1 9409- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97152-645-0 01 1 9409- ● ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97152-643-0 01 1 9409- ● ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-656-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-654-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-657-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94477-657-3 01 1 9309-9408 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-94477-657-3 01 1 9409- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-655-2 01 1 9210-9308 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94477-655-3 01 1 9309-9408 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-94477-655-3 01 1 9409- ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) 		8-94449-880-4 01 1 9210- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) 		8-94449-879-4 01 1 9210- ● ● ●
5 16.165 PLATE; COVER,DOOR UPR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-658-2 02 1 9210-9308 ● ●
5 16.165 PLATE; COVER,DOOR UPR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-659-2 02 1 9210-9308 ● ●
5 16.165 PLATE; COVER,DOOR UPR
CREW CAB(TF**W*) GRAY 		8-94477-659-2 02 1 9309-9408 ● ●
5 16.165 PLATE; COVER,DOOR UPR
CREW CAB(TF**W*) GRAY 		8-94477-659-2 02 1 9409- ● ● ●
7 16.166 CLIP; DOOR PAD
CREW CAB(TF**W*) 14.683 H=16 		8-94318-803-1 16 1 9210- ● ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94476-914-5 01 1 9210-9308 ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94476-912-5 01 1 9210-9308 ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94476-915-5 01 1 9210-9308 ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94476-915-5 01 1 9309-9408 ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-94476-915-5 01 1 9409- ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94476-913-5 01 1 9210-9308 ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-94476-913-5 01 1 9309-9408 ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-94476-913-5 01 1 9409- ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97152-647-2 01 1 9409- ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97152-646-2 01 1 9409- ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) 08.913 (B) M5X12 		8-94120-094-0 08 1 9210- ● ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) 16.165 (A) M4X14 		8-94318-550-0 08 1 9210-9408 ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) POWER WINDOW<A30> 16.165 (A) M4X14 		8-94318-550-0 16 1 9409-9501 ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) POWER WINDOW<A30> 16.165 (A) M4X14 		8-94318-550-0 10 1 9502- ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 16.165 (A) M4X14 		8-94318-550-0 08 1 9409- ● ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) 16.450 (A) 		5-09470-001-0 04 1 9210- ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) 14.686 (B) SCREW GROMMET 		8-06698-938-1 04 1 9210- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
CREW CAB(TF**W*) 		8-94449-885-1 02 1 9210- ● ● ●
28 16.165 CAP; DOOR TRIM PAD
CREW CAB(TF**W*) 		8-94457-752-2 02 1 9210-9408 ● ● ●
28 16.165 CAP; DOOR TRIM PAD
CREW CAB(TF**W*) 		8-94457-752-2 02 1 9409-9409 ● ●
28 16.165 CAP; DOOR TRIM PAD
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-94457-752-2 02 1 9409-9409 ● ●
28 16.165 CAP; DOOR TRIM PAD
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-94457-752-2 02 1 9410- ● ●
29 16.165 REINFORCEMENT; DOOR PAD
CREW CAB(TF**W*) 		8-94447-731-1 02 1 9210- ● ●
32 16.165 CUSHION; RR DOOR TRIM
CREW CAB(TF**W*) 		8-94330-309-0 04 1 9210-9505 ●
32 16.165 CUSHION; RR DOOR TRIM
CREW CAB(TF**W*) 		8-94330-309-0 06 1 9506- ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) 16.165 (A) M4X8 		8-94363-204-0 10 1 9210- ● ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) 16.165 (B) 1/6"X1/2" SELFTAP BAIND-HEAD 		8-94385-076-0 06 1 9210-9309 ● ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) 16.165 (B) M4X13 TAPPING 		8-97104-883-0 06 1 9310- ● ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94476-878-3 06 1 9210-9308 ● ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94476-879-3 06 1 9210-9308 ● ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) (A) GRAY 		8-94476-879-3 06 1 9309- ● ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94383-283-0 02 1 9210-9308 ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94383-284-0 02 1 9210-9308 ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) (B) GRAY 		8-94383-284-0 02 1 9309-9408 ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) (B) GRAY 		8-94383-284-0 02 1 9409-9409 ● ● ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) POWER WINDOW<A30> (B) GRAY 		8-94383-284-0 02 1 9410- ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) (B) GRAY 		8-94383-284-0 02 1 9410- ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) 		8-94458-338-2 01 1 9210-9408 ● ● ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-94458-338-2 01 1 9409-9502 ● ● ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-97128-609-0 01 1 9503- ● ● ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) 		8-94449-889-2 01 1 9210-9408 ● ● ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-94449-889-2 01 1 9409-9502 ● ● ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-97128-608-0 01 1 9503- ● ● ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> 		8-97120-063-1 02 1 9409- ● ●
44 16.165 TRIM; DOOR,RR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94478-234-1 02 1 9210-9308 ●
44 16.165 TRIM; DOOR,RR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94478-235-1 02 1 9210-9308 ●
44 16.165 TRIM; DOOR,RR
CREW CAB(TF**W*) GRAY 		8-94478-235-1 02 1 9309-9406 ●
44 16.165 TRIM; DOOR,RR
CREW CAB(TF**W*) GRAY 		8-97151-917-0 02 1 9407-9408 ●
44 16.165 TRIM; DOOR,RR
CREW CAB(TF**W*) GRAY 		8-97151-917-0 02 1 9409-9409 ● ● ●
44 16.165 TRIM; DOOR,RR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97151-917-0 02 1 9410- ●
44 16.165 TRIM; DOOR,RR
CREW CAB(TF**W*) GRAY 		8-97151-917-0 02 1 9410- ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94327-806-0 02 1 9210-9308 ● ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94327-807-0 02 1 9210-9308 ● ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) GRAY 		8-94327-807-0 02 1 9309- ● ● ●
47 16.120 TRAY; ASH,RR
CREW CAB(TF**W*) GRAY 		8-94476-917-1 02 1 9309-9408 ● ● ●
47 16.120 TRAY; ASH,RR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-94476-917-1 02 1 9409- ● ● ●
47 16.120 TRAY; ASH,RR
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94476-916-1 02 1 9210-9308 ● ● ●
47 16.120 TRAY; ASH,RR
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94476-917-1 02 1 9210-9308 ● ● ●
48 16.120 SCREW; RET,ASH TRAY
CREW CAB(TF**W*) 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 04 1 9210-9408 ● ● ●
48 16.120 SCREW; RET,ASH TRAY
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 04 1 9409- ● ● ●
50 16.450 GRIP; ASSIST,RR DOOR TRIM
CREW CAB(TF**W*) 15.390 GRAY 		8-94448-488-2 02 1 9309- ●
50 16.450 GRIP; ASSIST,RR DOOR TRIM
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94476-918-2 02 1 9210-9308 ●
50 16.450 GRIP; ASSIST,RR DOOR TRIM
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) 15.390 GRAY 		8-94448-488-2 02 1 9210-9308 ●
51 16.450 SCREW; ASSIST GRIP,RR DOOR TRIM
CREW CAB(TF**W*) M6X30 		8-94361-891-0 04 1 9210- ● ● ●
61 16.165 GUIDE; HOLE
CREW CAB(TF**W*) GRAY 		8-94477-595-3 02 1 9309- ●
61 16.165 GUIDE; HOLE
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-594-3 02 1 9210-9308 ●
61 16.165 GUIDE; HOLE
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-595-3 02 1 9210-9308 ●
61 16.165 GUIDE; HOLE
CREW CAB(TF**W*) GRAY 		8-94477-598-3 02 1 9309- ● ●
61 16.165 GUIDE; HOLE
CREW CAB(TF**W*) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-597-3 02 1 9210-9308 ● ●
61 16.165 GUIDE; HOLE
CREW CAB(TF**W*) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-598-3 02 1 9210-9308 ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 16.450 		8-94457-272-1 01 1 9210-9509 ● ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-97136-868-0 01 1 9510-9608 ● ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-97176-379-0 01 1 9609- ● ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 16.450 		8-94457-271-1 01 1 9210-9509 ● ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-97136-867-0 01 1 9510-9608 ● ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-97176-378-0 01 1 9609- ● ● ●
64 16.225 SEAL; CHILD LEVER HOLE
CREW CAB(TF**W*) 02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9609- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
