◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#47569) — 42 parça

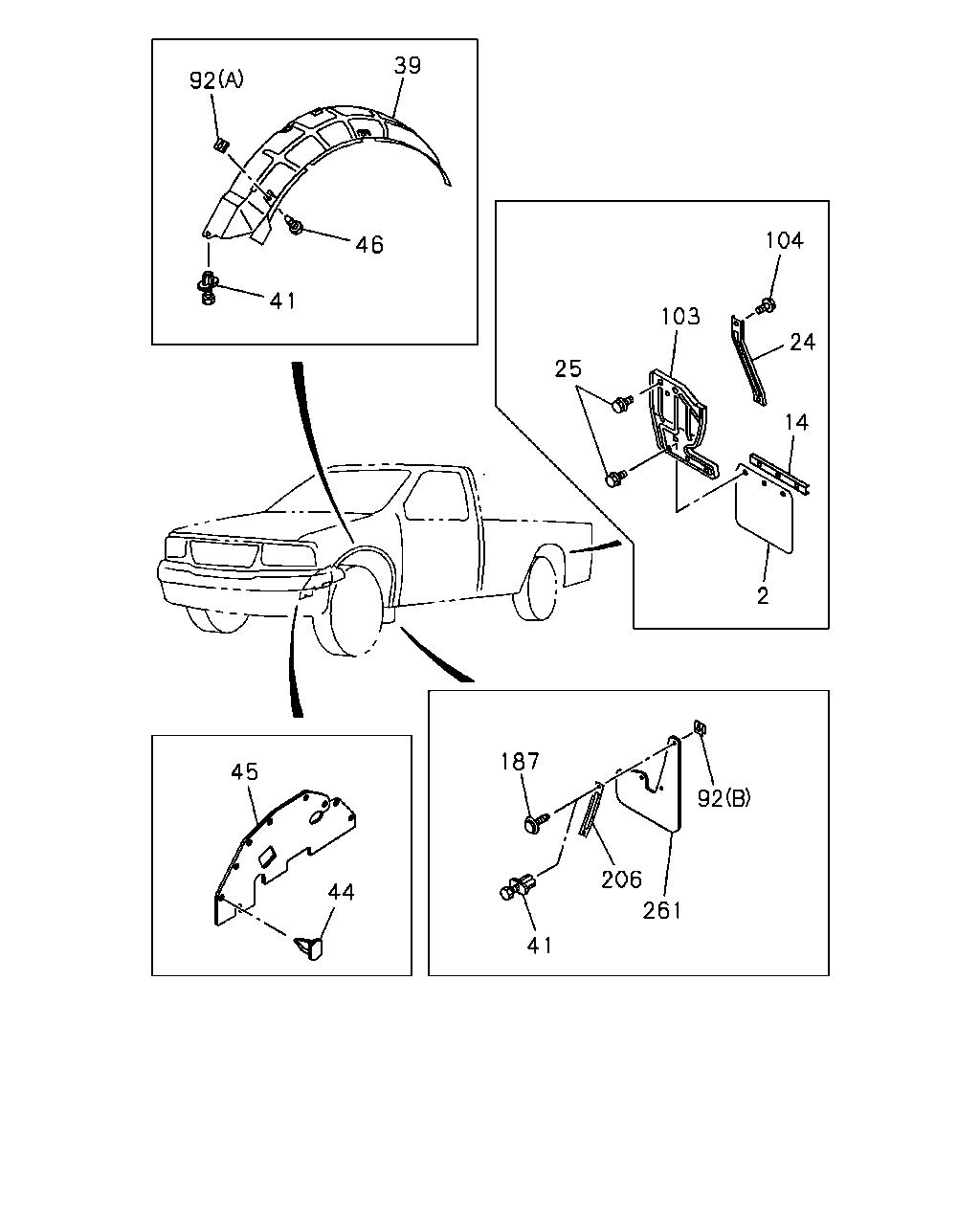

çizim 66434
92 39 46 41 25 103 24 14 2 104 92 261 41 187 206 44 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 08.154 COVER; MUD,TIRE RR
BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97037-498-0 02 1 9210- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
EXC. BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97042-244-0 02 1 9210- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97028-524-0 02 1 9210- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
EXC. BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97042-243-1 02 1 9210- ● ● ● ●
14 08.214 PLATE; RR MUD FLAP
MUD FLAP<VH4> 08.212 		8-94406-515-0 02 1 9210- ● ● ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER
MUD FLAP<VH4> 16.100 		8-94328-186-0 01 1 9210- ● ● ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER
MUD FLAP<VH4> 		8-94328-185-0 01 1 9210- ● ● ● ● ● ● ● ●
25 08.155 BOLT; PLATE TO MUD COVER
MUD FLAP<VH4> M8X18 W/WASHER 		8-94380-269-0 10 1 9210-9412 ● ● ● ● ● ● ● ●
25 08.155 BOLT; PLATE TO MUD COVER
MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 10 1 9501- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-986-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-415-0 01 1 9510- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-985-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-414-0 01 1 9510- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-988-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-417-0 01 1 9510- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-987-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-416-0 01 1 9510- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 08.154 		8-94221-150-0 12 1 9210- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 9210- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 9210- ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 16 1 9210- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-997-2 01 1 9210- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-996-2 01 1 9210- ● ● ● ● ● ● ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9210- ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
(A) ID=5.2 H=10 		8-97032-135-0 04 1 9210- ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> (B) ID=5.2 H=10 		8-97032-135-0 06 1 9210- ● ● ● ● ● ● ● ●
103 08.214 BRACKET ASM; RR MUD FLAP
MUD FLAP<VH4> 		8-94328-184-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
103 08.214 BRACKET ASM; RR MUD FLAP
MUD FLAP<VH4> 		8-97127-089-0 01 1 9506- ● ● ● ● ● ● ● ●
103 08.214 BRACKET ASM; RR MUD FLAP
MUD FLAP<VH4> 		8-94328-183-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
103 08.214 BRACKET ASM; RR MUD FLAP
MUD FLAP<VH4> 		8-97127-088-0 01 1 9506- ● ● ● ● ● ● ● ●
104 08.214 BOLT; BRKT
MUD FLAP<VH4> 08.155 M8X18 W/WASHER 		8-94380-269-0 04 1 9210-9412 ● ● ● ● ● ● ● ●
104 08.214 BOLT; BRKT
MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 9501- ● ● ● ● ● ● ● ●
187 08.155 SCREW; FENDER COVER
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9210- ● ● ● ● ● ● ● ●
206 08.155 STAY; MUD COVER,FRT
MUD FLAP<VH4> 		8-94331-669-0 01 1 9210-9408 ● ● ● ● ● ●
206 08.155 STAY; MUD COVER,FRT
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-94331-669-0 01 1 9210-9408 ● ●
206 08.155 STAY; MUD COVER,FRT
MUD FLAP<VH4> 		8-94331-668-0 01 1 9210-9408 ● ● ● ● ● ●
206 08.155 STAY; MUD COVER,FRT
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-94331-668-0 01 1 9210-9408 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97028-611-0 02 1 9210- ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-97028-611-0 02 1 9210- ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97028-610-0 02 1 9210-9509 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-97028-610-0 02 1 9210-9509 ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97028-610-0 02 1 9510- ● ● ● ●
