◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11429 - FXZ(AUST)JNLT05 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#47559) — 32 parça

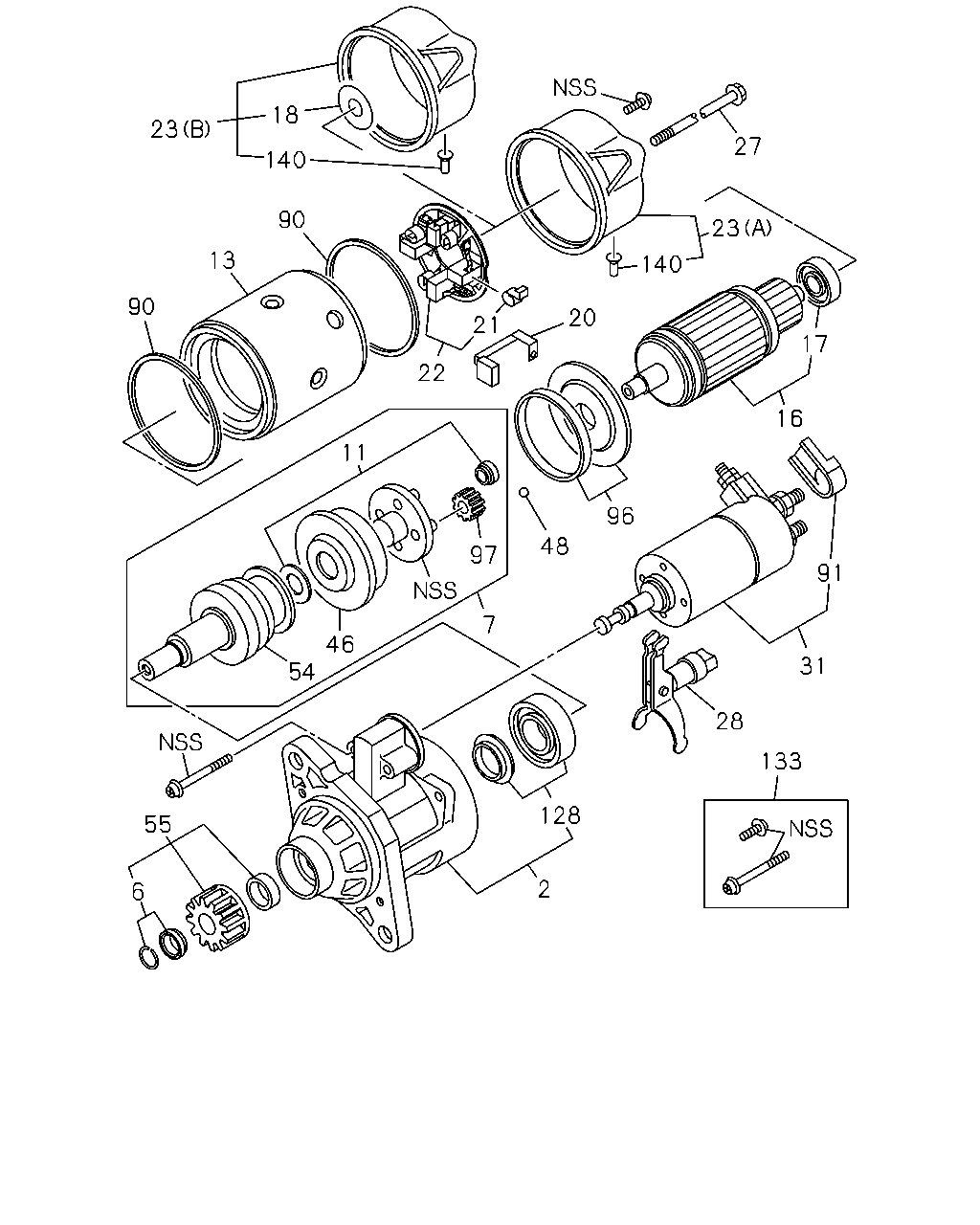

çizim 113133
27 23 140 17 16 91 31 133 28 128 2 6 55 54 46 7 97 48 96 20 21 22 11 13 90 90 140 18 23
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		8-97386-384-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-803-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-932-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		8-97116-484-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 1-81100-432-2 		1-81129-958-0 01 1 -
13 YOKE; STARTER
ASM PART: B = 8-98222-203-1 		8-98224-088-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81121-074-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-837-0 01 1 -
18 WASHER; THRUST,ARMATURE,STARTER
ASM PART: B = 8-98222-203-1 		8-98237-565-0 01 1 1306-
20 BRUSH; (+),STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81116-068-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-809-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: B = 8-98222-203-1 		8-98208-887-0 01 1 -1305
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-432-2 		8-98208-887-0 01 1 -
22 HOLDER; BRUSH STARTER
ASM PART: B = 8-98222-203-1 		8-98215-748-0 01 1 1306-
23 COVER; RR COVER STARTER
(A) ASM PART: B = 8-98222-203-1 		1-81129-959-0 01 1 -1305
23 COVER; RR COVER STARTER
(A) ASM PART: A = 1-81100-432-2 		1-81129-959-0 01 1 -
23 COVER; RR COVER STARTER
(B) ASM PART: B = 8-98222-203-1 		8-98237-562-0 01 1 1306-
27 BOLT; THROUGH,STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-769-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-801-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-957-0 01 1 -
46 GEAR; CLU STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81123-057-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-934-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: A = 1-81100-432-2 		1-81129-956-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: B = 8-98222-203-1 		8-98215-463-0 01 1 -
90 GASKET; ARMATURE
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-808-0 02 1 -
91 COVER; STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-804-0 01 1 -
96 GASKET; FRT CASE
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-806-0 01 1 -
97 GEAR; STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81123-059-0 04 1 -
128 BEARING; STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-797-0 01 1 -
133 SCREW SET; STARTER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		1-81129-805-0 01 1 -
140 GROMMET; RR COVER
ASM PART: A = 1-81100-432-2, B = 8-98222-203-1 		8-97376-389-0 01 1 -
