Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11429 - FXZ(AUST)JNLT05
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#47550) — 93 parça
◀

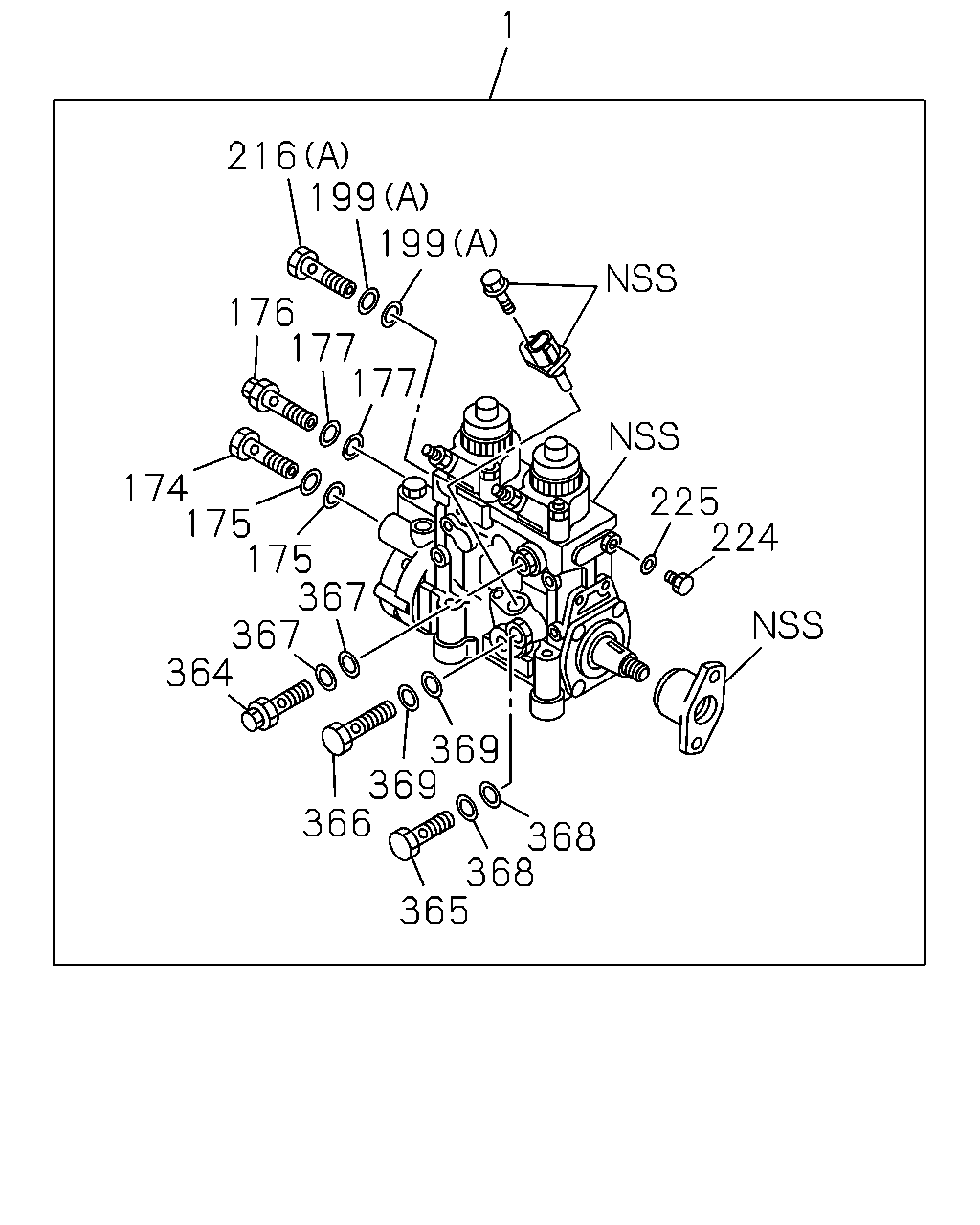

[040A] COMPONENT;INJ PUMP (17 parça)

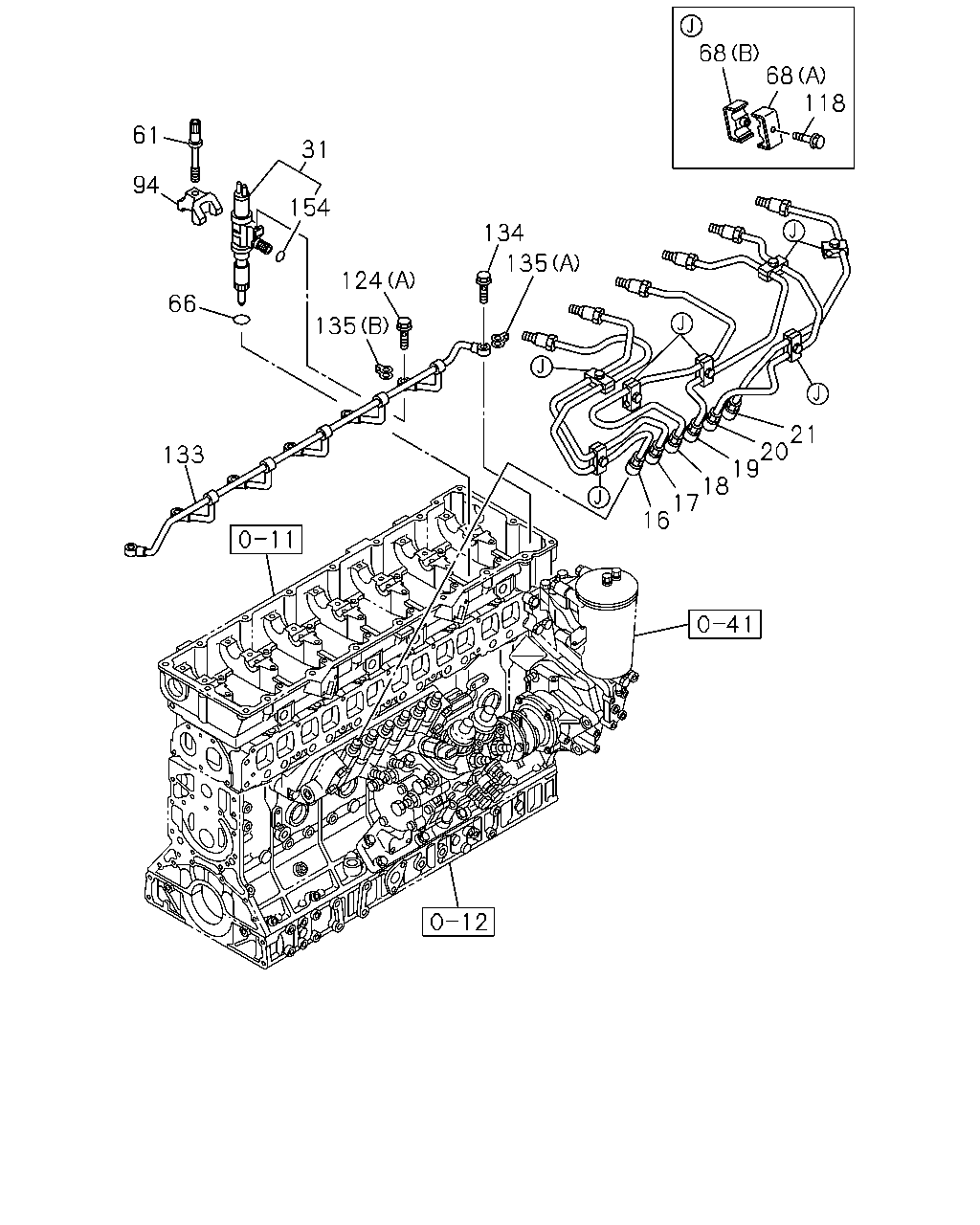

[040A] INJ PIPE AND NOZZLE ASM (26 parça)
[040A] COMPONENT;FUEL FEED PUMP (9 parça)

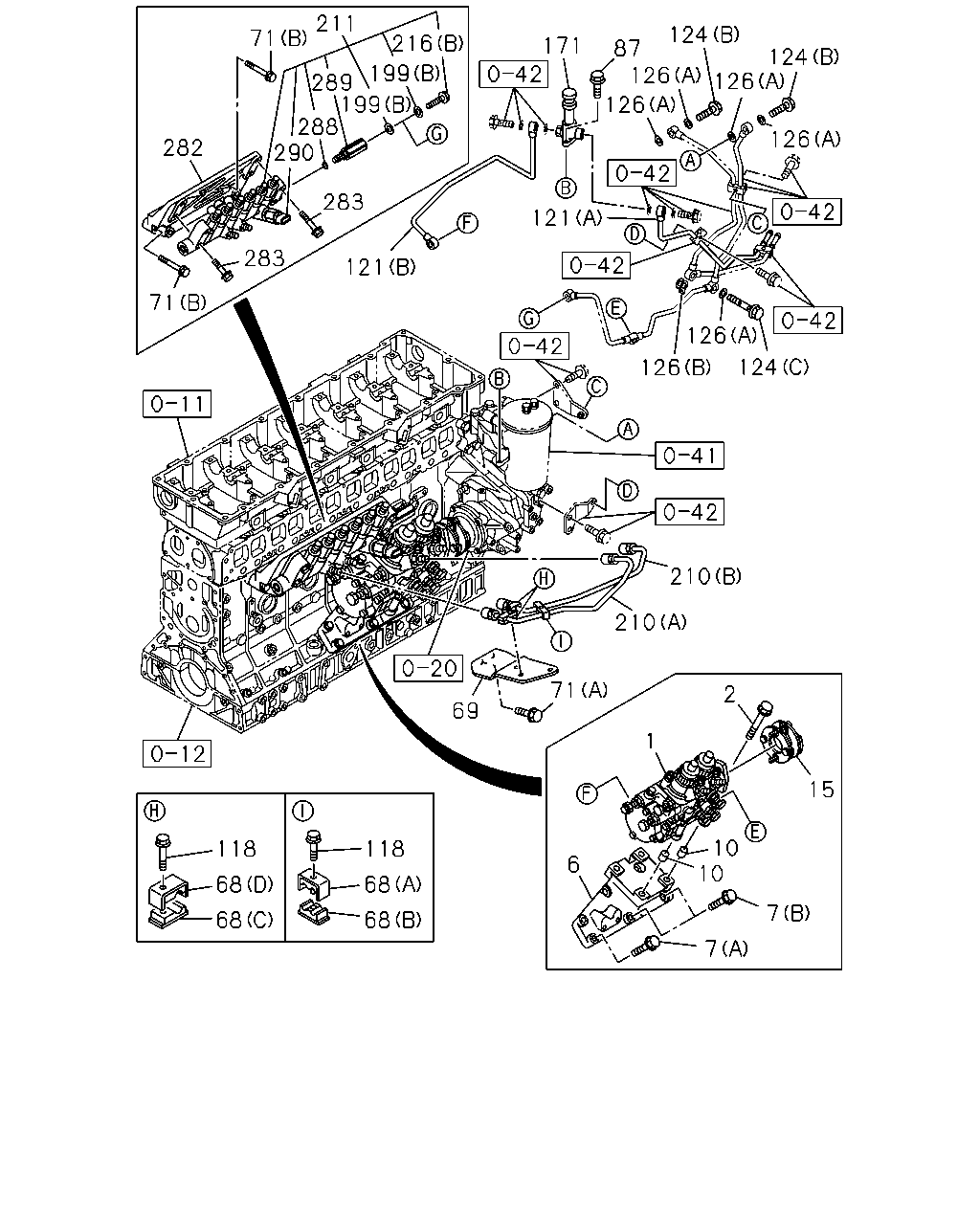

[040A] INJ PUMP AND COMMON RAIL (41 parça)
▶
1
216
199
199
176
177
177
174
175
175
367
367
364
225
224
369
369
366
368
368
365
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
8-98013-910-4
01
1
0801-
174
BOLT; EYE,FUEL OUTLET,FEED PUMP
5-15759-003-0
01
1
0801-
175
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
1-15619-507-0
02
1
0801-
176
BOLT; EYE,FEED PUMP
1-15619-509-0
01
1
0801-
177
GASKET; EYE BOLT,INL,FUEL FEED PUMP
1-15619-507-0
02
1
0801-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
0801-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
02
1
0801-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
0801-
216
BOLT; EYE
(B)
8-97602-173-0
01
1
0801-
224
PLUG; INJ PUMP
1-15619-500-0
01
1
0801-
225
GASKET; PLUG
1-15619-502-0
01
1
0801-
364
VALVE; OVER FLOW,INJ PUMP
1-15619-496-0
01
1
0801-
365
BOLT; EYE,OIL INLET
9-88130-088-0
01
1
0801-
366
BOLT; EYE,OIL OUTLET
1-15619-513-0
01
1
0801-
367
GASKET; VALVE,OVER FLOW
1-15619-501-0
02
1
0801-
368
GASKET; EYE BOLT,OIL INLET
1-15619-508-0
02
1
0801-
369
GASKET; EYE BOLT,OIL OUTLET
1-15619-507-0
02
1
0801-
16
17
18
19
20
21
118
68
68
135
134
124
135
133
66
154
31
94
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PIPE; INJ NO.1
8-97605-246-1
01
1
0801-
17
PIPE; INJ NO.2
8-97605-247-1
01
1
0801-
18
PIPE; INJ NO.3
8-97605-248-1
01
1
0801-
19
PIPE; INJ NO.4
8-97603-742-1
01
1
0801-
20
PIPE; INJ NO.5
8-97605-945-1
01
1
0801-
21
PIPE; INJ NO.6
8-97603-744-1
01
1
0801-
31
NOZZLE ASM; INJ
8-97610-254-4
06
1
0801-
61
BOLT; CLAMP NOZZLE HOLDER
M8X60
8-97603-301-0
06
1
0801-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97608-858-0
06
1
0801-
68
CLIP; INJ PIPE
(C)
1-09701-269-0
02
1
0801-
68
CLIP; INJ PIPE
(D)
8-94396-371-0
02
1
0801-
68
CLIP; INJ PIPE
(A) ID=7 & 7 L=22
8-97330-118-3
08
1
0801-
68
CLIP; INJ PIPE
(B) ID=7 & 7 L=22
8-97330-119-3
08
1
0801-
94
BRACKET; INJ NOZZLE
1-15337-028-0
06
1
0801-
118
BOLT; CLIP,INJ PIPE
M6X30 FLANGE
0-28650-630-0
10
1
0801-
124
BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
0801-
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
0801-
124
BOLT; EYE LEAK OFF PIPE
(C) M14X42
1-09675-090-0
01
1
0801-0805
124
BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT
8-98037-829-0
01
1
0806-
133
PIPE; INJ NOZZLE LEAK OFF
8-97603-112-0
01
1
0801-
134
BOLT; JOINT,LEAK OFF PIPE
M12X27 FLANGE
1-09675-160-0
01
1
0801-0805
134
BOLT; JOINT,LEAK OFF PIPE
M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
0806-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0
8-98065-992-0
06
1
0801-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.6
8-98065-993-0
01
1
0801-
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
9-09561-111-0
06
1
0801-1106
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
0-95690-111-0
06
1
1107-
171
172
173
180
181
179
182
179
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
171
PUMP ASM; FUEL FEED
1-15761-012-0
01
1
0801-1403
171
PUMP ASM; FUEL FEED
8-98257-686-0
01
1
1404-
172
PUMP; PRIMING,FUEL FEED PUMP
1-15761-013-0
01
1
0801-1403
173
GASKET; PRIMING PUMP,FUEL FEED PUMP
1-15769-030-0
01
1
0801-1403
178
CYLINDER; FUEL FEED PUMP
1-15769-024-0
01
1
0801-1403
179
VALVE; CHECK,FEED PUMP
1-15769-027-0
02
1
0801-1403
180
ADAPTER; EYE BOLT,FUEL FEED PUMP
1-15769-031-0
01
1
0801-1403
181
GASKET; ADAPTER
1-15769-029-0
01
1
0801-1403
182
BUSHING; VLV
1-15769-028-0
01
1
0801-1403
68
68
118
68
68
118
6
7
7
10
10
15
1
2
69
71
210
210
126
124
126
121
126
126
126
124
126
124
87
171
121
216
211
71
289
199
199
288
290
283
282
283
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
8-98013-910-4
01
1
0801-
2
BOLT; INJ PUMP
M8X90 FLANGE
0-28060-890-0
04
1
0801-
6
BRACKET; INJ PUMP TO C/BL
8-97603-738-1
01
1
0801-
7
BOLT; INJ PUMP BRKT
(B) M12X70 FLANGE
0-28151-270-0
02
1
0801-
7
BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE
0-28181-240-0
04
1
0801-0804
7
BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE
0-28151-240-0
04
1
0805-
10
DOWEL; INJ PUMP
1-11229-012-1
02
1
0801-
15
COUPLING ASM; INJ PUMP
1-15780-202-1
01
1
0801-
68
CLIP; INJ PIPE
(C)
1-09701-269-0
02
1
0801-
68
CLIP; INJ PIPE
(D)
8-94396-371-0
02
1
0801-
68
CLIP; INJ PIPE
(A) ID=7 & 7 L=22
8-97330-118-3
08
1
0801-
68
CLIP; INJ PIPE
(B) ID=7 & 7 L=22
8-97330-119-3
08
1
0801-
69
BRACKET; INJ PIPE CLIP
8-97603-113-0
01
1
0801-
71
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
0801-
71
BOLT; BRKT
(B) M10X60 FLANGE
0-28151-060-0
04
1
0801-
87
BOLT; PUMP
M8X25 FLANGE
0-28650-825-0
02
1
0801-
118
BOLT; CLIP,INJ PIPE
M6X30 FLANGE
0-28650-630-0
10
1
0801-
121
PIPE; FUEL,FEED PUMP,SUCTION
(A)
8-97606-231-0
01
1
0801-1403
121
PIPE; FUEL,FEED PUMP,SUCTION
(A)
8-98257-406-0
01
1
1404-
121
PIPE; FUEL,FEED PUMP,SUCTION
(B)
8-97606-232-0
01
1
0801-
124
BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
0801-
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
0801-
124
BOLT; EYE LEAK OFF PIPE
(C) M14X42
1-09675-090-0
01
1
0801-0805
124
BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT
8-98037-829-0
01
1
0806-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25
1-09630-141-0
05
1
0801-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21
8-97251-047-0
01
1
0801-
171
PUMP ASM; FUEL FEED
1-15761-012-0
01
1
0801-1403
171
PUMP ASM; FUEL FEED
8-98257-686-0
01
1
1404-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
0801-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
02
1
0801-
210
PIPE; INJ,C/R
(A)
8-97603-101-0
01
1
0801-
210
PIPE; INJ,C/R
(B)
8-97603-102-0
01
1
0801-
211
RAIL ASM; COMMON
8-97603-121-2
01
1
0801-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
0801-
216
BOLT; EYE
(B)
8-97602-173-0
01
1
0801-
282
BRACKET; COMMON RAIL
8-97603-838-0
01
1
0801-
283
BOLT; COMMON RAIL
M10X40 FLANGE
0-28151-040-0
04
1
0801-
288
GASKET
ID=11 OD=16.3
1-15641-046-0
01
1
0801-
289
LIMITER; FUEL PRESS
8-98032-283-0
01
1
0801-
290
SENSOR; PRESS
8-97318-684-0
01
1
0801-1102
290
SENSOR; PRESS
8-98119-790-0
01
1
1103-
