2-05C — CLUTCH PIPING (#4755) — 214 parça

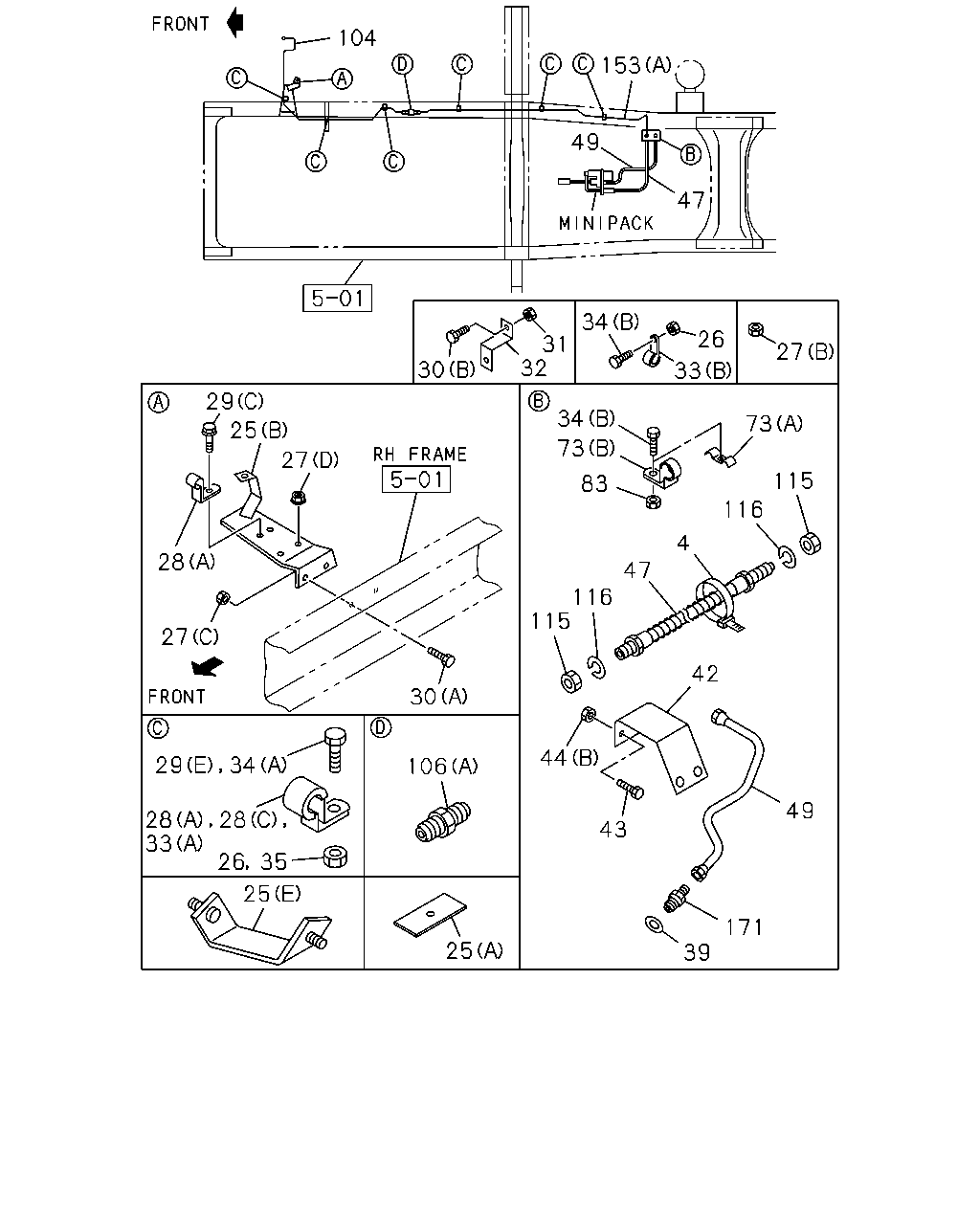

çizim 7777
104 153 49 47 34 26 31 32 27 30 33 29 34 73 25 73 27 115 83 116 4 28 47 116 115 27 42 30 44 106 49 28 33 28 43 26 35 25 171 25 39 29 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 CLIP; FLEX HOSE,CLU CONT
L=140 		5-09707-031-0 01 1 9603-9605 ●
25 BRACKET; OIL PIPE
(B) 		1-47477-604-2 01 1 9603- ●
25 BRACKET; OIL PIPE
(E) 		1-47477-597-2 01 1 9603-9904 ● ●
25 BRACKET; OIL PIPE
L TYPE ENG<90L> (E) 		1-47477-597-2 01 1 9905-0002 ● ● ● ●
25 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 02 1 9905- ● ● ● ●
26 NUT; CLIP,OIL PIPE
SHORT CHASSIS&RHD(EXZ5MC) M8 		9-09110-508-0 01 1 9603-9605 ● ●
26 NUT; CLIP,OIL PIPE
SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 		9-09110-508-0 01 1 9606-9606 ● ●
26 NUT; CLIP,OIL PIPE
SHORT CHASSIS&LHD(EXZ6MC) M8 		9-09110-508-0 01 1 9606-9606 ● ●
26 NUT; CLIP,OIL PIPE
SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
26 NUT; CLIP,OIL PIPE
SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
26 NUT; CLIP,OIL PIPE
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 0003- ● ● ● ●
26 NUT; CLIP,OIL PIPE
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8 		9-09110-508-0 02 1 9606-9606 ●
26 NUT; CLIP,OIL PIPE
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-0002 ● ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9603-9904 ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9603-9904 ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9905- ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 02 1 9603-9606 ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
27 NUT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 		9-09110-508-0 01 1 9603-9606 ●
27 NUT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9603-0002 ●
28 CLIP; OIL PIPE
(A) ID=9 		9-09524-845-0 01 1 9603-9904 ● ●
28 CLIP; OIL PIPE
L TYPE ENG<90L> (A) ID=9 		9-09524-845-0 01 1 9905-9905 ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=9 		9-09524-845-0 01 1 9906-0002 ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0003- ● ● ● ●
28 CLIP; OIL PIPE
(C) ID=16 & 9 L=21 & 18 		1-09700-676-0 02 1 9905- ● ● ● ●
29 BOLT; CLIP,OIL PIPE
(C) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
29 BOLT; CLIP,OIL PIPE
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ●
29 BOLT; CLIP,OIL PIPE
(C) M8X25 FLANGE 		0-28680-825-0 03 1 9905-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0003- ● ● ● ●
29 BOLT; CLIP,OIL PIPE
L TYPE ENG<90L> (E) M8X30 FLANGE 		0-28680-830-0 02 1 0003- ● ● ● ●
30 BOLT; BRKT
(A) M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ●
30 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ●
30 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 02 1 9905- ● ● ● ●
30 BOLT; BRKT
L TYPE ENG<90L> (B) M8X30 FLANGE 		0-28680-830-0 01 1 9905- ● ● ● ●
31 NUT; BRKT
SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
32 BRACKET; CLIP OIL PIPE 1-47477-235-0 01 1 9905- ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9904 ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9905-9907 ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9908- ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9603-9803 ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9804-9904 ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905- ● ● ● ●
33 CLIP; OIL PIPE
(B) ID=9 L=20 		9-09524-835-0 01 1 9905- ● ● ● ●
34 BOLT; PIPE CLIP
(A) M8X25 FLANGE 		0-28080-825-0 01 1 9603-9606 ●
34 BOLT; PIPE CLIP
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9607-9904 ●
34 BOLT; PIPE CLIP
SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
34 BOLT; PIPE CLIP
SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9706 ●
34 BOLT; PIPE CLIP
SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE 		0-28680-830-0 02 1 9707-9904 ● ●
34 BOLT; PIPE CLIP
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9905-9907 ● ● ●
34 BOLT; PIPE CLIP
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9908- ● ● ● ●
34 BOLT; PIPE CLIP
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9905-9907 ● ● ● ●
34 BOLT; PIPE CLIP
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9908- ● ● ● ●
34 BOLT; PIPE CLIP
SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE 		0-28680-820-0 01 1 9804-9904 ●
34 BOLT; PIPE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9802 ●
34 BOLT; PIPE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9803-9904 ● ●
34 BOLT; PIPE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9905- ● ● ● ●
35 NUT; PIPE CLIP
M8 		9-09110-508-0 01 1 9603-9606 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ●
35 NUT; PIPE CLIP
M8 		9-09110-508-0 02 1 9603-9606 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9905-9907 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9908- ● ● ● ●
35 NUT; PIPE CLIP
SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE 		0-91150-108-0 03 1 9804-9904 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905-9907 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9908- ● ● ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9603-9802 ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9803-9904 ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9905- ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-724-0 01 1 9603-9803 ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-724-0 01 1 9804-9904 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-724-0 01 1 9905- ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9803-9904 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9905-0102 ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 0103- ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
(B) M8 		9-09110-508-0 02 1 9603-9606 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
(B) M8 FLANGE 		0-91150-108-0 02 1 9803-9904 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
47 HOSE; FLEX,CLU CONT
L=420 		1-09364-615-0 01 1 9603-9802 ●
47 HOSE; FLEX,CLU CONT
L=420 		1-09364-615-0 01 1 9803-9904 ● ●
47 HOSE; FLEX,CLU CONT
L=420 		1-09364-615-0 01 1 9905- ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47428-380-0 01 1 9603-9606 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47429-986-0 01 1 9607-9608 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9609-9802 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9803-9904 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9905- ● ● ● ●
73 CLIP; OIL PIPE
(A) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9603-9802 ●
73 CLIP; OIL PIPE
(A) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9803-9904 ● ●
73 CLIP; OIL PIPE
(A) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9905- ● ● ● ●
73 CLIP; OIL PIPE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9603-9606 ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9603-9802 ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9803-9904 ● ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9905- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9702 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9711 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9904 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905-0002 ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1595 		1-49165-436-0 01 1 0003- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2284 SERVICED BY L=2400 		1-47426-395-0 01 1 9905- ● ● ● ●
106 UNION; OIL PIPE
SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT 		9-09223-008-1 01 1 9603-9803 ●
106 UNION; OIL PIPE
SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT 		9-09223-008-1 01 1 9804-9904 ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9905-9905 ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906- ● ● ● ●
109 PIPE; AIR,UNION TO UNION
(B) L=1015 SERVICED BY L=1100 		1-47426-387-0 01 1 9905- ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 02 1 9603-9803 ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 02 1 9804-9904 ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 02 1 9905- ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 02 1 9603-9803 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 02 1 9804-9904 ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 02 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
SHORT CHASSIS&RHD(EXZ5MC) (B) L=464 		1-47424-530-2 01 1 9603-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9803 ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9804-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9603-9802 ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9803-9904 ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9905- ● ● ● ●

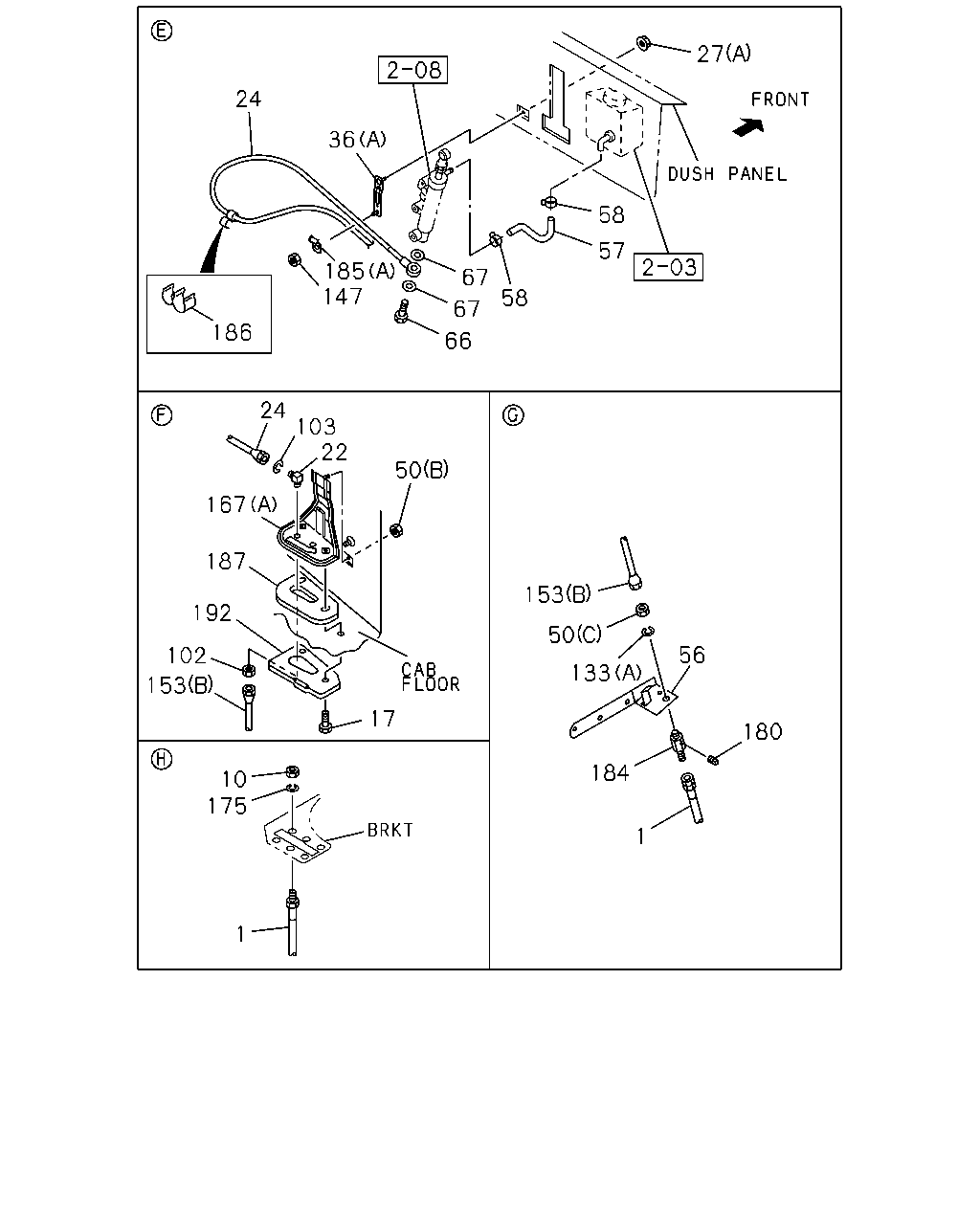

çizim 39676
27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,CLU CONT
SHORT CHASSIS&RHD(EXZ5MC) L=430 		1-09364-859-0 01 1 9603-9904 ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9905- ● ● ● ●
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9905- ● ● ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9603-9904 ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9905- ● ● ● ●
17 BOLT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9603-9904 ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9905- ● ● ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9710-9904 ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9905- ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
SHORT CHASSIS&RHD(EXZ5MC) L=643 		1-47424-529-2 01 1 9603-9904 ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9905- ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
SHORT CHASSIS&LHD(EXZ6MC) L=621 		1-47428-362-1 01 1 9603-9904 ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9603-9904 ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9603-9904 ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9905- ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 02 1 9603-9606 ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
27 NUT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 		9-09110-508-0 01 1 9603-9606 ●
27 NUT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ● ● ● ●
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 9603-9904 ● ●
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 9905- ● ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9603-9904 ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9905- ● ● ● ●
50 NUT; UNION
SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9603-9904 ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905- ● ● ● ●
56 BRACKET; FLEX HOSE 1-47477-602-1 01 1 9603- ●
57 HOSE; CLU M/CYL TO OIL TANK
SHORT CHASSIS&RHD(EXZ5MC) 		1-47424-533-0 01 1 9603-9904 ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9905- ● ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9603-9904 ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9905- ● ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9603-9904 ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9905- ● ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9904 ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9710-9904 ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9905- ● ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9710-9904 ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9905- ● ● ● ●
109 PIPE; AIR,UNION TO UNION
(B) L=1015 SERVICED BY L=1100 		1-47426-387-0 01 1 9905- ● ● ● ●
133 WASHER; LK,UNION
(A) ID=14.2 		9-09150-514-0 01 1 9603-9904 ● ●
133 WASHER; LK,UNION
(A) ID=14.2 		9-09150-514-0 01 1 9905- ● ● ● ●
147 NUT; CLIP FIX
M8 FLANGE 		8-94279-517-0 01 1 9603-9611 ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9612-9904 ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
SHORT CHASSIS&RHD(EXZ5MC) (B) L=464 		1-47424-530-2 01 1 9603-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9803 ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9804-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ● ●
167 BRACKET; UNION
SHORT CHASSIS&RHD(EXZ5MC) (A) 		1-71117-183-3 01 1 9603-9904 ● ●
167 BRACKET; UNION
(A) 		1-71117-183-3 01 1 9905- ● ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9603-9904 ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9905- ● ● ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9603-9904 ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9905- ● ● ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9603-9904 ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9905- ● ● ● ●
185 CLIP; BRKT
(A) ID=9 L=20 		9-09545-108-0 01 1 9603-9904 ● ●
185 CLIP; BRKT
(A) ID=9 L=20 		9-09545-108-0 01 1 9905- ● ● ●
186 HOLDER; CLIP
SHORT CHASSIS&RHD(EXZ5MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 9603-9904 ● ●
186 HOLDER; CLIP 8-94107-710-0 02 1 9905- ● ● ● ●
186 HOLDER; CLIP
SHORT CHASSIS&LHD(EXZ6MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3 		8-94426-175-0 01 1 9603-9904 ● ●
187 SEAL; BRKT
SHORT CHASSIS&RHD(EXZ5MC) 		1-71117-222-0 01 1 9603-9904 ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 9905- ● ● ● ●
192 PLATE
SHORT CHASSIS&RHD(EXZ5MC) 		1-71117-221-0 01 1 9603-9904 ● ●
192 PLATE 1-71117-221-0 01 1 9905- ● ● ● ●

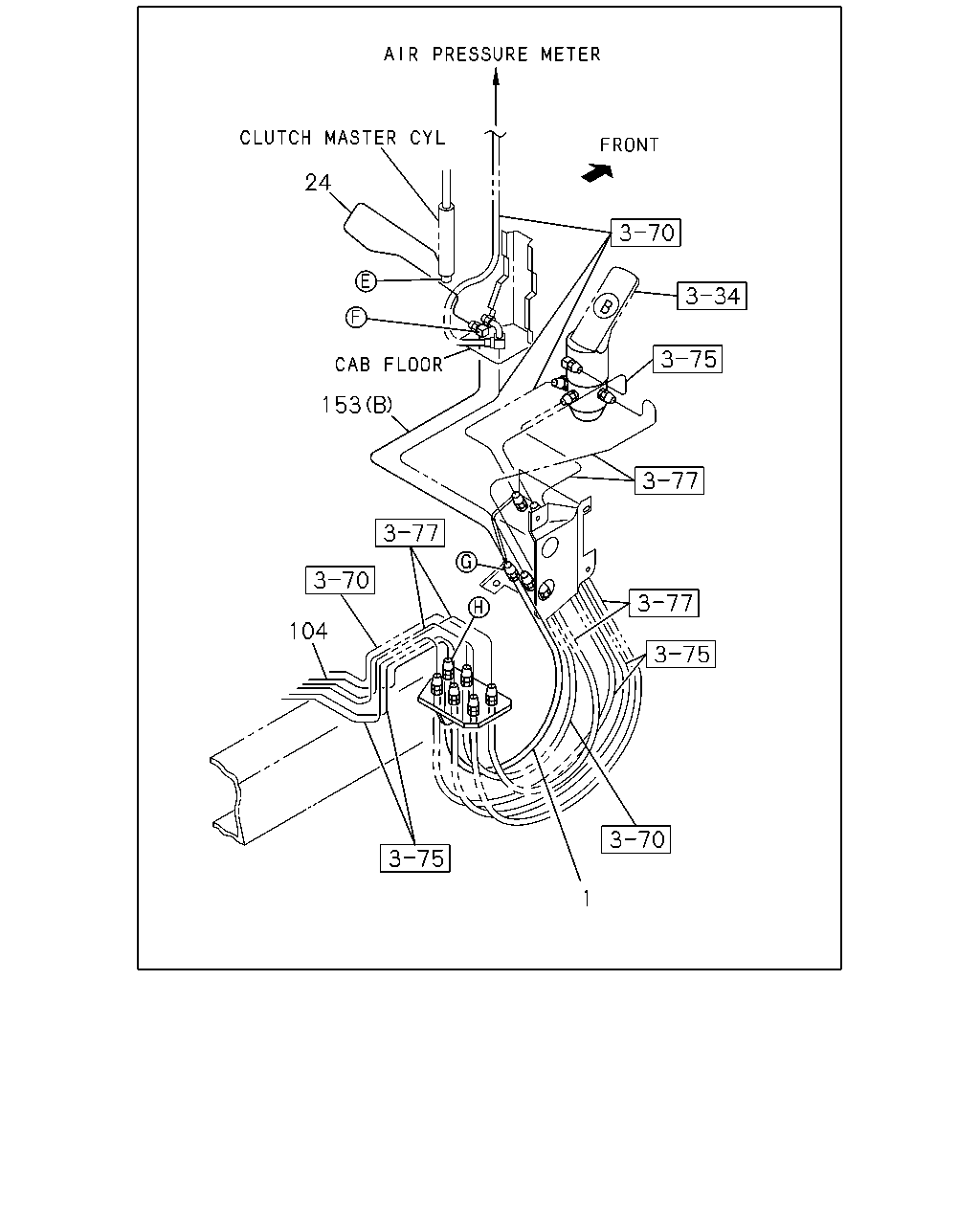

çizim 44953
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,CLU CONT
SHORT CHASSIS&RHD(EXZ5MC) L=430 		1-09364-859-0 01 1 9603-9904 ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9905- ● ● ● ●
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9905- ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
SHORT CHASSIS&RHD(EXZ5MC) L=643 		1-47424-529-2 01 1 9603-9904 ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9905- ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
SHORT CHASSIS&LHD(EXZ6MC) L=621 		1-47428-362-1 01 1 9603-9904 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9702 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9711 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9904 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905-0002 ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1595 		1-49165-436-0 01 1 0003- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2284 SERVICED BY L=2400 		1-47426-395-0 01 1 9905- ● ● ● ●
109 PIPE; AIR,UNION TO UNION
(B) L=1015 SERVICED BY L=1100 		1-47426-387-0 01 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
SHORT CHASSIS&RHD(EXZ5MC) (B) L=464 		1-47424-530-2 01 1 9603-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9803 ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9804-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
