Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11429 - FXZ(AUST)JNLT05
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#47542) — 31 parça
◀

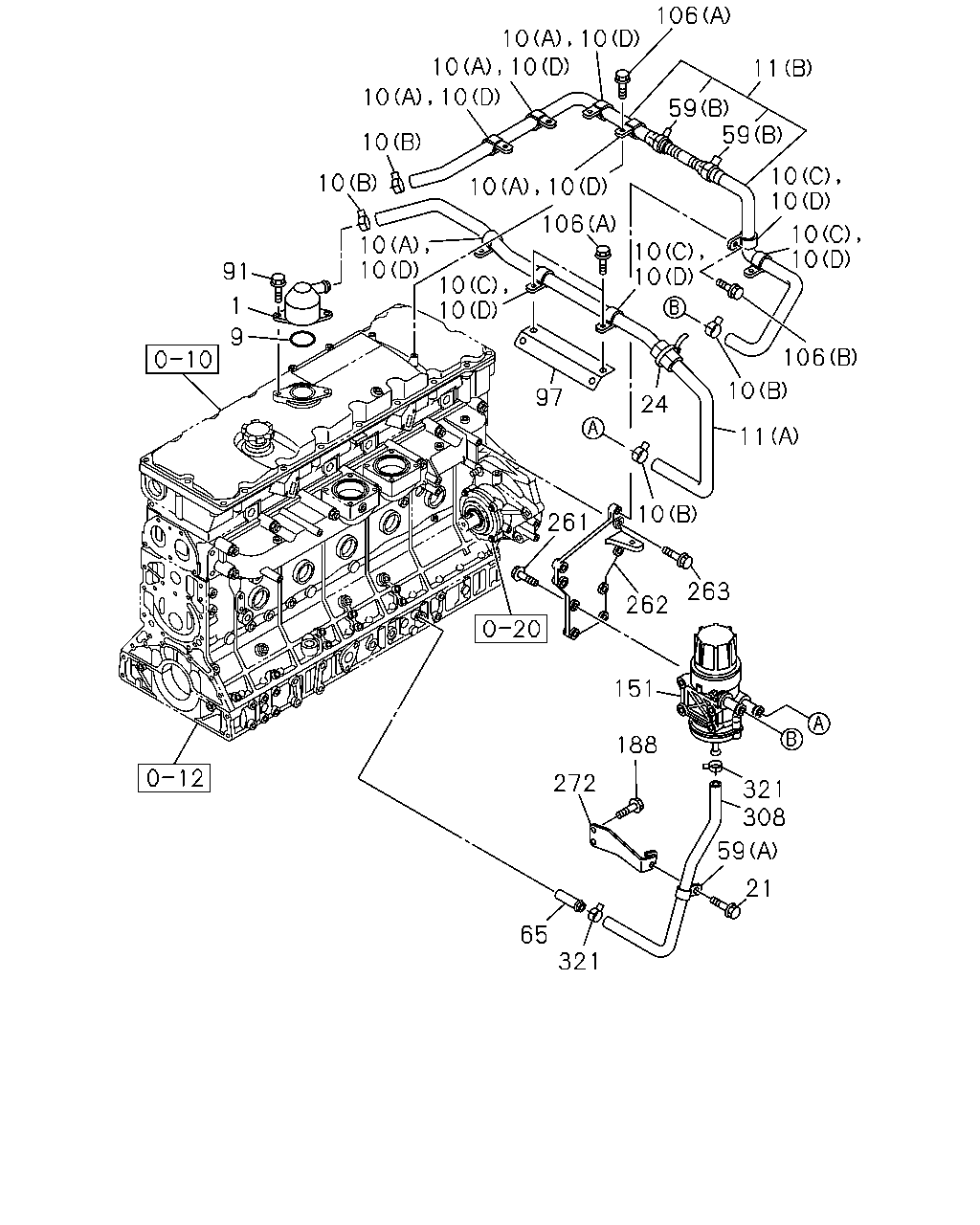

[028A] AIR BREATHER AND OIL SEPARATOR (27 parça)
[028A] ELEMENT KIT;OIL SEPARATOR (4 parça)
▶
9
1
91
10
10
10
10
10
10
10
10
10
10
106
11
59
59
10
10
10
10
106
10
11
10
263
321
308
59
21
321
65
272
188
151
262
261
24
97
10
10
10
10
106
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
0801-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
0801-
10
CLIP; AIR BREATHER
(C) ID=31 L=30
1-09700-969-0
04
1
0801-1309
10
CLIP; AIR BREATHER
(D) ID=29 L=30
8-98225-679-0
09
1
1310-
10
CLIP; AIR BREATHER
(B) ID=28.5
1-09707-150-0
04
1
0801-
10
CLIP; AIR BREATHER
(A) ID=33 L=30
8-97619-250-0
05
1
0801-1309
11
HOSE; RUBBER,AIR
(B)
8-97605-319-4
01
1
0801-1309
11
HOSE; RUBBER,AIR
(B)
8-98246-565-0
01
1
1310-
11
HOSE; RUBBER,AIR
(A)
8-97615-916-2
01
1
0801-
21
BOLT; CLIP
M10X16 FLANGE
0-28051-016-0
01
1
0801-
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
01
1
0801-1205
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
01
1
1206-
59
CLIP; HOSE
(A) ID=13 L=20
1-09701-138-1
01
1
0801-
59
CLIP; HOSE
(B) ID=33.6
8-94362-518-0
02
1
0801-1309
65
PIPE; BREATHER
8-94176-713-0
01
1
0801-
91
BOLT; AIR BREATHER
M10X20 FLANGE
0-28151-020-0
02
1
0801-
97
BRACKET; HOSE
8-97615-917-0
01
1
0801-
106
BOLT; DRAIN PIPE
(A) M8X16 FLANGE
0-28050-816-0
07
1
0801-
106
BOLT; DRAIN PIPE
(B) M8X35 FLANGE
0-28650-835-0
02
1
0801-
151
SEPARATOR; OIL,PCV
1-11740-275-0
01
1
0801-
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0801-
261
BOLT; SEPARETOR
M8X30 FLANGE
0-28050-830-0
04
1
0801-
262
BRACKET; OIL SEPARETOR
8-97605-196-0
01
1
0801-
263
BOLT; BRKT,OIL SEPARETOR
M10X30 FLANGE
0-28151-030-0
04
1
0801-
272
BRACKET; PIPE
8-98052-308-1
01
1
0801-
308
HOSE; RUBBER,OIL SEPARATOR TO C/BLOCK
8-97606-750-0
01
1
0801-
321
CLIP; HOSE,SEPARATOR
ID=14
1-09704-102-0
02
1
0801-
151
275
3
3
318
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0801-
151
SEPARATOR; OIL,PCV
1-11740-275-0
01
1
0801-
275
CAP; PCV
8-97385-918-0
01
1
0801-
318
ELEMENT KIT; PCV
8-97385-919-0
01
1
0801-
