Sayfa 2-05B - Isuzu EPC

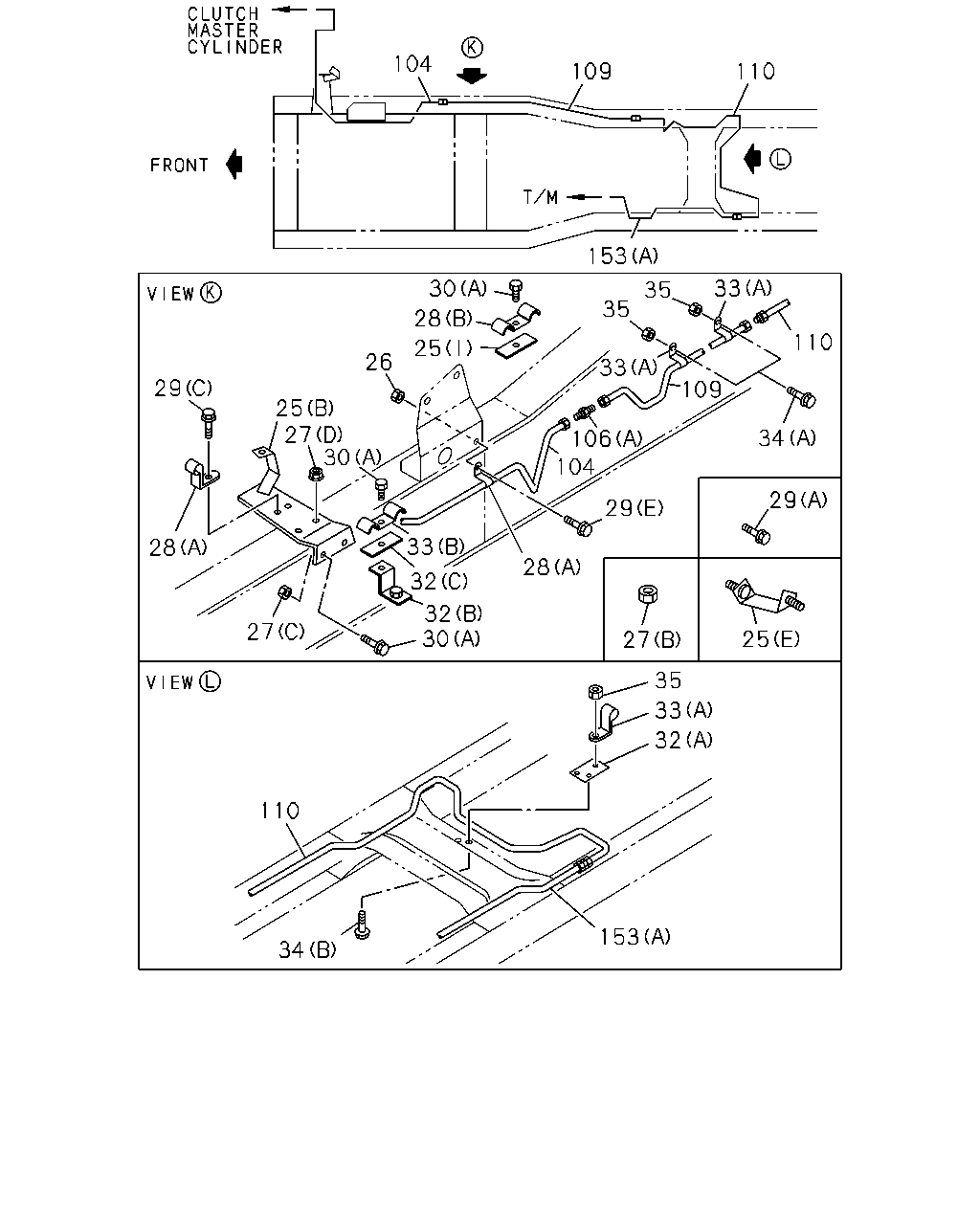

2-05B — CLUTCH PIPING (#4754) — 1023 parça

104 109 110 153 33 30 35 35 28 110 25 26 33 109 29 25 27 30 34 106 104 29 29 33 28 28 32 32 30 27 25 27 35 33 32 110 153 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-47477-604-2	01	1	9603-	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (I) L=50	1-47475-299-2	03	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-935-1	01	1	9703-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=50	1-47475-299-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (E)	1-47475-881-0	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9905-	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-508-0	01	1	9603-9605	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9906-9907	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9908-0002	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L>,V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9603-9605	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9606-9606	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	04	1	0003-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-0002	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (A) ID=9	9-09524-845-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9	9-09524-845-0	01	1	9906-0002	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9905-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (D) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (D) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9907	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9907	●	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9908-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9906-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	05	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (D) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (D) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	01	1	9908-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	03	1	0003-	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9803	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-9904	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-47475-303-1	01	1	9603-9904	●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) L=50	1-47475-299-2	01	1	9905-	●	●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B)	1-47475-881-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9804-9904	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9803	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
35	NUT; PIPE CLIP M8	9-09110-508-0	01	1	9603-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9804-9904	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) L=2213	1-47429-325-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2143	1-49164-307-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9906-	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (B) M10	1-09654-368-0	01	1	9603-9606	●
106	UNION; OIL PIPE (B) M12	1-09654-384-0	01	1	9607-9904	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=1380 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9904	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=1117	1-49163-208-0	01	1	9905-9905	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9906-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	9906-	●	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9604	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9605-9705	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9706-9904	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9706-9904	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) SILENCER SINGLE VERTICAL<N28> L=2010 SERVICED BY L=2150	1-47426-394-0	01	1	9605-9608	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) SILENCER SINGLE VERTICAL<N28> L=1914 SERVICED BY L=1950	1-47426-393-0	01	1	9609-9705	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> L=1914 SERVICED BY L=1950	1-47426-393-0	01	1	9706-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9604	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A)	1-47429-772-0	01	1	9605-9608	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) L=872 SERVICED BY L=900	1-47426-384-0	01	1	9609-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=828 SERVICED BY L=900	1-47426-384-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=955	1-49163-430-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●

106 25 29 172 115 116 51 29 4 50 25 81 29 25 116 206 115 191 158 111 92 53 53 95 29 133 132 128 147 206 53 206 207 53 63 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-47477-604-2	01	1	9603-	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (I) L=50	1-47475-299-2	03	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-935-1	01	1	9703-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=50	1-47475-299-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (E)	1-47475-881-0	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9906-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	05	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (D) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (D) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	01	1	9908-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	03	1	0003-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (A) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●	●
50	NUT; UNION L TYPE ENG<90L> (A) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
51	WASHER; LK ID=10.2	9-09150-510-0	01	1	9603-9606	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9607-9904	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9603-9904	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9905-	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9603-9904	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9905-	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9603-9904	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9905-	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9603-9904	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9603-9904	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9905-	●	●
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9603-9904	●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9905-	●	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9904	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (B) M10	1-09654-368-0	01	1	9603-9606	●
106	UNION; OIL PIPE (B) M12	1-09654-384-0	01	1	9607-9904	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9905-	●	●
111	UNION; OIL PIPE (B) M8 & M10 M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 2WAY	1-09654-176-2	01	1	9603-9604	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9605-9705	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9706-9904	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9706-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-034-2	01	1	9605-9705	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-034-2	01	1	9706-9904	●
111	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9904	●
111	UNION; OIL PIPE V TYPE ENG<91L> (B) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9603-9904	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9905-	●	●
132	NUT; UNION,AIR PIPE M20	9-99111-420-0	01	1	9603-9812	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9603-9810	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-9904	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9905-	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-47428-571-0	01	1	9603-9608	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-059-0	01	1	9609-9904	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09364-316-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-S(56L) L=400	1-09364-263-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER V TYPE ENG<91L> L=400	1-09364-263-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L> L=470	1-09364-929-0	01	1	9905-	●	●
190	PIPE; AIR,UNION TO MINIPAC	1-49115-023-0	01	1	9603-9608	●
190	PIPE; AIR,UNION TO MINIPAC	1-49161-065-0	01	1	9609-9904	●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9905-	●	●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-328-0	01	1	9603-9606	●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-927-0	01	1	9607-9904	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9905-	●	●
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9705-9901	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9902-9904	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9905-	●	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9705-9904	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9905-	●	●
206	CLIP; TUBE L TYPE ENG<90L> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0008-	●	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9705-9904	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●

104 153 50 29 28 26 153 29 28 28 33 111 34 25 36 29 25 28 25 34 27 35 27 104 30 115 42 43 153 34 33 116 172 44 33 35 111 104 33 26 35 34 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-47477-604-2	01	1	9603-	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (I) L=50	1-47475-299-2	03	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-935-1	01	1	9703-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=50	1-47475-299-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (E)	1-47475-881-0	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9905-	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-508-0	01	1	9603-9605	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9906-9907	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9908-0002	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L>,V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9603-9605	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9606-9606	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	04	1	0003-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-0002	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (A) ID=9	9-09524-845-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9	9-09524-845-0	01	1	9906-0002	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9905-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (D) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (D) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9904	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9907	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9907	●	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9908-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (E) M8X30 FLANGE	0-28680-830-0	01	1	9906-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	05	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (D) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (D) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	01	1	9908-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (D) M8X20 FLANGE	0-28680-820-0	03	1	0003-	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9803	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-9904	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9804-9904	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9803	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
35	NUT; PIPE CLIP M8	9-09110-508-0	01	1	9603-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9804-9904	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
36	BRACKET; CLIP L TYPE ENG<90L> (B) L=50	1-47475-299-2	01	1	9908-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9603-0102	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9803-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0103-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8	9-09110-508-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (A) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●	●
50	NUT; UNION L TYPE ENG<90L> (A) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) L=2213	1-47429-325-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2143	1-49164-307-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9906-	●	●
111	UNION; OIL PIPE (B) M8 & M10 M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 2WAY	1-09654-176-2	01	1	9603-9604	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9605-9705	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9706-9904	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9706-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-034-2	01	1	9605-9705	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-034-2	01	1	9706-9904	●
111	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9904	●
111	UNION; OIL PIPE V TYPE ENG<91L> (B) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9604	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A)	1-47429-772-0	01	1	9605-9608	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) L=872 SERVICED BY L=900	1-47426-384-0	01	1	9609-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=828 SERVICED BY L=900	1-47426-384-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=955	1-49163-430-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09364-316-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-S(56L) L=400	1-09364-263-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER V TYPE ENG<91L> L=400	1-09364-263-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L> L=470	1-09364-929-0	01	1	9905-	●	●

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) L=430	1-09364-859-0	01	1	9603-9904	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-0	01	1	9603-9904	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
22	UNION; CLU PIPE SHORT CHASSIS&LHD(EXZ6MC) M14	9-09225-208-1	01	1	9603-9709	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9710-9904	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-47477-604-2	01	1	9603-	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (I) L=50	1-47475-299-2	03	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-935-1	01	1	9703-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=50	1-47475-299-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (E)	1-47475-881-0	01	1	9603-9904	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9803	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-9904	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (A) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●	●
50	NUT; UNION L TYPE ENG<90L> (A) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-47477-602-1	01	1	9603-	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9603-9904	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9905-	●	●
102	NUT; FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) M14	9-99111-414-0	01	1	9603-9709	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) ID=14.2	9-09150-514-0	01	1	9603-9709	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9603-9810	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9604	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A)	1-47429-772-0	01	1	9605-9608	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) L=872 SERVICED BY L=900	1-47426-384-0	01	1	9609-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=828 SERVICED BY L=900	1-47426-384-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=955	1-49163-430-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9905-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9904	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9904	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●

104 109 110 153 110 35 33 111 50 153 37 43 34 33 42 116 115 172 38 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9804-9904	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9803	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
35	NUT; PIPE CLIP M8	9-09110-508-0	01	1	9603-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9804-9904	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
37	BOLT; CLIP BRKT SHORT CHASSIS&RHD(EXZ5MC) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
37	BOLT; CLIP BRKT SHORT CHASSIS&RHD(EXZ5MC) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
38	NUT; CLIP BRKT SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	02	1	9603-9606	●
38	NUT; CLIP BRKT SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9603-0102	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9803-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0103-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8	9-09110-508-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (A) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●	●
50	NUT; UNION L TYPE ENG<90L> (A) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) L=2213	1-47429-325-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2143	1-49164-307-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9906-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=1380 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9904	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=1117	1-49163-208-0	01	1	9905-9905	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9906-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	9906-	●	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9604	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9605-9705	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9706-9904	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> L=2182 SERVICED BY L=2400	1-47426-395-0	01	1	9706-9904	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) SILENCER SINGLE VERTICAL<N28> L=2010 SERVICED BY L=2150	1-47426-394-0	01	1	9605-9608	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) SILENCER SINGLE VERTICAL<N28> L=1914 SERVICED BY L=1950	1-47426-393-0	01	1	9609-9705	●
110	PIPE; OIL,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> L=1914 SERVICED BY L=1950	1-47426-393-0	01	1	9706-9904	●
111	UNION; OIL PIPE (B) M8 & M10 M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) M14 2WAY	1-09654-176-2	01	1	9603-9604	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9605-9705	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9706-9904	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-176-2	01	1	9706-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-034-2	01	1	9605-9705	●
111	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) M14 2WAY	1-09654-034-2	01	1	9706-9904	●
111	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9904	●
111	UNION; OIL PIPE V TYPE ENG<91L> (B) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9604	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A)	1-47429-772-0	01	1	9605-9608	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) L=872 SERVICED BY L=900	1-47426-384-0	01	1	9609-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=828 SERVICED BY L=900	1-47426-384-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=955	1-49163-430-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09364-316-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-S(56L) L=400	1-09364-263-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER V TYPE ENG<91L> L=400	1-09364-263-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L> L=470	1-09364-929-0	01	1	9905-	●	●

36 24 67 185 67 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC)	1-47427-608-0	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC)	1-47427-608-0	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=628	1-47428-381-1	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=628	1-47428-381-1	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
36	BRACKET; CLIP L TYPE ENG<90L> (B) L=50	1-47475-299-2	01	1	9908-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9603-9904	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9603-9904	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9904	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9904	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-9904	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9905-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9904	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9603-9904	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXZ5MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9603-9904	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9603-9904	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9905-	●	●

27 185 50 36 147 58 58 57 67 67 66 186 24 22 167 103 102 153 180 184 187 1 192 10 17 175 50 56 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) L=430	1-09364-859-0	01	1	9603-9904	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-0	01	1	9603-9904	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
17	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9603-9904	●
17	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9905-	●	●
22	UNION; CLU PIPE SHORT CHASSIS&LHD(EXZ6MC) M14	9-09225-208-1	01	1	9603-9709	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9710-9904	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC)	1-47427-608-0	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC)	1-47427-608-0	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=628	1-47428-381-1	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=628	1-47428-381-1	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (D) M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
36	BRACKET; CLIP L TYPE ENG<90L> (B) L=50	1-47475-299-2	01	1	9908-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (A) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●	●
50	NUT; UNION L TYPE ENG<90L> (A) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-47477-602-1	01	1	9603-	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9603-9904	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9603-9904	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9603-9904	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9904	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9904	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
102	NUT; FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) M14	9-99111-414-0	01	1	9603-9709	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) ID=14.2	9-09150-514-0	01	1	9603-9709	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9603-9810	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-9904	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9604	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A)	1-47429-772-0	01	1	9605-9608	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) L=872 SERVICED BY L=900	1-47426-384-0	01	1	9609-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=828 SERVICED BY L=900	1-47426-384-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=955	1-49163-430-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9603-9904	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9905-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9904	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9904	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9904	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9603-9904	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXZ5MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9603-9904	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9603-9904	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9905-	●	●
192	PLATE SHORT CHASSIS&RHD(EXZ5MC)	1-71117-221-0	01	1	9603-9904	●
192	PLATE SHORT CHASSIS&RHD(EXZ5MC)	1-71117-221-0	01	1	9905-	●	●

153 24 1 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) L=430	1-09364-859-0	01	1	9603-9904	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-0	01	1	9603-9904	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-1	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC)	1-47427-608-0	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC)	1-47427-608-0	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=628	1-47428-381-1	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=628	1-47428-381-1	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) L=2213	1-47429-325-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2143	1-49164-307-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9604	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A)	1-47429-772-0	01	1	9605-9608	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) SILENCER SINGLE VERTICAL<N28> (A) L=872 SERVICED BY L=900	1-47426-384-0	01	1	9609-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A) L=828 SERVICED BY L=900	1-47426-384-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=955	1-49163-430-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (B) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
