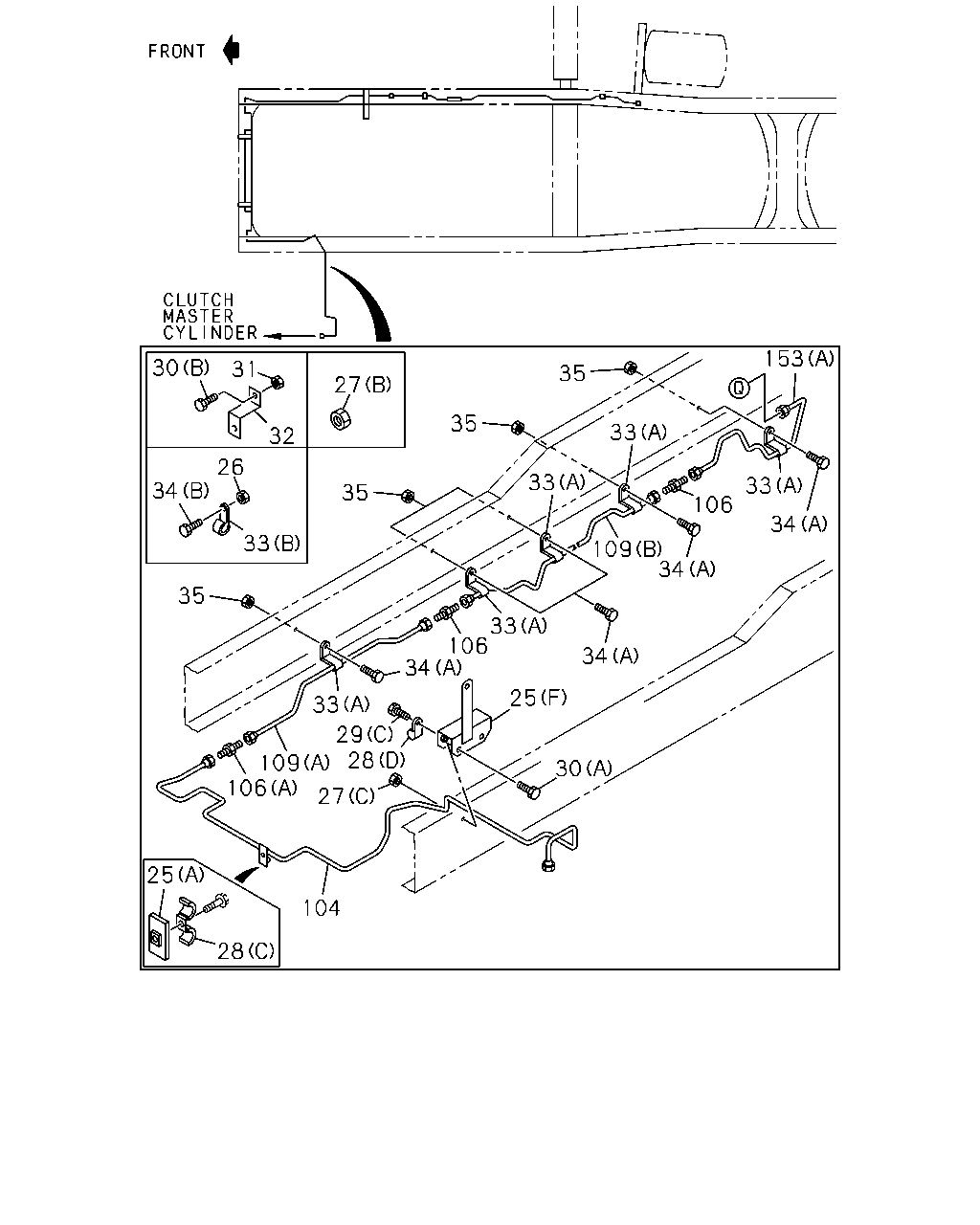

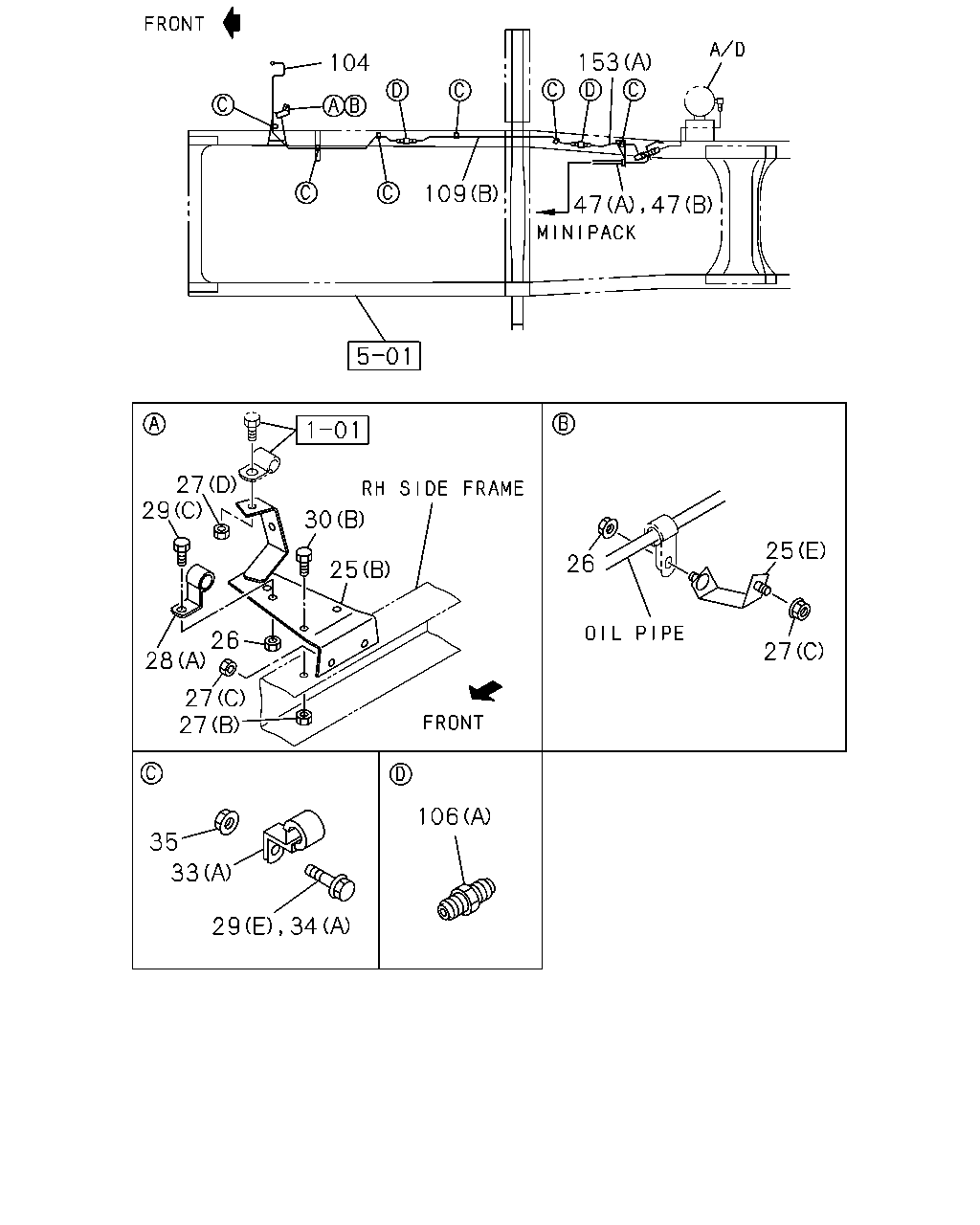

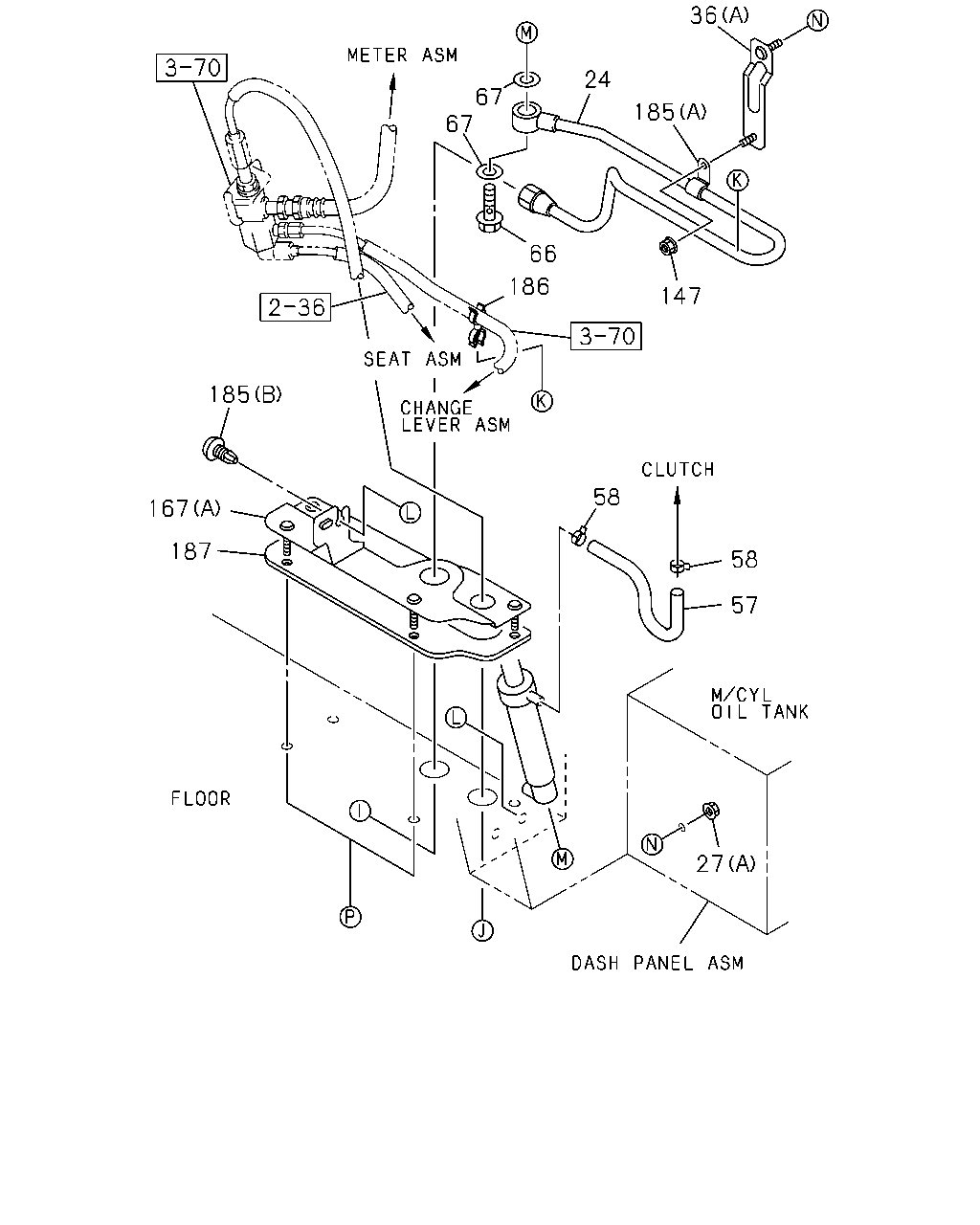

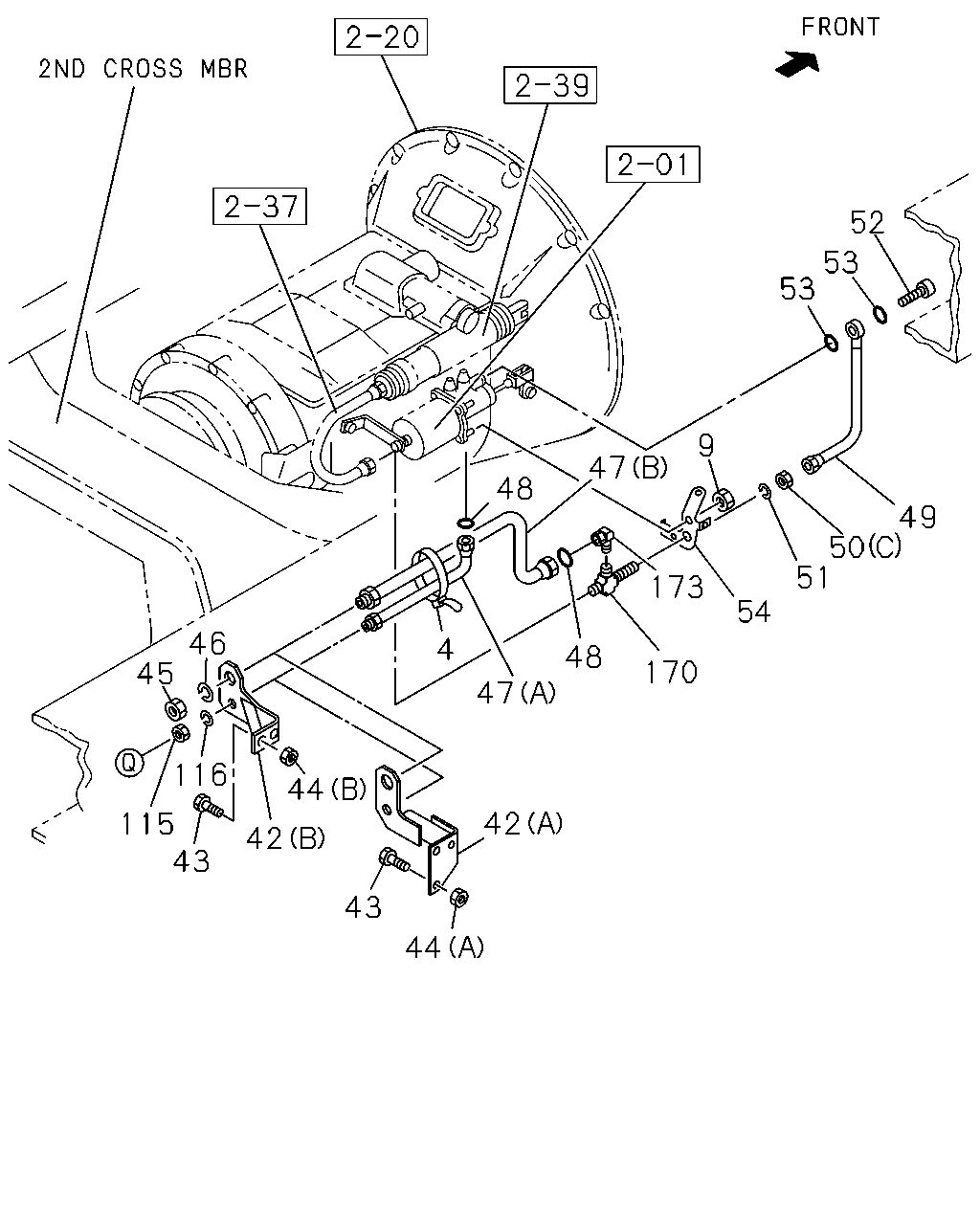

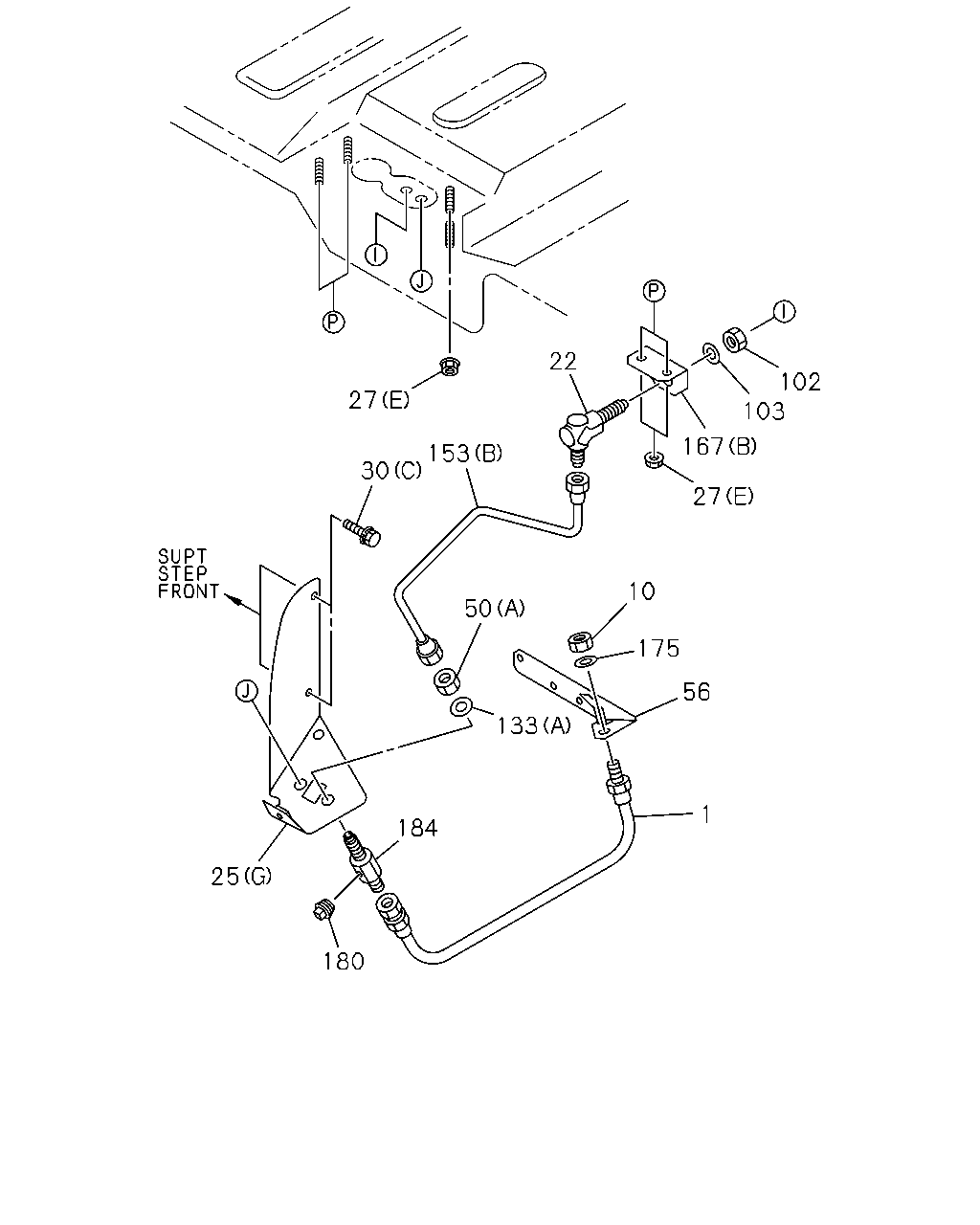

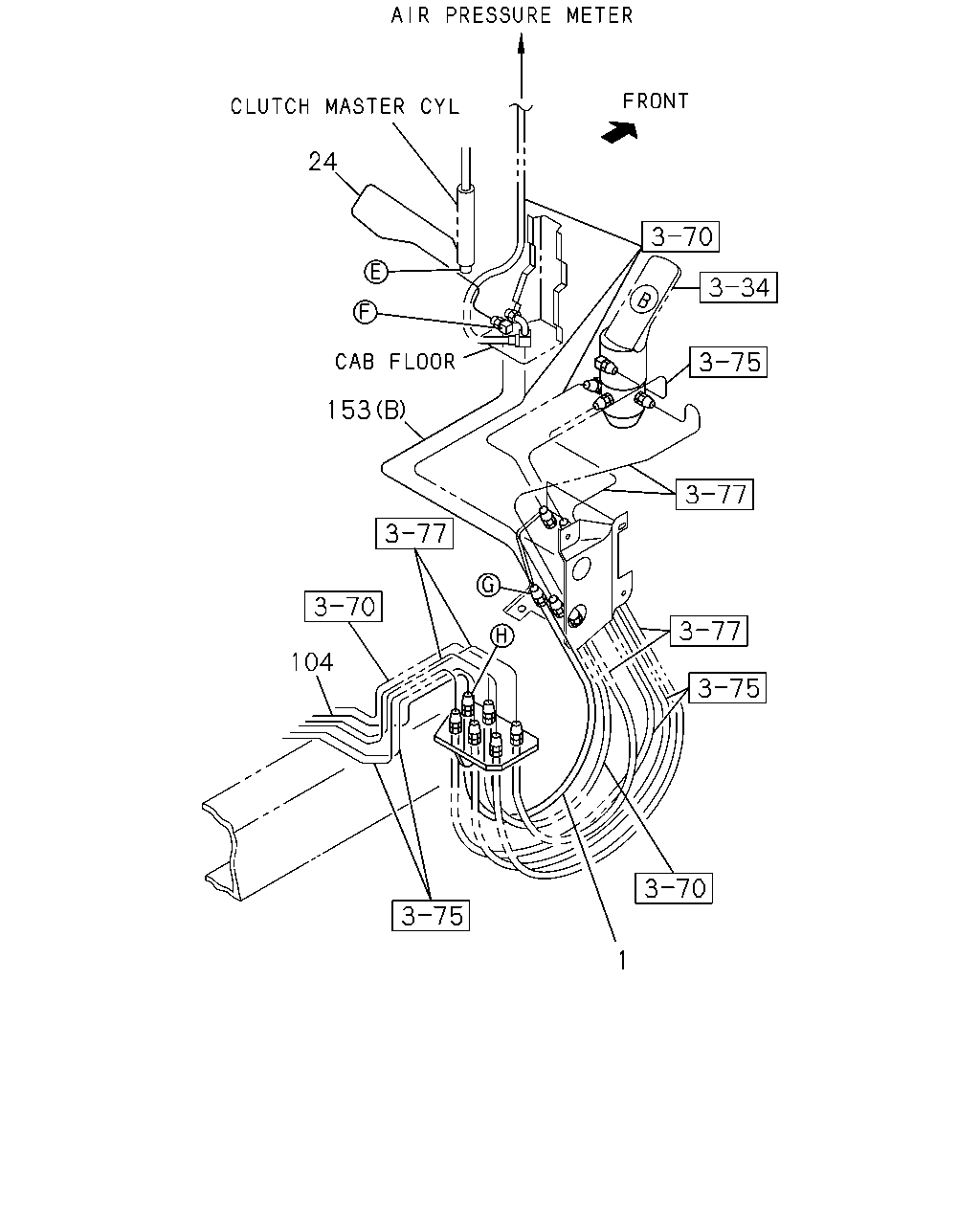

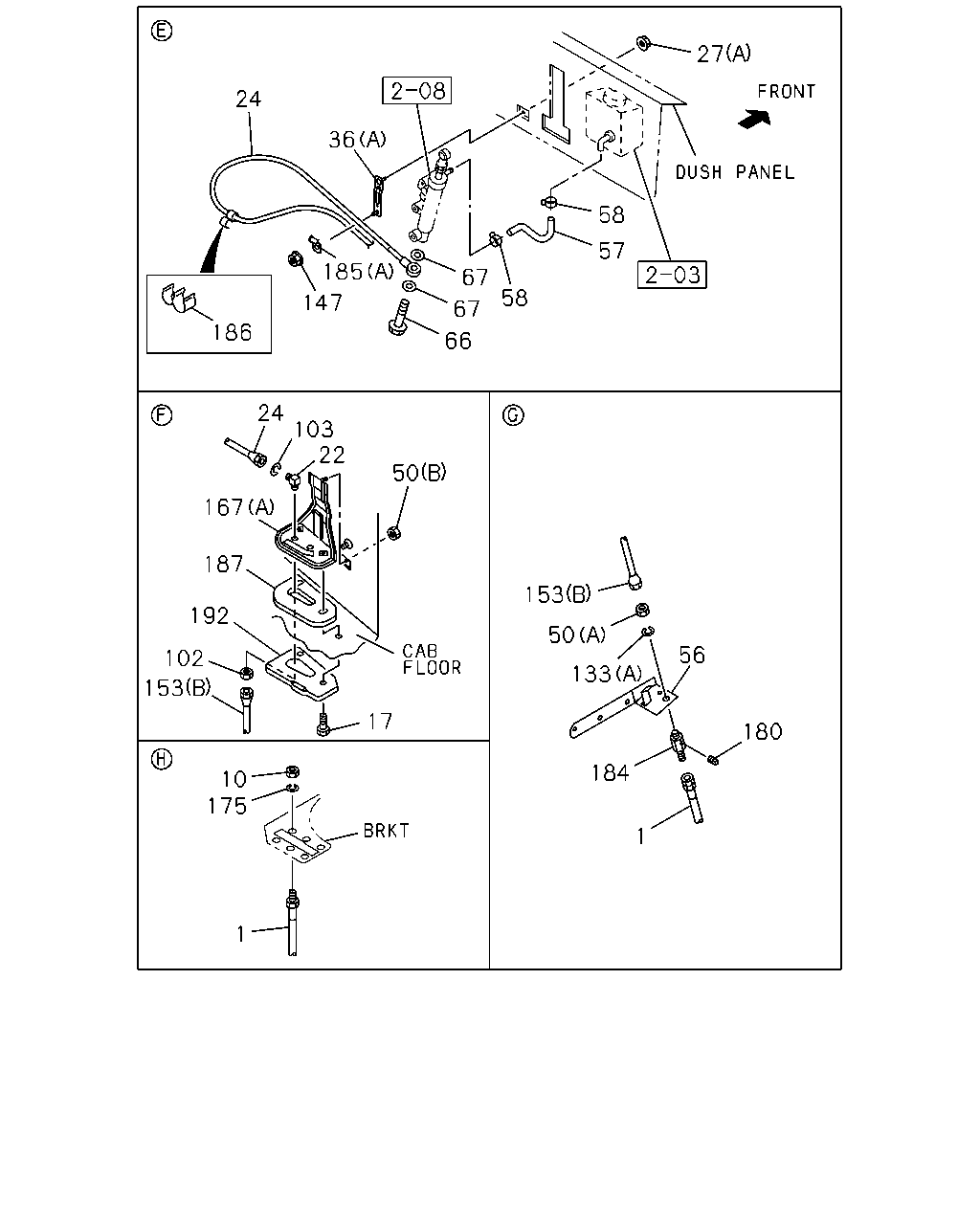

2-05A — CLUTCH PIPING (#4753) — 644 parça

153 30 31 35 27 33 35 32 33 26 34 33 35 106 34 33 109 34 35 33 106 34 34 25 33 29 28 109 106 30 27 25 104 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (F)	1-47478-583-1	01	1	9905-	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-47477-604-2	01	1	9603-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9905-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-748-0	01	1	9603-9702	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-935-1	01	1	9703-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (A) L=50	1-47475-299-2	02	1	9905-	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	01	1	9603-9605	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9906-9907	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9908-0002	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (A) ID=9	9-09524-845-0	01	1	9603-9904	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (A) ID=9	9-09524-845-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9	9-09524-845-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9905-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (D) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9907	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9908-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	9906-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E) M8X30 FLANGE	0-28680-830-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X20 FLANGE	0-28680-820-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9803	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-9904	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
31	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	01	1	9603-9606	●	●
31	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
31	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9804-9904	●	●
31	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L)	1-47475-881-0	01	1	9603-9803	●	●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L>	1-47475-881-0	01	1	9804-9904	●	●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L>	1-47477-235-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9804-9904	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) ID=9 L=20	9-09524-835-0	01	1	9603-9803	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) ID=9 L=20	9-09524-835-0	01	1	9804-9904	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9803	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
35	NUT; PIPE CLIP M8	9-09110-508-0	01	1	9603-9606	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8	9-09110-508-0	01	1	9603-9606	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	04	1	9905-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	02	1	9603-9606	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) M8	9-09110-508-0	03	1	9603-9606	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	03	1	9804-9904	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9905-0002	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1595	1-49165-436-0	01	1	0003-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9804-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (B) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9603-9904	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (B) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) (A) L=1031	1-47428-387-0	01	1	9603-9904	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9603-	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●

153 104 109 27 29 30 25 26 25 26 27 28 27 27 106 35 33 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (F)	1-47478-583-1	01	1	9905-	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-47477-604-2	01	1	9603-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9905-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-748-0	01	1	9603-9702	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-935-1	01	1	9703-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (A) L=50	1-47475-299-2	02	1	9905-	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	01	1	9603-9605	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9906-9907	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9908-0002	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (A) ID=9	9-09524-845-0	01	1	9603-9904	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (A) ID=9	9-09524-845-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9	9-09524-845-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (D) ID=9 L=20	9-09524-835-0	01	1	9905-0002	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (D) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9907	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9908-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (C) M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (E) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (E) M8X30 FLANGE	0-28680-830-0	01	1	9906-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E) M8X30 FLANGE	0-28680-830-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (C) M8X20 FLANGE	0-28680-820-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (C) M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9803	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-9904	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9803	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9804-9904	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) ID=9 L=20	9-09524-835-0	01	1	9603-9803	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) ID=9 L=20	9-09524-835-0	01	1	9804-9904	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A) M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9803	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9804-9904	●
35	NUT; PIPE CLIP M8	9-09110-508-0	01	1	9603-9606	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8	9-09110-508-0	01	1	9603-9606	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	04	1	9905-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8	9-09110-508-0	02	1	9603-9606	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9908-	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) M8	9-09110-508-0	03	1	9603-9606	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	03	1	9804-9904	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9905-0002	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1595	1-49165-436-0	01	1	0003-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9804-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9803	●	●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9804-9904	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) (B) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9603-9904	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> (B) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) (A) L=1031	1-47428-387-0	01	1	9603-9904	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9603-	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) L=430	1-09364-859-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
22	UNION; CLU PIPE SHORT CHASSIS&LHD(EXZ6MC) M14	9-09225-208-1	01	1	9603-9709	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9710-9904	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (F)	1-47478-583-1	01	1	9905-	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-47477-604-2	01	1	9603-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> (E)	1-47477-597-2	01	1	9905-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-748-0	01	1	9603-9702	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (F)	1-47477-935-1	01	1	9703-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (G)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) (A) L=50	1-47475-299-2	01	1	9906-0002	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (A) L=50	1-47475-299-2	02	1	9905-	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9803	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-9904	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9603-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-47477-602-1	01	1	9603-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9603-9904	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9905-	●	●
102	NUT; FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) M14	9-99111-414-0	01	1	9603-9709	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) ID=14.2	9-09150-514-0	01	1	9603-9709	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9603-	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9905-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9904	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9904	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●

36 24 67 67 185 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=643	1-47424-529-2	01	1	9603-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=643	1-47424-529-2	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=621	1-47428-362-1	01	1	9603-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=621	1-47428-362-1	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9603-9904	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9603-9904	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9904	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9904	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9905-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9904	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9603-9904	●	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXZ5MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXZ5MC)	8-94107-710-0	02	1	9905-	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9603-9904	●	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9603-9904	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9905-	●	●

27 24 36 58 57 185 67 58 147 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) L=430	1-09364-859-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
17	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9603-9904	●	●
17	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9905-	●	●
22	UNION; CLU PIPE SHORT CHASSIS&LHD(EXZ6MC) M14	9-09225-208-1	01	1	9603-9709	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9710-9904	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=643	1-47424-529-2	01	1	9603-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=643	1-47424-529-2	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=621	1-47428-362-1	01	1	9603-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=621	1-47428-362-1	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8	9-09110-508-0	01	1	9603-9606	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (D) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
27	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXZ6MC) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9603-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-47477-602-1	01	1	9603-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9603-9904	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXZ6MC)	1-47477-603-1	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9603-9904	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXZ5MC)	1-47424-533-0	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9603-9904	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXZ6MC)	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9904	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9904	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
102	NUT; FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) M14	9-99111-414-0	01	1	9603-9709	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) ID=14.2	9-09150-514-0	01	1	9603-9709	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9603-	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXZ5MC) (A)	1-71117-183-3	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (A)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9603-9904	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXZ6MC) (B)	1-71907-376-1	01	1	9905-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9904	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9904	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9904	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9603-9904	●	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXZ6MC) (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXZ5MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXZ5MC)	8-94107-710-0	02	1	9905-	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9904	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXZ6MC) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9603-9904	●	●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC)	1-71117-222-0	01	1	9905-	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9603-9904	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXZ6MC)	1-71117-209-2	01	1	9905-	●	●
192	PLATE SHORT CHASSIS&RHD(EXZ5MC)	1-71117-221-0	01	1	9603-9904	●	●
192	PLATE SHORT CHASSIS&RHD(EXZ5MC)	1-71117-221-0	01	1	9905-	●	●

52 53 53 9 47 48 49 50 51 173 54 46 4 48 170 45 47 44 116 42 115 43 42 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
42	BRACKET; FLEX HOSE,CLU CONT L TYPE ENG<90L> (A)	1-47477-414-0	01	1	9603-	●
42	BRACKET; FLEX HOSE,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) 6WA1 TC-S(56L) (A)	1-47478-030-0	01	1	9709-9904	●
42	BRACKET; FLEX HOSE,CLU CONT V TYPE ENG<91L> (B)	1-47477-546-1	01	1	9603-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9803-9904	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	0103-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L) M10X25 FLANGE	0-28081-025-0	02	1	9603-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> (A) M10	9-09110-510-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	02	1	9607-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) (B) M8	9-09110-508-0	02	1	9603-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) (B) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) (B) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9603-	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	9603-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9603-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	9603-	●	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9603-	●	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07806-500-1	01	1	9603-	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	9603-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9603-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=245	1-49113-614-1	01	1	9603-9608	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=245	1-49117-733-0	01	1	9609-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49114-730-1	01	1	9603-9608	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	9609-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-9904	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9603-	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-9904	●	●
50	NUT; UNION SHORT CHASSIS&RHD(EXZ5MC) (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9603-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9603-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-640-0	01	1	9603-	●	●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-	●	●

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) L=430	1-09364-859-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT SHORT CHASSIS&LHD(EXZ6MC) L=520	1-09364-948-1	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=643	1-47424-529-2	01	1	9603-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXZ5MC) L=643	1-47424-529-2	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=621	1-47428-362-1	01	1	9603-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXZ6MC) L=621	1-47428-362-1	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9905-0002	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> L=1595	1-49165-436-0	01	1	0003-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 10PE1S(60L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) V TYPE ENG<91L> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) 6WA1 TC-S(56L) L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9804-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXZ6MC) L TYPE ENG<90L> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9603-	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=464	1-47424-530-2	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXZ6MC) (B) L=490	1-47428-363-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
