◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11427 - FXR/GXR(AUST)JNLT05 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#47529) — 68 parça

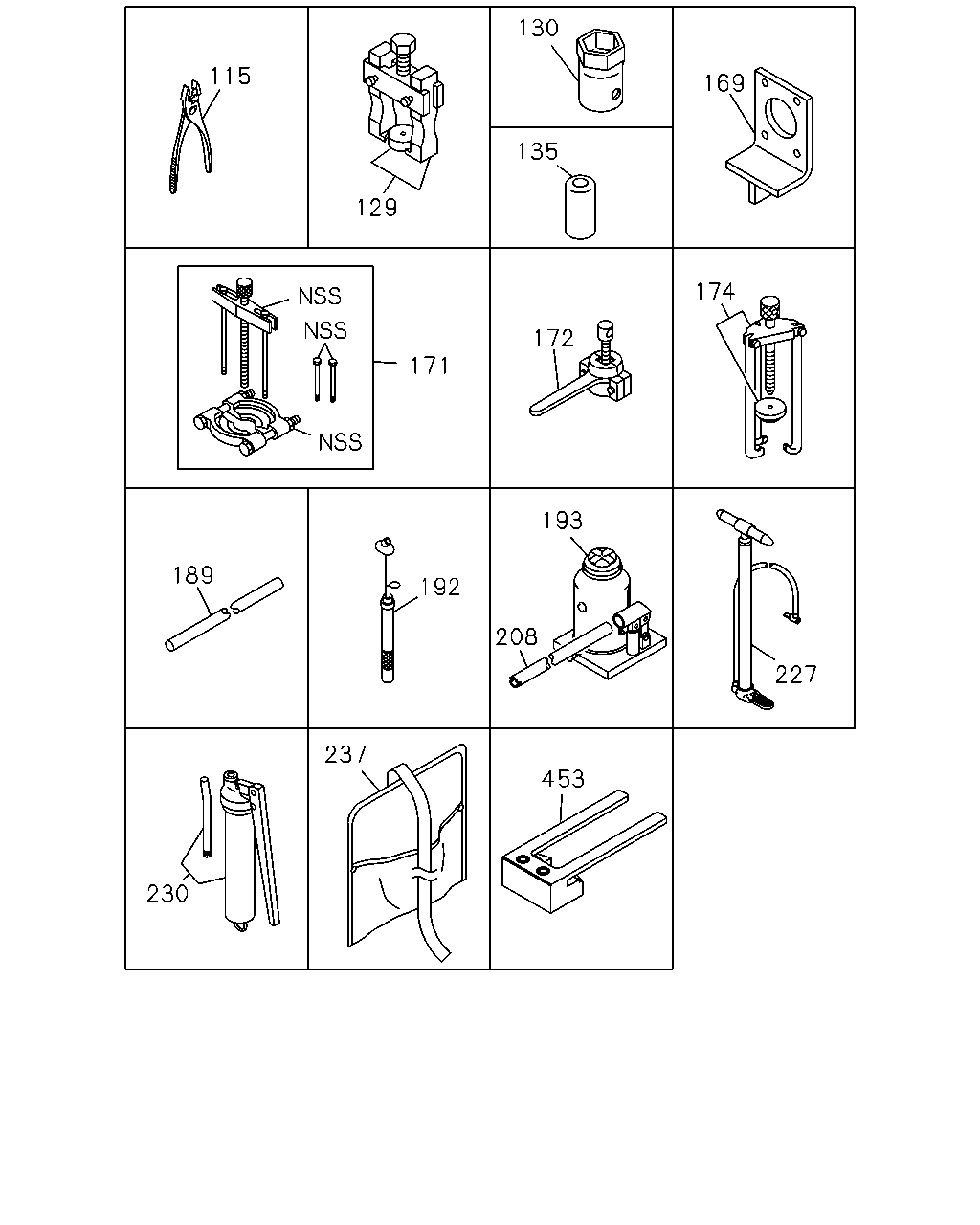

çizim 112710
130 115 169 135 129 174 172 171 193 189 192 208 227 237 453 230
BalonParca AdiParca NoAdetTipApplied Date A B C
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0801- ● ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0801- ● ● ●
130 WRENCH; BOX
TOOL B KIT<SL1> B=63 		9-85111-368-0 01 1 0801- ● ● ●
135 COVER; ENG MTG,FRT
TOOL B KIT<SL1> 		9-85595-016-0 02 1 0801- ● ● ●
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0801- ● ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0801-1101 ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1102- ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0801-1101 ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1102- ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0801-1303 ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 1304- ● ● ●
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 0801- ● ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0801- ● ● ●
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 0801- ● ● ●
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		1-85515-009-0 01 1 0801-1107 ● ● ●
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		8-98181-437-0 01 1 1108- ● ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0801- ● ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0801- ● ● ●
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0801- ● ● ●
453 TOOL; SETTING,COUPLING 8-97620-813-0 01 1 0801- ● ● ●

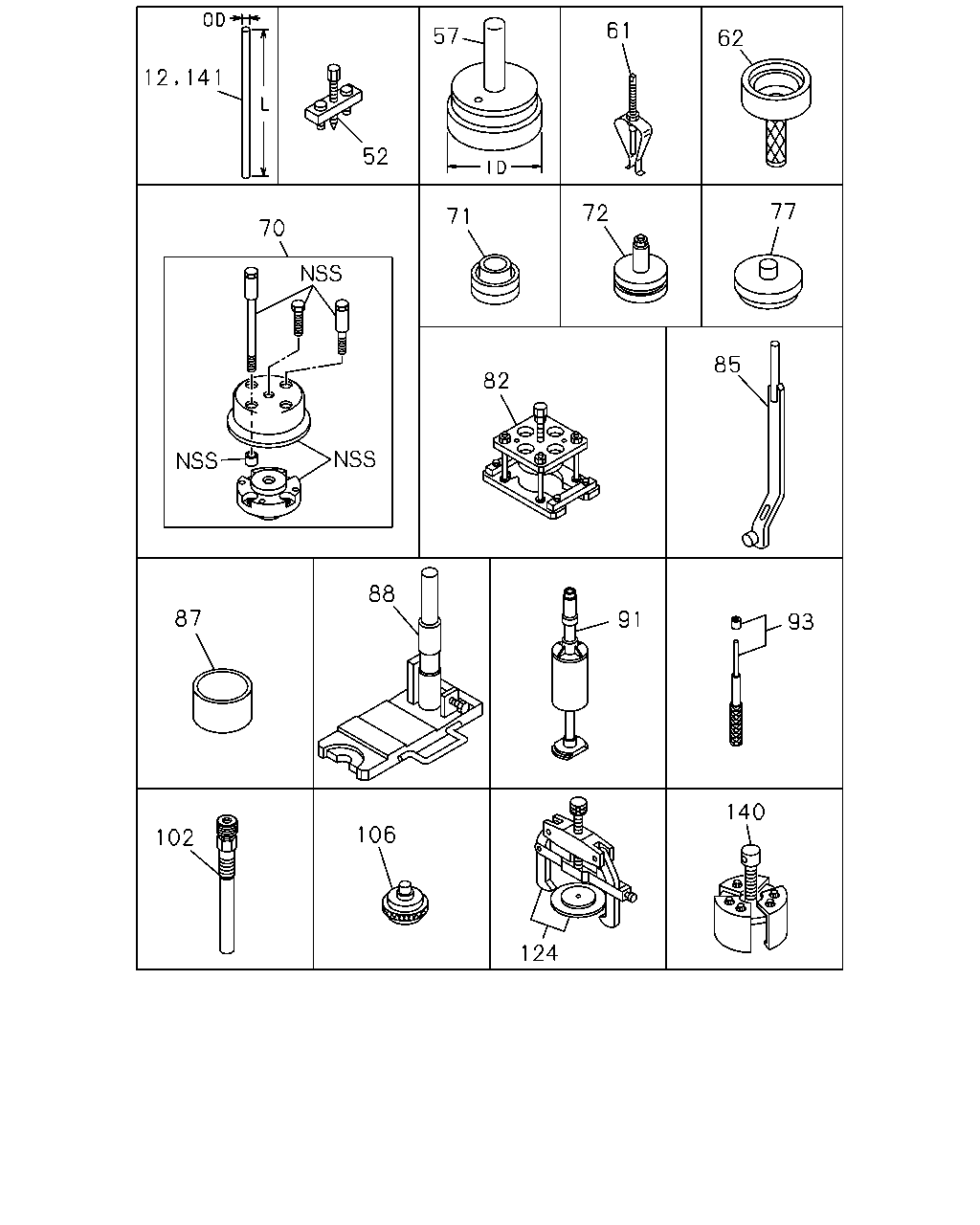

çizim 112722
61 57 62 52 77 72 71 70 85 82 88 87 91 93 140 106 102 124 12 141
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0801-1411 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1412- ● ● ●
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 0801- ● ● ●
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 0801- ● ● ●
57 TOOL; SETTING CRANK GEAR
ID=165.8 		1-85221-075-0 01 1 0801- ● ● ●
61 PULLER ASM; PILOT BRG 1-85220-028-0 01 1 0801- ● ● ●
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 0801- ● ● ●
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 01 1 1109-1302 ● ● ●
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 AR 1 1303- ● ● ●
71 TOOL; SETTING,OIL SEAL,FRT 1-85220-029-0 01 1 0801-1108 ● ● ●
72 TOOL; SETTING,OIL SEAL,RR 1-85220-030-0 01 1 0801-1108 ● ● ●
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 0801- ● ● ●
82 PULLER ASM; CR/SHF GEAR 1-85210-051-0 01 1 0801- ● ● ●
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 0801- ● ● ●
87 TOOL; PISTON 1-85221-082-0 01 1 0801- ● ● ●
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 0801- ● ● ●
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 0801- ● ● ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0801- ● ● ●
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0801- ● ● ●
106 TOOL; SETTING PILOT BRG 1-85221-080-0 01 1 0801- ● ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0801-1101 ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1102- ●
140 REMOVER; WEAR RING 1-85210-053-0 01 1 0801- ● ● ●
141 HANDLE; WRENCH
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0801-0910 ● ● ●
141 HANDLE; WRENCH
TOOL B KIT<SL1> OD=16 L=200 		9-85111-934-0 01 1 0801- ● ● ●
çizim 112725
35 34 33 32 4 31 1 42 43 30 13 17 9 29 29 29 23 22 21 20 363
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 0801- ● ●
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 0801- ● ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0801- ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0801-0907 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0908-1407 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0801- ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0801- ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0801- ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0801- ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0801- ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 0801- ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0801- ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 0801- ● ● ●
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 0801- ● ● ●
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 0801- ● ● ●
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 0801- ● ● ●
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 0801- ● ● ●
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 0801- ● ● ●
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 0801- ● ● ●
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 0801- ● ● ●
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-501-0 01 1 0801- ● ● ●
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 0801- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
