Sayfa 8-28 - Isuzu EPC

531 115 769

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0801-	●	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0801-1402	●	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●	●

132 34 132 132 89 285 210 89 746 284 602 210 284 89 261 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

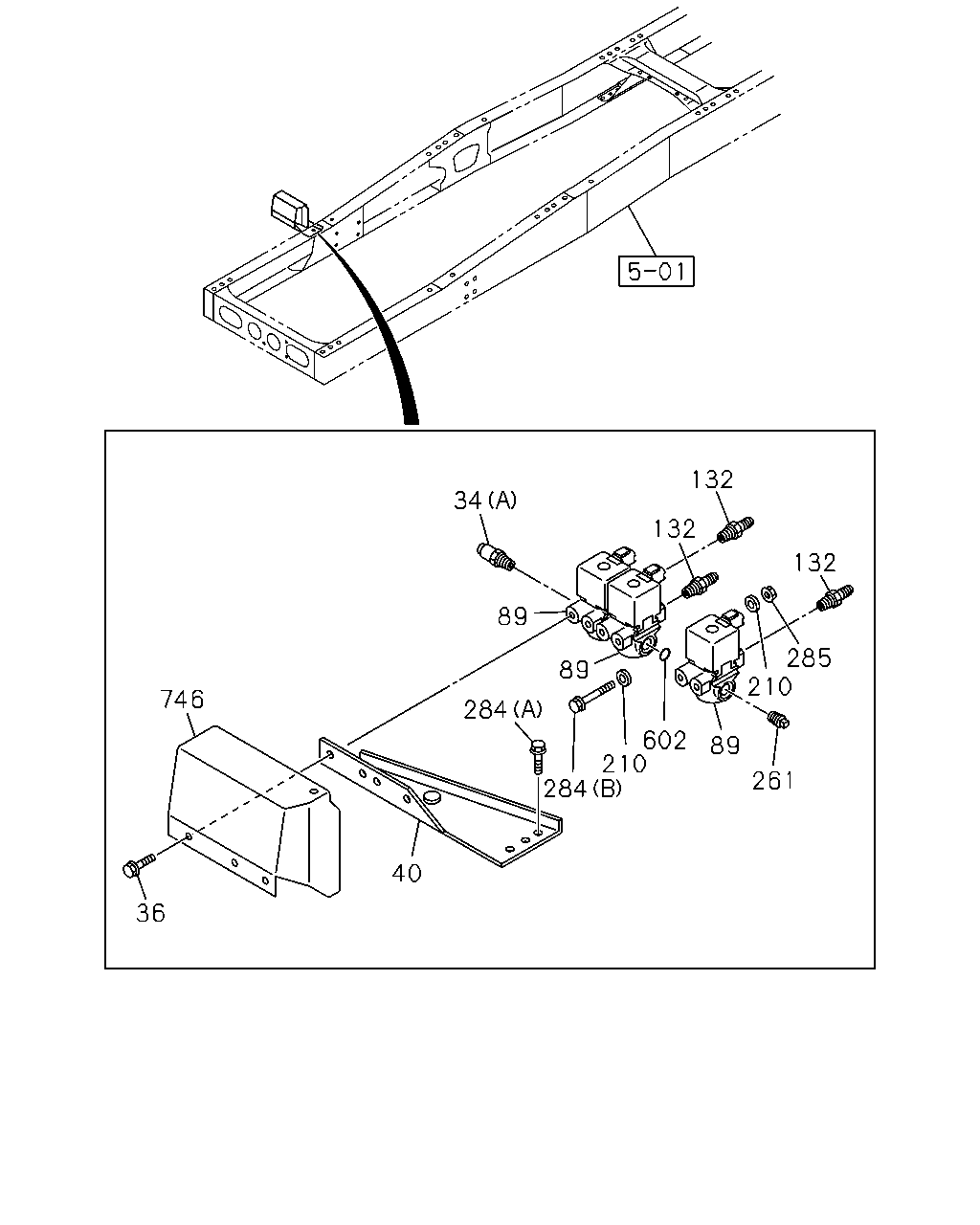

34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0801-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-	●		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-		●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0801-	●	●	●
40	BRACKET; MAG VLV	8-98100-335-0	01	1	0801-	●	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	03	1	0801-	●	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	01	1	0809-1205	●	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-	●	●	●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0801-	●	●	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0801-	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0801-0808	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0809-	●	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0809-	●	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0801-	●	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●
284	BOLT; MAG VLV DIFF LOCK<C3N> (C) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	0801-	●	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0801-	●	●	●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	0801-	●	●	●

22 754 462 753 770 684 684 754

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

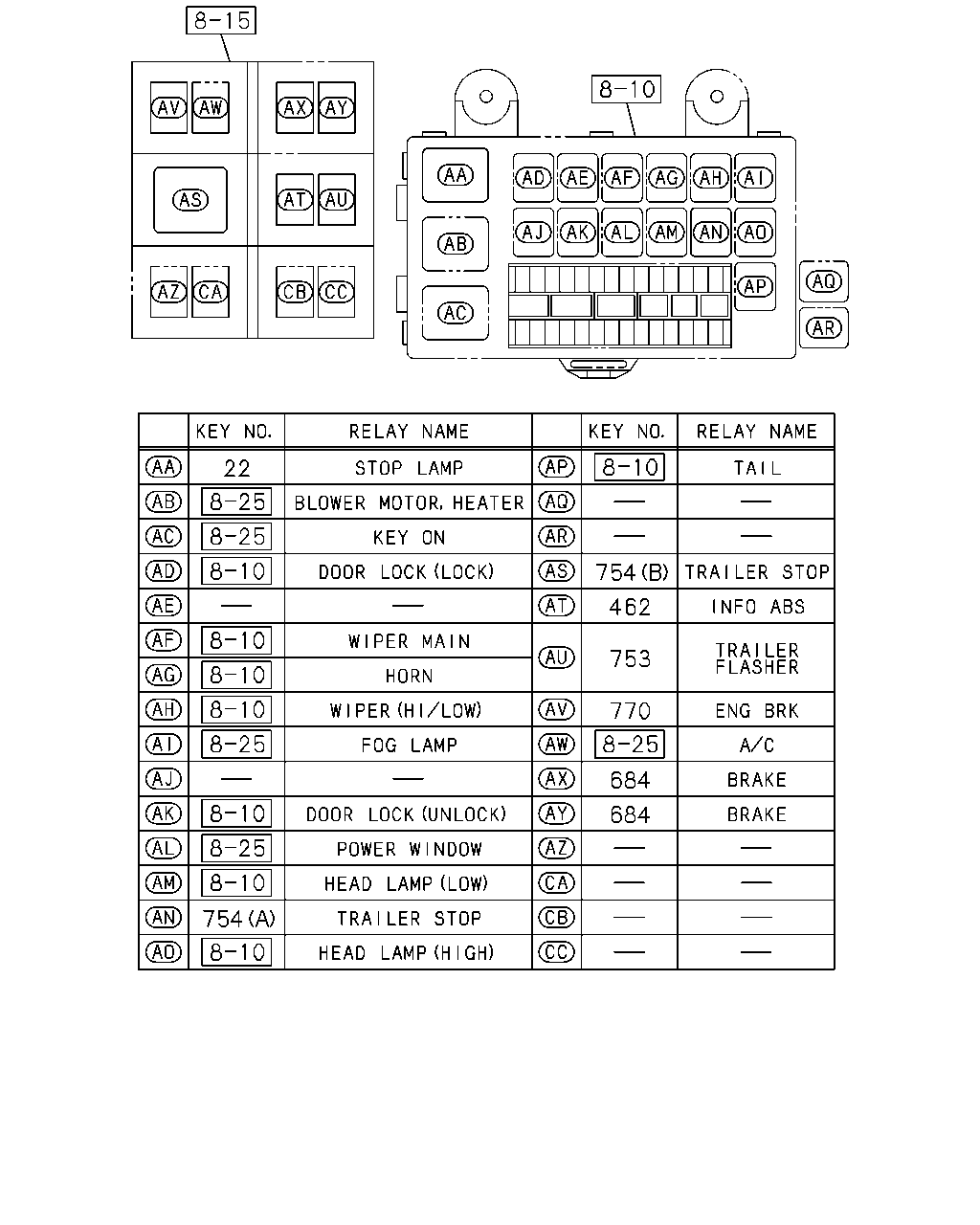

22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0801-	●	●	●
462	RELAY; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	0801-			●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	0801-	●	●	●
753	RELAY; TRAILER FLASHER 24V 10A PANASONIC	8-97173-035-1	01	1	0801-0805			●
753	RELAY; TRAILER FLASHER 24V 10A PANASONIC	8-97173-035-1	02	1	0806-			●
754	RELAY; TRAILER STOP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0801-			●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0806-			●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●	●

91 282 90 89 261 34 90 284 34 34 261 89 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

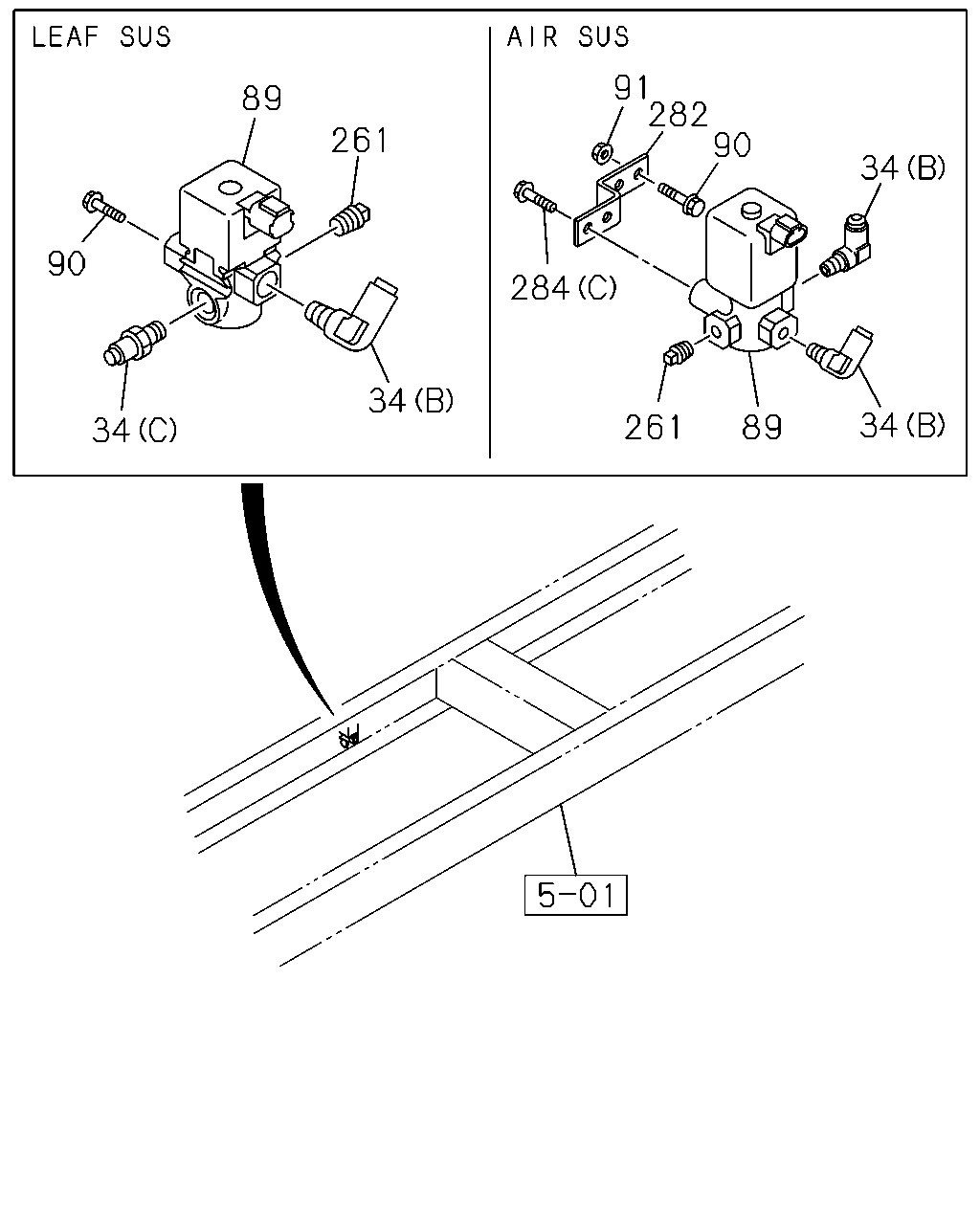

34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0801-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-	●		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	03	1	0801-	●	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	01	1	0809-1205	●	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-	●	●	●
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	0809-	●		●
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X25 FLANGE	0-28650-825-0	02	1	0809-		●
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	0809-	●		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0801-0808	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0809-	●	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0809-	●	●	●
282	BRACKET; MAG VLV DIFF LOCK<C3N>	1-82569-278-0	01	1	0809-	●		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0801-	●	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●
284	BOLT; MAG VLV DIFF LOCK<C3N> (C) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●

45 50 44 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

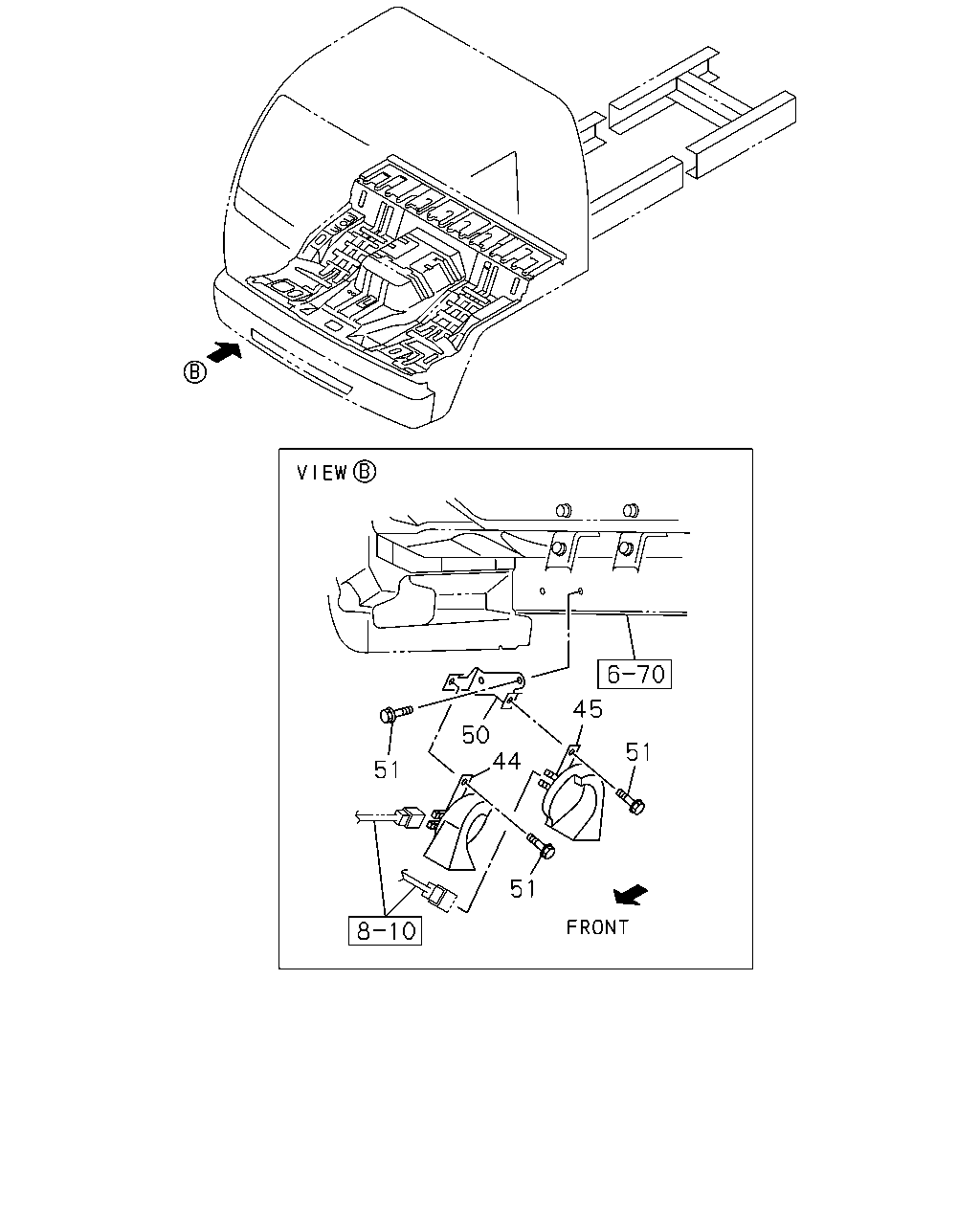

44	HORN; HIGH NOTE	8-97611-677-2	01	1	0801-	●	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	0801-	●	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	0801-	●	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0801-	●	●	●

2 1 2 4 573 540 468 440

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

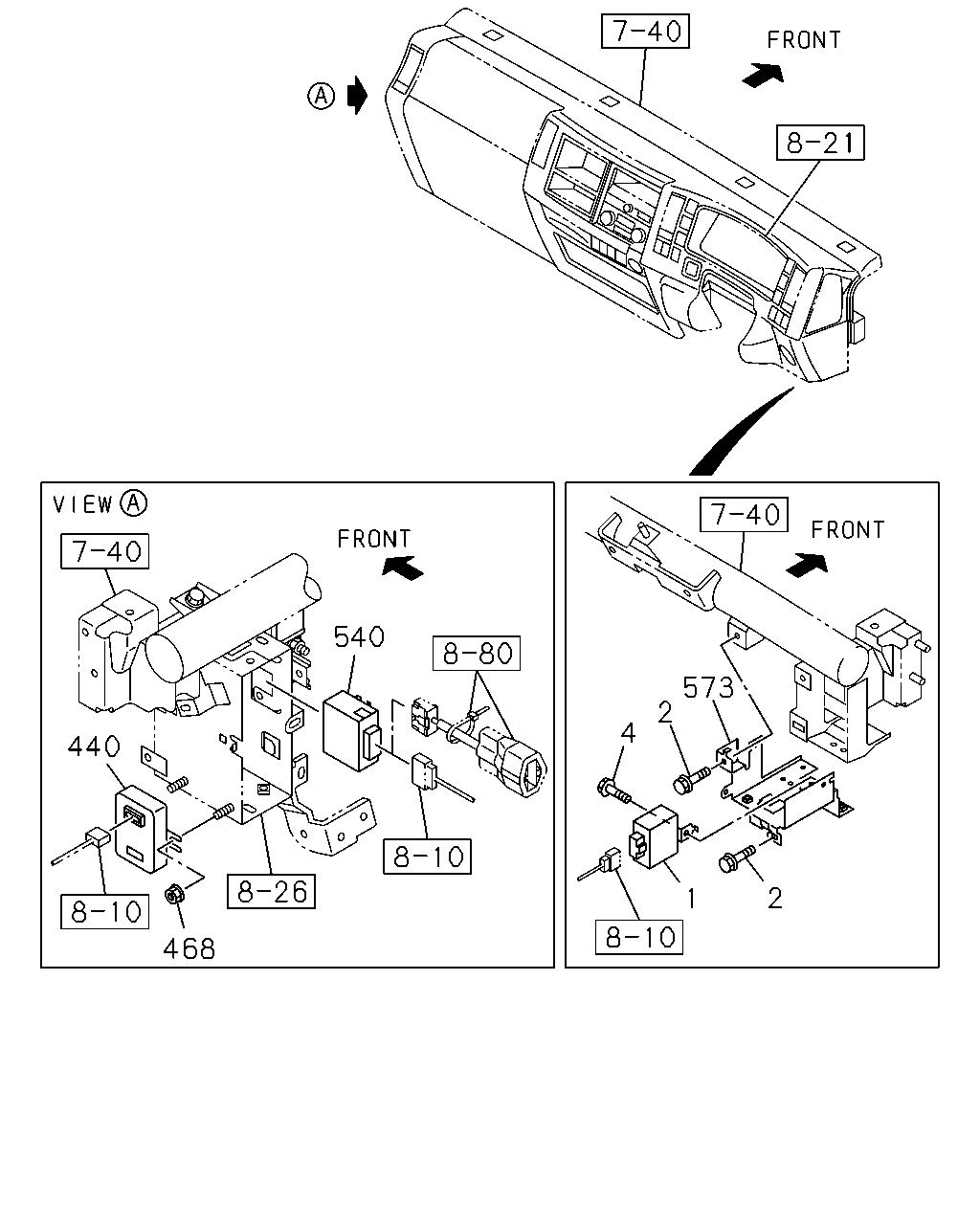

1	UNIT; FLASHER	8-98025-533-1	01	1	0801-	●	●
1	UNIT; FLASHER	8-97613-970-1	01	1	0801-			●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0801-	●	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0801-	●	●	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA)	1-81510-701-0	01	1	0801-			●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91180-106-0	02	1	0801-			●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0801-1308	●	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0801-	●	●	●

66 65 65 480 64 64 84 85 86 117 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

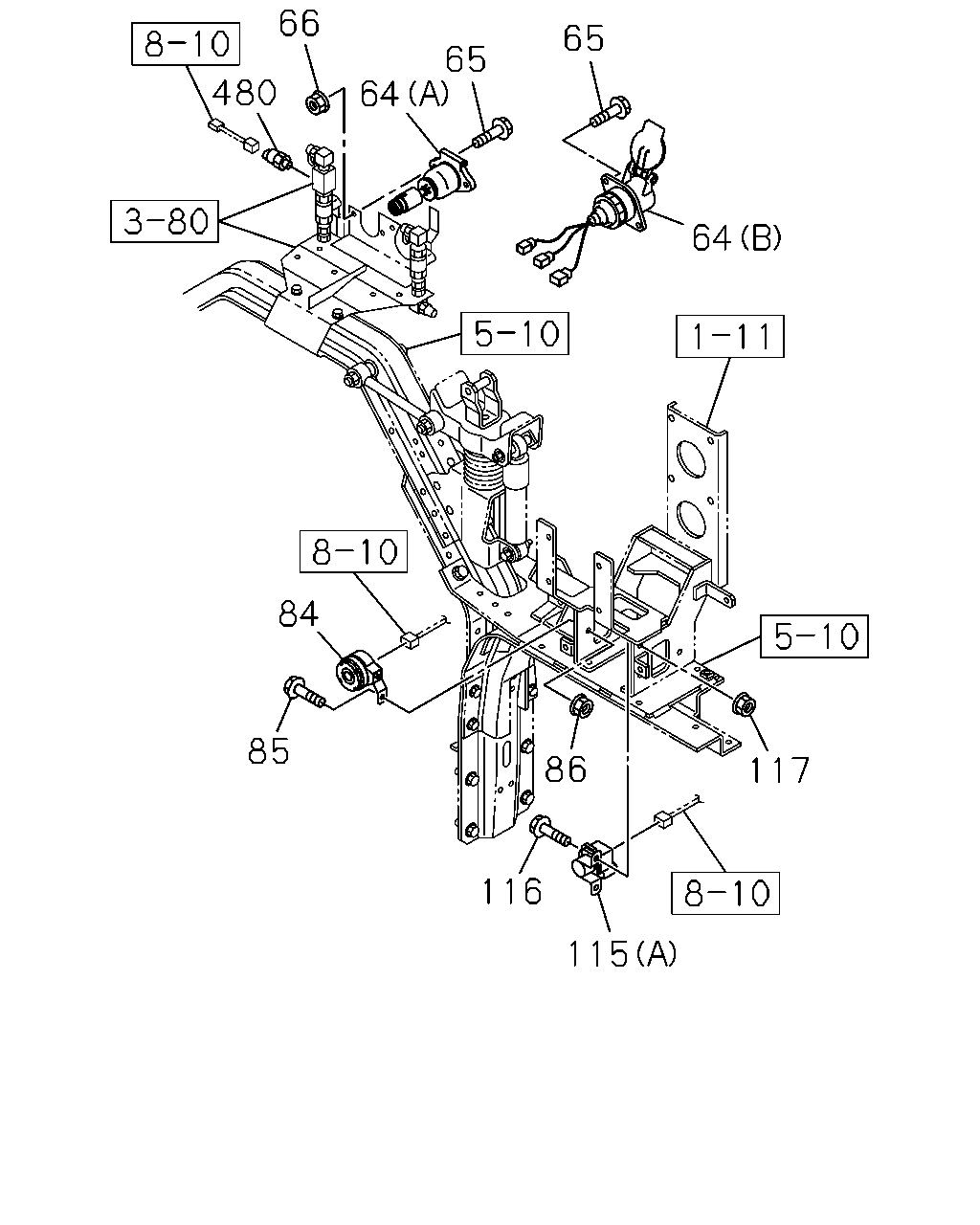

64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	1005-			●
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	1-82699-449-2	01	1	1005-1008			●
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	8-98172-008-0	01	1	1009-			●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	02	1	1005-			●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	1005-			●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1005-			●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1005-			●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0801-	●	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0801-	●	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0801-	●	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0801-1308	●	●	●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
480	SWITCH; TRAILER COCK STAMP 2.2	8-98010-858-0	01	1	0801-0811			●

584 744 711 762 761 265 422 385 711 762 265 352 265 676

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

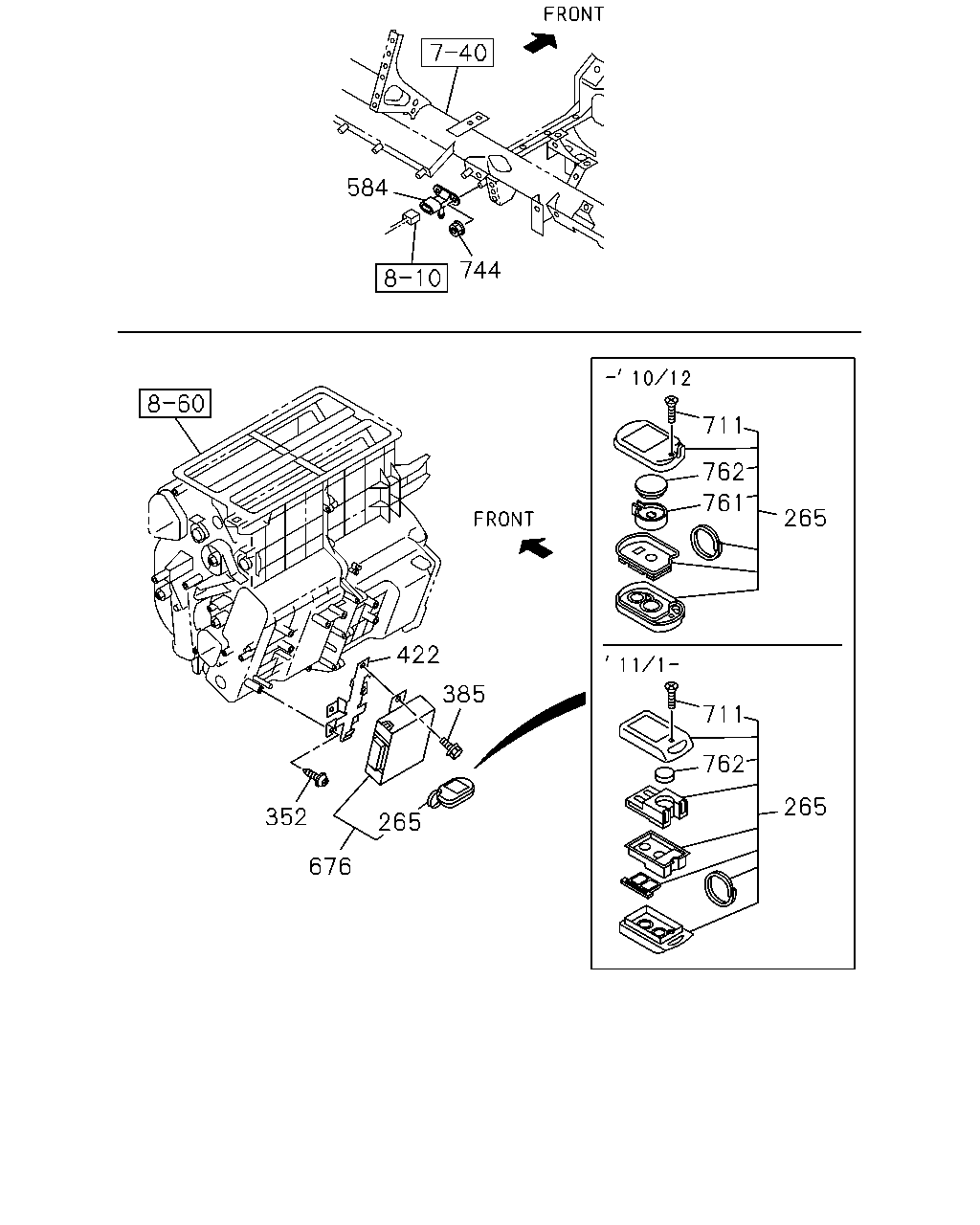

265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0801-1012	●	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0801-	●	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0801-	●	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0801-	●	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0801-	●	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0801-1012	●	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0801-1205	●	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0801-	●	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0801-1012	●	●	●
762	BATTERY	8-98078-061-0	02	1	0801-	●	●	●
