Isuzu WW
▶
TRUCKS
▶
FXR
▶
11427 - FXR/GXR(AUST)JNLT05
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#47514) — 92 parça
Tümü
A - FGD5MX
B - FGR5MX
C - GGD5MX
◀
[825A] RELAY;FRAME HARNESS (2 parça)
[825A] RELAY;CAB HARNESS (7 parça)
[825A] SWITCH NO.3 (21 parça)
[825A] SWITCH NO.4 (3 parça)
[825A] SWITCH NO.1 (17 parça)
[825A] SWITCH NO.2 (28 parça)
[825A] OTHER PARTS (14 parça)
▶

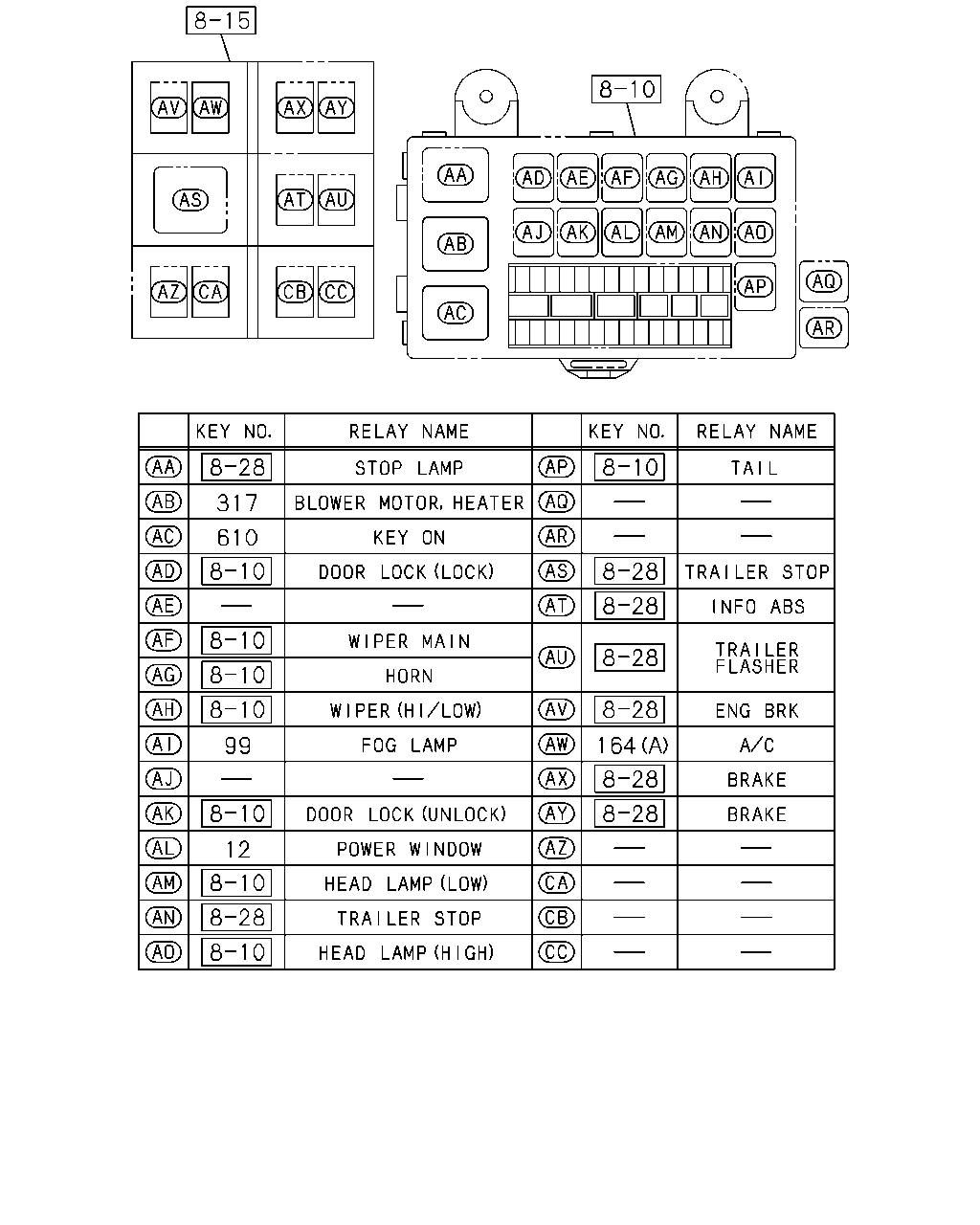

164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
0801-
●
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0801-
●
●
●
317
610
164
99
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
12
RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
01
1
0801-
●
●
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0801-
●
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
0801-
●
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0801-
●
●
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0801-1302
●
●
●
317
RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1303-
●
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0801-
●
●
●

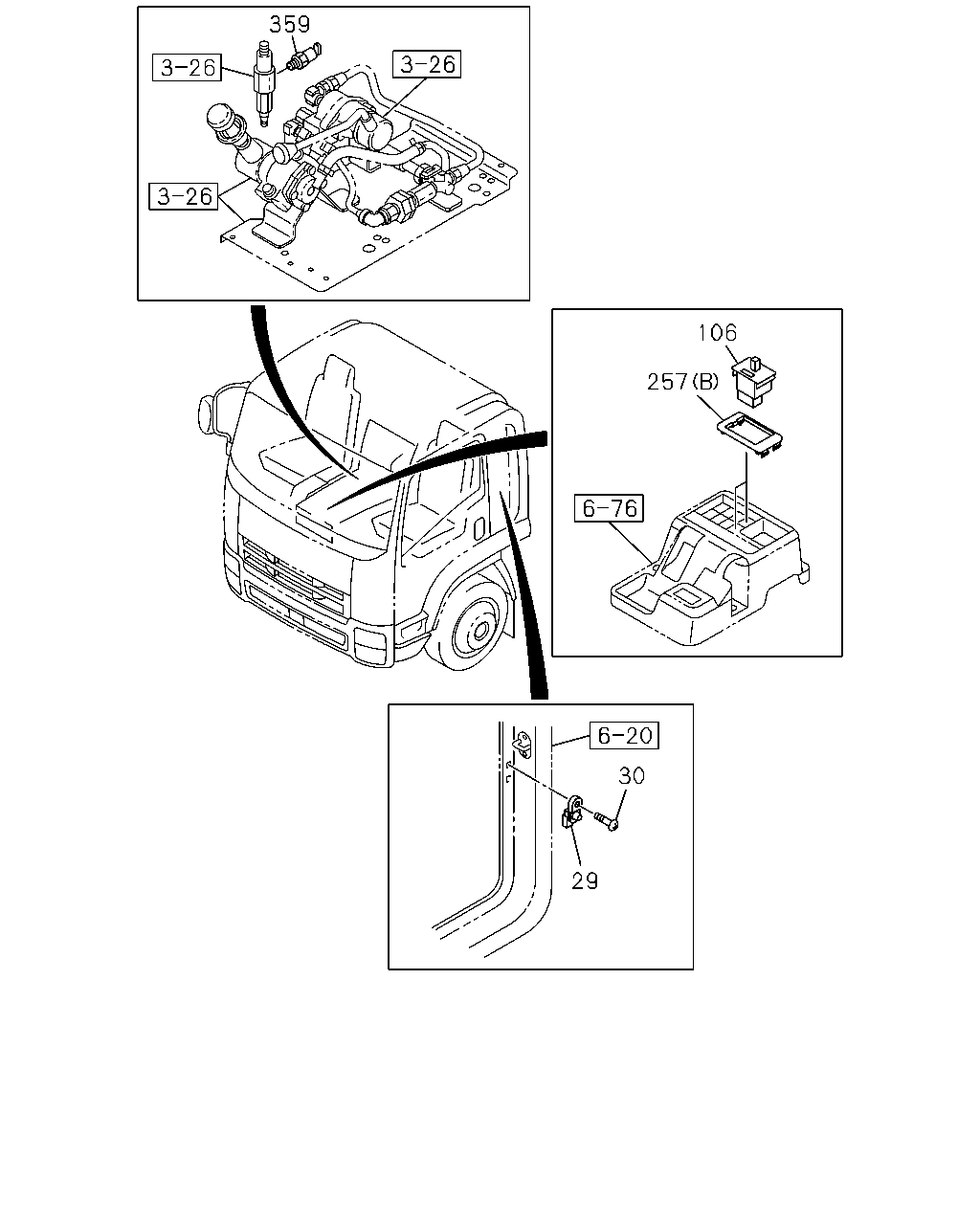

359
106
257
30
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0801-
●
●
●
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0801-
●
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
0801-
●
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
0801-
●
●
●
106
SWITCH; REMOTE CONT MIRROR
1-82350-223-0
02
1
0801-
●
●
●
257
COVER; HOLE,SW
(B)
8-97619-254-1
02
1
0801-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
04
1
0801-1101
●
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
03
1
1102-
●
●
●
257
COVER; HOLE,SW
(C)
8-98029-914-1
01
1
0802-
●
●
●
257
COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)
8-98025-954-1
01
1
0801-0808
●
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0801-0808
●
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0801-0808
●
●
●
257
COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)
8-98025-954-1
01
1
0809-1101
●
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0809-1101
●
●
●
257
COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A)
8-98025-954-1
01
1
0809-1101
●
●
●
257
COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
(B)
8-97619-254-1
01
1
0801-
●
359
SWITCH; TRAILER BRAKE
STAMP 0.3
8-98010-857-0
01
1
0801-
●

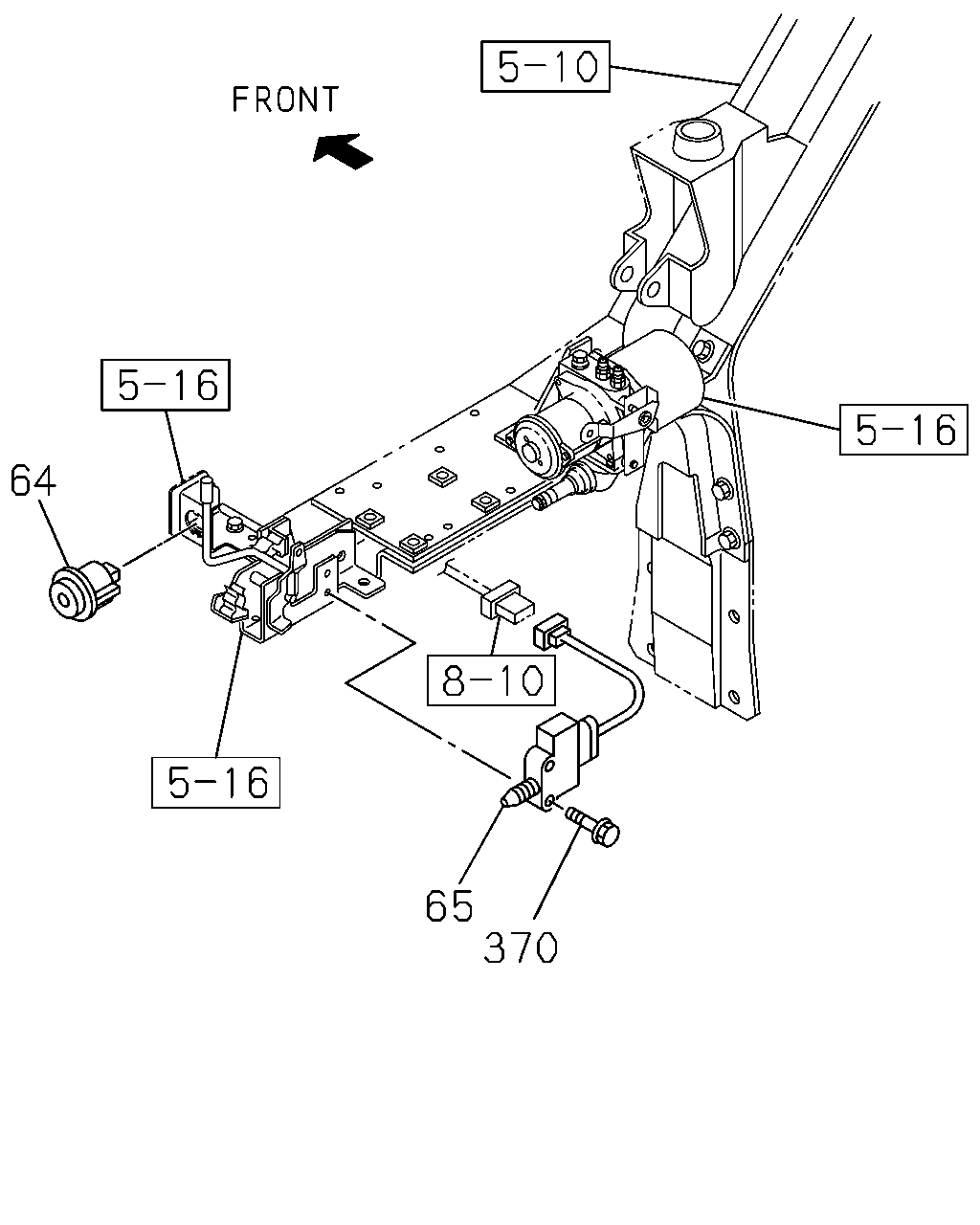

64
65
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0801-
●
●
●
65
SWITCH; CAB TILT LK
STAMP NO
1-82380-172-1
01
1
0801-
●
●
●
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
0801-
●
●
●

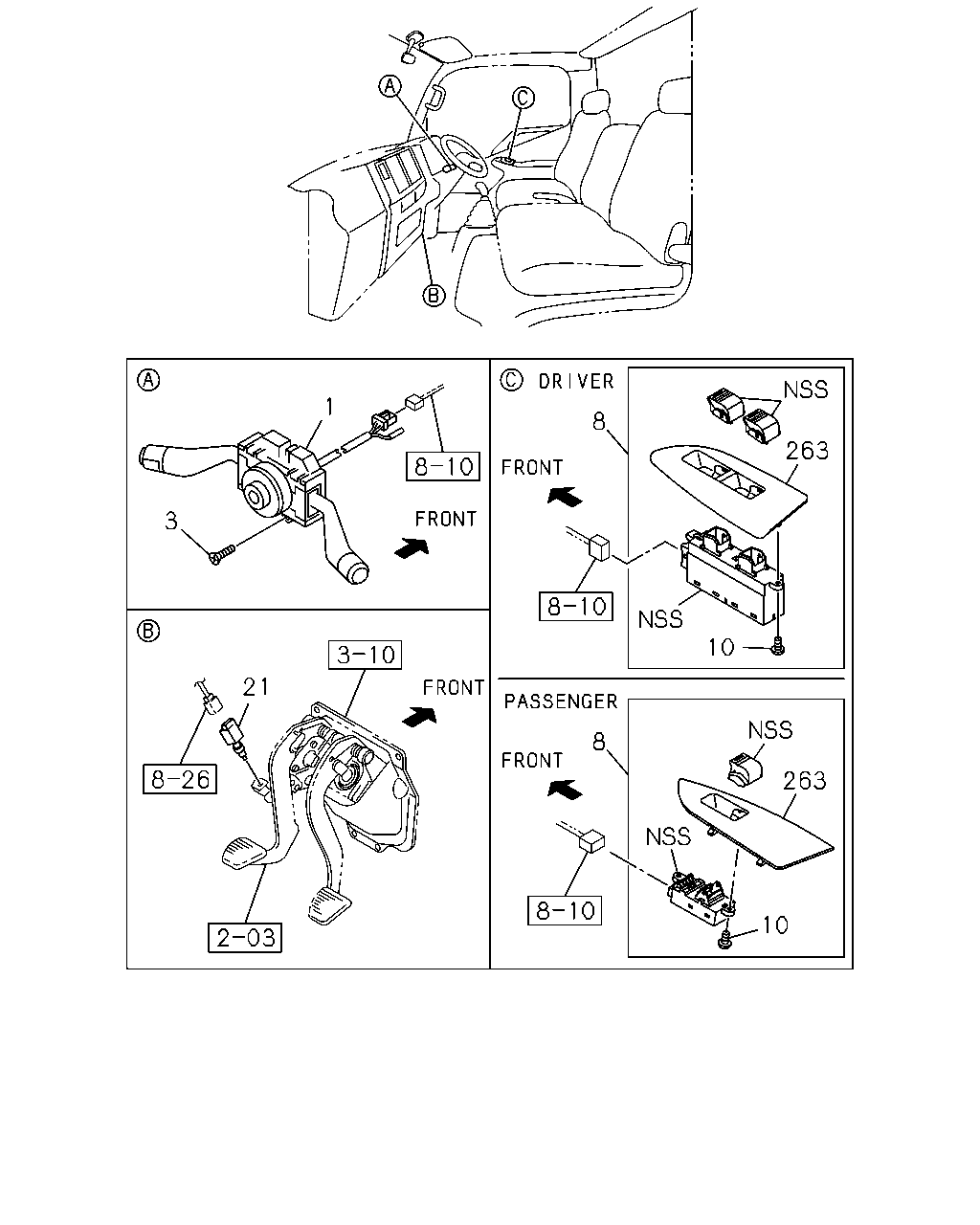

1
8
263
3
10
21
8
263
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SWITCH; COMB
AUTO CRUISE<K30>
8-98064-763-1
01
1
0801-0905
●
●
●
1
SWITCH; COMB
AUTO CRUISE<K30>
8-98146-619-0
01
1
0906-1210
●
●
●
1
SWITCH; COMB
AUTO CRUISE<K30>
8-98217-821-0
01
1
1211-1310
●
●
●
1
SWITCH; COMB
AUTO CRUISE<K30>
8-98243-692-0
01
1
1311-
●
●
●
1
SWITCH; COMB
EXC. AUTO CRUISE<K30>
8-98064-764-1
01
1
0801-0905
●
●
●
1
SWITCH; COMB
EXC. AUTO CRUISE<K30>
8-98146-618-0
01
1
0906-1210
●
●
●
1
SWITCH; COMB
EXC. AUTO CRUISE<K30>
8-98217-820-0
01
1
1211-1310
●
●
●
1
SWITCH; COMB
EXC. AUTO CRUISE<K30>
8-98243-691-0
01
1
1311-
●
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0801-
●
●
●
8
SWITCH; POWER WINDOW
PASSENGER
8-97387-034-2
01
1
0801-
●
●
●
8
SWITCH; POWER WINDOW
DRIVER
8-98003-785-1
01
1
0801-0809
●
●
●
8
SWITCH; POWER WINDOW
DRIVERGER
8-98129-844-0
01
1
0810-1001
●
●
●
8
SWITCH; POWER WINDOW
DRIVER
8-98159-543-0
01
1
1002-
●
●
●
10
SCREW; POWER WINDOW SW
8-98153-865-0
03
1
0801-
●
●
●
21
SWITCH; CLU
8-97358-248-0
01
1
0801-
●
●
●
263
COVER; SW
DRIVER
8-98153-836-0
01
1
0801-
●
●
●
263
COVER; SW
PASSENGER
8-98153-841-0
01
1
0801-
●
●
●

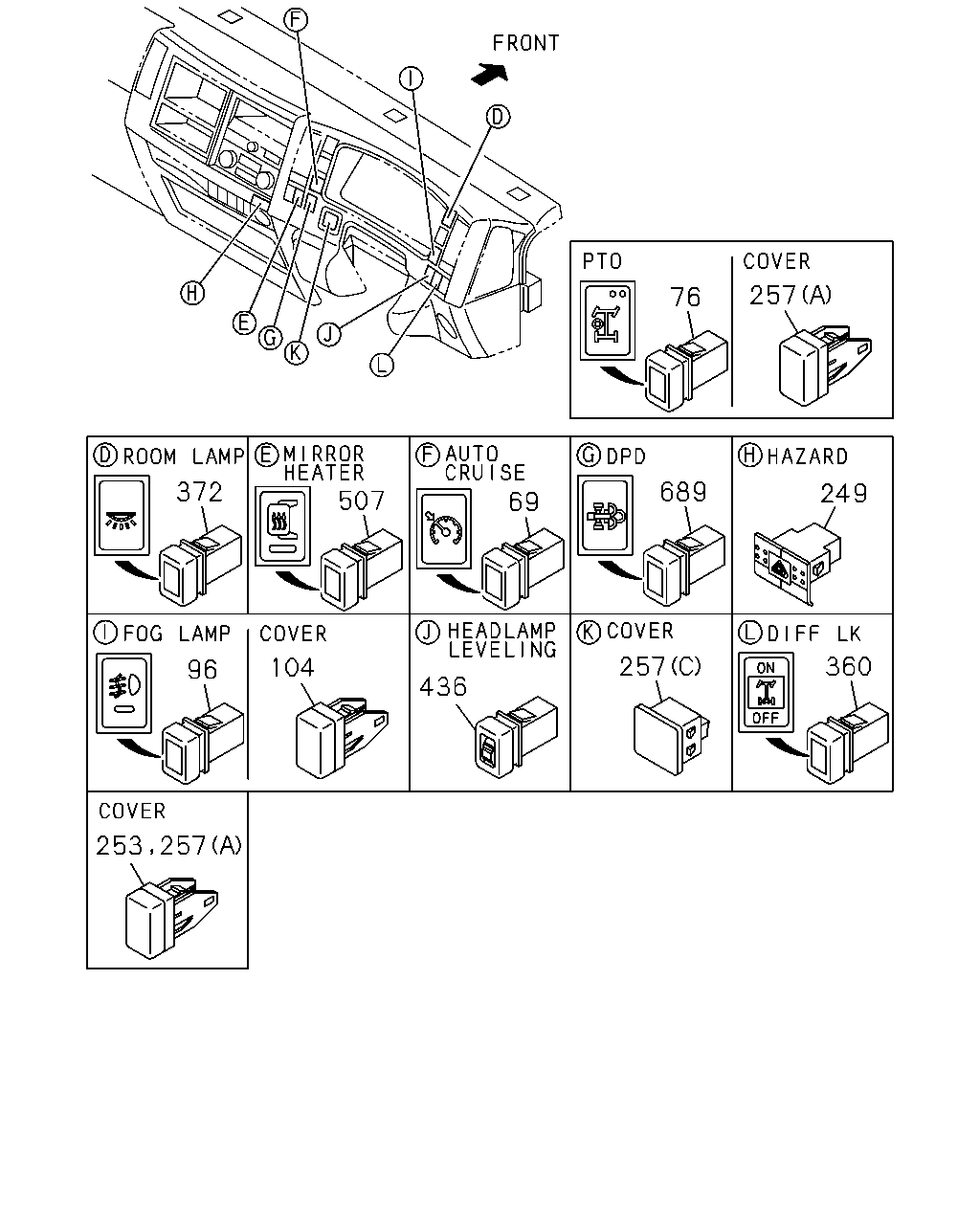

257
76
507
69
372
689
249
257
360
104
96
436
257
253
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
69
SWITCH; AUTO CRUISE
AUTO CRUISE<K30>
8-98011-344-1
01
1
0801-
●
●
●
76
SWITCH ASM; PTO
8-97386-993-4
01
1
1005-
●
●
●
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
0801-
●
●
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
0801-
●
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
0801-
●
●
●
253
COVER; SW HOLE
8-98025-954-1
01
1
0801-
●
●
●
253
COVER; SW HOLE
EXC. AUTO CRUISE<K30>
8-98025-954-1
01
1
0801-
●
●
●
253
COVER; SW HOLE
8-98025-954-1
02
1
0801-
●
●
●
257
COVER; HOLE,SW
(B)
8-97619-254-1
02
1
0801-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
04
1
0801-1101
●
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
03
1
1102-
●
●
●
257
COVER; HOLE,SW
(C)
8-98029-914-1
01
1
0802-
●
●
●
257
COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)
8-98025-954-1
01
1
0801-0808
●
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0801-0808
●
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0801-0808
●
●
●
257
COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)
8-98025-954-1
01
1
0809-1101
●
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0809-1101
●
●
●
257
COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A)
8-98025-954-1
01
1
0809-1101
●
●
●
257
COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1102-
●
●
●
257
COVER; HOLE,SW
(B)
8-97619-254-1
01
1
0801-
●
360
SWITCH ASM; DIFF LK
DIFF LOCK<C3N>
8-97613-963-2
01
1
0809-
●
●
●
372
SWITCH; ROOM LAMP
8-97386-917-2
01
1
0801-
●
●
●
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-97386-981-2
01
1
0801-
●
●
●
507
SWITCH; MIRROR HEATER
HEATER
8-97386-924-3
01
1
0801-
●
●
●
689
SWITCH; DPD
CATALYSIS CONTROL WITH DPD<8JM>
8-97386-921-2
01
1
0801-
●
●
●
237
236
482
667
397
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
236
BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA)
1-82698-614-0
01
1
0801-0801
●
236
BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA)
1-82698-614-0
01
1
0802-
●
●
237
NUT
M8 FLANGE
0-91180-108-0
04
1
0801-0801
●
●
237
NUT
M8 FLANGE
0-91180-108-0
04
1
0802-
●
●
●
237
NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
01
1
0801-0801
●
●
237
NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
01
1
0802-
●
397
NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
01
1
0801-0801
●
397
NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
01
1
0802-
●
●
482
BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE
0-28650-830-0
01
1
0801-0801
●
482
BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE
0-28650-830-0
01
1
0802-0802
●
●
666
CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20
1-09700-871-0
01
1
0801-0804
●
●
●
666
CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=16
0-95325-025-0
01
1
0805-
●
●
●
667
BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE
0-28650-820-0
01
1
0801-
●
●
●
667
BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE
0-28650-820-0
04
1
0801-0801
●
