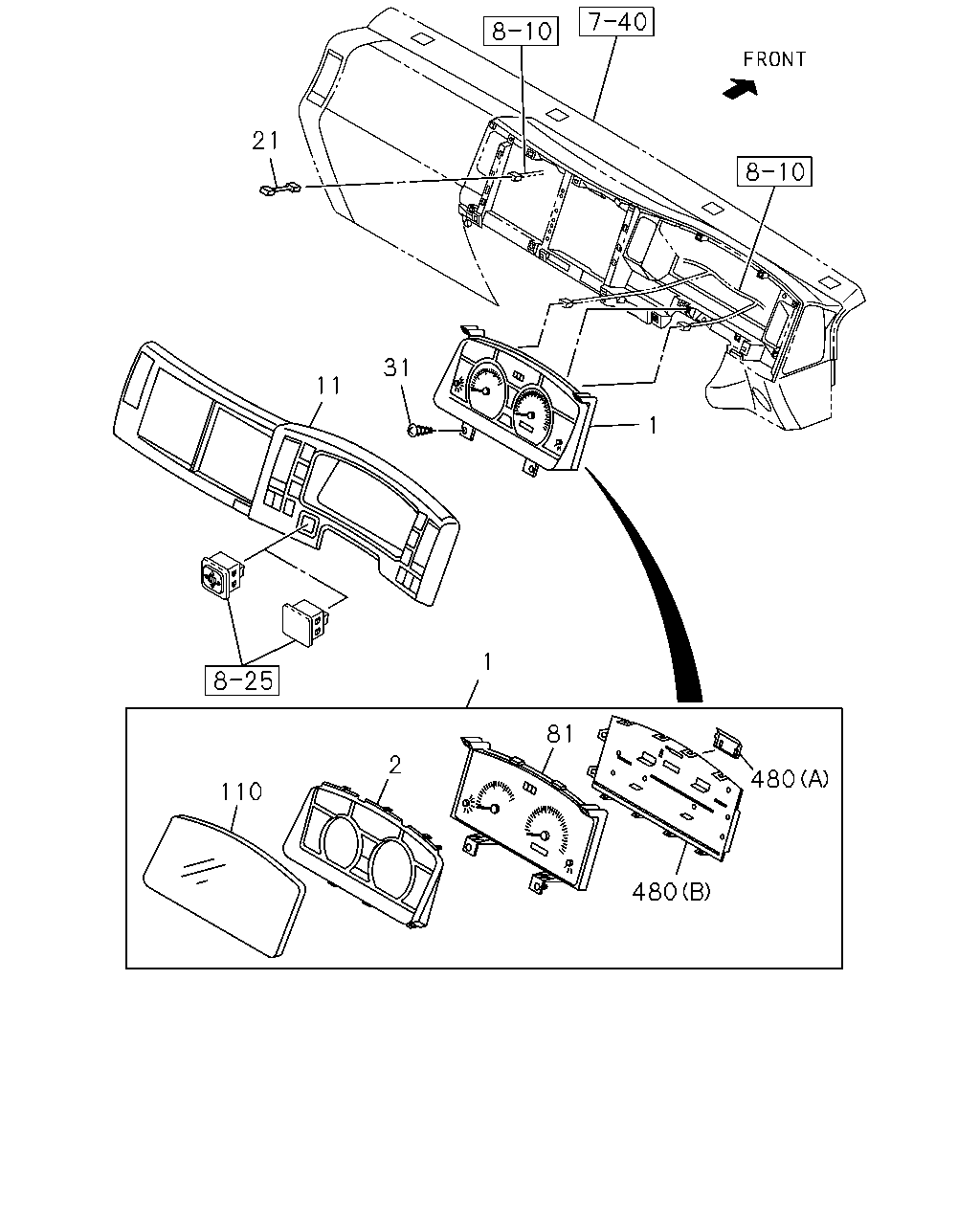

8-21 — METER ASM (#47513) — 18 parça

21 31 11 1 1 81 2 480 110 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98075-594-5	01	1	0801-1101	●	●	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98179-474-1	01	1	1102-	●	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98075-591-4	01	1	0801-1101	●	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-472-2	01	1	1102-	●	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0801-	●	●	●
11	CLUSTER ASM; METER TACHOGRAPH DIGITAL<EBB> DARK GRAY	8-97414-681-1	01	1	0801-0905	●	●	●
11	CLUSTER ASM; METER EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY	8-97405-350-6	01	1	0801-0905	●	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	0906-	●	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH DIGITAL<EBB>	8-98074-078-0	01	1	0801-0905	●	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0801-	●	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98079-698-0	01	1	0801-1101	●	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98179-482-0	01	1	1102-	●	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98079-684-0	01	1	0801-1101	●	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-480-0	01	1	1102-	●	●	●
110	GLASS; CLUSTER METER MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0801-	●	●	●
110	GLASS; CLUSTER METER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-431-0	01	1	0801-	●	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0801-	●	●	●
480	COVER; METER MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0801-	●	●	●
