◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11427 - FXR/GXR(AUST)JNLT05 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#47510) — 426 parça
çizim 112665
706 6 6 7
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 0801- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98128-425-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98127-950-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-740-2 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-740-3 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-517-4 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-517-5 01 1 0809- ● ●
6 HARNESS; FRAME
(B) 		8-98075-635-4 01 1 0801-0811 ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 0812- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98131-635-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98153-161-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98131-634-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98153-160-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-742-2 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-742-3 01 1 0809- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-518-4 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-518-5 01 1 0809- ●
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) 		8-98103-000-0 01 1 0801- ● ● ●
7 LINK ASM; FUSIBLE
EXC. GENERATOR 24V90A(K44) 		8-98088-132-0 01 1 0801- ● ● ●
706 HARNESS; EXT,SEDIMENTER 8-98087-610-1 01 1 0801- ● ● ●

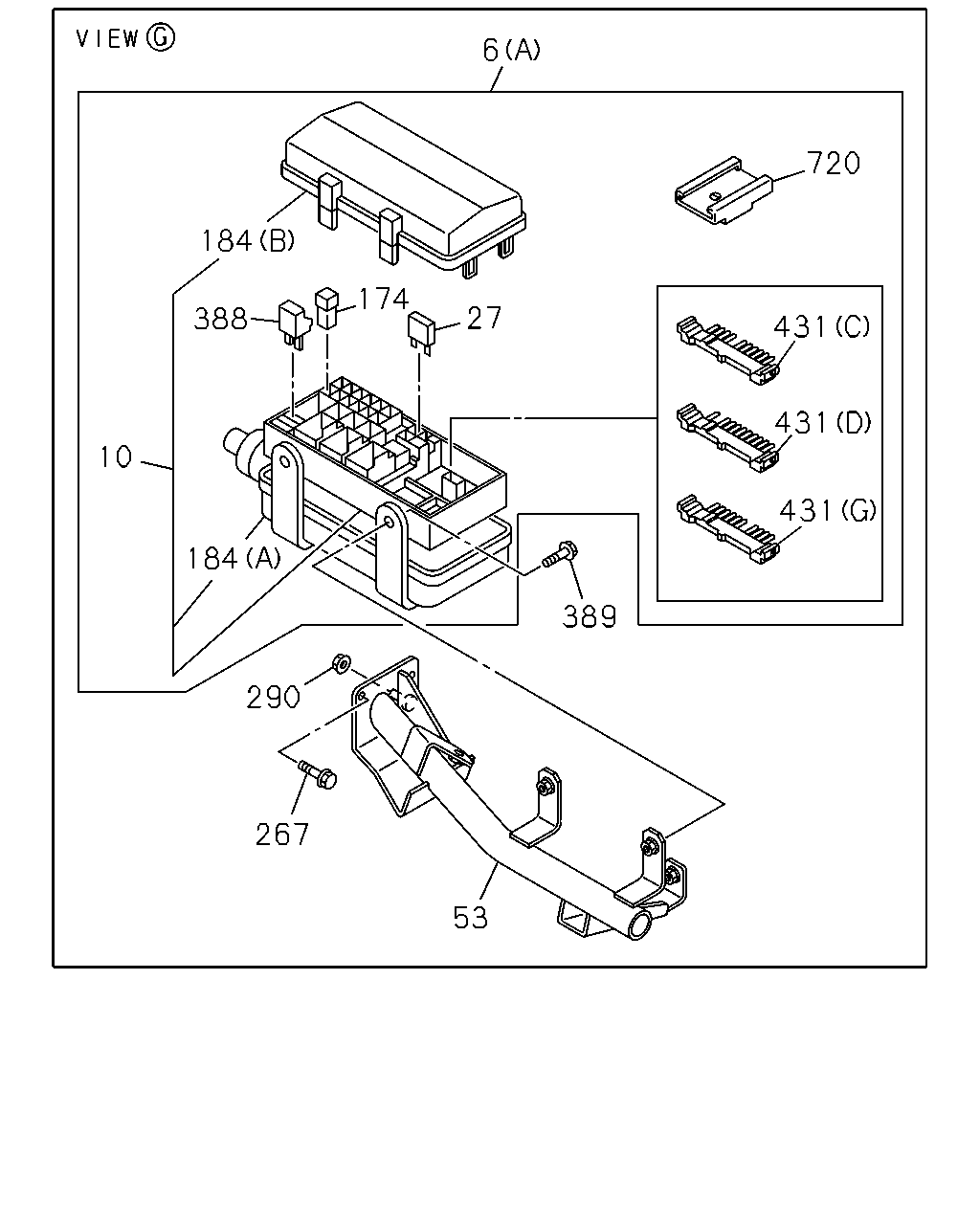

çizim 112666
6 720 184 174 27 388 431 431 10 431 184 389 290 267 53
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 0801- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98128-425-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98127-950-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-740-2 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-740-3 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-517-4 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-517-5 01 1 0809- ● ●
6 HARNESS; FRAME
(B) 		8-98075-635-4 01 1 0801-0811 ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 0812- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98131-635-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98153-161-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98131-634-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98153-160-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-742-2 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-742-3 01 1 0809- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-518-4 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-518-5 01 1 0809- ●
10 BOX; FUSE,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98030-762-0 01 1 0801- ● ● ●
27 FUSE UNIT
ANTILOCK BRAKE SYSTEM(BFA) 10A RED 		8-98054-257-0 03 1 0801- ● ● ●
27 FUSE UNIT
ANTILOCK BRAKE SYSTEM(BFA) 15A BLUE 		8-98054-258-0 01 1 0801- ● ● ●
53 BRACKET; FUSE BOX 8-98078-800-1 01 1 0801- ● ● ●
174 FUSE; SLOW BLOW
ANTILOCK BRAKE SYSTEM(BFA) 60A YELLOW 		8-97219-407-0 01 1 1107- ● ● ●
174 FUSE; SLOW BLOW
ANTILOCK BRAKE SYSTEM(BFA) 30A PINK 		8-98079-191-0 02 1 0801- ● ● ●
174 FUSE; SLOW BLOW
ANTILOCK BRAKE SYSTEM(BFA) 40A GREEN 		8-98079-192-0 01 1 0801- ● ● ●
174 FUSE; SLOW BLOW
ANTILOCK BRAKE SYSTEM(BFA) 50A RED 		8-98079-193-0 03 1 0801- ● ● ●
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 0801-1106 ● ● ●
184 COVER; RELAY & FUSE BOX
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98030-766-0 01 1 0801- ● ● ●
184 COVER; RELAY & FUSE BOX
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98030-767-0 01 1 0801- ● ● ●
267 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0801- ● ● ●
290 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0801- ● ● ●
388 DIODE; RELAY BOX
ANTILOCK BRAKE SYSTEM(BFA) BLACK 4P-1.5A 		8-94381-730-0 02 1 0801- ● ● ●
388 DIODE; RELAY BOX
ANTILOCK BRAKE SYSTEM(BFA) BLACK 2P-1.5A 		8-94422-639-1 01 1 0801- ● ● ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0801- ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 0801- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0801- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE 		1-82699-598-0 04 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN 		1-82699-599-0 07 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN 		1-82699-601-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK 		8-97616-194-0 02 1 0801- ● ● ●
720 ATTACHMENT; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-688-0 03 1 0801- ● ● ●

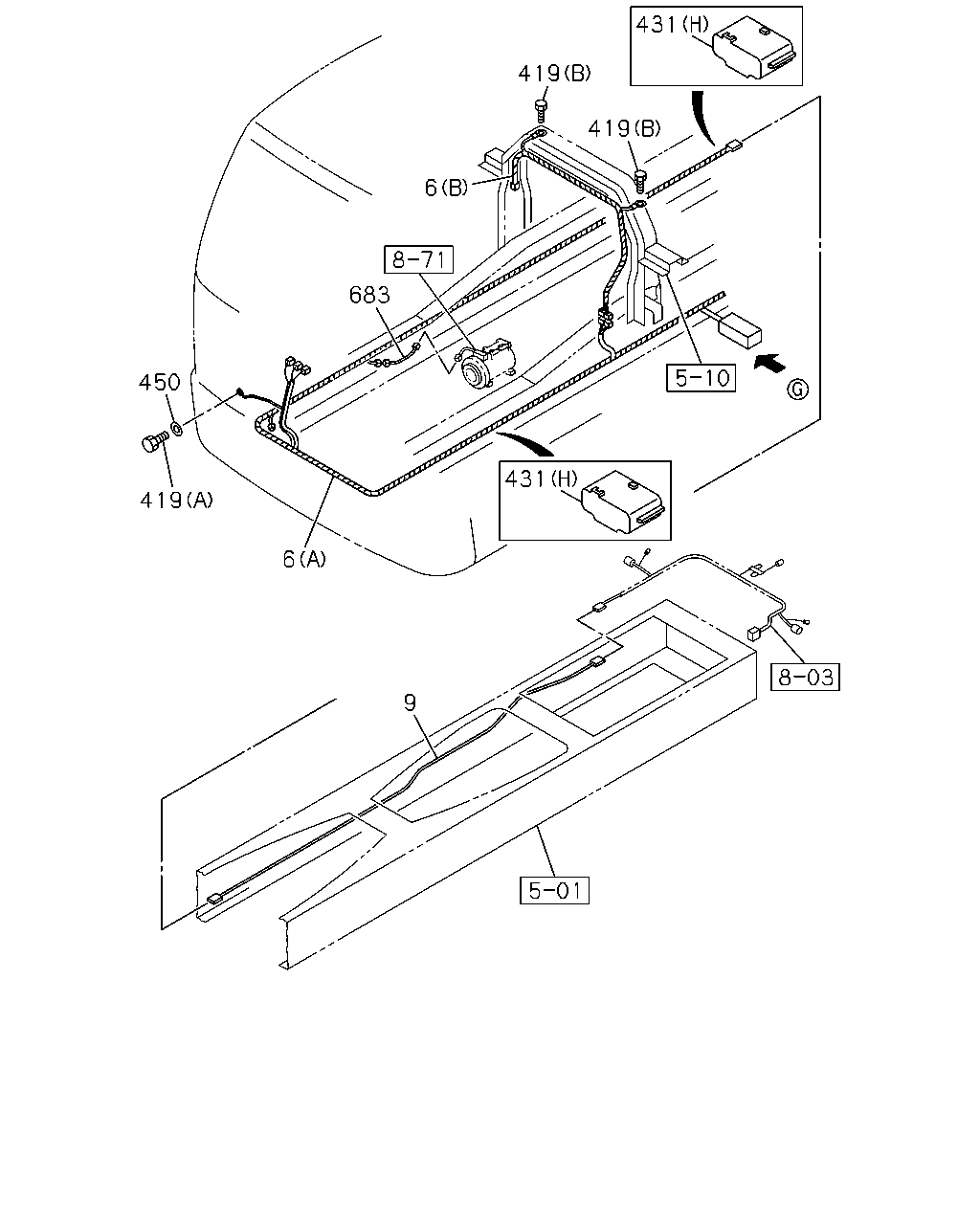

çizim 112667
431 419 419 6 683 450 431 419 6 9
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 0801- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98128-425-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98127-950-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-740-2 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-740-3 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-517-4 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-517-5 01 1 0809- ● ●
6 HARNESS; FRAME
(B) 		8-98075-635-4 01 1 0801-0811 ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 0812- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98131-635-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98153-161-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98131-634-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98153-160-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-742-2 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-742-3 01 1 0809- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-518-4 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-518-5 01 1 0809- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM(BFA) 		8-98079-745-2 01 1 0801-0808 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N> 		8-98079-745-2 01 1 0809- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> 		8-98131-638-1 01 1 0809- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM(BFA) 		8-98079-744-4 01 1 0801-0808 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N> 		8-98079-744-4 01 1 0809- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> 		8-98131-636-1 01 1 0809- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) ANTILOCK BRAKE SYSTEM(BFA) 		8-98086-258-2 01 1 0801-0808 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N> 		8-98086-258-2 01 1 0809- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> 		8-98131-645-1 01 1 0809- ●
419 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0801- ● ● ●
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0801-1201 ● ● ●
419 BOLT; CAB EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 0801- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0801- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE 		1-82699-598-0 04 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN 		1-82699-599-0 07 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN 		1-82699-601-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK 		8-97616-194-0 02 1 0801- ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 0801- ● ● ●
683 HARNESS; EXT,COOLER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97609-020-1 01 1 0801- ● ● ●

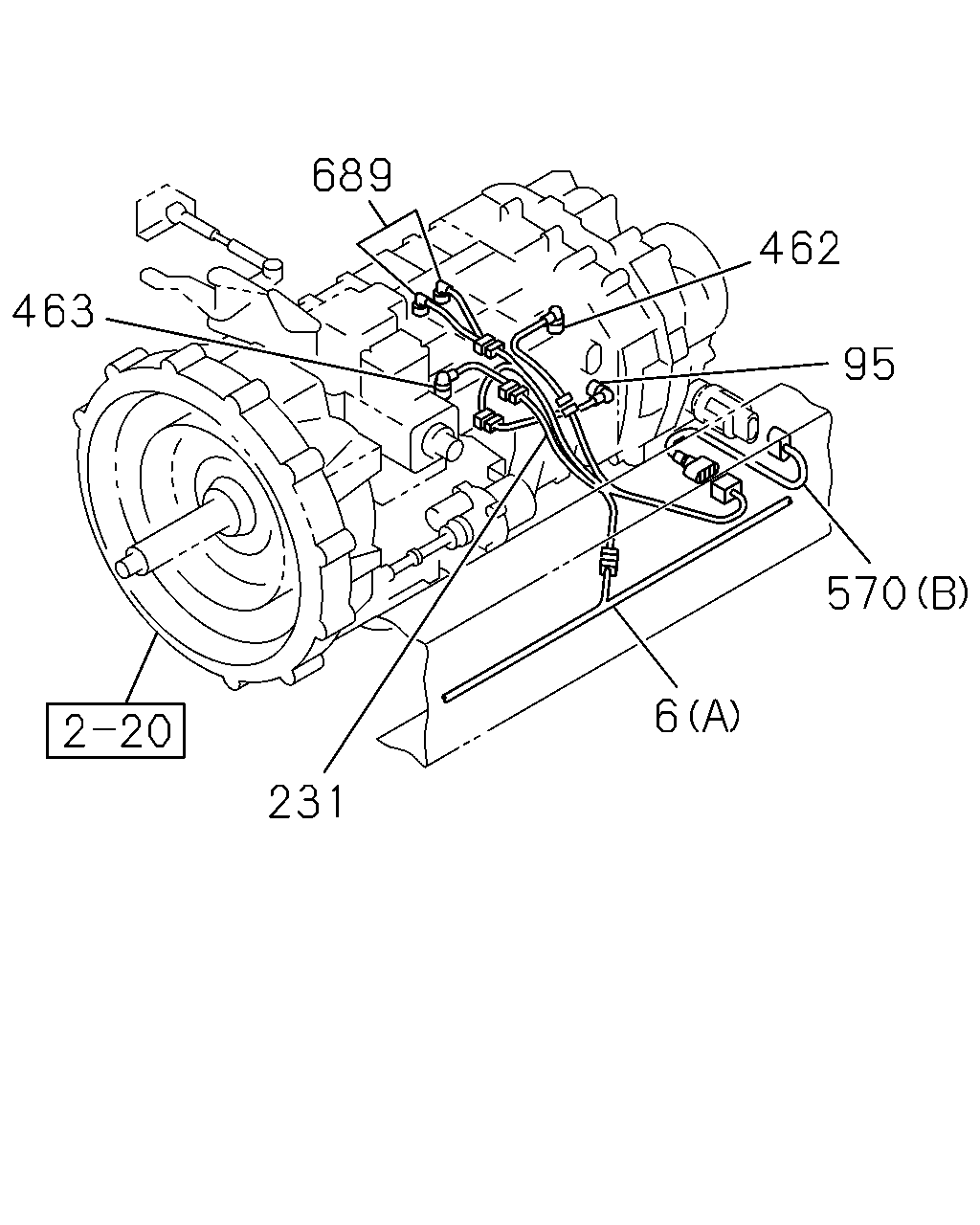

çizim 112668
689 462 463 95 570 6 231
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 0801- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98128-425-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98127-950-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-740-2 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-740-3 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-517-4 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-517-5 01 1 0809- ● ●
6 HARNESS; FRAME
(B) 		8-98075-635-4 01 1 0801-0811 ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 0812- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98131-635-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98153-161-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98131-634-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98153-160-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-742-2 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-742-3 01 1 0809- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-518-4 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-518-5 01 1 0809- ●
95 HARNESS; NEUTRAL SW
SHIFT PATTERN SINGLE-H<EDY> 		1-82659-226-0 01 1 0801-0905 ● ● ●
95 HARNESS; NEUTRAL SW
SHIFT PATTERN SINGLE-H<EDY> RED 		8-98145-854-0 01 1 0906- ● ● ●
231 HARNESS; TRANS 8-98075-627-2 01 1 0801-0803 ● ● ●
231 HARNESS; TRANS
SHIFT PATTERN SINGLE-H<EDY> 		8-98075-627-2 01 1 0804- ● ● ●
231 HARNESS; TRANS
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98107-418-0 01 1 0804- ● ● ●
462 HARNESS; SW,RANGE
SHIFT PATTERN SINGLE-H<EDY> BLUE 		1-82659-228-0 01 1 0801-0905 ● ● ●
462 HARNESS; SW,RANGE
SHIFT PATTERN SINGLE-H<EDY> BLUE 		8-98145-857-0 01 1 0906- ● ● ●
463 HARNESS; SW,BACK UP
SHIFT PATTERN SINGLE-H<EDY> 		1-82659-227-0 01 1 0801-0905 ● ● ●
463 HARNESS; SW,BACK UP
SHIFT PATTERN SINGLE-H<EDY> BLACK 		8-98145-856-0 01 1 0906- ● ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 0801- ● ● ●
570 HARNESS; SPEED SENSOR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-82659-230-0 01 1 0801-1004 ● ● ●
570 HARNESS; SPEED SENSOR
SHIFT PATTERN SINGLE-H<EDY> (B) 		8-98148-602-0 01 1 1005- ● ● ●
689 HARNESS; PRESSURE & ECU SWITCH
SHIFT PATTERN SINGLE-H<EDY> 		1-82659-229-1 01 1 0801-1101 ● ● ●
689 HARNESS; PRESSURE & ECU SWITCH
SHIFT PATTERN SINGLE-H<EDY> 		8-98148-603-0 01 1 1102- ● ● ●

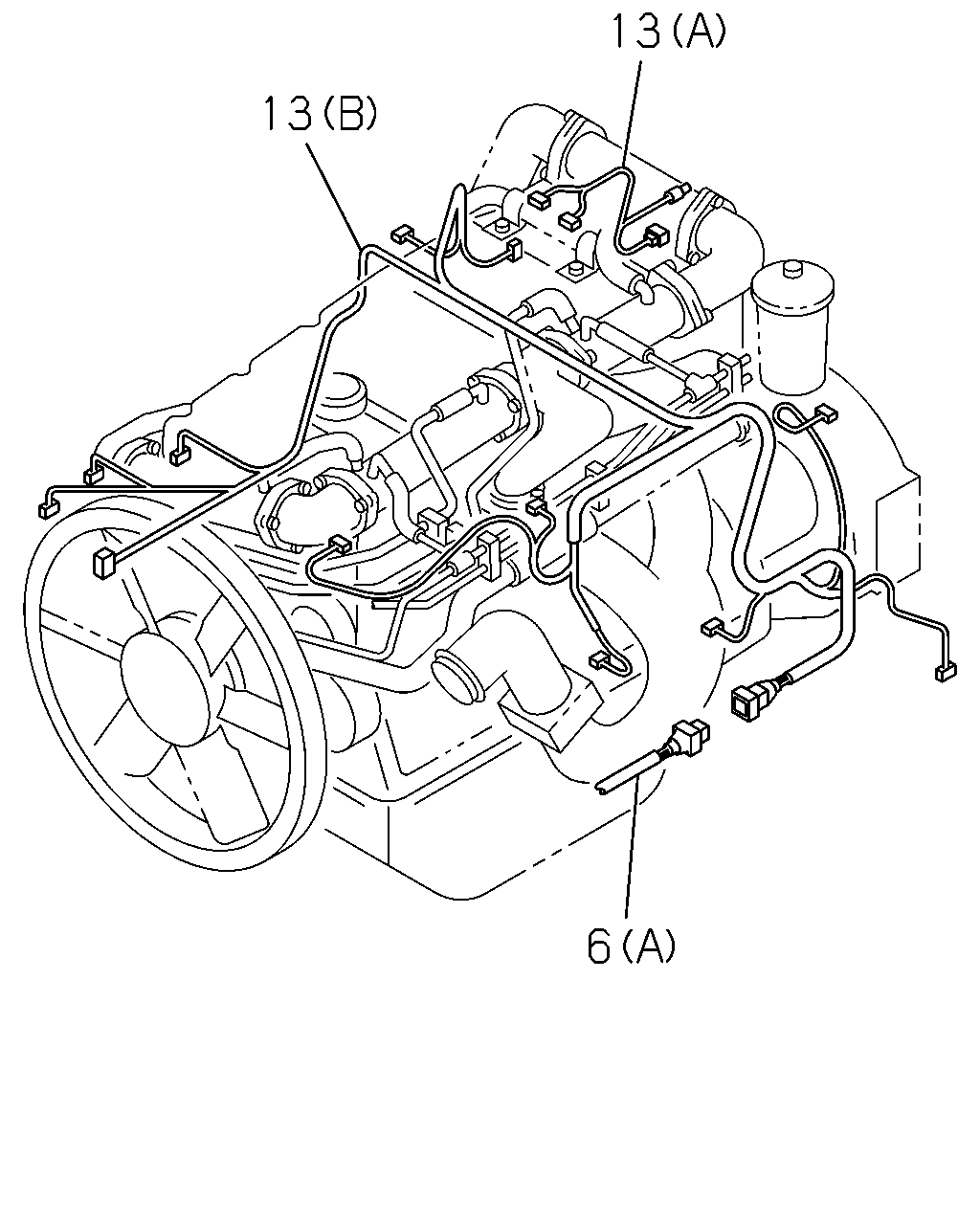

çizim 112670
13 13 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 0801- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98128-425-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98127-950-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-740-2 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-740-3 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-517-4 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-517-5 01 1 0809- ● ●
6 HARNESS; FRAME
(B) 		8-98075-635-4 01 1 0801-0811 ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 0812- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98131-635-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98153-161-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98131-634-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98153-160-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-742-2 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-742-3 01 1 0809- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-518-4 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-518-5 01 1 0809- ●
13 HARNESS; ENG
(B) 		8-97620-048-1 01 1 0801- ● ● ●
13 HARNESS; ENG
(A) 		8-97609-178-1 01 1 0801- ● ● ●

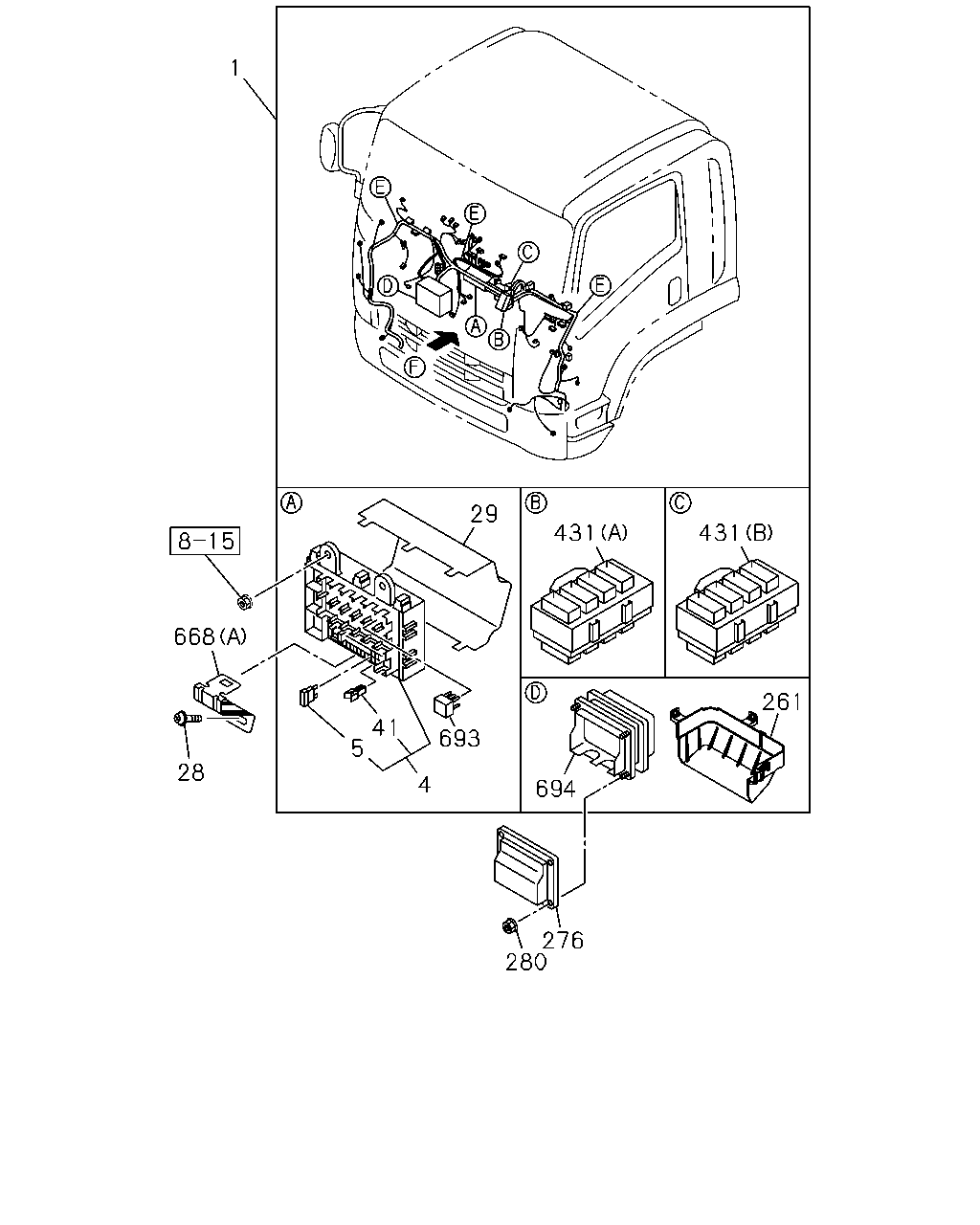

çizim 112709
1 29 431 431 261 668 28 41 5 4 693 694 276 280
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> 		8-98192-057-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-055-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N> 		8-98192-051-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-049-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98192-060-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-059-0 01 1 1105-1106 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N> 		8-98192-054-0 01 1 1105-1106 ●
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-053-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98132-408-2 01 1 0809-1004 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98162-790-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. IN HOUSE PRODUCTION<TKF> 		8-98162-790-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98162-790-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98192-057-0 01 1 1204- ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98132-406-2 01 1 0809-1004 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-788-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98162-788-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-788-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-055-0 01 1 1204- ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98093-999-4 01 1 0801-0808 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98093-999-6 01 1 0809-1004 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98162-784-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF> 		8-98162-784-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98162-784-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98192-051-0 01 1 1204- ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98093-997-4 01 1 0801-0808 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98093-997-6 01 1 0809-1004 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-782-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) ,IN HOUSE PRODUCTION<TKF> 		8-98162-782-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-782-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-049-0 01 1 1204- ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98132-411-2 01 1 0809-1004 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98162-793-0 01 1 1005-1104 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98162-793-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98162-793-0 01 1 1107-1203 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98192-060-0 01 1 1204- ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98132-410-2 01 1 0809-1004 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-792-0 01 1 1005-1104 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98162-792-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-792-0 01 1 1107-1203 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-059-0 01 1 1204- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98094-008-2 01 1 0801-0805 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98114-572-1 01 1 0806-0808 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98114-572-3 01 1 0809-1004 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98162-787-0 01 1 1005-1104 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF> 		8-98162-787-0 01 1 1105-1106 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98162-787-0 01 1 1107-1203 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98192-054-0 01 1 1204- ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98094-007-2 01 1 0801-0805 ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98114-571-1 01 1 0806-0808 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98114-571-3 01 1 0809-1004 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-786-0 01 1 1005-1104 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) ,IN HOUSE PRODUCTION<TKF> 		8-98162-786-0 01 1 1105-1106 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-786-0 01 1 1107-1203 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-053-0 01 1 1204- ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0801- ● ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0801- ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0801- ● ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0801- ● ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 0801- ● ● ●
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0801- ● ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 0801- ● ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 0801- ● ● ●
261 COVER; CONNECTOR BOX
SHIFT PATTERN SINGLE-H<EDY> 		8-98065-986-1 01 1 0801-0805 ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 0806- ● ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0801- ● ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 0801- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0801- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE 		1-82699-598-0 04 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN 		1-82699-599-0 07 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN 		1-82699-601-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK 		8-97616-194-0 02 1 0801- ● ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 0801- ● ● ●
668 BRACKET; HARNESS
(B) 		8-98098-453-1 01 1 0801-0803 ● ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 0804- ● ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0801- ● ● ●
694 BOX ASM; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> 		8-98057-771-0 01 1 0801-0805 ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 0806- ● ● ●
694 BOX ASM; CONNECTOR 8-98063-269-0 01 1 0801-0805 ●

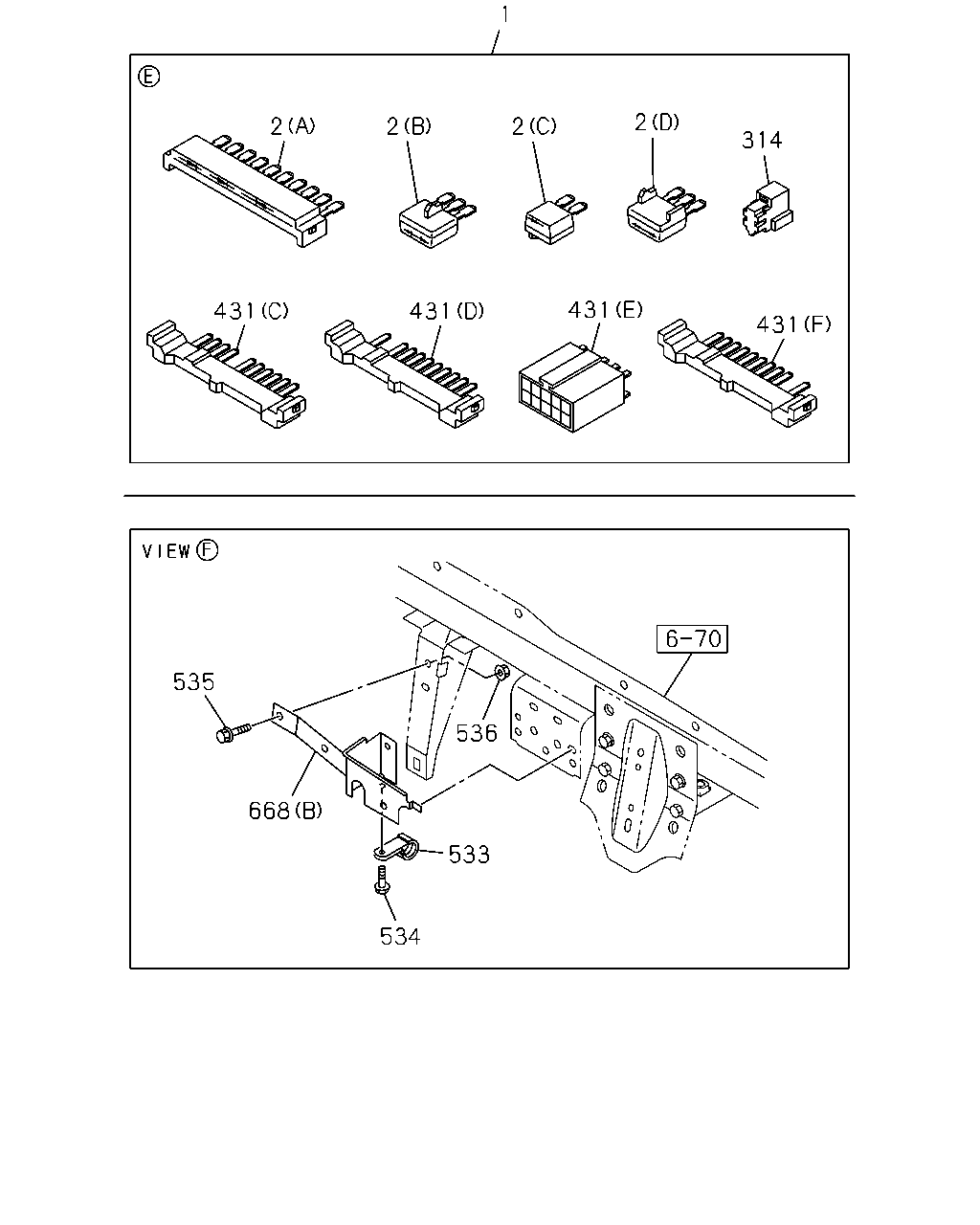

çizim 112786
1 2 2 2 2 314 431 431 431 431 535 536 668 533 534
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> 		8-98192-057-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-055-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N> 		8-98192-051-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-049-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98192-060-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-059-0 01 1 1105-1106 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N> 		8-98192-054-0 01 1 1105-1106 ●
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-053-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98132-408-2 01 1 0809-1004 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98162-790-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. IN HOUSE PRODUCTION<TKF> 		8-98162-790-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98162-790-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98192-057-0 01 1 1204- ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98132-406-2 01 1 0809-1004 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-788-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98162-788-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-788-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-055-0 01 1 1204- ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98093-999-4 01 1 0801-0808 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98093-999-6 01 1 0809-1004 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98162-784-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF> 		8-98162-784-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98162-784-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98192-051-0 01 1 1204- ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98093-997-4 01 1 0801-0808 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98093-997-6 01 1 0809-1004 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-782-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) ,IN HOUSE PRODUCTION<TKF> 		8-98162-782-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-782-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-049-0 01 1 1204- ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98132-411-2 01 1 0809-1004 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98162-793-0 01 1 1005-1104 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98162-793-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98162-793-0 01 1 1107-1203 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98192-060-0 01 1 1204- ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98132-410-2 01 1 0809-1004 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-792-0 01 1 1005-1104 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98162-792-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-792-0 01 1 1107-1203 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-059-0 01 1 1204- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98094-008-2 01 1 0801-0805 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98114-572-1 01 1 0806-0808 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98114-572-3 01 1 0809-1004 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98162-787-0 01 1 1005-1104 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF> 		8-98162-787-0 01 1 1105-1106 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98162-787-0 01 1 1107-1203 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98192-054-0 01 1 1204- ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98094-007-2 01 1 0801-0805 ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98114-571-1 01 1 0806-0808 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98114-571-3 01 1 0809-1004 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-786-0 01 1 1005-1104 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) ,IN HOUSE PRODUCTION<TKF> 		8-98162-786-0 01 1 1105-1106 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-786-0 01 1 1107-1203 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-053-0 01 1 1204- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0801- ● ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 02 1 0801- ● ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0801- ● ● ●
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 0806- ● ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 0801- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0801- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE 		1-82699-598-0 04 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN 		1-82699-599-0 07 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN 		1-82699-601-0 01 1 0801- ● ● ●
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK 		8-97616-194-0 02 1 0801- ● ● ●
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 0801- ● ● ●
534 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 0801- ● ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0801-1302 ● ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 03 1 1303-1303 ● ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ● ●
536 NUT; BRKT FIX
M8 		8-98041-929-0 01 1 0801- ● ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 0801- ● ● ●
668 BRACKET; HARNESS
(B) 		8-98098-453-1 01 1 0801-0803 ● ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 0804- ● ● ●

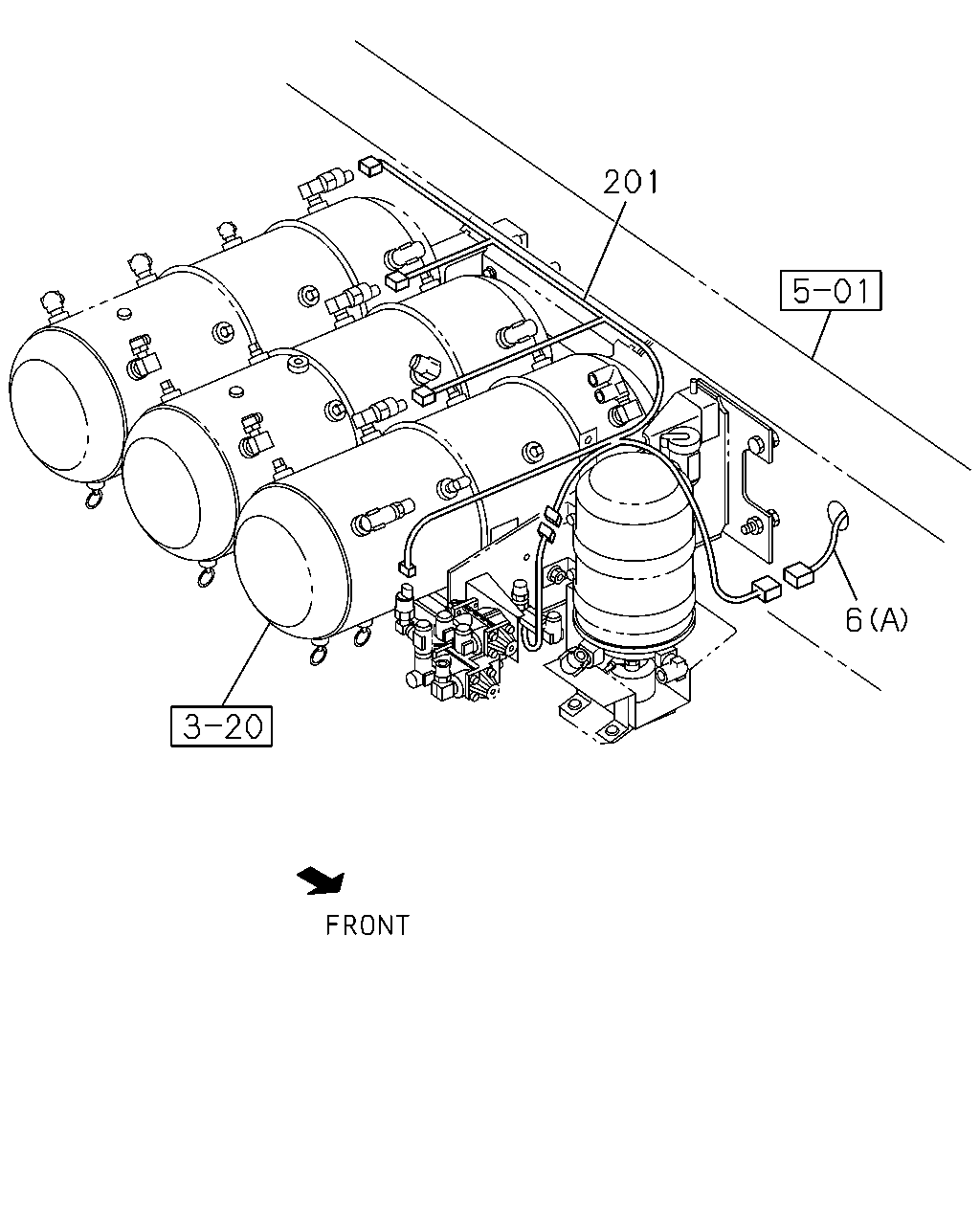

çizim 112793
201 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 0801- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98128-425-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98127-950-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-740-2 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-740-3 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-517-4 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-517-5 01 1 0809- ● ●
6 HARNESS; FRAME
(B) 		8-98075-635-4 01 1 0801-0811 ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 0812- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98131-635-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98153-161-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98131-634-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98153-160-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-742-2 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-742-3 01 1 0809- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-518-4 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-518-5 01 1 0809- ●
201 HARNESS; AIR TANK 8-98079-765-4 01 1 0801-0906 ● ● ●
201 HARNESS; AIR TANK
WHEEL BASE 5700MM(57W) 		8-98079-765-5 01 1 0907- ● ●
201 HARNESS; AIR TANK
WHEEL BASE 3400MM(34W) 		8-98079-765-5 01 1 0907- ●

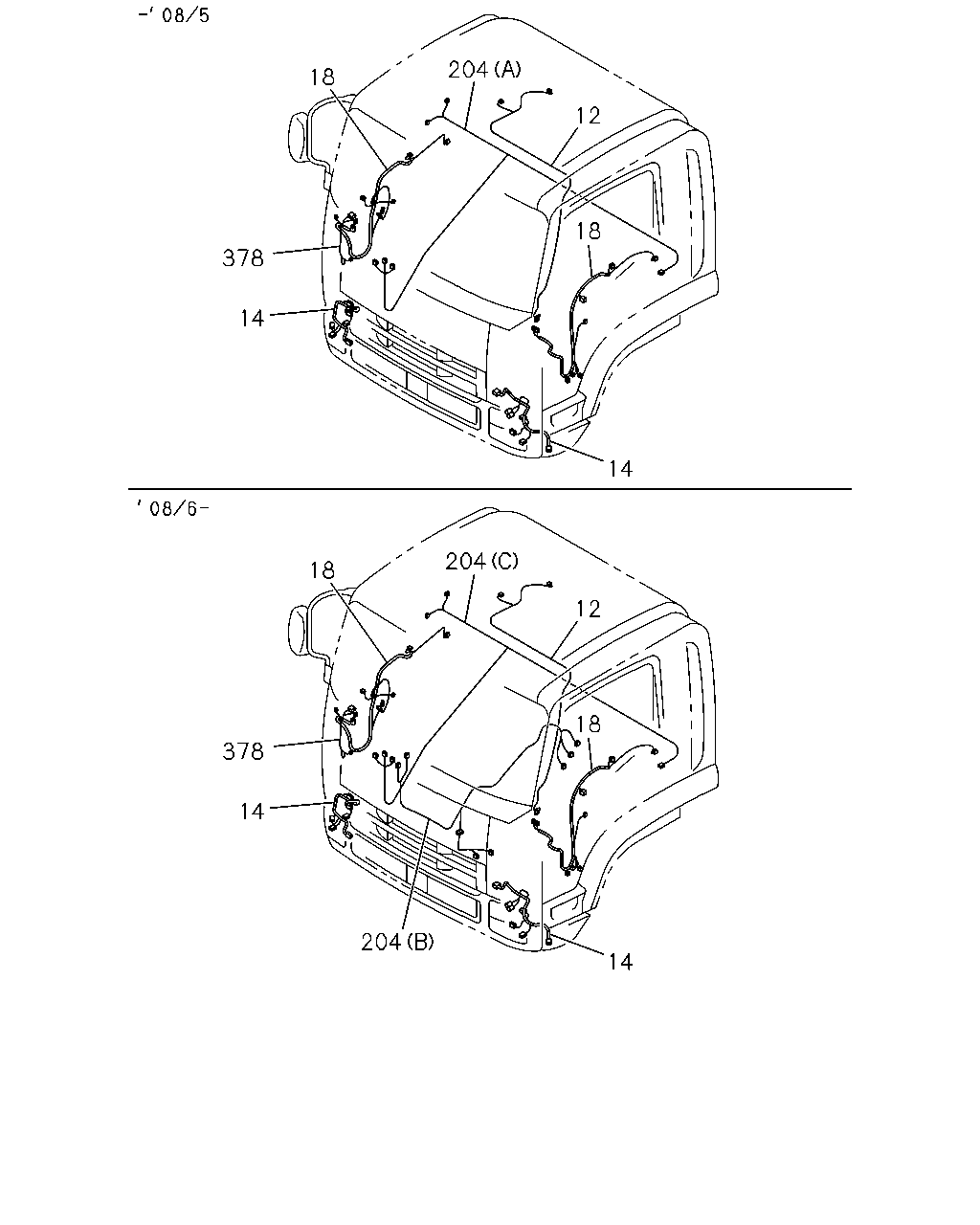

çizim 112796
204 18 12 18 378 14 14 204 18 12 18 378 14 204 14
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HARNESS; ROOF 8-98079-072-1 01 1 0801- ● ● ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98103-680-1 02 1 0801- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98075-629-3 02 1 0801- ● ● ●
18 HARNESS; DOOR 8-98079-079-5 01 1 0801- ● ● ●
18 HARNESS; DOOR 8-98079-076-5 01 1 0801- ● ● ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98098-092-2 01 1 0801-0805 ● ●
204 HARNESS; CABLE,FLOOR
(C) 		8-98117-544-0 01 1 0806- ● ●
204 HARNESS; CABLE,FLOOR
(B) 		8-98117-550-2 01 1 0806- ● ● ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98098-093-2 01 1 0801-0805 ●
204 HARNESS; CABLE,FLOOR
(C) 		8-98117-545-0 01 1 0806- ●
378 HARNESS; EXT,MIRROR 8-98031-603-1 02 1 0801-0901 ● ● ●

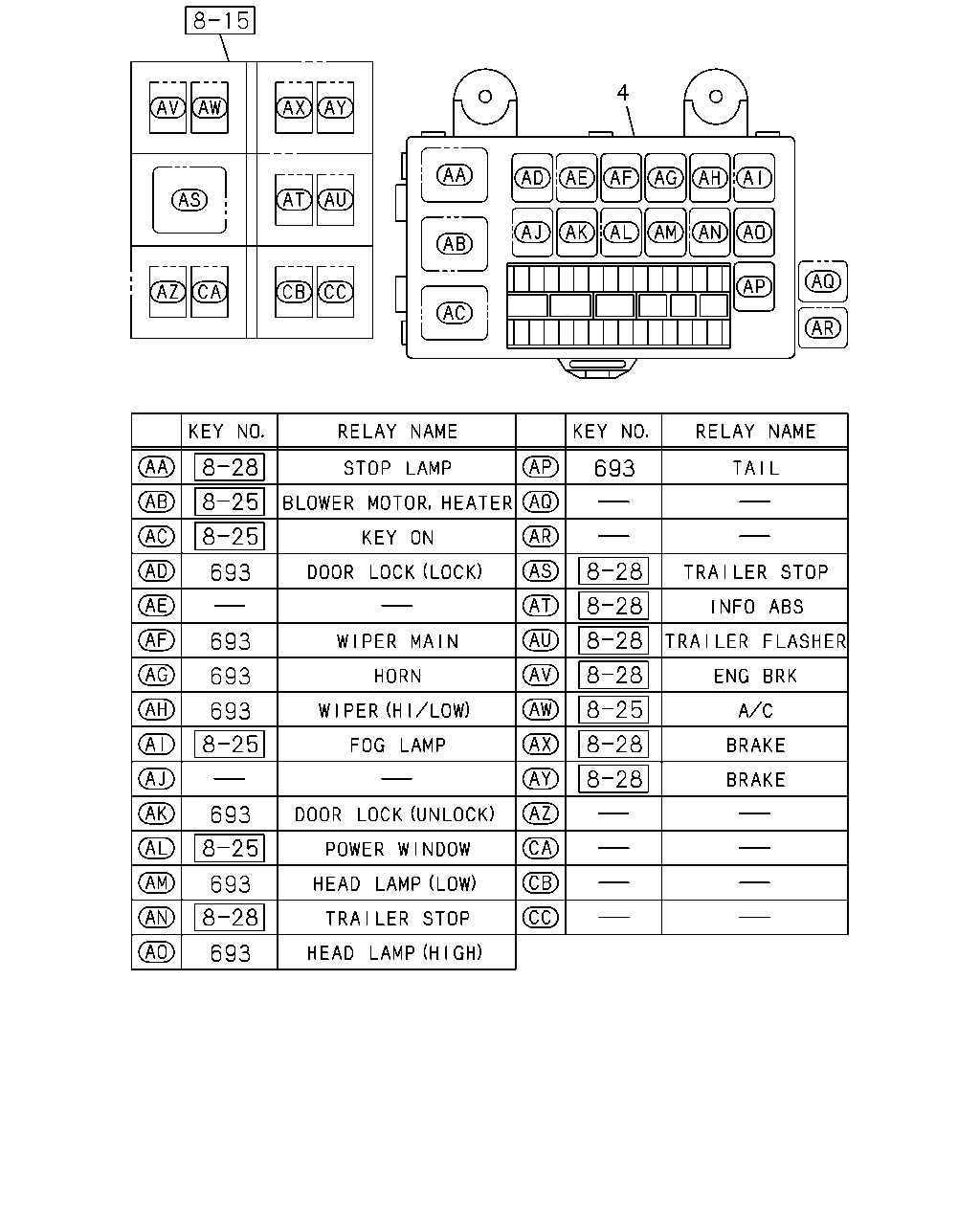

çizim 112799
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0801- ● ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0801- ● ● ●

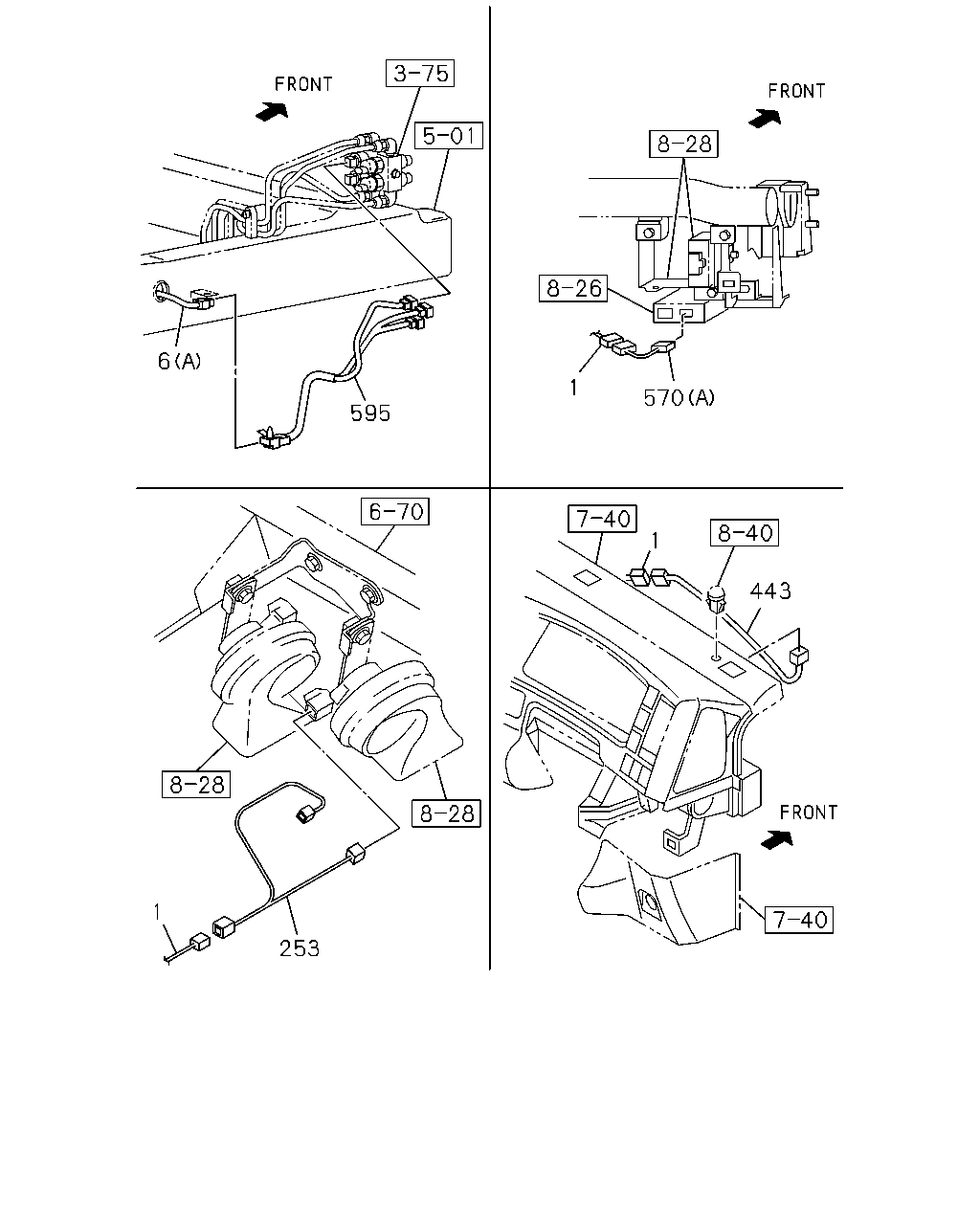

çizim 112800
6 1 570 595 1 443 1 253
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> 		8-98192-057-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-055-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N> 		8-98192-051-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-049-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98192-060-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-059-0 01 1 1105-1106 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N> 		8-98192-054-0 01 1 1105-1106 ●
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-053-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98132-408-2 01 1 0809-1004 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98162-790-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. IN HOUSE PRODUCTION<TKF> 		8-98162-790-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98162-790-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98192-057-0 01 1 1204- ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98132-406-2 01 1 0809-1004 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-788-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98162-788-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-788-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-055-0 01 1 1204- ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98093-999-4 01 1 0801-0808 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98093-999-6 01 1 0809-1004 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98162-784-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF> 		8-98162-784-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98162-784-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N> 		8-98192-051-0 01 1 1204- ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98093-997-4 01 1 0801-0808 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98093-997-6 01 1 0809-1004 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-782-0 01 1 1005-1104 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) ,IN HOUSE PRODUCTION<TKF> 		8-98162-782-0 01 1 1105-1106 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-782-0 01 1 1107-1203 ● ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-049-0 01 1 1204- ● ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98132-411-2 01 1 0809-1004 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98162-793-0 01 1 1005-1104 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98162-793-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98162-793-0 01 1 1107-1203 ●
1 HARNESS; CAB
DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) 		8-98192-060-0 01 1 1204- ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98132-410-2 01 1 0809-1004 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-792-0 01 1 1005-1104 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98162-792-0 01 1 1105-1106 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98162-792-0 01 1 1107-1203 ●
1 HARNESS; CAB
DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98192-059-0 01 1 1204- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98094-008-2 01 1 0801-0805 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98114-572-1 01 1 0806-0808 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98114-572-3 01 1 0809-1004 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98162-787-0 01 1 1005-1104 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF> 		8-98162-787-0 01 1 1105-1106 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98162-787-0 01 1 1107-1203 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N> 		8-98192-054-0 01 1 1204- ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98094-007-2 01 1 0801-0805 ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98114-571-1 01 1 0806-0808 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98114-571-3 01 1 0809-1004 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-786-0 01 1 1005-1104 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) ,IN HOUSE PRODUCTION<TKF> 		8-98162-786-0 01 1 1105-1106 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98162-786-0 01 1 1107-1203 ●
1 HARNESS; CAB
EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68) 		8-98192-053-0 01 1 1204- ●
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 0801- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98128-425-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98127-950-1 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-740-2 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-740-3 01 1 0809- ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-517-4 01 1 0801-0808 ● ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-517-5 01 1 0809- ● ●
6 HARNESS; FRAME
(B) 		8-98075-635-4 01 1 0801-0811 ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 0812- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98131-635-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A) 		8-98153-161-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98131-634-1 01 1 0809-1004 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A) 		8-98153-160-0 01 1 1005- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A) 		8-98079-742-2 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A) 		8-98079-742-3 01 1 0809- ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A) 		8-98094-518-4 01 1 0801-0808 ●
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A) 		8-98094-518-5 01 1 0809- ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 0801- ● ● ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 0801- ● ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 0801- ● ● ●
570 HARNESS; SPEED SENSOR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-82659-230-0 01 1 0801-1004 ● ● ●
570 HARNESS; SPEED SENSOR
SHIFT PATTERN SINGLE-H<EDY> (B) 		8-98148-602-0 01 1 1005- ● ● ●
595 HARNESS; WARNING,BRK 8-98075-638-1 01 1 0801- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
