◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11427 - FXR/GXR(AUST)JNLT05 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#47504) — 149 parça

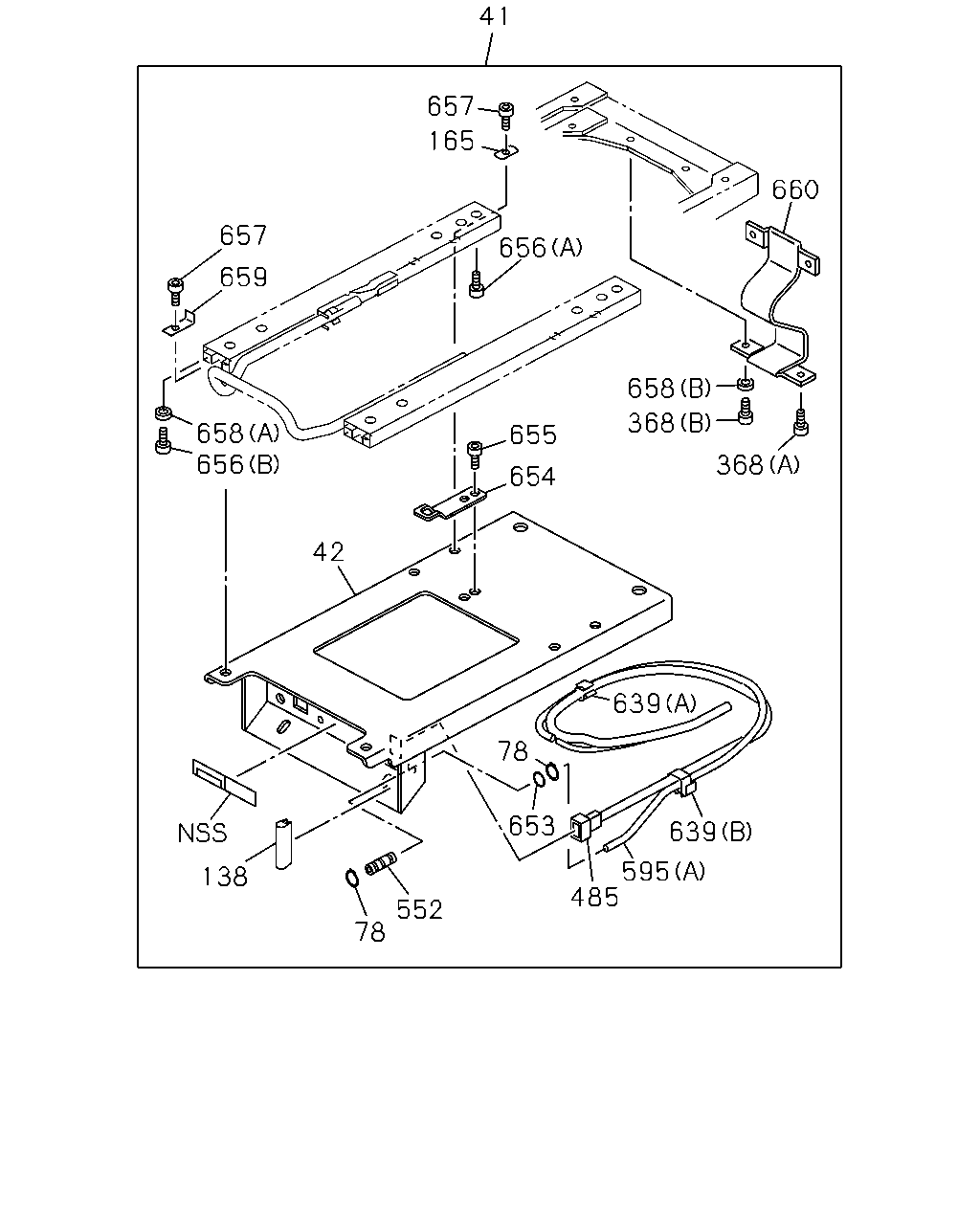

çizim 112776
41 657 165 656 660 657 659 658 368 368 655 654 42 658 656 138 78 639 653 639 595 485 552 78
BalonParca AdiParca NoAdetTipApplied Date A B C
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212 ● ● ●
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301- ● ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0801- ● ● ●
78 RING; SNAP 8-98101-900-0 02 1 0801- ● ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0801- ● ● ●
165 WASHER; PL 1-75590-086-0 04 1 0801- ● ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0801- ● ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0801- ● ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 0801- ● ● ●
552 CONNECTOR 8-98101-902-0 01 1 0801- ● ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0801- ● ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0801- ● ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0801- ● ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0801- ● ● ●
653 GASKET 8-98101-901-0 01 1 0801- ● ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0801- ● ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 0801- ● ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0801- ● ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0801- ● ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0801- ● ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0801- ● ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0801- ● ● ●
659 STOPPER 8-98106-356-0 02 1 0801- ● ● ●
660 BELT; TETHER 8-98106-357-0 01 1 0801- ● ● ●

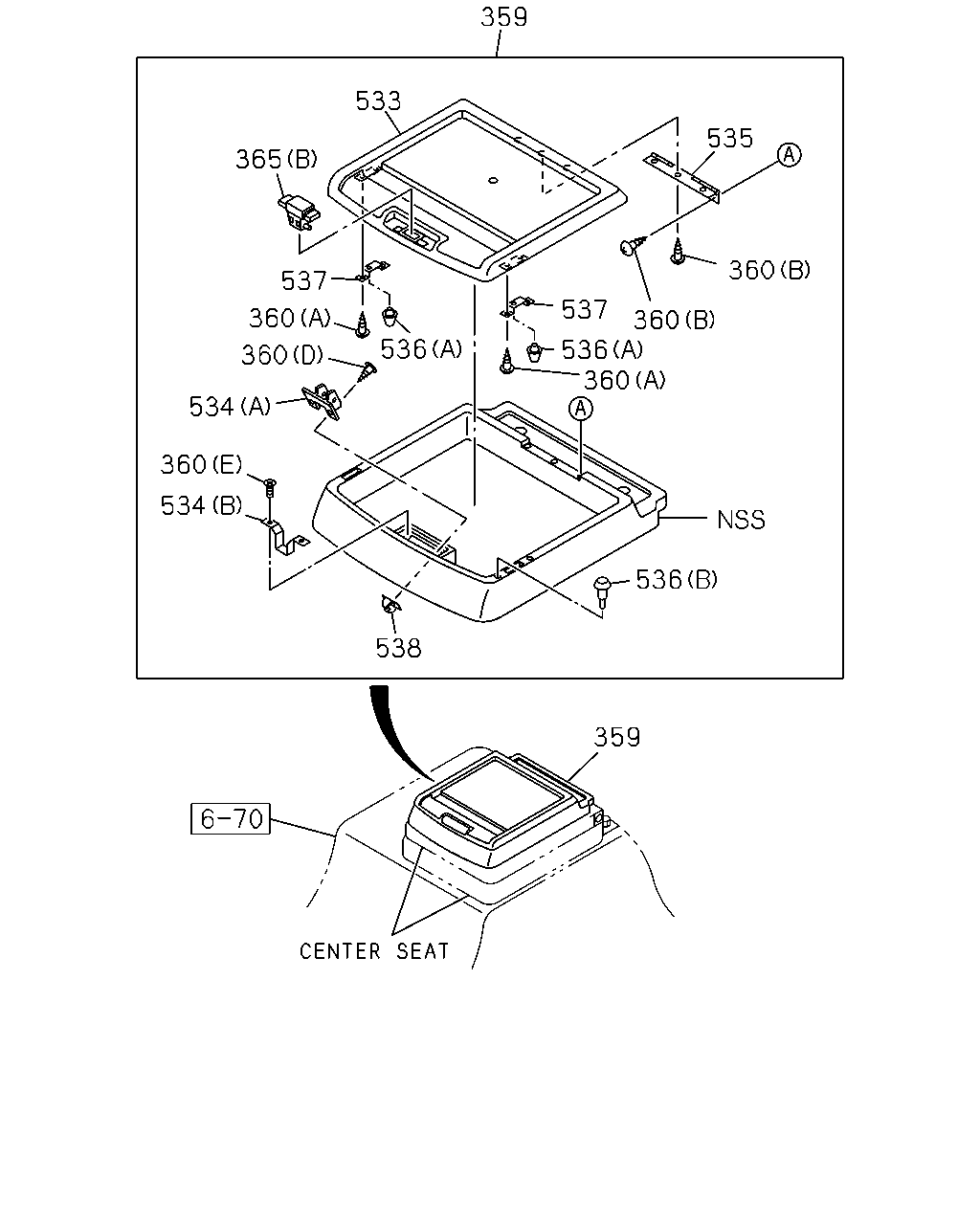

çizim 112777
359 535 360 537 360 360 536 536 359 538 534 360 534 360 536 360 537 365 533
BalonParca AdiParca NoAdetTipApplied Date A B C
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 0801-1006 ● ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0801-1009 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0801- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0801-1110 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 0801-1009 ● ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0801- ● ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 0801- ● ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-979-1 01 1 0801-1006 ● ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1007- ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 0801-1009 ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1010- ● ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 0801- ● ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (A) 		5-09983-002-1 02 1 0801-1009 ● ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1010- ● ● ●
537 BRACKET; RUBBER
CENTER SEAT(SA1) 		1-72548-057-1 02 1 0801-1009 ● ● ●
538 GROMMET; SCREW
CENTER SEAT(SA1) 		1-09983-165-0 02 1 0801-1009 ● ● ●

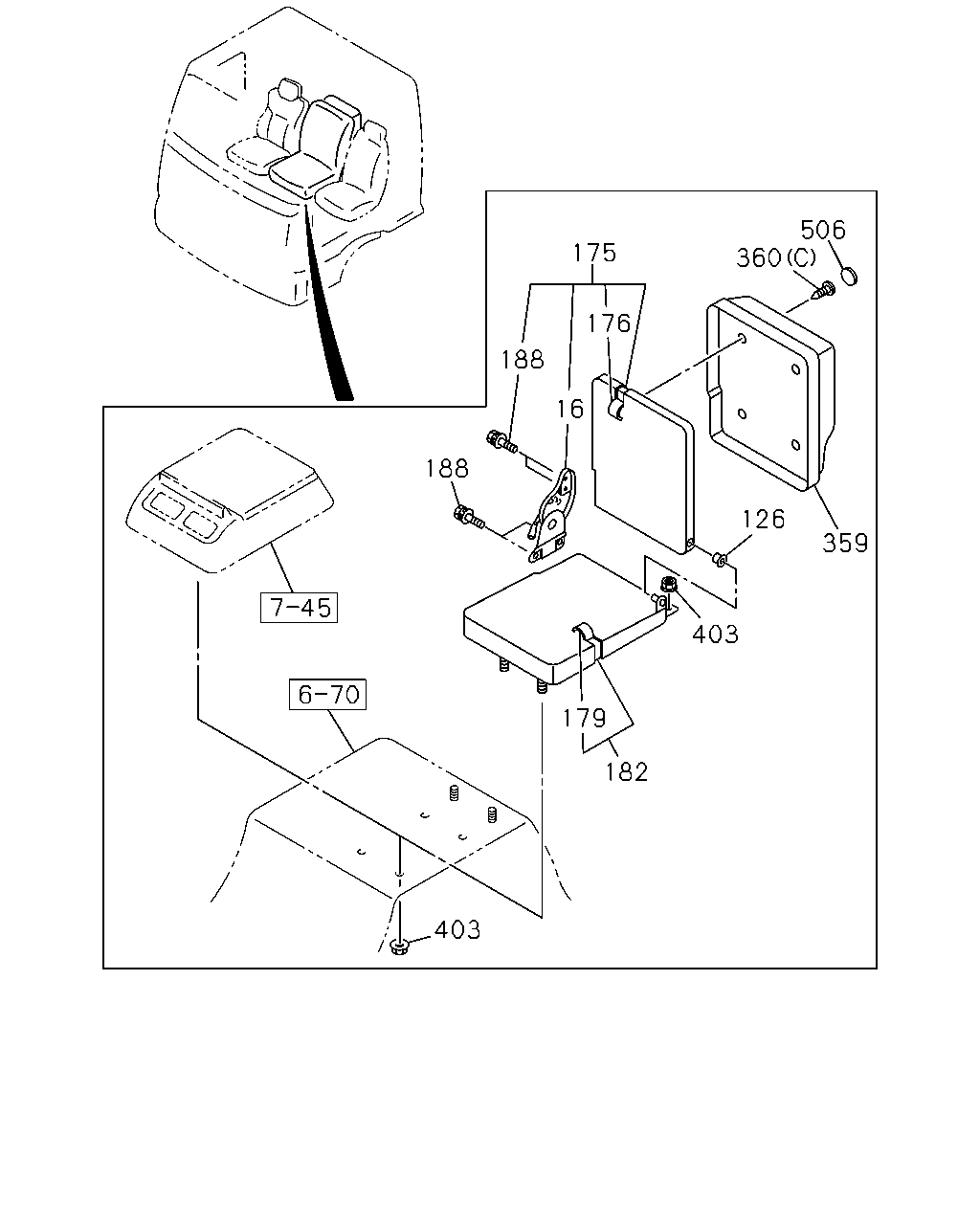

çizim 112781
506 360 175 176 188 16 188 126 359 403 182 179 403
BalonParca AdiParca NoAdetTipApplied Date A B C
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 0801- ● ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) 		8-97854-900-0 01 1 0801- ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-984-0 01 1 0801-0902 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-233-0 01 1 0903-1009 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1010- ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97409-985-0 01 1 0801-0902 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97416-234-0 01 1 0903-1009 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1010- ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97409-983-0 01 1 0801-0902 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97416-237-0 01 1 0903-1009 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97421-432-1 01 1 1010- ● ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-982-0 01 1 0801-0902 ● ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-235-0 01 1 0903-1009 ● ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-430-3 01 1 1010- ● ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 0801- ● ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 0801-1006 ● ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0801-1009 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0801- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0801-1110 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111- ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 0801-1009 ● ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 04 1 0801-1006 ● ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1007- ● ● ●

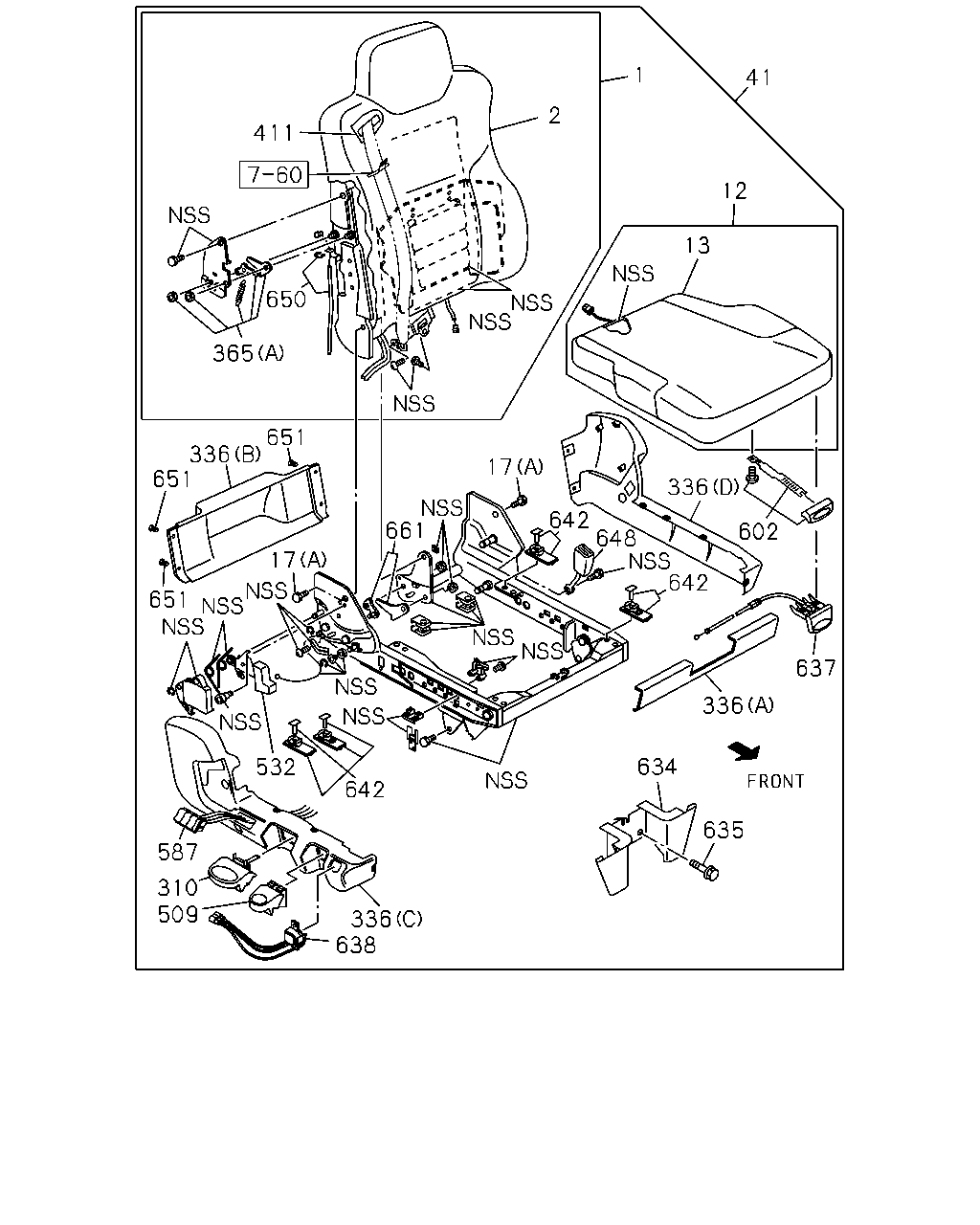

çizim 112794
41 1 2 12 13 17 642 336 648 602 642 637 336 634 635 336 638 509 587 310 642 532 651 17 651 336 651 661 365 650 411
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BACK ASM; SEAT 8-98097-964-0 01 1 0801- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0801-1212 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301- ● ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0801- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0801- ● ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0801- ● ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0801- ● ● ●
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212 ● ● ●
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301- ● ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0801- ● ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0801- ● ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0801- ● ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0801- ● ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0801- ● ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0801- ● ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 0801- ● ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0801- ● ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0801- ● ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 0801- ● ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0801- ● ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0801- ● ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0801- ● ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0801- ● ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0801- ● ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0801- ● ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0801- ● ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0801- ● ● ●
650 CABLE 8-98097-973-0 01 1 0801-1212 ● ● ●
650 CABLE 8-98232-354-0 01 1 1301- ● ● ●
651 RIVET 8-98194-075-0 04 1 0801- ● ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0801- ● ● ●

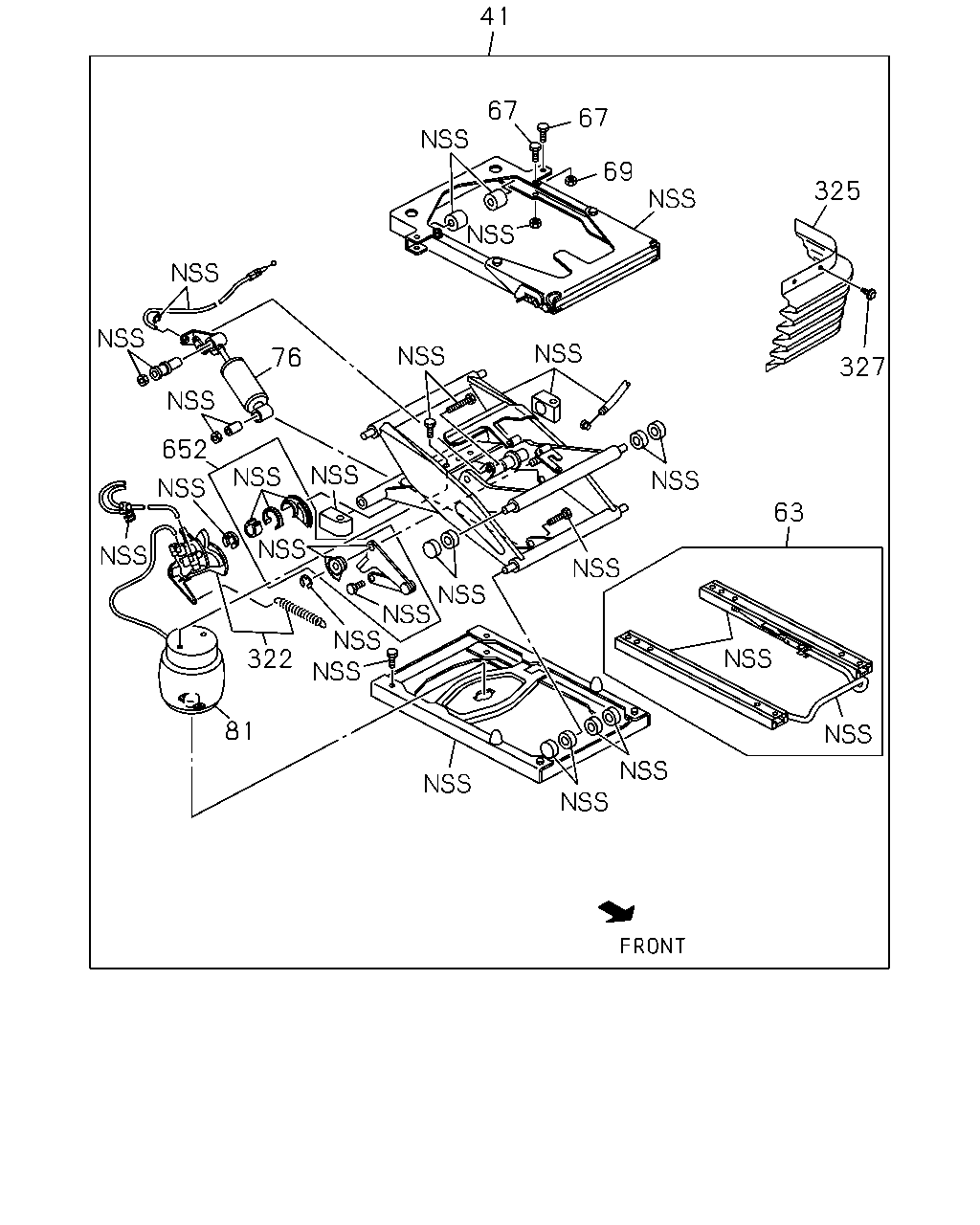

çizim 112797
41 67 67 69 325 327 63 76 652 322 81
BalonParca AdiParca NoAdetTipApplied Date A B C
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212 ● ● ●
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301- ● ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0801- ● ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0801- ● ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0801- ● ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0801- ● ● ●
81 SPRING; AIR 8-98098-000-0 01 1 0801- ● ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0801- ● ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0801- ● ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0801- ● ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0801- ● ● ●

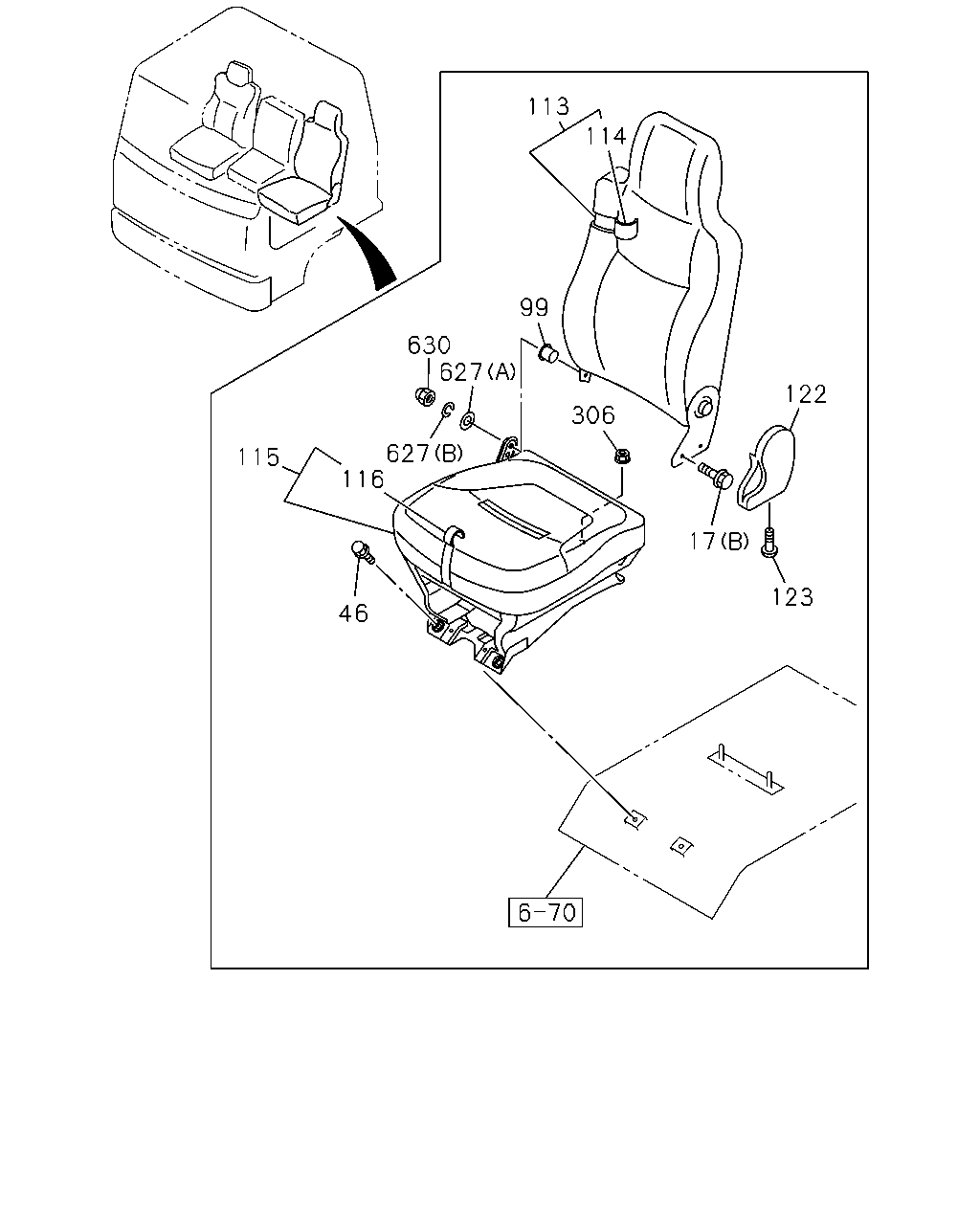

çizim 112803
122 17 123 46 115 116 627 630 627 99 306 113 114
BalonParca AdiParca NoAdetTipApplied Date A B C
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0801- ● ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0801- ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0801- ● ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0801-1009 ● ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-969-0 01 1 0801-0902 ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 0903-1009 ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-914-0 01 1 0801-0902 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 0903-1009 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-968-0 01 1 0801-0902 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 0903-1009 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-0 01 1 1010- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-913-0 01 1 0801-0902 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 0903-1009 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ● ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0801- ● ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 0801- ● ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 0801- ● ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0801- ● ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0801- ● ● ●
627 WASHER; FRT SEAT
(C) 		8-98099-007-0 02 1 0801-1003 ● ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 0801- ● ● ●

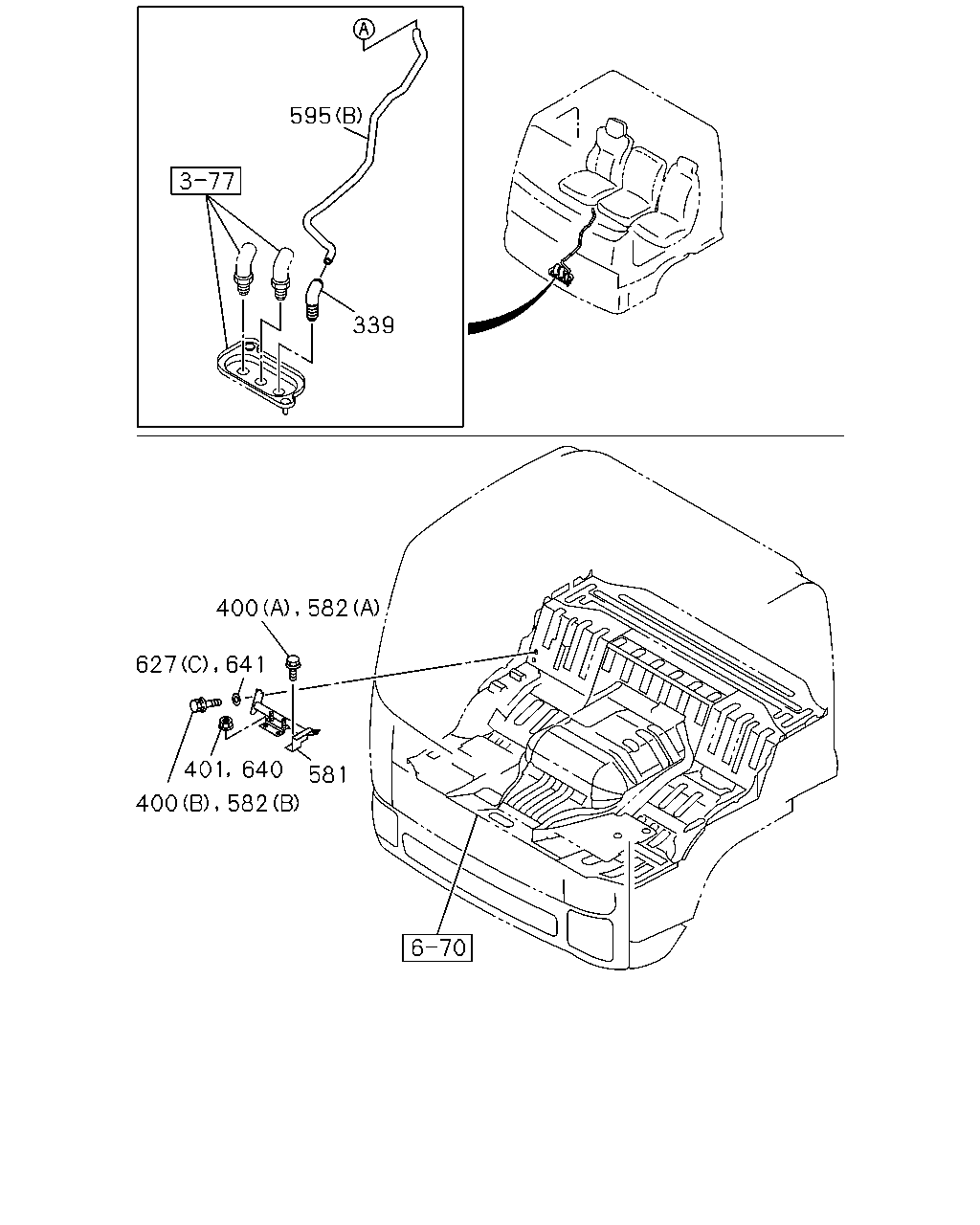

çizim 336640
595 339 400 627 401 400 640 582 582 641 581
BalonParca AdiParca NoAdetTipApplied Date A B C
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 0801- ● ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1004- ● ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1004- ● ● ●
581 PIPE; SEAT 8-97589-692-3 01 1 0801- ● ● ●
582 BOLT; PIPE,SEAT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-1003 ● ● ●
582 BOLT; PIPE,SEAT
(B) 		8-98098-996-0 02 1 0801-1003 ● ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0801- ● ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0801- ● ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0801- ● ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0801- ● ● ●
627 WASHER; FRT SEAT
(C) 		8-98099-007-0 02 1 0801-1003 ● ● ●
640 NUT
M10 FLANGE 		0-91180-110-0 02 1 0801-1003 ● ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1004- ● ● ●
