7-45 — CONSOLE BOX (#47503) — 23 parça

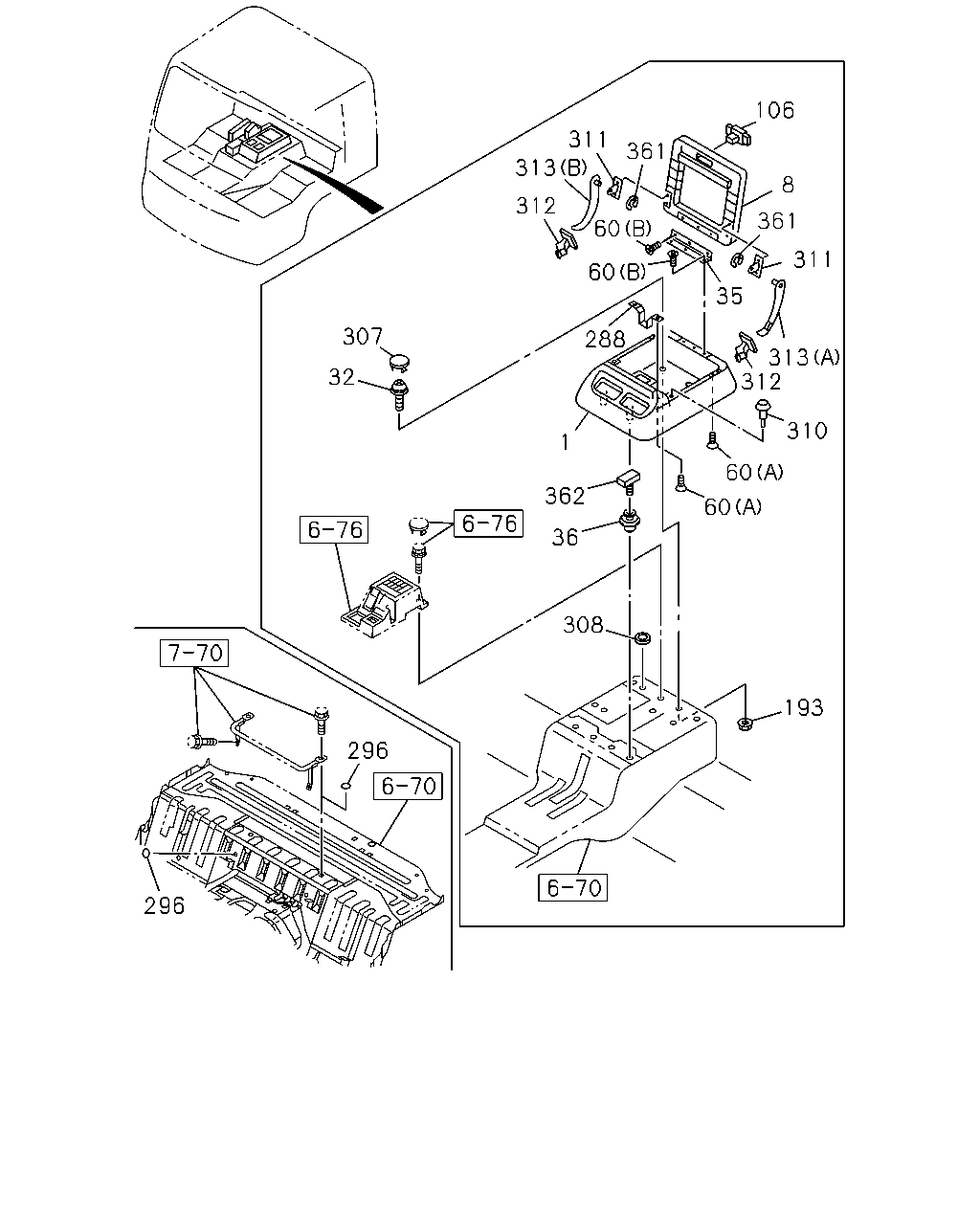

çizim 112788
106 311 361 313 8 312 361 60 60 311 35 307 288 313 312 32 310 1 60 362 60 36 308 193 296 296
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BOX; PARCEL
CENTER SEAT DELETE(SP9) GRAY 		8-97408-710-0 01 1 0801- ● ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) GRAY 		8-97408-712-0 01 1 0801- ● ● ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE(SP9) M6X16 		0-38050-616-0 02 1 0801- ● ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0801- ● ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-09984-190-0 02 1 0801-0808 ● ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. ECE R29<EFE> 		1-09984-190-0 02 1 0809-1101 ● ● ●
60 SCREW; BOX
CENTER SEAT DELETE(SP9) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0801- ● ● ●
60 SCREW; BOX
CENTER SEAT DELETE(SP9) (B) M5X14 		8-94279-325-0 04 1 0801- ● ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72538-312-0 01 1 0801- ● ● ●
193 NUT; PARCEL BOX
ECE R29<EFE> CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 02 1 0809-1101 ● ● ●
193 NUT; PARCEL BOX
CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 02 1 1102- ● ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-190-0 01 1 0801- ● ● ●
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK 		1-76798-019-0 04 1 0902- ● ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) GRAY 		8-97407-951-0 02 1 0904- ● ● ●
308 GROMMET
OD=35 		8-94122-971-0 01 1 0801- ● ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 0801- ● ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 02 1 0801- ● ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 02 1 0801- ● ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0801- ● ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 01 1 0801- ● ● ●
361 RING; SNAP
CENTER SEAT DELETE(SP9) ID=5 		9-09185-405-0 02 1 0801- ● ● ●
362 STUD; CONSOLE BOX
ECE R29<EFE> CENTER SEAT DELETE(SP9) 		1-72538-308-0 02 1 0809-1101 ● ● ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72538-308-0 02 1 1102- ● ● ●
