2-01B — CLUTCH (#4750) — 108 parça

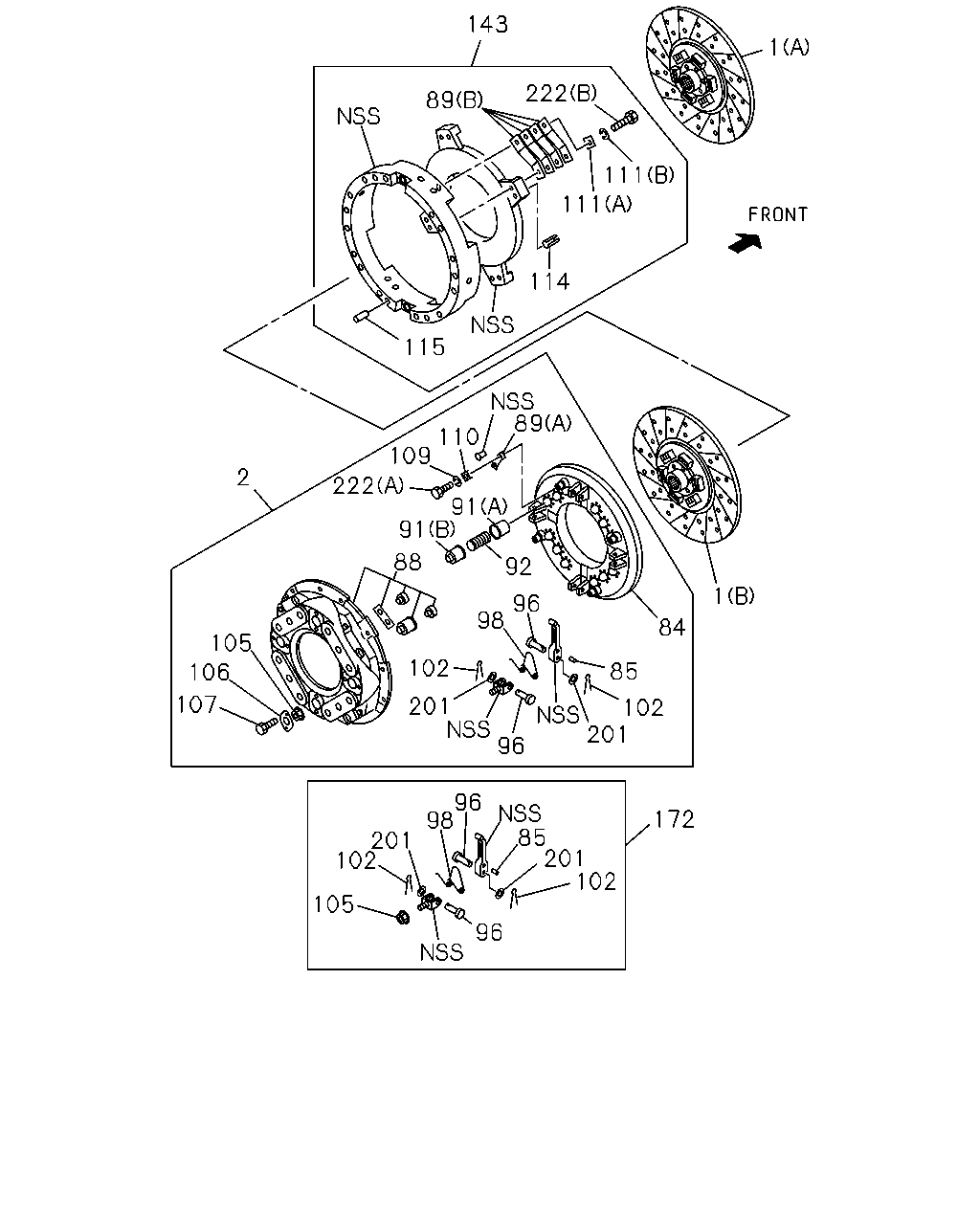

143 1 222 89 111 111 114 115 89 110 109 2 222 91 91 88 92 1 96 98 84 105 102 85 106 107 201 96 102 201 96 98 85 201 102 172 201 102 105 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-731-0	01	1	9603-9804	●
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-731-0	01	1	9805-9904	●
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-731-0	01	1	9905-0009	●	●
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-885-0	01	1	0010-	●	●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-732-0	01	1	9603-9804	●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-732-0	01	1	9805-9904	●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-732-0	01	1	9905-0009	●	●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-886-0	01	1	0010-	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-0	01	1	9603-9904	●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-3	01	1	9905-	●	●
84	PLATE; PRESSURE	1-31221-092-0	01	1	9603-9904	●
84	PLATE; PRESSURE	1-31221-092-0	01	1	9905-	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9603-9904	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9905-	●	●
88	COVER SUB ASM; CLU	1-31211-034-1	01	1	9905-	●	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9603-9904	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9905-	●	●
89	PLATE; STRAP (B)	1-31229-048-0	16	1	9603-9904	●
89	PLATE; STRAP (B)	1-31229-048-0	16	1	9905-	●	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9603-9904	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9905-	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9603-9904	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9905-	●	●
92	SPRING; CLU	1-31214-042-0	12	1	9603-9904	●
92	SPRING; CLU	1-31214-042-0	12	1	9905-	●	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9603-9904	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9905-	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9603-9904	●
98	SPRING; RETURN	1-31233-007-0	04	1	9905-9909	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9910-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9603-9904	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9905-	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9603-9904	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9905-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9603-9904	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9905-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9603-9904	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9603-9904	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9905-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9603-9904	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9905-	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9603-9904	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9905-	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9603-9904	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9905-	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9603-9904	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9905-	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9603-9904	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9905-	●	●
143	PLATE; INTERMEDIATE	1-31221-103-0	01	1	9603-9604	●
143	PLATE; INTERMEDIATE	1-31221-108-0	01	1	9605-9904	●
143	PLATE; INTERMEDIATE	1-31221-108-0	01	1	9905-	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	9603-9904	●
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	9905-	●	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9603-9904	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9905-	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9603-9904	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9905-9909	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9910-	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9603-9904	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9905-	●	●

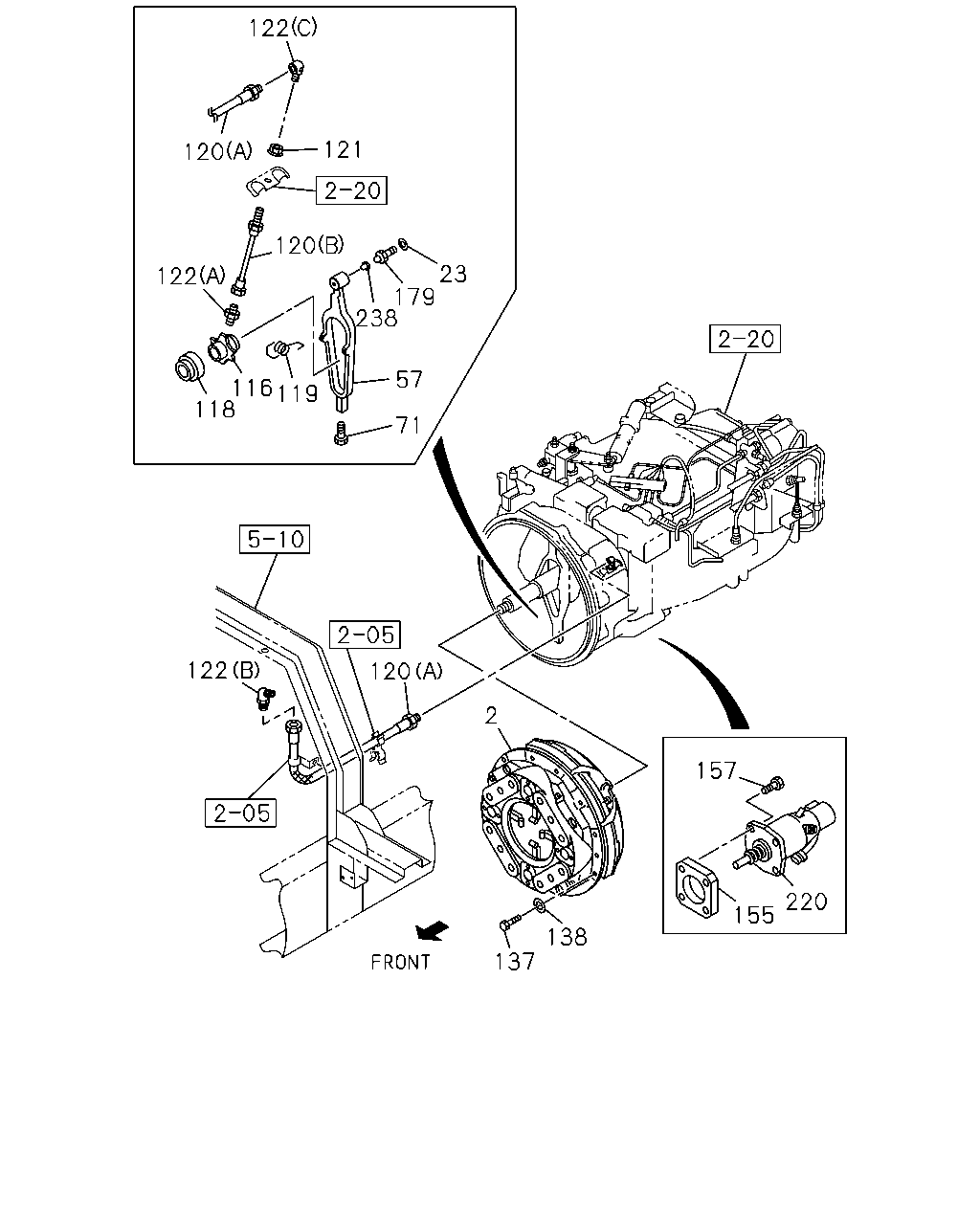

122 121 120 120 23 179 238 122 57 116 119 118 71 122 120 2 157 220 155 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PLATE ASM; PRESSURE,CLU	1-31220-286-0	01	1	9603-9904	●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-3	01	1	9905-	●	●
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	9603-	●
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	9603-	●
71	BOLT M4X25	9-93490-425-0	01	1	9603-9702	●
71	BOLT M4X6	9-93490-406-0	01	1	9703-9904	●
71	BOLT M4X6	9-93490-406-0	01	1	9905-	●	●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	9603-9904	●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	9905-	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9603-9904	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9905-	●	●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	9603-9904	●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	9905-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=270	1-09364-903-0	01	1	9603-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=270	1-09364-903-0	01	1	9905-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=615	1-09364-717-0	01	1	9705-9705	●
120	HOSE; FLEX,SHIFT BLOCK,CLU 10PE1S(60L) (A) L=615	1-09364-717-0	01	1	9705-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU V TYPE ENG<91L> (A) L=615	1-09364-717-0	01	1	9905-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	9705-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L TYPE ENG<90L> (A) L=705	1-09364-850-0	01	1	9905-	●
121	NUT; SHIFT FORK	0-91150-216-0	01	1	9603-9904	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	9905-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9603-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9603-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	9705-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK L TYPE ENG<90L> (C) PT1/8 ELBOW	8-94338-418-1	01	1	9905-	●
137	BOLT; CLU COVER M12X100	0-16806-200-0	10	1	9603-9603	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	9604-9904	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	9905-	●	●
137	BOLT; CLU COVER M12X28	0-23801-228-0	04	1	9603-9603	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	9604-9904	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	9905-	●	●
137	BOLT; CLU COVER M12X78	1-09020-123-0	02	1	9603-9603	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	9604-9904	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	9905-	●	●
138	WASHER; LK,CLU COVER ID=12.2	9-09150-512-0	16	1	9603-9603	●
155	BRACKET; MINIPACK	1-31429-361-0	01	1	9603-9904	●
155	BRACKET; MINIPACK	1-31429-361-1	01	1	9905-	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9603-9904	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9905-	●	●
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	9603-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9603-9904	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9905-	●	●
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	9603-	●
