Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#4749) — 326 parça

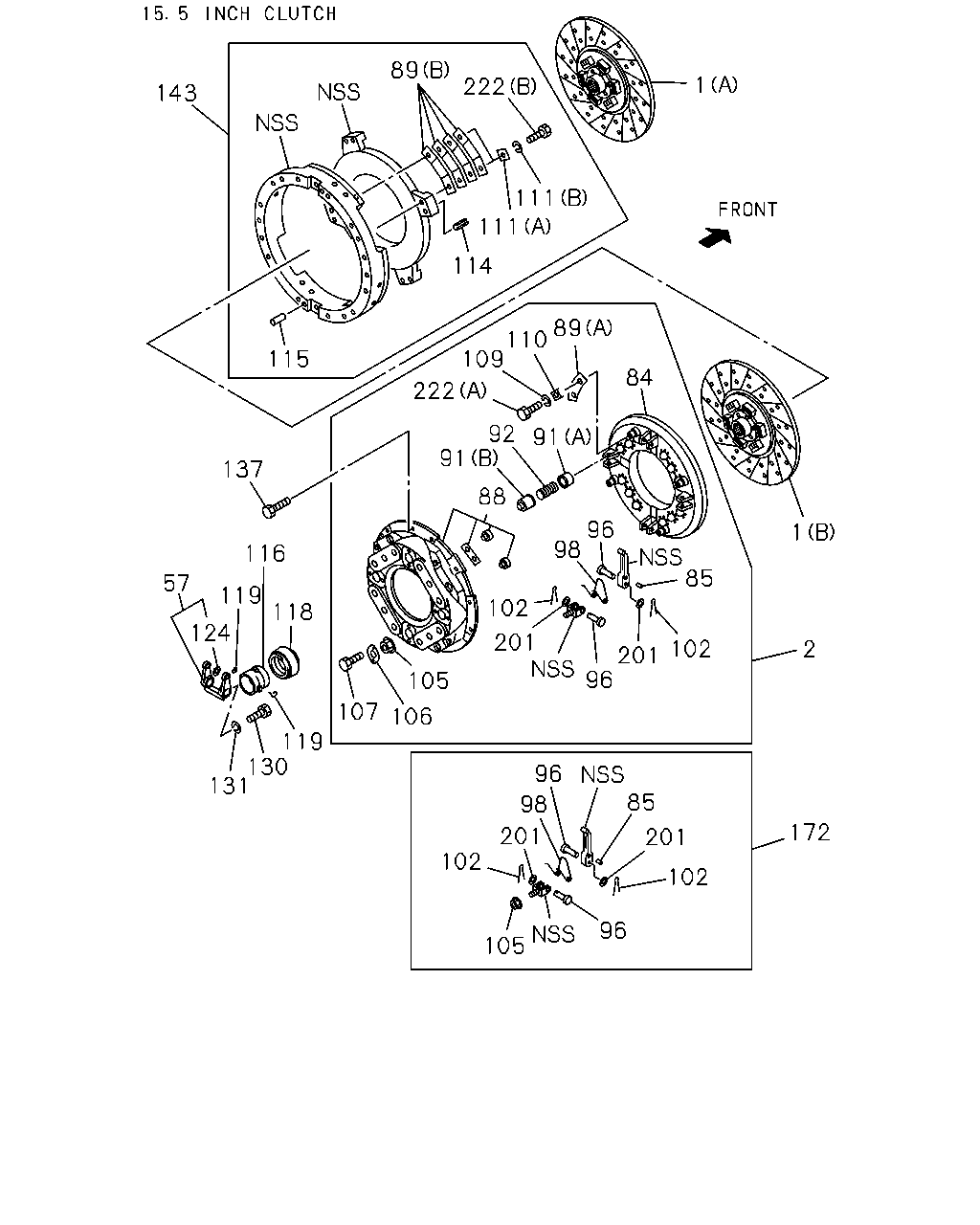

89 1 222 143 111 111 114 89 110 109 115 84 222 92 91 91 137 88 96 98 1 116 85 57 119 102 118 124 201 102 2 201 96 105 107 106 119 130 131 96 85 98 172 201 201 102 102 96 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-731-0	01	1	9603-9804	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-731-0	01	1	9805-9904	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-731-0	01	1	9905-0009	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-885-0	01	1	0010-	●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-732-0	01	1	9603-9804	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-732-0	01	1	9805-9904	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-732-0	01	1	9905-0009	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-886-0	01	1	0010-	●
1	DISC; CLUTCH 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-700-0	01	1	9603-9904	●	●
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-700-0	01	1	9905-	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-624-0	01	1	9603-9603	●	●
1	DISC; CLUTCH L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-753-1	01	1	9603-9704	●	●
1	DISC; CLUTCH L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-775-0	01	1	9705-9707	●	●
1	DISC; CLUTCH L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-773-1	01	1	9708-9904	●	●
1	DISC; CLUTCH 10PE1H(68L),L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-773-1	01	1	9905-9908	●	●
1	DISC; CLUTCH 10PE1H(68L),L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-824-0	01	1	9909-	●	●
2	PLATE ASM; PRESSURE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-276-2	01	1	9603-	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31220-265-2	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-265-2	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31220-321-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-321-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-321-2	01	1	9905-	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-277-0	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-277-0	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-320-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-320-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-277-1	01	1	9905-	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9603-	●	●
84	PLATE; PRESSURE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-087-0	01	1	9603-	●
84	PLATE; PRESSURE 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31221-083-1	01	1	9603-9904	●	●
84	PLATE; PRESSURE 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-083-1	01	1	9603-9904	●	●
84	PLATE; PRESSURE 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-083-1	01	1	9905-	●	●
84	PLATE; PRESSURE 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-041-0	01	1	9603-9707	●	●
84	PLATE; PRESSURE 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31221-041-0	01	1	9603-9707	●	●
84	PLATE; PRESSURE 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-041-0	01	1	9905-	●	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	9603-9904	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	9905-	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31239-021-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-003-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31239-003-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	9708-9904	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31239-053-0	08	1	9708-9904	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	9905-	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-003-0	08	1	9905-	●	●
88	COVER SUB ASM; CLU EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31210-008-0	01	1	9905-	●	●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31229-010-0	12	1	9603-9904	●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31229-010-0	12	1	9905-	●	●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31229-048-0	16	1	9603-9904	●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31229-048-0	16	1	9905-	●	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	9603-9904	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	9905-	●	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	9603-9904	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	9905-	●	●
91	SEAT; SPR EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-032-0	04	1	9603-	●	●
91	SEAT; SPR EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-033-0	04	1	9603-	●	●
92	SPRING; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-042-0	12	1	9603-9904	●
92	SPRING; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-042-0	12	1	9905-	●	●
92	SPRING; CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31214-040-0	12	1	9603-9904	●	●
92	SPRING; CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-040-0	12	1	9603-9904	●	●
92	SPRING; CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-040-0	12	1	9905-	●	●
92	SPRING; CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09580-297-0	12	1	9603-9904	●	●
92	SPRING; CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09580-297-0	12	1	9603-9904	●	●
92	SPRING; CLU 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09580-297-0	12	1	9905-	●	●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	9603-9904	●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	9905-	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31232-017-0	08	1	9603-9904	●	●
96	PIN; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	9603-9904	●	●
96	PIN; RELEASE LEVER 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	9905-	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=77	1-31232-010-0	08	1	9603-9707	●	●
96	PIN; RELEASE LEVER 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> L=77	1-31232-010-0	08	1	9603-9707	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=77	1-31232-010-0	08	1	9905-	●	●
98	SPRING; RETURN 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31233-007-0	04	1	9603-9904	●	●
98	SPRING; RETURN 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	9603-9904	●	●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	9603-9904	●
98	SPRING; RETURN 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	9905-9909	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9910-	●	●
98	SPRING; RETURN 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-001-0	04	1	9603-9707	●	●
98	SPRING; RETURN 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31233-001-0	04	1	9603-9707	●	●
98	SPRING; RETURN 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-001-0	04	1	9905-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9603-9904	●	●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	9905-	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	9603-9904	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	9905-	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31235-009-0	04	1	9603-9904	●	●
105	NUT; SUPPORT 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-009-0	04	1	9603-9904	●	●
105	NUT; SUPPORT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-009-0	04	1	9905-	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	9-31235-061-0	04	1	9603-9707	●	●
105	NUT; SUPPORT 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	9-31235-061-0	04	1	9603-9707	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	9-31235-061-0	04	1	9905-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9603-9904	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	9905-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9603-9904	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9603-9904	●	●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	9905-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9603-9904	●	●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	9905-	●	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	9603-9904	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	9905-	●	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	9603-9904	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	9905-	●	●
111	WASHER; PL,STRAP EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	9603-	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09748-033-0	04	1	9603-9904	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09748-033-0	04	1	9905-	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) D=10 L=25	1-09740-039-1	02	1	9603-9904	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) D=10 L=25	1-09740-039-1	02	1	9905-	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9603-	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9603-0003	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9603-	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9603-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9603-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9603-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9603-	●	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X100	0-16806-200-0	10	1	9603-9603	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	9604-9904	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	9905-	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X28	0-23801-228-0	04	1	9603-9603	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	9604-9904	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	9905-	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X78	1-09020-123-0	02	1	9603-9603	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	9604-9904	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	9905-	●
137	BOLT; CLU COVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10X20 FLANGE	0-28181-020-0	12	1	9603-	●	●
143	PLATE; INTERMEDIATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-084-0	01	1	9603-9604	●
143	PLATE; INTERMEDIATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-107-0	01	1	9605-9812	●
143	PLATE; INTERMEDIATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-122-0	01	1	9901-	●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-733-0	01	1	9603-	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-87830-650-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-650-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-526-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-87830-526-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-885-1	01	1	9708-9904	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-87830-885-1	01	1	9708-9904	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-885-2	01	1	9905-	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-526-1	01	1	9905-	●	●
201	WASHER; PIN LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	9603-9904	●
201	WASHER; PIN LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	9905-	●	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	9603-9904	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	9905-9909	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9910-	●	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	9603-9904	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	9905-	●	●
222	BOLT; STRAP 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-09040-102-0	04	1	9603-9904	●	●
222	BOLT; STRAP 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09040-102-0	04	1	9603-9904	●	●
222	BOLT; STRAP 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09040-102-0	04	1	9905-	●	●

2 110 109 222 137 91 91 88 223 92 1 96 98 84 57 118 119 124 102 85 111 102 111 105 106 107 96 119 116 130 131 172 96 98 85 111 102 111 102 105 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-731-0	01	1	9603-9804	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-731-0	01	1	9805-9904	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-731-0	01	1	9905-0009	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-885-0	01	1	0010-	●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-732-0	01	1	9603-9804	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-732-0	01	1	9805-9904	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-732-0	01	1	9905-0009	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-886-0	01	1	0010-	●
1	DISC; CLUTCH 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-700-0	01	1	9603-9904	●	●
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-700-0	01	1	9905-	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-624-0	01	1	9603-9603	●	●
1	DISC; CLUTCH L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-753-1	01	1	9603-9704	●	●
1	DISC; CLUTCH L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-775-0	01	1	9705-9707	●	●
1	DISC; CLUTCH L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-773-1	01	1	9708-9904	●	●
1	DISC; CLUTCH 10PE1H(68L),L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-773-1	01	1	9905-9908	●	●
1	DISC; CLUTCH 10PE1H(68L),L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 17"	1-31240-824-0	01	1	9909-	●	●
2	PLATE ASM; PRESSURE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-276-2	01	1	9603-	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31220-265-2	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-265-2	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31220-321-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-321-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-321-2	01	1	9905-	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-277-0	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-277-0	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-320-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-320-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-277-1	01	1	9905-	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9603-	●	●
84	PLATE; PRESSURE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-087-0	01	1	9603-	●
84	PLATE; PRESSURE 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31221-083-1	01	1	9603-9904	●	●
84	PLATE; PRESSURE 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-083-1	01	1	9603-9904	●	●
84	PLATE; PRESSURE 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-083-1	01	1	9905-	●	●
84	PLATE; PRESSURE 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-041-0	01	1	9603-9707	●	●
84	PLATE; PRESSURE 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31221-041-0	01	1	9603-9707	●	●
84	PLATE; PRESSURE 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-041-0	01	1	9905-	●	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	9603-9904	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	9905-	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31239-021-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-003-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31239-003-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	9708-9904	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31239-053-0	08	1	9708-9904	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	9905-	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-003-0	08	1	9905-	●	●
88	COVER SUB ASM; CLU EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31210-008-0	01	1	9905-	●	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	9603-9904	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	9905-	●	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	9603-9904	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	9905-	●	●
91	SEAT; SPR EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-032-0	04	1	9603-	●	●
91	SEAT; SPR EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-033-0	04	1	9603-	●	●
92	SPRING; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-042-0	12	1	9603-9904	●
92	SPRING; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-042-0	12	1	9905-	●	●
92	SPRING; CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31214-040-0	12	1	9603-9904	●	●
92	SPRING; CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-040-0	12	1	9603-9904	●	●
92	SPRING; CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-040-0	12	1	9905-	●	●
92	SPRING; CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09580-297-0	12	1	9603-9904	●	●
92	SPRING; CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09580-297-0	12	1	9603-9904	●	●
92	SPRING; CLU 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09580-297-0	12	1	9905-	●	●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	9603-9904	●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	9905-	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31232-017-0	08	1	9603-9904	●	●
96	PIN; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	9603-9904	●	●
96	PIN; RELEASE LEVER 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	9905-	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=77	1-31232-010-0	08	1	9603-9707	●	●
96	PIN; RELEASE LEVER 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> L=77	1-31232-010-0	08	1	9603-9707	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=77	1-31232-010-0	08	1	9905-	●	●
98	SPRING; RETURN 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31233-007-0	04	1	9603-9904	●	●
98	SPRING; RETURN 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	9603-9904	●	●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	9603-9904	●
98	SPRING; RETURN 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	9905-9909	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9910-	●	●
98	SPRING; RETURN 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-001-0	04	1	9603-9707	●	●
98	SPRING; RETURN 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31233-001-0	04	1	9603-9707	●	●
98	SPRING; RETURN 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-001-0	04	1	9905-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9603-9904	●	●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	9905-	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	9603-9904	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	9905-	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31235-009-0	04	1	9603-9904	●	●
105	NUT; SUPPORT 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-009-0	04	1	9603-9904	●	●
105	NUT; SUPPORT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-009-0	04	1	9905-	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	9-31235-061-0	04	1	9603-9707	●	●
105	NUT; SUPPORT 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	9-31235-061-0	04	1	9603-9707	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	9-31235-061-0	04	1	9905-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9603-9904	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	9905-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9603-9904	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9603-9904	●	●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	9905-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9603-9904	●	●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	9905-	●	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	9603-9904	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	9905-	●	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	9603-9904	●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	9905-	●	●
111	WASHER; PL,STRAP EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	9603-	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9603-	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9603-0003	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9603-	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9603-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9603-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9603-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9603-	●	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X100	0-16806-200-0	10	1	9603-9603	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	9604-9904	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	9905-	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X28	0-23801-228-0	04	1	9603-9603	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	9604-9904	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	9905-	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X78	1-09020-123-0	02	1	9603-9603	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	9604-9904	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	9905-	●
137	BOLT; CLU COVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10X20 FLANGE	0-28181-020-0	12	1	9603-	●	●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-733-0	01	1	9603-	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-87830-650-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-650-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-526-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-87830-526-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-885-1	01	1	9708-9904	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-87830-885-1	01	1	9708-9904	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-885-2	01	1	9905-	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L),10PE1S(60L),10PE1N(61L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-526-1	01	1	9905-	●	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	9603-9904	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	9905-9909	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9910-	●	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	9603-9904	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	9905-	●	●
222	BOLT; STRAP 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-09040-102-0	04	1	9603-9904	●	●
222	BOLT; STRAP 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09040-102-0	04	1	9603-9904	●	●
222	BOLT; STRAP 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09040-102-0	04	1	9905-	●	●
223	COVER; CLU EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31210-008-0	01	1	9603-9904	●	●

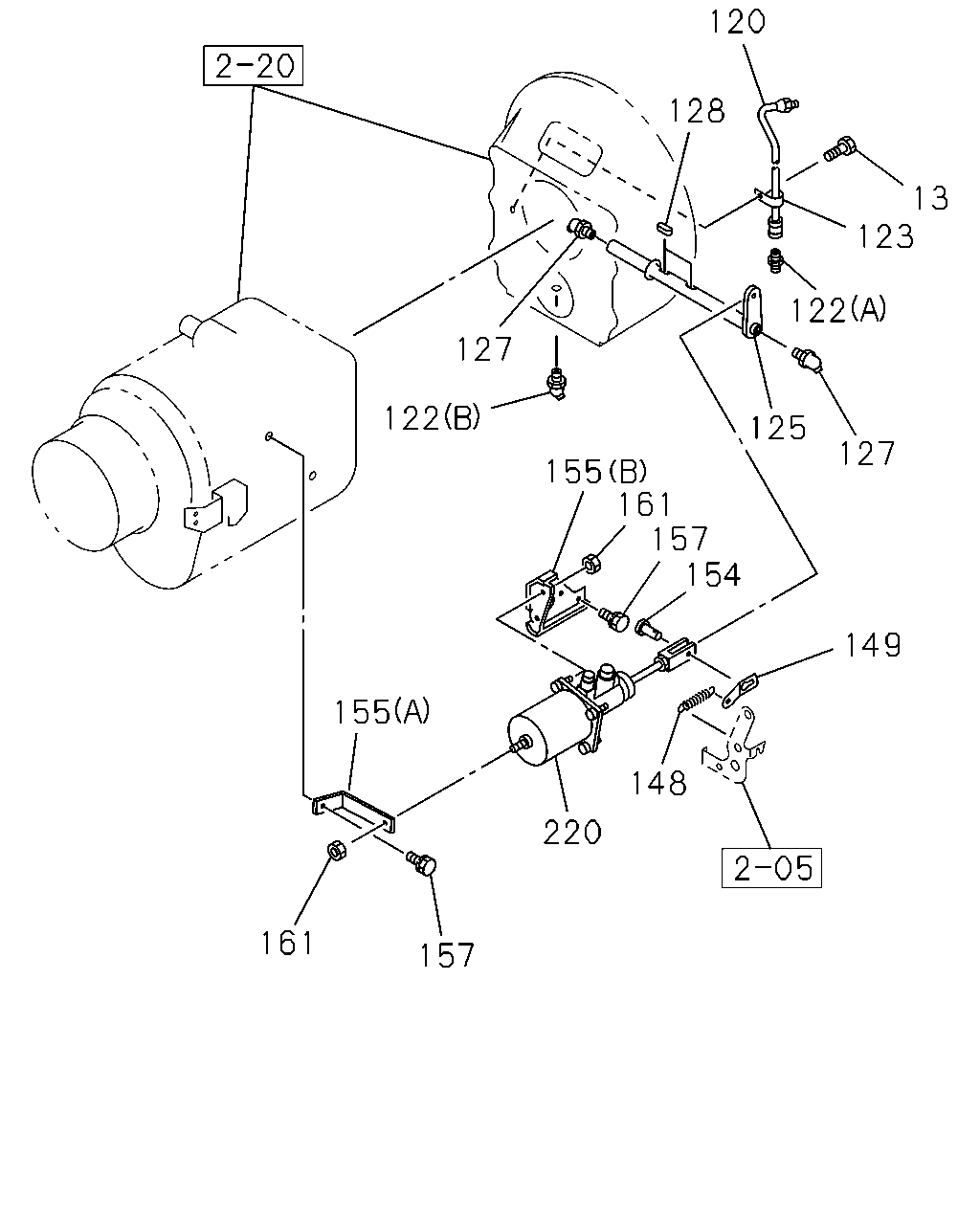

120 128 13 123 122 127 122 125 127 155 161 157 154 149 155 148 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9603-0003	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9603-9904	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9603-9904	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9603-	●	●
125	SHAFT; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31342-262-0	01	1	9603-	●
125	SHAFT; CLU EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=477	1-31342-240-1	01	1	9603-9901	●
125	SHAFT; CLU L=477	1-31342-240-1	01	1	9603-9901		●
125	SHAFT; CLU EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31342-305-0	01	1	9902-	●
125	SHAFT; CLU	1-31342-305-0	01	1	9902-		●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9603-9902	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9903-9904	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9905-9907	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9908-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9603-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9603-	●	●
149	EYE; SPRING,RETURN SPRING CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31426-048-0	01	1	9603-	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31426-041-0	01	1	9603-9904	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9603-9904		●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31426-052-0	01	1	9905-	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9905-		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9603-	●	●
155	BRACKET; MINIPACK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31429-323-1	01	1	9603-	●
155	BRACKET; MINIPACK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31429-324-0	01	1	9603-	●
155	BRACKET; MINIPACK EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31429-289-1	01	1	9603-	●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9603-		●
155	BRACKET; MINIPACK EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31429-301-0	01	1	9603-9901	●
155	BRACKET; MINIPACK (B)	1-31429-301-0	01	1	9603-9901		●
155	BRACKET; MINIPACK EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31429-402-0	01	1	9902-	●
155	BRACKET; MINIPACK (B)	1-31429-402-0	01	1	9902-		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9603-	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9603-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-447-0	01	1	0002-0011	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-490-2	01	1	0012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-386-3	01	1	9603-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-382-0	01	1	9603-0001	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-382-0	01	1	9603-0001		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-382-1	01	1	0002-0011	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-382-1	01	1	0002-0011		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-466-1	01	1	0012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-1	01	1	0012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
