◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11427 - FXR/GXR(AUST)JNLT05 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#47489) — 22 parça

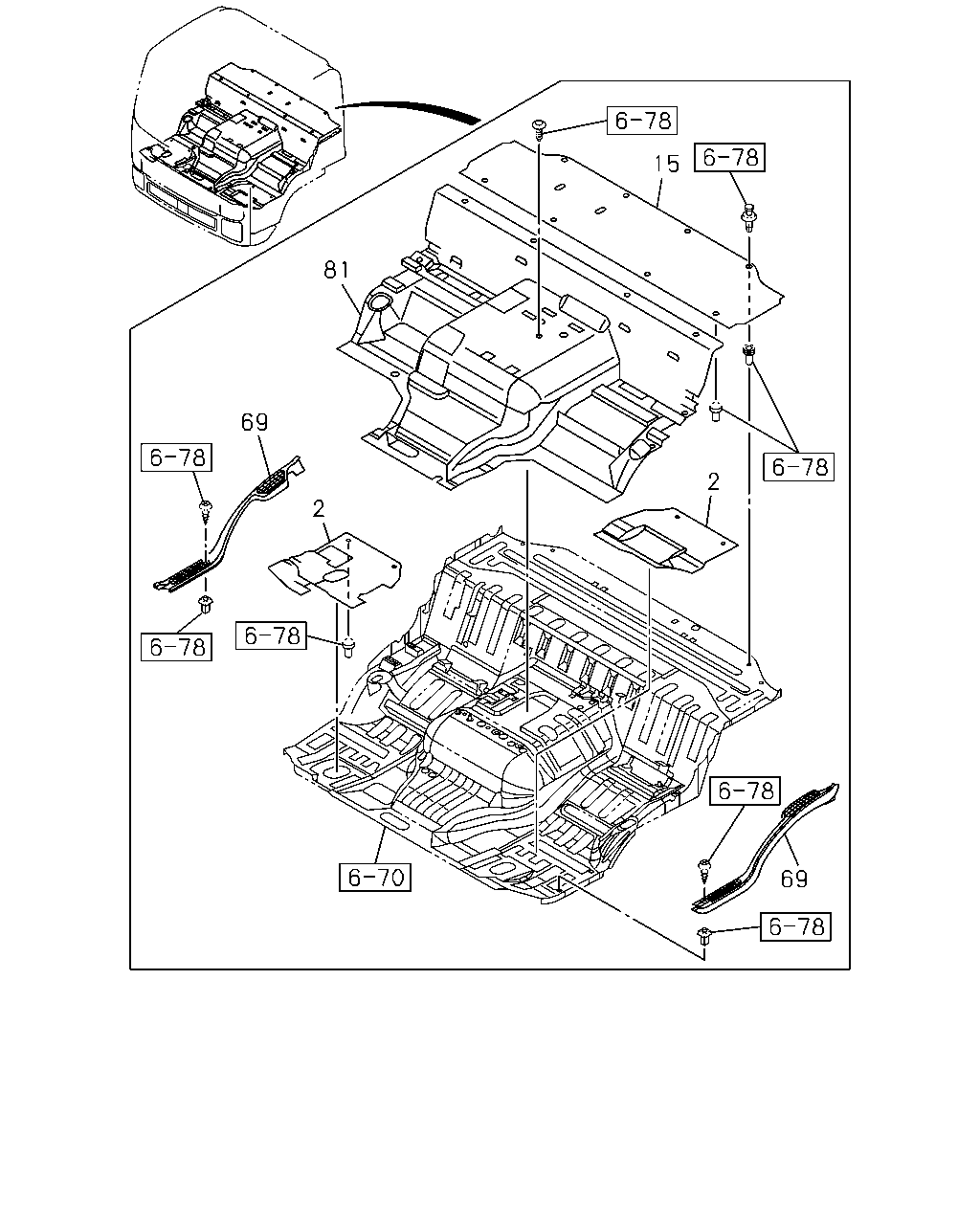

çizim 112778
15 81 69 2 2 69
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MAT; FLOOR
GRAY 		8-97413-108-1 01 1 0801-0801 ● ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> GRAY 		8-97413-108-1 01 1 0802-1006 ● ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> DARK GRAY 		8-97421-808-0 01 1 1007- ● ● ●
2 MAT; FLOOR
GRAY 		8-97413-109-1 01 1 0801-0801 ● ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> GRAY 		8-97413-109-1 01 1 0802-1006 ● ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> DARK GRAY 		8-97421-810-0 01 1 1007- ● ● ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-132-2 01 1 0802- ● ● ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-133-1 01 1 0802- ● ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-397-0 01 1 0801-0801 ● ● ●
15 MAT; FLOOR REAR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-397-0 01 1 0802-1006 ● ● ●
15 MAT; FLOOR REAR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1007- ● ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0802- ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 0801- ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 0801- ● ● ●
81 MAT; FLOOR,CENTER
GRAY 		8-97413-079-4 01 1 0801-0801 ● ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> GRAY 		8-97413-079-4 01 1 0802-1006 ● ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> DARK GRAY 		8-97421-806-0 01 1 1007- ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> GRAY 		8-97413-083-6 01 1 0802- ● ●
81 MAT; FLOOR,CENTER
GRAY 		8-97413-080-3 01 1 0801-0801 ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> GRAY 		8-97413-080-3 01 1 0802-1006 ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> 		8-97421-807-0 01 1 1007- ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> GRAY 		8-97413-084-5 01 1 0802- ●
