◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11427 - FXR/GXR(AUST)JNLT05 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#47487) — 17 parça

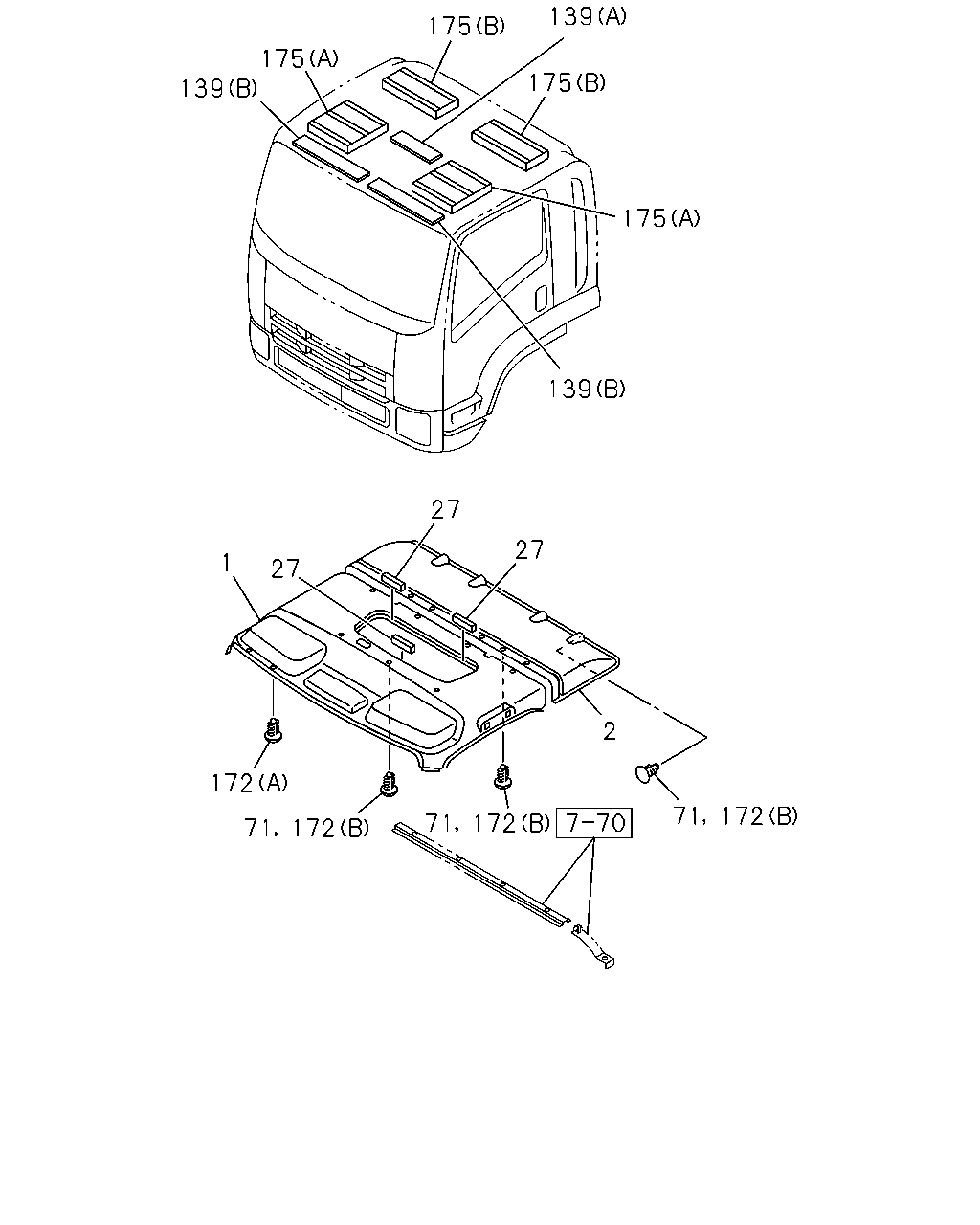

çizim 112743
139 175 175 139 175 175 139 27 27 1 27 2 172 71 172 71 172 71 172
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-438-4 01 1 0801-0811 ● ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97416-360-0 01 1 0812-1306 ● ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-741-0 01 1 1307- ● ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-436-4 01 1 0801-0811 ● ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97416-359-0 01 1 0812-1306 ● ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-740-0 01 1 1307- ● ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97407-455-5 01 1 0801- ● ● ●
27 INSULATION; ROOF 8-98046-638-2 03 1 0801- ● ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1102- ● ● ●
139 SEAL; ROOF
(B) 		8-98076-274-0 02 1 0801-1009 ● ● ●
139 SEAL; ROOF
(B) 		8-98169-116-0 02 1 1010- ● ● ●
139 SEAL; ROOF
(A) 		8-98076-275-0 02 1 0801-0911 ● ● ●
139 SEAL; ROOF
(A) 		8-98076-275-0 01 1 0912-1101 ● ● ●
172 RETAINER; HEAD LINING
(B) DARK GRAY 		8-97405-282-0 07 1 0801-1101 ● ● ●
172 RETAINER; HEAD LINING
(A) DARK GRAY 		8-97411-875-0 12 1 0801- ● ● ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 0801- ● ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 0801- ● ● ●
