◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56A - EXHAUST BRAKE SYSTEM ▶
1-56A — EXHAUST BRAKE SYSTEM (#4747) — 77 parça

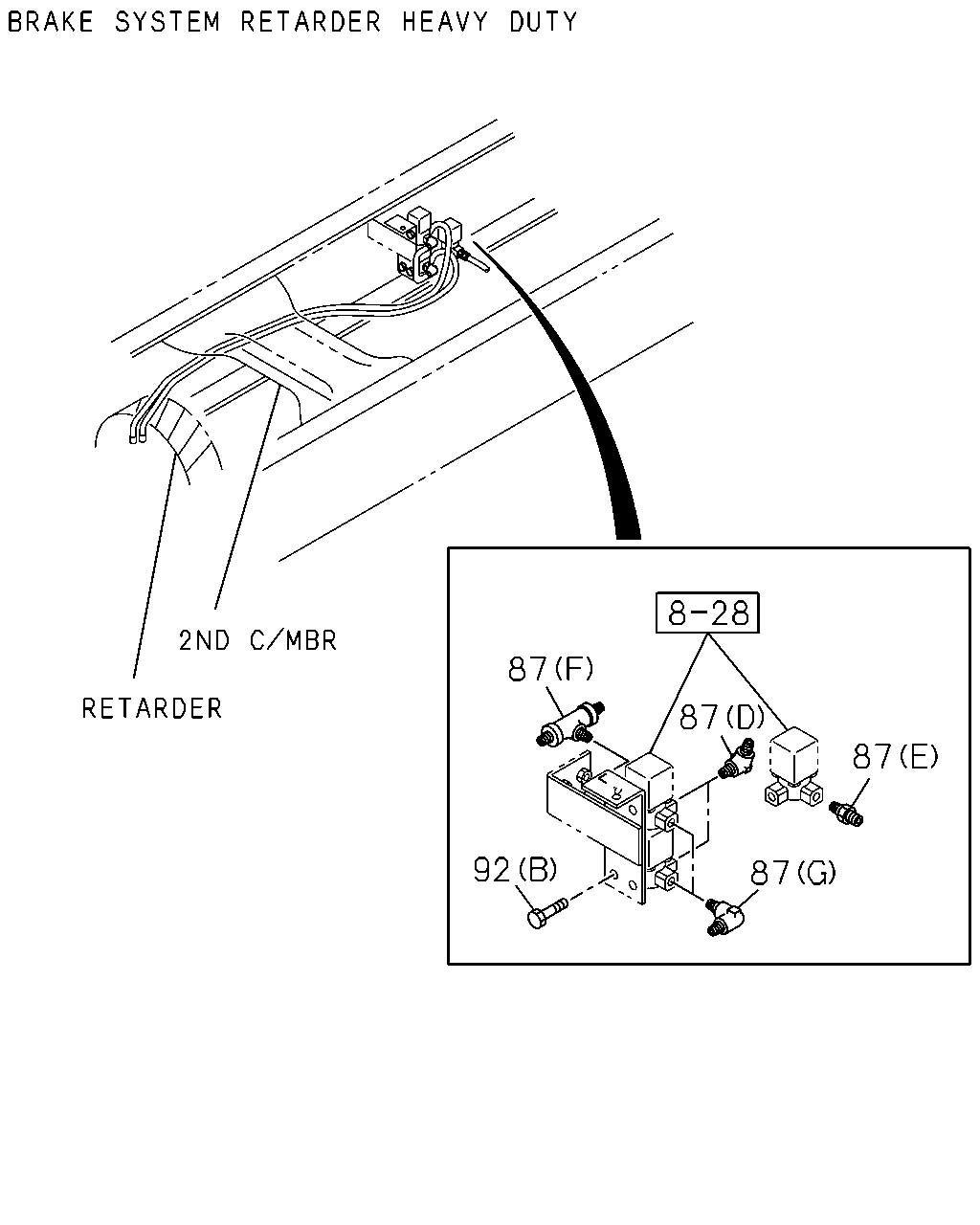

çizim 40417
87 87 87 92 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E
87 CONNECTOR
(A) M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ●
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703-9708 ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9709-9804 ● ●
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9805-9904 ● ●
87 CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9706 ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9706 ●
87 CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9707-9804 ● ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9707-9804 ●
87 CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9805-9904 ● ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9805-9904 ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9805-9904 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9905- ● ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) FULL FLOATING CAB(W16) (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 9603-9904 ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9707-9708 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 9709-9904 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9905- ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9707-9708 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9904 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9707-9708 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9904 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9609-9904 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28680-820-0 04 1 9707-9708 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ●

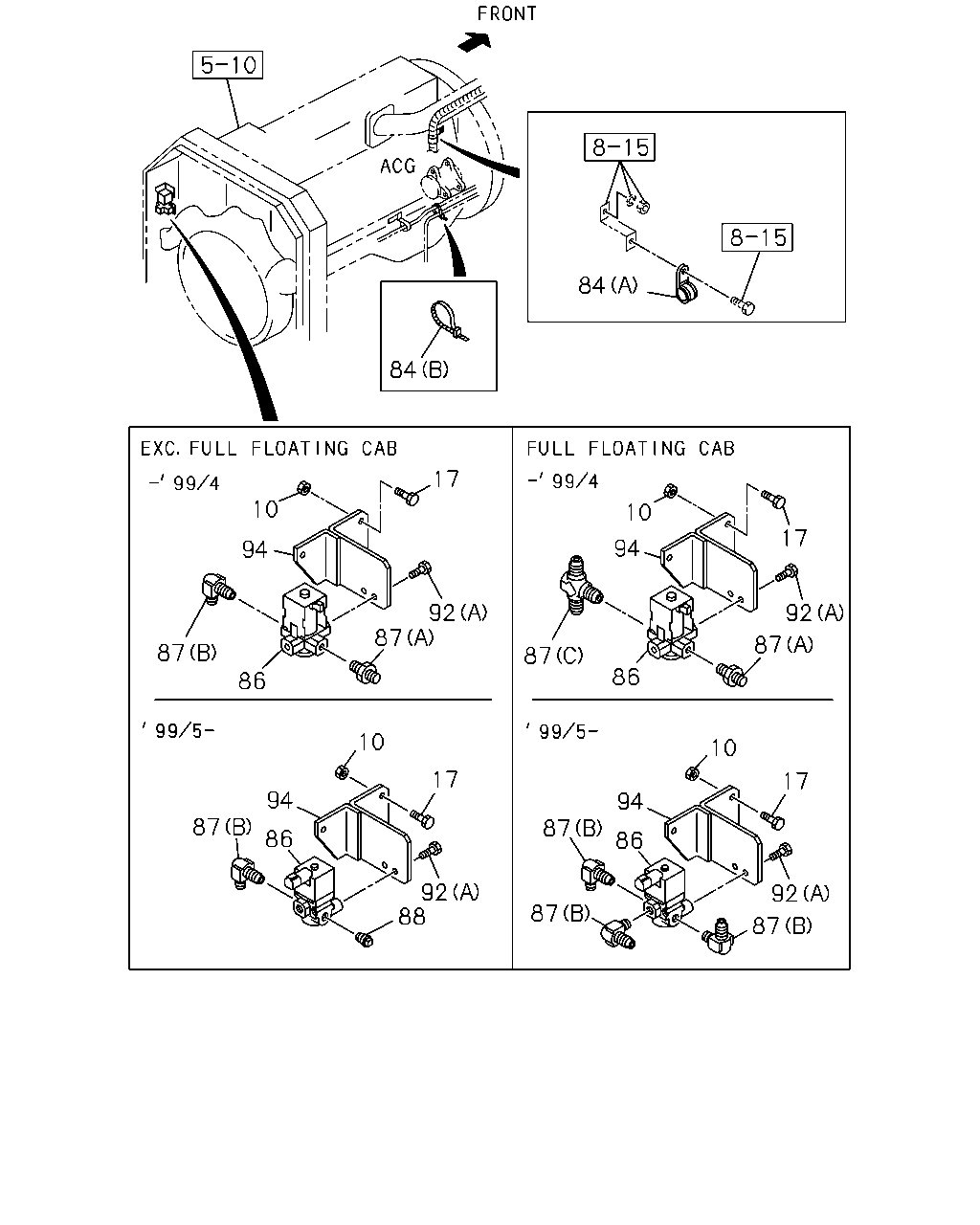

çizim 42478
84 84 17 10 10 17 94 94 92 92 87 87 87 87 86 86 10 10 17 17 94 94 87 87 86 86 92 88 92 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 NUT; BRKT,EXH BRAKE
M8 		9-09110-508-0 03 1 9603-9606 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9607-9706 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9707-9804 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9805-9904 ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606 ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9905- ● ● ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9707-9804 ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9805-9904 ● ● ●
84 CLIP; HARNESS
(A) ID=26 L=27 		1-09701-006-0 01 1 9603-9706 ●
84 CLIP; HARNESS
(A) ID=26 L=27 		1-09701-006-0 01 1 9905- ● ● ● ●
84 CLIP; HARNESS
(A) ID=26 L=27 		1-09701-006-0 01 1 9707-9804 ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9603-9904 ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9905- ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9707-9804 ● ●
84 CLIP; HARNESS
(A) ID=26 L=27 		1-09701-006-0 01 1 9805-9904 ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9805-9904 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-598-2 01 1 9603-9804 ●
86 VALVE; MAG,EXH BRK 1-82563-598-3 01 1 9805-9904 ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 9905- ● ● ● ●
86 VALVE; MAG,EXH BRK
SHORT CHASSIS&RHD(EXZ5MC) 		1-82563-696-2 01 1 9707-9904 ●
87 CONNECTOR
(A) M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ●
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703-9708 ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9709-9804 ● ●
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9805-9904 ● ●
87 CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9706 ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9706 ●
87 CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9707-9804 ● ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9707-9804 ●
87 CONNECTOR
SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9805-9904 ● ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9805-9904 ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9805-9904 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9905- ● ●
87 CONNECTOR
SHORT CHASSIS&LHD(EXZ6MC) FULL FLOATING CAB(W16) (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 9603-9904 ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9707-9708 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 9709-9904 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9905- ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9707-9708 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9904 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9707-9708 ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9904 ● ●
88 PLUG
SHORT CHASSIS&RHD(EXZ5MC) PT1/4 		9-99204-513-0 01 1 9905- ●
88 PLUG
SHORT CHASSIS&LHD(EXZ6MC) EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9905- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9609-9904 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28680-820-0 04 1 9707-9708 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-173-0 01 1 9603-9706 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9905- ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9707-9804 ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9805-9904 ● ● ●
