◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#47464) — 205 parça

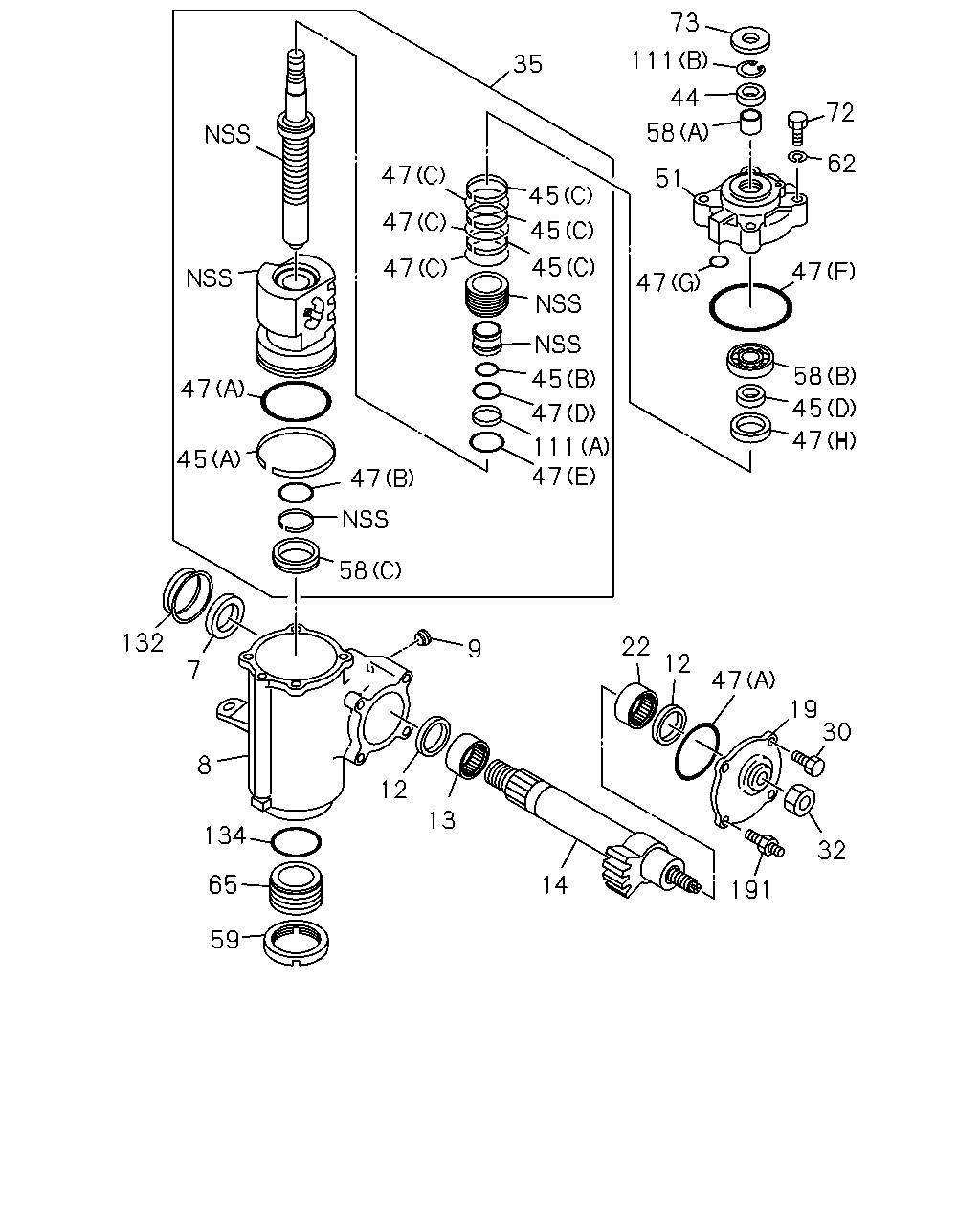

çizim 17698
73 111 35 44 72 58 62 47 51 45 47 45 45 47 47 47 58 45 47 45 47 47 111 47 45 47 58 132 22 9 12 7 47 19 30 8 12 13 134 32 65 14 191 59
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		8-97093-578-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97108-215-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97125-965-0, 97125965 		8-97122-750-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-514-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-820-0 02 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09639-008-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-042-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97073-274-0, 97073274 		8-97015-202-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: E = 8-97173-468-3, 97173468 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-092-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-600-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-510-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-094-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-601-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-839-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-274-0, 97073274 		8-97015-209-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: B = 8-97073-274-0, 97073274 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-100-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272 		8-97093-582-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97120-400-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-512-1 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-94118-091-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-940-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09629-005-0 03 1 -
45 06.252 RING; RET
(D) ASM PART: C = 8-97120-399-0, 97120399 		8-97120-404-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (G) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (E) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-061-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
(H) ASM PART: C = 8-97120-399-0, 97120399 		8-97120-405-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272 		8-97093-586-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97120-401-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (C) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09820-019-2 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(D) ASM PART: E = 8-97173-468-3, 97173468 		8-97014-812-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44259-003-0 01 1 -
62 06.809 WASHER; HSG BOLT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09509-010-0 04 1 -
65 06.518 COVER; FRT,STRG UNIT
06.824 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		1-44251-063-0 01 1 -
65 06.518 COVER; FRT,STRG UNIT
ASM PART: D = 8-97125-965-0, 97125965 		8-97122-752-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		1-44519-110-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-44579-005-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: D = 8-97125-965-0, 97125965 		5-44579-005-0 03 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272 		5-44579-006-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97120-402-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44329-004-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		1-44159-027-0 01 1 -
191 06.809 STUD; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97078-173-0 01 1 -
191 06.809 STUD; STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-596-0 01 1 -

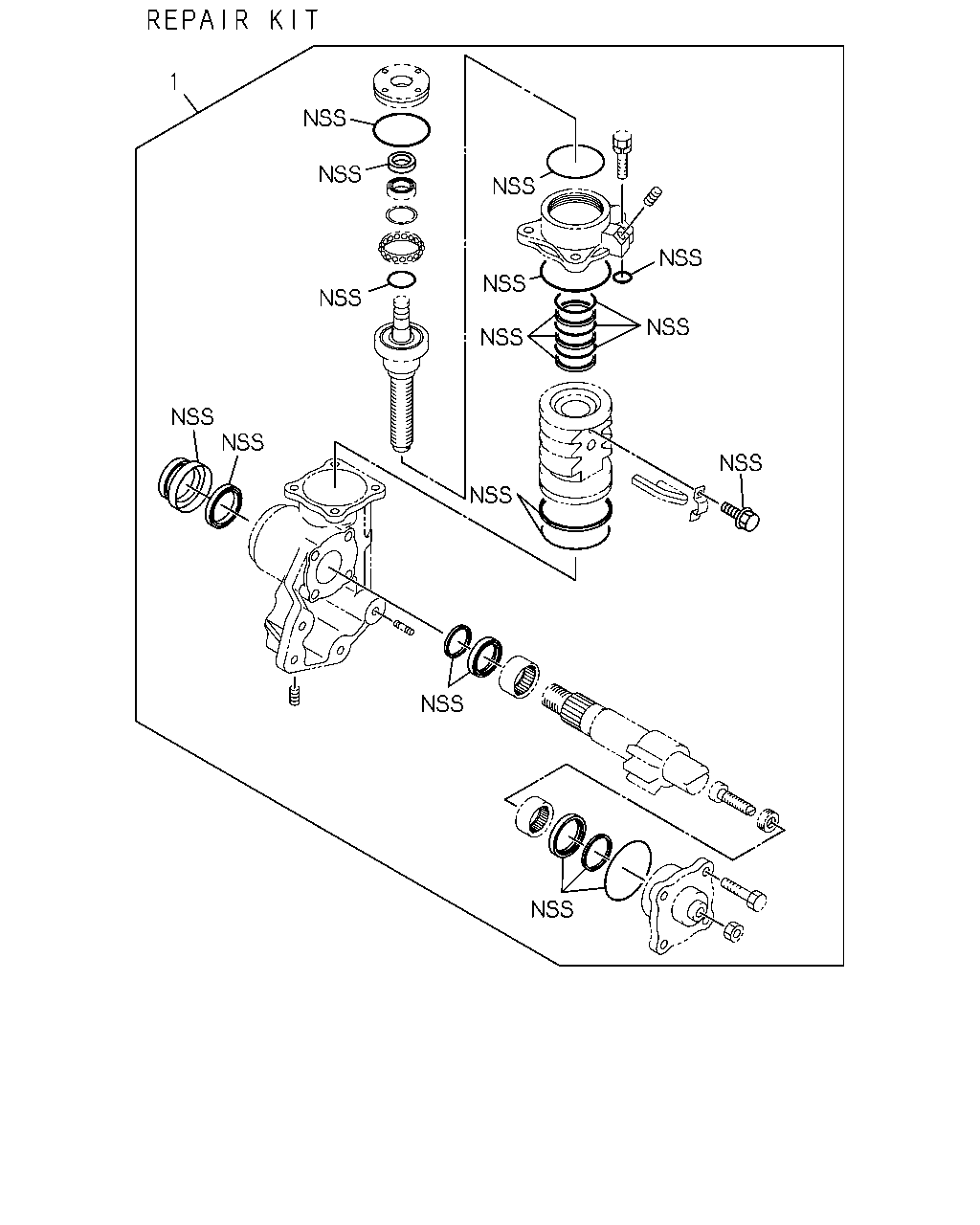

çizim 20849
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97073-272-1, 97073272 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97173-468-3, 97173468 		8-97147-043-0 01 1 -

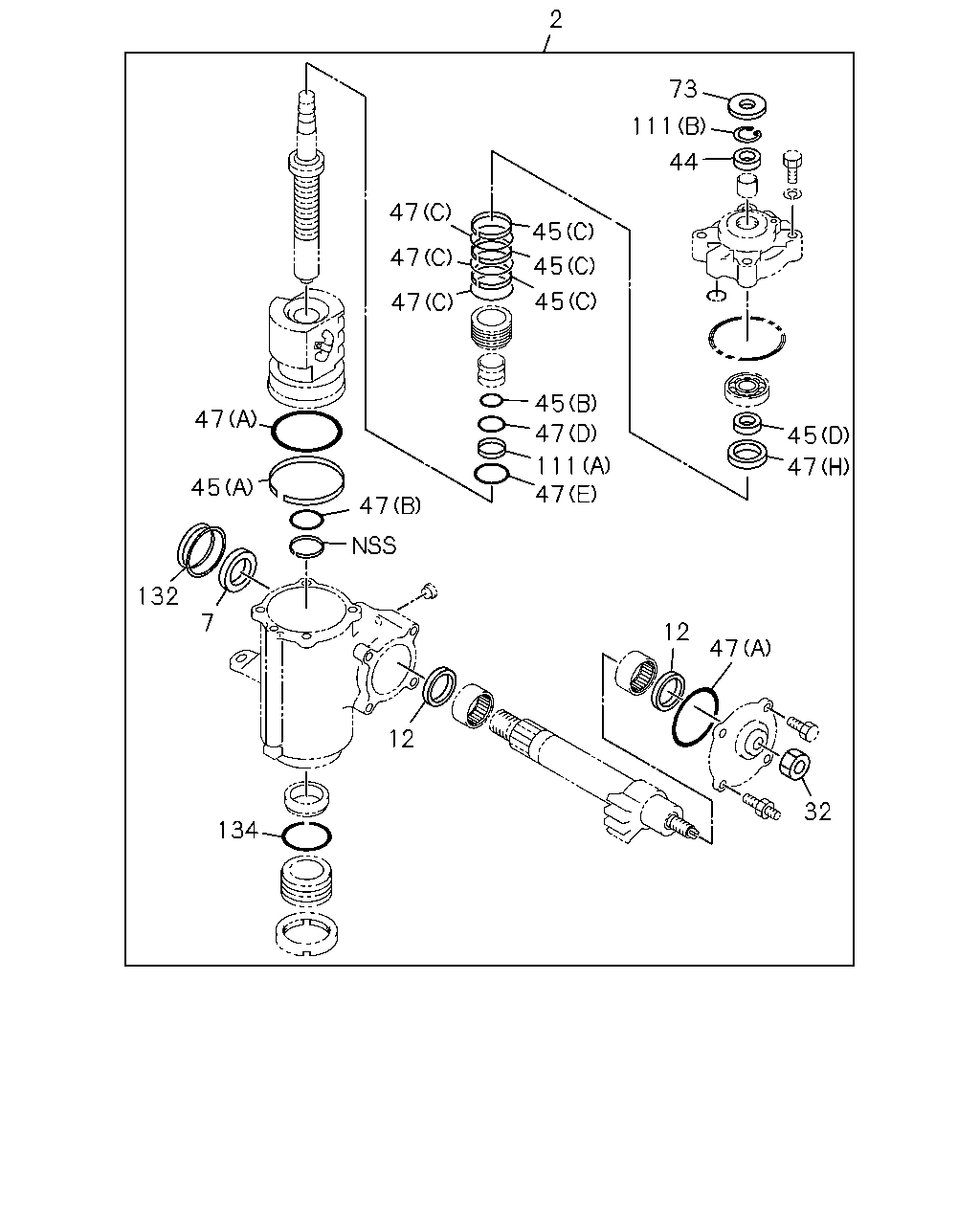

çizim 20939
1 132 12 47 7 12
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97073-272-1, 97073272 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97173-468-3, 97173468 		8-97147-043-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09639-008-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (G) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (E) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-061-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
(H) ASM PART: C = 8-97120-399-0, 97120399 		8-97120-405-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44329-004-0 01 1 -

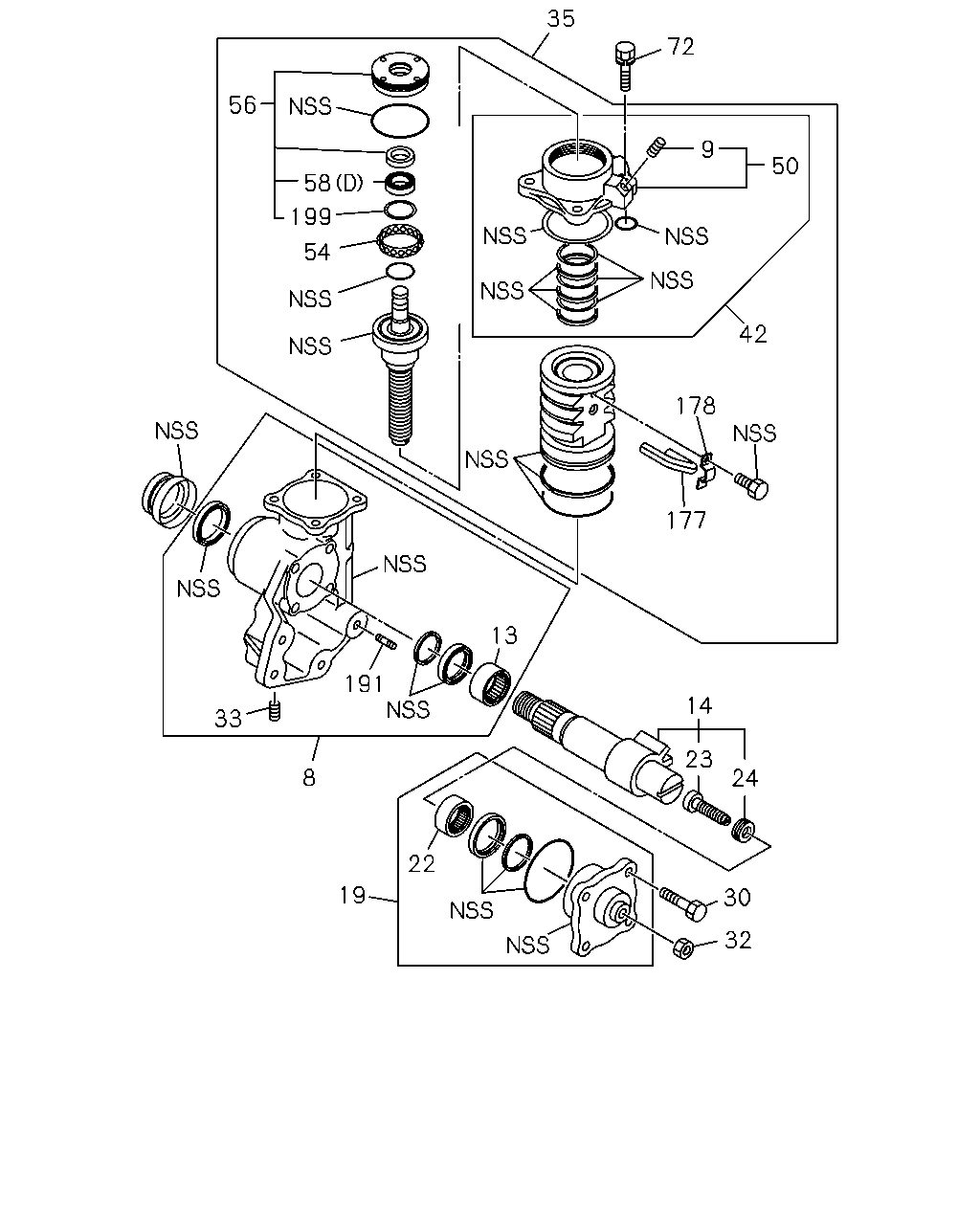

çizim 66805
66 69 68 26 44 43 55 9 43 8 7 13 14 22 30 23 25 26 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		8-97093-578-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97108-215-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97125-965-0, 97125965 		8-97122-750-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-514-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-820-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-042-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97073-274-0, 97073274 		8-97015-202-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: E = 8-97173-468-3, 97173468 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-092-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-600-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-510-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-094-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-601-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-839-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-274-0, 97073274 		8-97015-209-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97073-274-0, 97073274 		9-44277-010-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: B = 8-97073-274-0, 97073274 		9-44279-013-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: B = 8-97073-274-0, 97073274 		9-44279-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: B = 8-97073-274-0, 97073274 		9-44279-015-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: B = 8-97073-274-0, 97073274 		9-44279-016-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: B = 8-97073-274-0, 97073274 		9-44279-017-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
(A) ASM PART: B = 8-97073-274-0, 97073274 		8-97081-096-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
06.825, (B) ASM PART: B = 8-97073-274-0, 97073274 		8-97081-098-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: B = 8-97073-274-0, 97073274 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-100-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-94130-938-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-94118-091-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-940-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97108-220-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-94130-939-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.05 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-942-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.07 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-943-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.08 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-944-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.10 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-945-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.20 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-946-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.50 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-947-0 01 1 -
69 06.521 BOLT; COVER FIX STRG UNIT
02.277, M10X25 ASM PART: B = 8-97073-274-0, 97073274 		9-01911-025-0 04 1 -
çizim 69812
35 72 56 9 50 58 199 54 42 178 177 13 191 14 33 23 8 24 22 19 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		8-97093-578-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97108-215-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97125-965-0, 97125965 		8-97122-750-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-514-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-820-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-042-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97073-274-0, 97073274 		8-97015-202-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: E = 8-97173-468-3, 97173468 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-092-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-600-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-510-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-094-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-601-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-839-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-274-0, 97073274 		8-97015-209-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97073-274-0, 97073274 		9-44277-010-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: B = 8-97073-274-0, 97073274 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-100-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-820-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272 		8-97093-582-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97120-400-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-512-1 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-513-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97173-509-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: E = 8-97173-468-3, 97173468 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (C) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09820-019-2 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(D) ASM PART: E = 8-97173-468-3, 97173468 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		1-44519-110-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-44579-005-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: D = 8-97125-965-0, 97125965 		5-44579-005-0 03 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-809-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-808-0 01 1 -
191 06.809 STUD; STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97078-173-0 01 1 -
191 06.809 STUD; STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97093-596-0 01 1 -
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97201-812-0 01 1 -
çizim 70054
2 73 111 44 47 45 47 45 45 47 45 47 47 45 111 47 47 45 47 132 7 12 47 12 32 134
BalonParca AdiParca NoAdetTipApplied Date
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97073-272-1, 97073272 		8-97108-206-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09639-008-0 02 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97173-468-3, 97173468 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-274-0, 97073274 		8-97081-100-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-94118-091-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: B = 8-97073-274-0, 97073274 		8-94130-940-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09629-005-0 03 1 -
45 06.252 RING; RET
(D) ASM PART: C = 8-97120-399-0, 97120399 		8-97120-404-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (G) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (E) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399 		5-09623-061-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
(H) ASM PART: C = 8-97120-399-0, 97120399 		8-97120-405-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97073-272-1, 97073272 		5-44579-006-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		8-97120-402-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		5-44329-004-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97073-272-1, 97073272, C = 8-97120-399-0, 97120399, D = 8-97125-965-0, 97125965 		1-44159-027-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
