4-36 — POWER STEERING CONTROL; ENGINE SIDE (#47463) — 147 parça

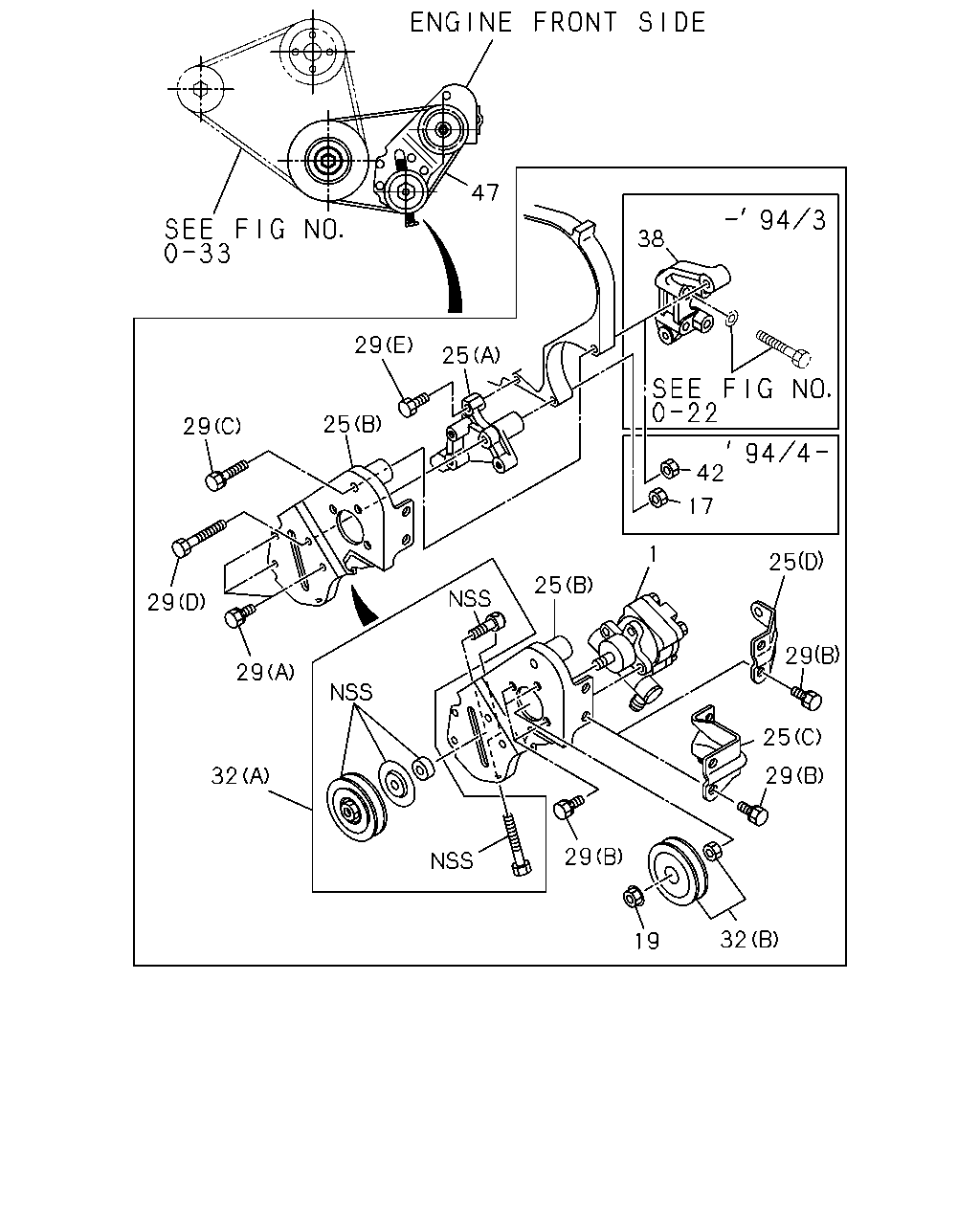

çizim 67359
47 38 29 25 25 29 42 17 1 25 25 29 29 29 25 29 32 29 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 		8-97081-999-0 01 1 9312-9510 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 		8-97081-999-0 01 1 9511- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97085-128-2 01 1 9312-9410 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-574-1 01 1 9508-9711 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-574-1 01 1 9712-9801 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97136-574-1 01 1 9712-9801 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-574-1 01 1 9802- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97136-574-1 01 1 9802- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> 		8-97084-207-0 01 1 9312-9506 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> 		8-97084-207-0 01 1 9507- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> 		8-97175-115-0 01 1 9712-9712 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97175-115-0 01 1 9712-9712 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> 		8-97175-115-0 01 1 9801- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97175-115-0 01 1 9801- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> 		8-97136-597-0 01 1 9712-9801 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97136-597-0 01 1 9712-9801 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> 		8-97136-597-0 01 1 9802- ● ● ●
17 06.606 NUT; POWER STRG PUMP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9404-9407 ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9408-9506 ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507- ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 9312-9506 ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 9507- ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 9312-9506 ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 9507- ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (A) 		8-97065-975-0 01 1 9312-9405 ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 9406-9506 ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 9507- ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (C) 		8-97065-976-0 01 1 9312-9403 ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (D) 		8-97107-872-0 01 1 9404-9506 ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> (D) 		8-97107-872-0 01 1 9507- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> (D) M8X105 		8-94134-128-1 01 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) POWER STEERING<N40> 06.672 (F) 		8-97029-877-1 01 1 9312-9511 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) 06.672 (F) 		8-97029-877-1 01 1 9511-9611 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) 06.672 (F) 		8-97029-877-1 01 1 9612-9711 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (F) M14X20 FLANGE 		0-28881-420-0 01 1 9712-9712 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (F) M14X20 FLANGE 		0-28881-420-0 01 1 9801-9802 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
EXC. CHARGE AIR COOLER<6PL> (F) M14X20 FLANGE 		0-28881-420-0 01 1 9801-9802 ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 9803- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9312-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 07 1 9312-9403 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9404-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> (C) M10X123 		8-94134-127-1 01 1 9312-9403 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9404-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> (D) M8X105 		8-94134-128-1 01 1 9312-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9312-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9707- ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 9312-9506 ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 9507- ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC) POWER STEERING<N40> (B) 		8-97084-332-0 01 1 9312-9506 ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC) POWER STEERING<N40> (B) 		8-97084-332-0 01 1 9507- ● ●
38 06.606 BRACKET; POWER STRG,ENG FOOT
4JG2 ENG(RJC) POWER STEERING<N40> 		8-94141-413-2 01 1 9312-9403 ●
42 06.672 NUT; ADJ PLATE
4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9711 ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9712 ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9712 ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9801-9802 ● ● ● ●
42 06.672 NUT; ADJ PLATE
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9801-9802 ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9803- ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9404-9406 ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9407-9506 ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9507- ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> 		8-97085-131-0 01 1 9312-9506 ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> 		8-97085-131-0 01 1 9507- ● ●

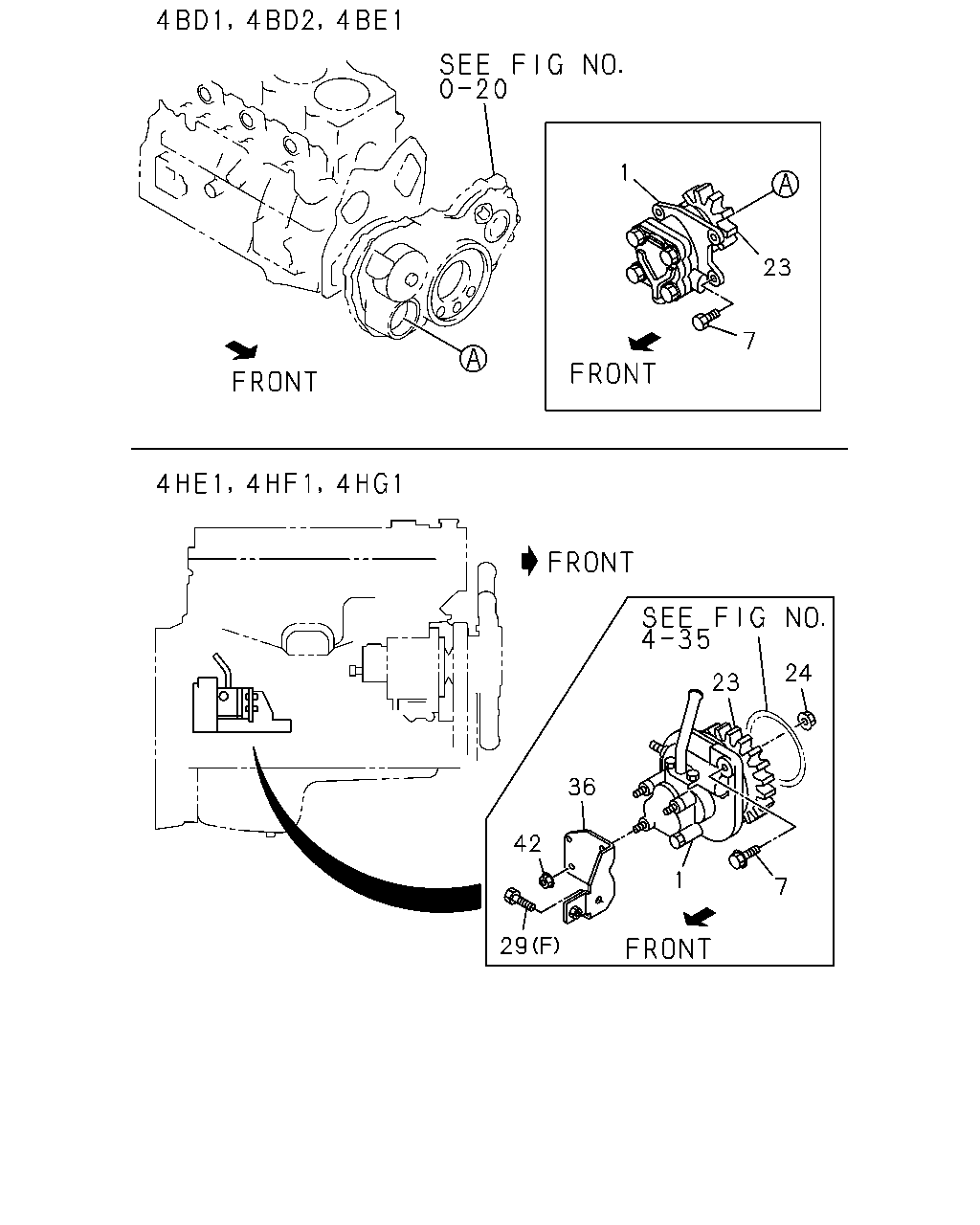

çizim 69689
1 23 7 24 23 36 42 1 7 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 		8-97081-999-0 01 1 9312-9510 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 		8-97081-999-0 01 1 9511- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97085-128-2 01 1 9312-9410 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-574-1 01 1 9508-9711 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-574-1 01 1 9712-9801 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97136-574-1 01 1 9712-9801 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-574-1 01 1 9802- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97136-574-1 01 1 9802- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> 		8-97084-207-0 01 1 9312-9506 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> 		8-97084-207-0 01 1 9507- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> 		8-97175-115-0 01 1 9712-9712 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97175-115-0 01 1 9712-9712 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> 		8-97175-115-0 01 1 9801- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97175-115-0 01 1 9801- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> 		8-97136-597-0 01 1 9712-9801 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97136-597-0 01 1 9712-9801 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> 		8-97136-597-0 01 1 9802- ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 04.104 M10X60 W/LK WASHER 		0-50041-060-0 03 1 9312-9510 ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 04.104 M10X60 W/LK WASHER 		0-50041-060-0 03 1 9511- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HF1 ENG(RLS) POWER STEERING<N40> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 9312-9602 ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HF1 ENG(RLS) POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 9603-9711 ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 9712- ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 		5-19581-005-0 01 1 9312-9510 ● ● ●
23 06.660 GEAR; OIL PUMP
4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 		5-19581-005-0 01 1 9602- ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-94341-677-2 01 1 9312-9410 ● ● ●
23 06.660 GEAR; OIL PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97114-550-0 01 1 9411-9711 ● ● ●
23 06.660 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 		8-97114-550-0 01 1 9712- ● ● ●
23 06.660 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 9712- ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> 07.243 M12 FLANGE 		0-91150-212-0 01 1 9712-9712 ● ●
24 06.673 NUT; GEAR,P/S PUMP
POWER STEERING<N40> 07.243 M12 FLANGE 		0-91150-212-0 01 1 9712-9712 ●
24 06.673 NUT; GEAR,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> 07.243 M12 FLANGE 		0-91150-212-0 01 1 9801- ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
07.243 M12 FLANGE 		0-91150-212-0 01 1 9801- ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> (D) M8X105 		8-94134-128-1 01 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9707- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) POWER STEERING<N40> 06.672 (F) 		8-97029-877-1 01 1 9312-9511 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) 06.672 (F) 		8-97029-877-1 01 1 9511-9611 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) 06.672 (F) 		8-97029-877-1 01 1 9612-9711 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (F) M14X20 FLANGE 		0-28881-420-0 01 1 9712-9712 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (F) M14X20 FLANGE 		0-28881-420-0 01 1 9801-9802 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
EXC. CHARGE AIR COOLER<6PL> (F) M14X20 FLANGE 		0-28881-420-0 01 1 9801-9802 ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 9803- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9312-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 07 1 9312-9403 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9404-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> (C) M10X123 		8-94134-127-1 01 1 9312-9403 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9404-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> (D) M8X105 		8-94134-128-1 01 1 9312-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9312-9506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9507-9706 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9707- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97028-812-0 01 1 9312-9406 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97028-812-0 01 1 9503-9510 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97119-857-1 01 1 9505-9711 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 		8-97119-857-1 01 1 9712-9805 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> 		8-97119-857-1 01 1 9712-9805 ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 		8-97209-356-0 01 1 9806- ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> 		8-97209-356-0 01 1 9806- ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> 		8-97112-866-0 01 1 9712-9712 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> 		8-97112-866-0 01 1 9712-9712 ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> 		8-97112-866-0 01 1 9801-9801 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
EXC. CHARGE AIR COOLER<6PL> 		8-97112-866-0 01 1 9801-9801 ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97112-866-0 01 1 9802- ●
42 06.672 NUT; ADJ PLATE
4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9711 ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9712 ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9712 ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9801-9802 ● ● ● ●
42 06.672 NUT; ADJ PLATE
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9801-9802 ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9803- ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9404-9406 ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9407-9506 ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9507- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
