4-31 — STEERING COLUMN AND SHAFT (#47460) — 558 parça

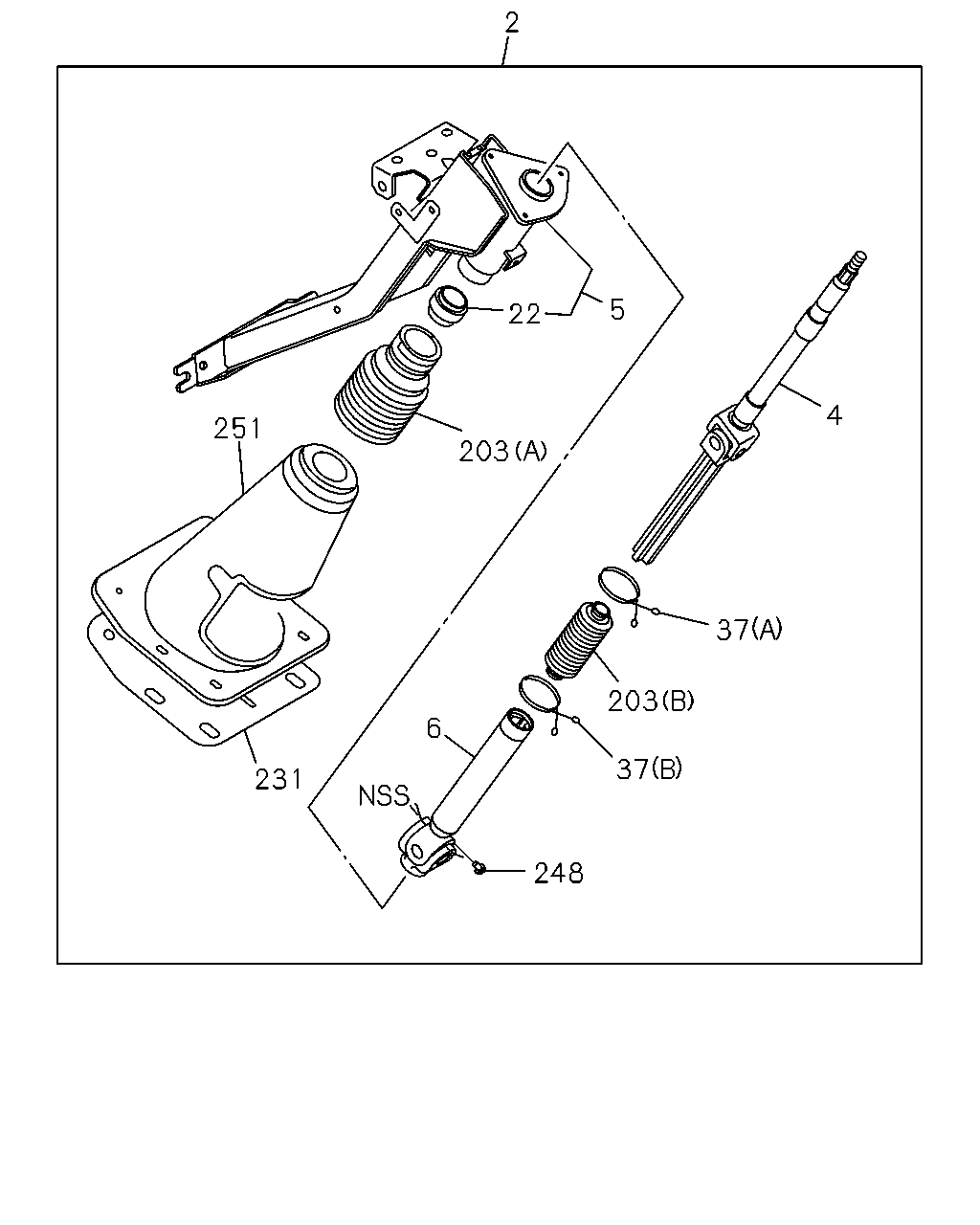

çizim 66922
2 5 22 4 251 203 37 203 6 37 231 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 06.518 SHAFT ASM; STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-5 01 1 9501-9604 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-7 01 1 9605-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9612-9702 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-974-0 01 1 9703-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> DARK BEIGE 		8-97097-016-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97097-016-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK 		8-97159-170-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-019-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97159-171-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-017-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-017-5 01 1 9501-9604 ● ● ● ●
4 06.524 SHAFT; STRG 8-97096-763-0 01 1 9312-9611 ● ● ● ●
4 06.524 SHAFT; STRG 8-97096-763-0 01 1 9612-9702 ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9703-9711 ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9712-9712 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-106-0 01 1 9801- ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9703-9711 ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9712- ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97201-110-1 01 1 9801- ● ● ● ● ● ●
5 06.518 COLUMN; STRG 8-97093-792-1 01 1 9312-9412 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-1 01 1 9501-9604 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9605-9611 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9612-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9712- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> 		8-97093-791-1 01 1 9501-9604 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 9605-9611 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 9612-9702 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9703-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9712- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9501-9611 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9612-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9712- ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR 8-97094-625-1 01 1 9312-9611 ● ● ● ●
6 06.524 SHAFT; STRG LWR 8-97094-625-1 01 1 9612-9702 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9703-9711 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9712-9712 ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9801- ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9703-9711 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9712- ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN 8-97076-821-0 01 1 9312-9611 ● ● ● ●
22 06.525 BUSHING; STRG COLUMN 8-97076-821-0 01 1 9612-9702 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9703-9711 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9712- ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9703-9711 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(B) 		8-94165-569-0 01 1 9312-9611 ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(B) 		8-94165-569-0 01 1 9612-9702 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A) 		8-94165-570-0 01 1 9312-9611 ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A) 		8-94165-570-0 01 1 9612-9702 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9712- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-94127-878-0 01 1 9312-9604 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9605-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9612-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9712-9712 ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97201-115-0 01 1 9801- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (B) 		8-97076-822-0 01 1 9312-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (B) 		8-97076-822-0 01 1 9612-9702 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (B) 		8-97076-822-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (B) 		8-97076-822-0 01 1 9712- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-94159-074-0 01 1 9605-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-94159-074-0 01 1 9612-9702 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-631-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-631-0 01 1 9712- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (B) 		8-97173-632-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (B) 		8-97173-632-0 01 1 9712- ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 9312-9611 ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 9612-9702 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9703-9711 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9712- ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9703-9711 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9712- ● ● ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9312-9501 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9502-9510 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9511-9711 ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9802- ● ● ●
248 06.518 SCREW; YOKE 8-97076-819-0 01 1 9312-9611 ● ● ● ●
248 06.518 SCREW; YOKE 8-97076-819-0 01 1 9612-9702 ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97076-819-0 01 1 9703-9711 ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97076-819-0 01 1 9712-9712 ● ● ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97097-466-1 01 1 9312-9605 ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97157-808-0 01 1 9606-9611 ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97157-808-0 01 1 9612-9702 ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 DARK BEIGE 		8-97157-808-0 01 1 9703-9711 ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 9712- ● ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 DARK BEIGE 		8-97158-976-0 01 1 9703-9711 ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 9712- ● ● ● ● ● ●

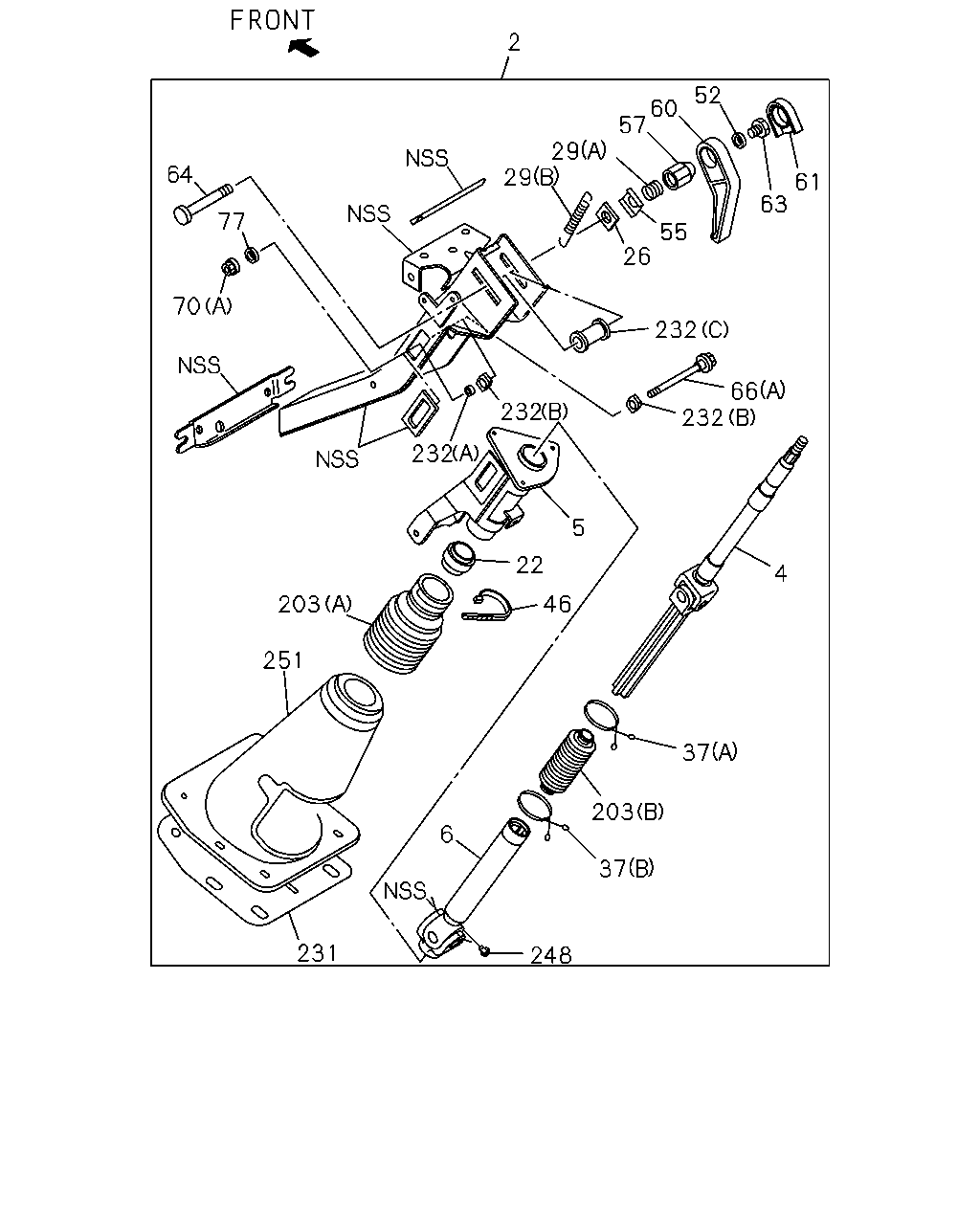

çizim 66981
2 52 60 57 29 29 64 61 63 77 55 26 70 232 66 232 232 232 5 22 4 203 46 251 37 203 6 37 231 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 06.518 SHAFT ASM; STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-5 01 1 9501-9604 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-7 01 1 9605-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9612-9702 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-974-0 01 1 9703-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> DARK BEIGE 		8-97097-016-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97097-016-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK 		8-97159-170-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-019-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97159-171-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-017-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-017-5 01 1 9501-9604 ● ● ● ●
4 06.524 SHAFT; STRG 8-97096-763-0 01 1 9312-9611 ● ● ● ●
4 06.524 SHAFT; STRG 8-97096-763-0 01 1 9612-9702 ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9703-9711 ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9712-9712 ● ● ● ● ● ●

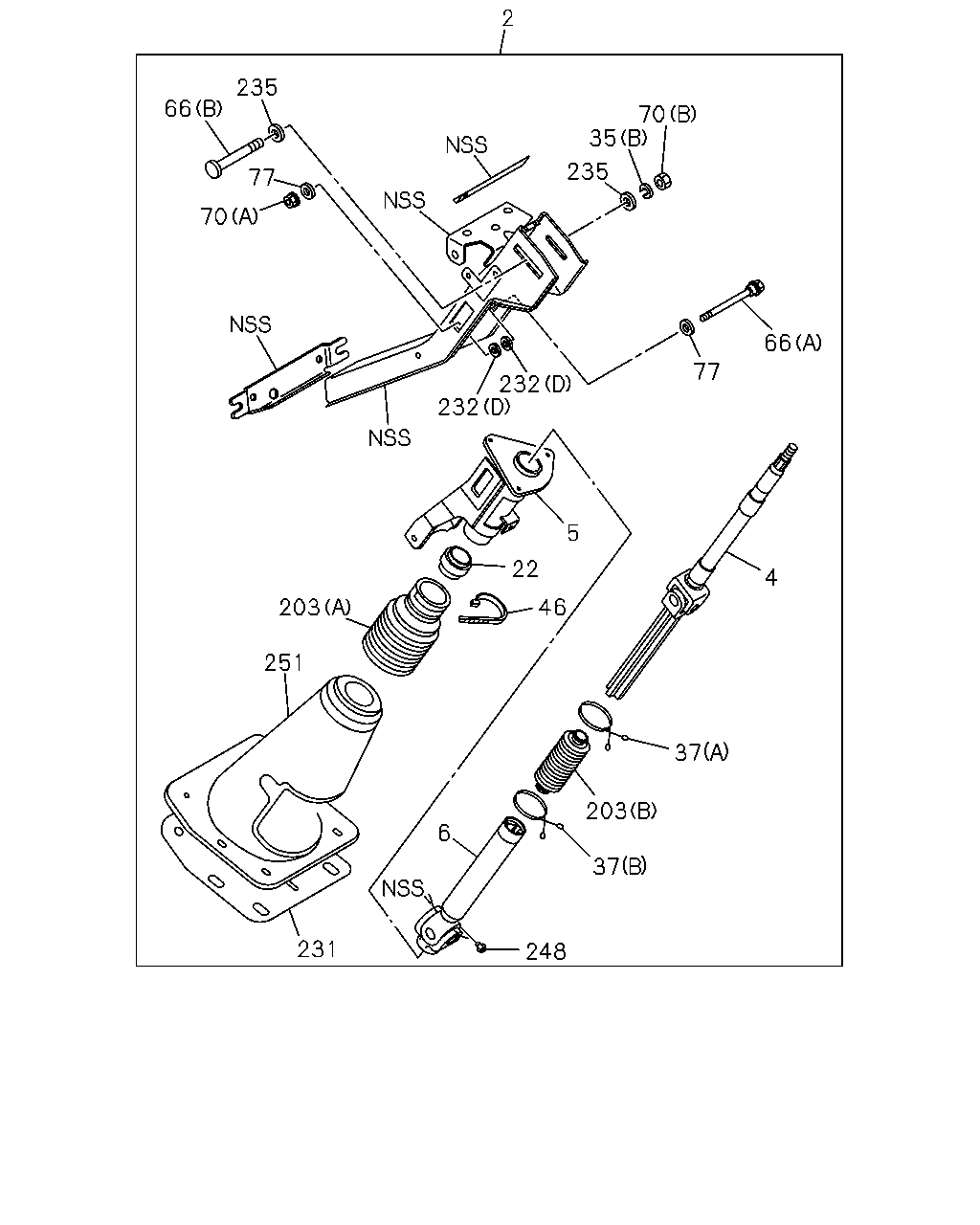

4 06.524 SHAFT; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-106-0 01 1 9801- ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9703-9711 ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9712- ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97201-110-1 01 1 9801- ● ● ● ● ● ●
5 06.518 COLUMN; STRG 8-97093-792-1 01 1 9312-9412 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-1 01 1 9501-9604 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9605-9611 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9612-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9712- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> 		8-97093-791-1 01 1 9501-9604 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 9605-9611 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 9612-9702 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9703-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9712- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9501-9611 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9612-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9712- ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR 8-97094-625-1 01 1 9312-9611 ● ● ● ●
6 06.524 SHAFT; STRG LWR 8-97094-625-1 01 1 9612-9702 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9703-9711 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9712-9712 ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9801- ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9703-9711 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9712- ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN 8-97076-821-0 01 1 9312-9611 ● ● ● ●
22 06.525 BUSHING; STRG COLUMN 8-97076-821-0 01 1 9612-9702 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9703-9711 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9712- ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9703-9711 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9712- ● ● ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97076-827-0 01 1 9312-9611 ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97076-827-0 01 1 9612-9711 ● ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97076-827-0 01 1 9712- ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97076-811-0 01 1 9312-9611 ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97076-811-0 01 1 9612-9711 ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97076-811-0 01 1 9712- ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (A) 		8-97076-829-0 01 1 9312-9611 ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (A) 		8-97076-829-0 01 1 9612-9711 ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (A) 		8-97076-829-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(B) 		8-94165-569-0 01 1 9312-9611 ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(B) 		8-94165-569-0 01 1 9612-9702 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A) 		8-94165-570-0 01 1 9312-9611 ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A) 		8-94165-570-0 01 1 9612-9702 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9712- ● ● ● ● ● ●
46 06.521 CLIP; BOOT 8-97076-809-0 01 1 9312-9604 ● ● ● ●
52 06.514 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 9312-9611 ● ● ● ●
52 06.514 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 9612-9711 ● ● ● ● ●
52 06.514 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 9712- ● ● ● ● ● ●
55 06.514 PLATE; GUIDE
TILT STEERING<N33> 		8-97076-828-0 01 1 9312-9611 ● ● ● ●
55 06.514 PLATE; GUIDE
TILT STEERING<N33> 		8-97076-828-0 01 1 9612-9711 ● ● ● ● ●
55 06.514 PLATE; GUIDE
TILT STEERING<N33> 		8-97076-828-0 01 1 9712- ● ● ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97076-826-0 01 1 9312-9611 ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97076-826-0 01 1 9612-9711 ● ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97076-826-0 01 1 9712- ● ● ● ● ● ●
60 06.518 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 9312-9611 ● ● ● ●
60 06.518 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 9612-9711 ● ● ● ● ●
60 06.518 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 9712- ● ● ● ● ● ●
61 06.514 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 9312-9611 ● ● ● ●
61 06.514 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 9612-9711 ● ● ● ● ●
61 06.514 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 9712- ● ● ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-824-0 01 1 9312-9611 ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-824-0 01 1 9612-9711 ● ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-824-0 01 1 9712- ● ● ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97076-825-0 01 1 9312-9611 ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97076-825-0 01 1 9612-9711 ● ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97076-825-0 01 1 9712- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9410-9611 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9612-9711 ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9712- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9312-9611 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9612-9711 ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9712- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97093-756-0 01 1 9312-9604 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
EXC. TILT STEERING<N33> (B) 		8-97093-757-0 01 1 9312-9604 ● ● ● ●
70 06.514 NUT; STRG COLUMN
(A) 		8-97076-807-0 01 1 9312-9604 ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-807-0 01 1 9605-9611 ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-807-0 01 1 9612-9711 ● ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-807-0 01 1 9712- ● ● ● ● ● ●
70 06.514 NUT; STRG COLUMN
EXC. TILT STEERING<N33> 04.634 (B) M12 		9-99110-512-0 01 1 9312-9604 ● ● ● ●
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9312-9611 ● ● ● ●
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9612-9711 ● ● ● ● ●
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9712- ● ● ● ● ● ●
77 06.760 WASHER; PL,COLUMN
EXC. TILT STEERING<N33> 		8-97076-804-0 02 1 9312-9604 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-94127-878-0 01 1 9312-9604 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9605-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9612-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9712-9712 ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97201-115-0 01 1 9801- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (B) 		8-97076-822-0 01 1 9312-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (B) 		8-97076-822-0 01 1 9612-9702 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (B) 		8-97076-822-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (B) 		8-97076-822-0 01 1 9712- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-94159-074-0 01 1 9605-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-94159-074-0 01 1 9612-9702 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-631-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-631-0 01 1 9712- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (B) 		8-97173-632-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (B) 		8-97173-632-0 01 1 9712- ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 9312-9611 ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 9612-9702 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9703-9711 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9712- ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9703-9711 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9312-9611 ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9612-9711 ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9312-9611 ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9612-9711 ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9605-9611 ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9612-9711 ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
EXC. TILT STEERING<N33> (D) 		8-97093-754-0 02 1 9312-9403 ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9312-9501 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9502-9510 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9511-9711 ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9802- ● ● ●
248 06.518 SCREW; YOKE 8-97076-819-0 01 1 9312-9611 ● ● ● ●
248 06.518 SCREW; YOKE 8-97076-819-0 01 1 9612-9702 ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97076-819-0 01 1 9703-9711 ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97076-819-0 01 1 9712-9712 ● ● ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97097-466-1 01 1 9312-9605 ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97157-808-0 01 1 9606-9611 ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97157-808-0 01 1 9612-9702 ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 DARK BEIGE 		8-97157-808-0 01 1 9703-9711 ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 9712- ● ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 DARK BEIGE 		8-97158-976-0 01 1 9703-9711 ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 9712- ● ● ● ● ● ●

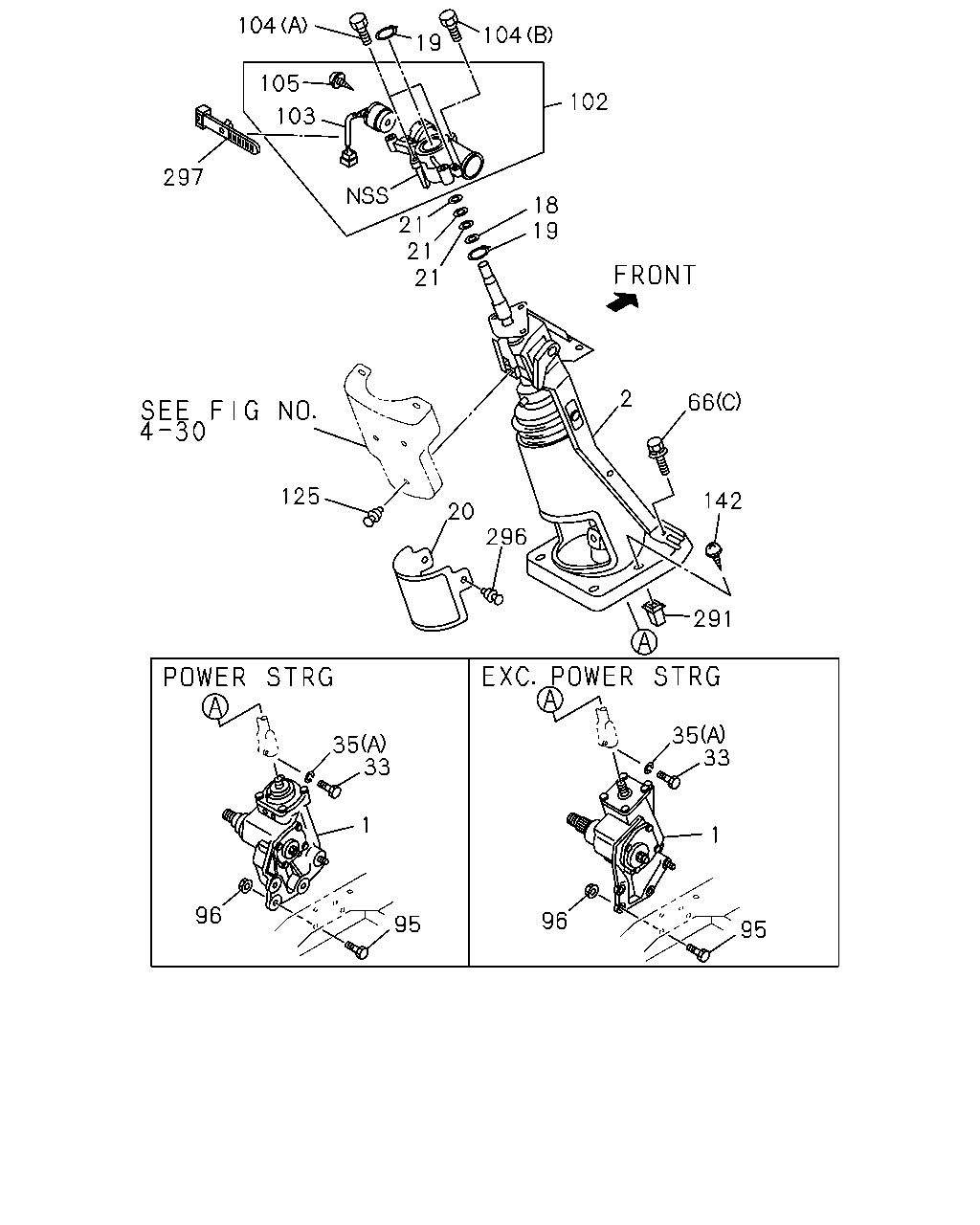

çizim 69775
104 104 19 105 102 103 297 18 19 21 21 21 2 66 125 142 20 296 291 35 33 35 33 1 1 96 96 95 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97073-272-1 01 1 9312-9408 ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) POWER STEERING<N40> 		8-97073-272-1 01 1 9409-9504 ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97073-274-0 01 1 9312-9611 ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97073-274-0 01 1 9612-9711 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97073-274-0 01 1 9712-9712 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97073-274-0 01 1 9801- ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4BD2 ENG(RLW) POWER STEERING<N40> 		8-97120-399-0 01 1 9409-9504 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97125-965-0 01 1 9505-9510 ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97125-965-0 01 1 9511-9603 ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97125-965-0 01 1 9604-9611 ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97125-965-0 01 1 9612-9711 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97173-468-3 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-5 01 1 9501-9604 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-7 01 1 9605-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9612-9702 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-974-0 01 1 9703-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> DARK BEIGE 		8-97097-016-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97097-016-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK 		8-97159-170-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-019-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97159-171-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-017-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-017-5 01 1 9501-9604 ● ● ● ●
18 06.525 WASHER; STEERING SHAFT
06.500 ID=19 		8-94146-919-0 01 1 9312-9611 ● ● ● ●
18 06.525 WASHER; STEERING SHAFT
06.500 ID=19 		8-94146-919-0 01 1 9612-9711 ● ● ● ● ●
18 06.525 WASHER; STEERING SHAFT
06.500 ID=19 		8-94146-919-0 01 1 9712- ● ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 02 1 9312-9611 ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 02 1 9612-9711 ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 02 1 9712- ● ● ● ● ● ●
20 06.525 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 9312-9611 ● ● ● ●
20 06.525 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 9612-9704 ● ● ● ● ●
20 06.525 COVER; STRG SHAFT
DARK BEIGE 		8-97158-892-0 01 1 9705-9711 ● ● ● ● ●
20 06.525 COVER; STRG SHAFT
06.578 BLACK 		8-97159-169-0 01 1 9712- ● ● ● ● ● ●
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 9312-9611 ● ● ● ●
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 9612-9711 ● ● ● ● ●
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 9712- ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M10X33 		8-94249-011-1 01 1 9312-9611 ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M10X33 		8-94249-011-1 01 1 9612-9711 ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M10X33 		8-94249-011-1 01 1 9712-9801 ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
EXC. TILT STEERING<N33> M10X33 		8-94249-011-1 01 1 9802- ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> M8X30 		8-94247-692-0 01 1 9802- ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
08.929 (A) ID=10.2 		9-09150-810-0 01 1 9312-9611 ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
08.929 (A) ID=10.2 		9-09150-810-0 01 1 9612-9711 ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
08.929 (A) ID=10.2 		9-09150-810-0 01 1 9712-9801 ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> 08.929 (A) ID=10.2 		9-09150-810-0 01 1 9802- ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> (B) 		8-97093-758-0 01 1 9312-9604 ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> 00.002 (B) ID=8.2 		9-09150-508-0 01 1 9802- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9410-9611 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9612-9711 ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9712- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9312-9611 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9612-9711 ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9712- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97093-756-0 01 1 9312-9604 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
EXC. TILT STEERING<N33> (B) 		8-97093-757-0 01 1 9312-9604 ● ● ● ●
95 06.509 BOLT; STRG UNIT
M12X39 		8-97029-320-0 03 1 9312-9611 ● ● ● ●
95 06.509 BOLT; STRG UNIT
M12X39 		8-97029-320-0 03 1 9612-9711 ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M12X39 		8-97029-320-0 03 1 9712-9809 ● ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M12X45 		8-97212-810-0 03 1 9810- ● ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 9312-9611 ● ● ● ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 9612-9711 ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 9712- ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97046-219-0 01 1 9312-9501 ● ● ●
102 06.500 LOCK ASM; STRG
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97046-219-0 01 1 9502-9510 ● ● ●
102 06.500 LOCK ASM; STRG
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97046-219-0 01 1 9511-9612 ● ●
102 06.500 LOCK ASM; STRG
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-362-0 01 1 9701-9711 ● ●
102 06.500 LOCK ASM; STRG
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-362-0 01 1 9712-9801 ● ● ●
102 06.500 LOCK ASM; STRG 8-97170-362-0 01 1 9712-9801 ● ● ●
102 06.500 LOCK ASM; STRG
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-362-0 01 1 9802- ● ● ●
102 06.500 LOCK ASM; STRG
EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-277-0 01 1 9312-9501 ● ● ●
102 06.500 LOCK ASM; STRG 8-97088-277-0 01 1 9312-9501 ●
102 06.500 LOCK ASM; STRG
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-277-0 01 1 9502-9504 ● ● ● ● ●
102 06.500 LOCK ASM; STRG 8-97088-277-0 01 1 9502-9504 ●
102 06.500 LOCK ASM; STRG
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-277-0 01 1 9505-9510 ● ● ●
102 06.500 LOCK ASM; STRG 8-97088-277-0 01 1 9505-9510 ●
102 06.500 LOCK ASM; STRG
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-277-0 01 1 9511-9611 ● ● ●
102 06.500 LOCK ASM; STRG 8-97088-277-0 01 1 9511-9611 ●
102 06.500 LOCK ASM; STRG
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-277-0 01 1 9612-9612 ● ● ●
102 06.500 LOCK ASM; STRG 8-97088-277-0 01 1 9612-9612 ● ●
102 06.500 LOCK ASM; STRG
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-364-0 01 1 9701-9711 ● ● ●
102 06.500 LOCK ASM; STRG 8-97170-364-0 01 1 9701-9711 ● ●
102 06.500 LOCK ASM; STRG
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-364-0 01 1 9712-9807 ● ● ●
102 06.500 LOCK ASM; STRG 8-97170-364-0 01 1 9712-9807 ● ● ●
102 06.500 LOCK ASM; STRG
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-364-0 01 1 9808- ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97088-276-0 01 1 9502-9612 ● ● ●
102 06.500 LOCK ASM; STRG
4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97170-363-0 01 1 9701-9711 ● ● ●
102 06.500 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-962-0 01 1 9502-9506 ●
102 06.500 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-962-0 01 1 9507-9612 ● ●
102 06.500 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97170-365-0 01 1 9701-9711 ● ●
102 06.500 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-365-0 01 1 9712-9801 ● ●
102 06.500 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97170-365-0 01 1 9802- ● ●
103 02.188 SWITCH; IGNITION
SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97080-580-0 01 1 9312-9501 ● ● ●
103 02.188 SWITCH; IGNITION
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97080-580-0 01 1 9502-9510 ● ● ●
103 02.188 SWITCH; IGNITION
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97080-580-0 01 1 9511-9711 ● ●
103 02.188 SWITCH; IGNITION
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97080-580-0 01 1 9712-9801 ● ● ●
103 02.188 SWITCH; IGNITION 8-97080-580-0 01 1 9712-9801 ● ● ●
103 02.188 SWITCH; IGNITION
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97080-580-0 01 1 9802- ● ● ●
103 02.188 SWITCH; IGNITION
EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-268-0 01 1 9312-9501 ● ● ●
103 02.188 SWITCH; IGNITION 8-97088-268-0 01 1 9312-9501 ●
103 02.188 SWITCH; IGNITION
4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97088-268-0 01 1 9502-9510 ● ● ●
103 02.188 SWITCH; IGNITION
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-268-0 01 1 9502-9510 ● ● ●
103 02.188 SWITCH; IGNITION 8-97088-268-0 01 1 9502-9510 ●
103 02.188 SWITCH; IGNITION
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-268-0 01 1 9511-9611 ● ● ● ●
103 02.188 SWITCH; IGNITION
EXC. FLOOR REMOTE SHIFT<M11> 		8-97088-268-0 01 1 9511-9611 ● ● ●
103 02.188 SWITCH; IGNITION
4BD2 ENG(RLW) 		8-97088-268-0 01 1 9511-9611 ● ●
103 02.188 SWITCH; IGNITION
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-268-0 01 1 9612-9704 ● ● ● ● ●
103 02.188 SWITCH; IGNITION
EXC. FLOOR REMOTE SHIFT<M11> 		8-97088-268-0 01 1 9612-9704 ● ● ●
103 02.188 SWITCH; IGNITION
4BD2 ENG(RLW) 		8-97088-268-0 01 1 9612-9704 ● ●
103 02.188 SWITCH; IGNITION
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-268-0 01 1 9705-9711 ● ● ● ● ●
103 02.188 SWITCH; IGNITION
EXC. FLOOR REMOTE SHIFT<M11> 		8-97088-268-0 01 1 9705-9711 ● ● ●
103 02.188 SWITCH; IGNITION
4BD2 ENG(RLW) 		8-97088-268-0 01 1 9705-9711 ● ● ●
103 02.188 SWITCH; IGNITION
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-268-0 01 1 9712-9807 ● ● ●
103 02.188 SWITCH; IGNITION 8-97088-268-0 01 1 9712-9807 ● ● ●
103 02.188 SWITCH; IGNITION
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97088-268-0 01 1 9808- ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-997-0 01 1 9502-9506 ●
103 02.188 SWITCH; IGNITION
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-997-0 01 1 9507-9711 ● ●
103 02.188 SWITCH; IGNITION
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97117-997-0 01 1 9712-9801 ● ●
103 02.188 SWITCH; IGNITION
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 		8-97117-997-0 01 1 9802- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(A) M6X25 		8-94279-204-0 02 1 9312-9501 ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(A) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9502-9611 ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(A) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9612-9711 ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(A) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9712-9806 ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(A) M6X30 W/LK&PL WASHER 		8-97189-885-0 02 1 9807- ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(B) M6X21 TORQUE BOLT 		8-94331-124-0 01 1 9312-9501 ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9502-9504 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPEAN BASIC EQUIPMENT(EK4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9502-9504 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9502-9504 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9505-9611 ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9612-9711 ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9712-9806 ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X30 W/LK&PL WASHER 		8-97189-885-0 01 1 9807- ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPEAN BASIC EQUIPMENT(EK4) IDENTIFICATION LABEL FOR KD<6UT> (B) M6X21 TORQUE BOLT 		8-94331-124-0 01 1 9502-9504 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X21 TORQUE BOLT 		8-94331-124-0 01 1 9505-9506 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X21 TORQUE BOLT 		8-94331-124-0 01 1 9507-9711 ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPEAN BASIC EQUIPMENT(EK4) (B) M6X21 TORQUE BOLT 		8-94331-124-0 01 1 9712- ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9312-9611 ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9612-9711 ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9712- ● ● ● ● ● ●
125 06.521 CLIP; STRG SHAFT
DARK BEIGE 		8-97856-011-0 01 1 9312-9611 ● ● ● ●
125 06.521 CLIP; STRG SHAFT
DARK BEIGE 		8-97856-011-0 01 1 9612-9711 ● ● ● ● ●
125 06.521 CLIP; STRG SHAFT
DARK GRAY 		8-97857-542-0 01 1 9712- ● ● ● ● ● ●
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 9312-9611 ● ● ● ●
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 9612-9711 ● ● ● ● ●
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 9712- ● ● ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9312-9501 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9502-9510 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9511-9711 ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9802- ● ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 H=15 		8-94463-268-1 06 1 9312-9611 ● ● ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 H=15 		8-94463-268-1 06 1 9612-9711 ● ● ● ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 H=15 		8-94463-268-1 06 1 9712- ● ● ● ● ● ●
296 06.525 CLIP; COVER
06.521 DARK BEIGE 		8-97856-011-0 01 1 9312-9611 ● ● ● ●
296 06.525 CLIP; COVER
06.521 DARK BEIGE 		8-97856-011-0 01 1 9612-9711 ● ● ● ● ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 9712-9712 ● ● ● ● ● ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 9801- ● ● ● ● ● ●
296 06.525 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 9801- ● ● ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 02 1 9312-9504 ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 9505-9611 ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 9612-9711 ● ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 9712- ● ● ● ● ● ●
çizim 70093
2 235 66 70 35 235 77 70 66 77 232 232 5 22 4 203 46 251 37 203 6 37 231 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 06.518 SHAFT ASM; STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-5 01 1 9501-9604 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-018-7 01 1 9605-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97157-807-0 01 1 9612-9702 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-974-0 01 1 9703-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> DARK BEIGE 		8-97097-016-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97097-016-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE 		8-97157-804-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK 		8-97159-170-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-019-6 01 1 9501-9605 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9606-9611 ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-0 01 1 9612-9711 ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97159-171-1 01 1 9712- ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97097-017-5 01 1 9312-9412 ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97097-017-5 01 1 9501-9604 ● ● ● ●
4 06.524 SHAFT; STRG 8-97096-763-0 01 1 9312-9611 ● ● ● ●
4 06.524 SHAFT; STRG 8-97096-763-0 01 1 9612-9702 ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9703-9711 ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9712-9712 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-106-0 01 1 9801- ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9703-9711 ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9712- ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97201-110-1 01 1 9801- ● ● ● ● ● ●
5 06.518 COLUMN; STRG 8-97093-792-1 01 1 9312-9412 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-1 01 1 9501-9604 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9605-9611 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9612-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> 		8-97093-792-2 01 1 9712- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> 		8-97093-791-1 01 1 9501-9604 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 9605-9611 ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 9612-9702 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9703-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9712- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9501-9611 ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9612-9711 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9712- ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR 8-97094-625-1 01 1 9312-9611 ● ● ● ●
6 06.524 SHAFT; STRG LWR 8-97094-625-1 01 1 9612-9702 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9703-9711 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9712-9712 ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9801- ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9703-9711 ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9712- ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN 8-97076-821-0 01 1 9312-9611 ● ● ● ●
22 06.525 BUSHING; STRG COLUMN 8-97076-821-0 01 1 9612-9702 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9703-9711 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9712- ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9703-9711 ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9712- ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
08.929 (A) ID=10.2 		9-09150-810-0 01 1 9312-9611 ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
08.929 (A) ID=10.2 		9-09150-810-0 01 1 9612-9711 ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
08.929 (A) ID=10.2 		9-09150-810-0 01 1 9712-9801 ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> 08.929 (A) ID=10.2 		9-09150-810-0 01 1 9802- ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> (B) 		8-97093-758-0 01 1 9312-9604 ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> 00.002 (B) ID=8.2 		9-09150-508-0 01 1 9802- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(B) 		8-94165-569-0 01 1 9312-9611 ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(B) 		8-94165-569-0 01 1 9612-9702 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A) 		8-94165-570-0 01 1 9312-9611 ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A) 		8-94165-570-0 01 1 9612-9702 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9712- ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9703-9711 ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9712- ● ● ● ● ● ●
46 06.521 CLIP; BOOT 8-97076-809-0 01 1 9312-9604 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9410-9611 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9612-9711 ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9712- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9312-9611 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9612-9711 ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9712- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97093-756-0 01 1 9312-9604 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
EXC. TILT STEERING<N33> (B) 		8-97093-757-0 01 1 9312-9604 ● ● ● ●
70 06.514 NUT; STRG COLUMN
(A) 		8-97076-807-0 01 1 9312-9604 ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-807-0 01 1 9605-9611 ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-807-0 01 1 9612-9711 ● ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-807-0 01 1 9712- ● ● ● ● ● ●
70 06.514 NUT; STRG COLUMN
EXC. TILT STEERING<N33> 04.634 (B) M12 		9-99110-512-0 01 1 9312-9604 ● ● ● ●
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9312-9611 ● ● ● ●
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9612-9711 ● ● ● ● ●
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9712- ● ● ● ● ● ●
77 06.760 WASHER; PL,COLUMN
EXC. TILT STEERING<N33> 		8-97076-804-0 02 1 9312-9604 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-94127-878-0 01 1 9312-9604 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9605-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9612-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-94127-878-0 01 1 9712-9712 ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97201-115-0 01 1 9801- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (B) 		8-97076-822-0 01 1 9312-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
06.518 (B) 		8-97076-822-0 01 1 9612-9702 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (B) 		8-97076-822-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (B) 		8-97076-822-0 01 1 9712- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-94159-074-0 01 1 9605-9611 ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-94159-074-0 01 1 9612-9702 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-631-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-631-0 01 1 9712- ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (B) 		8-97173-632-0 01 1 9703-9711 ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (B) 		8-97173-632-0 01 1 9712- ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 9312-9611 ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 9612-9702 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9703-9711 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9712- ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9703-9711 ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9312-9611 ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9612-9711 ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9312-9611 ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9612-9711 ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9605-9611 ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9612-9711 ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9712- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
EXC. TILT STEERING<N33> (D) 		8-97093-754-0 02 1 9312-9403 ● ● ● ●
235 06.515 WASHER; PL,STRG SHAFT
EXC. TILT STEERING<N33> 		8-97093-755-0 02 1 9312-9604 ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9312-9501 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9502-9510 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9511-9711 ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9712-9801 ● ● ●
237 02.195 SCREW; DOOR WARNING SW
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 02 1 9802- ● ● ●
248 06.518 SCREW; YOKE 8-97076-819-0 01 1 9312-9611 ● ● ● ●
248 06.518 SCREW; YOKE 8-97076-819-0 01 1 9612-9702 ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97076-819-0 01 1 9703-9711 ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97076-819-0 01 1 9712-9712 ● ● ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97097-466-1 01 1 9312-9605 ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97157-808-0 01 1 9606-9611 ● ● ● ●
251 06.518 COVER; LWR
06.578 DARK BEIGE 		8-97157-808-0 01 1 9612-9702 ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 DARK BEIGE 		8-97157-808-0 01 1 9703-9711 ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 9712- ● ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 DARK BEIGE 		8-97158-976-0 01 1 9703-9711 ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
